Mitsubishi Outlander (2013+). Manual - part 334





GENERAL INFORMATION

ENGINE COOLING

14-2

GENERAL INFORMATION

M1141000102333

The cooling system is designed to keep every part of
the engine at appropriate temperature in whatever
condition the engine may be operated. The cooling
method is of the water-cooled, pressure forced circu-
lation type in which the water pump pressurizes cool-
ant and circulates it throughout the engine. If the
coolant temperature exceeds the prescribed temper-
ature, the thermostat opens to circulate the coolant

through the radiator as well so that the heat
absorbed by the coolant may be radiated into the air.
The water pump is of the centrifugal impeller type
and is driven by the drive belt from the crankshaft.
The radiator is the corrugated fin, cross flow type.

SPECIFICATION

Item

Specification

Radiator

Performance kJ/h

201,800

SERVICE SPECIFICATIONS

M1141000302229

Item

Standard value

Limit

Valve opening pressure of radiator cap kPa

93

− 123

Minimum 83

Range of coolant antifreeze concentration of radiator %

30

− 60

Thermostat

Valve opening temperature of thermostat

°C

82

± 1.5

Full-opening temperature of thermostat

°C

95

Valve lift mm

8.5 or more

LUBRICANT

M1141000402055

Item

Specified coolant

Quantity L

Engine coolant (including 0.65 L in
the radiator condenser tank)

DIA QUEEN SUPER LONG LIFE COOLANT
PREMIUM or equivalent*

Approximately 7.5

NOTE: *similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate cool-
ant with long life hybrid organic acid technology.

SEALANT

M1141000501822

Item

Specified sealant

Remark

Engine coolant temperature sensor ThreeBond 1324N, LOCTITE 262 or equivalent

Anaerobic sealant

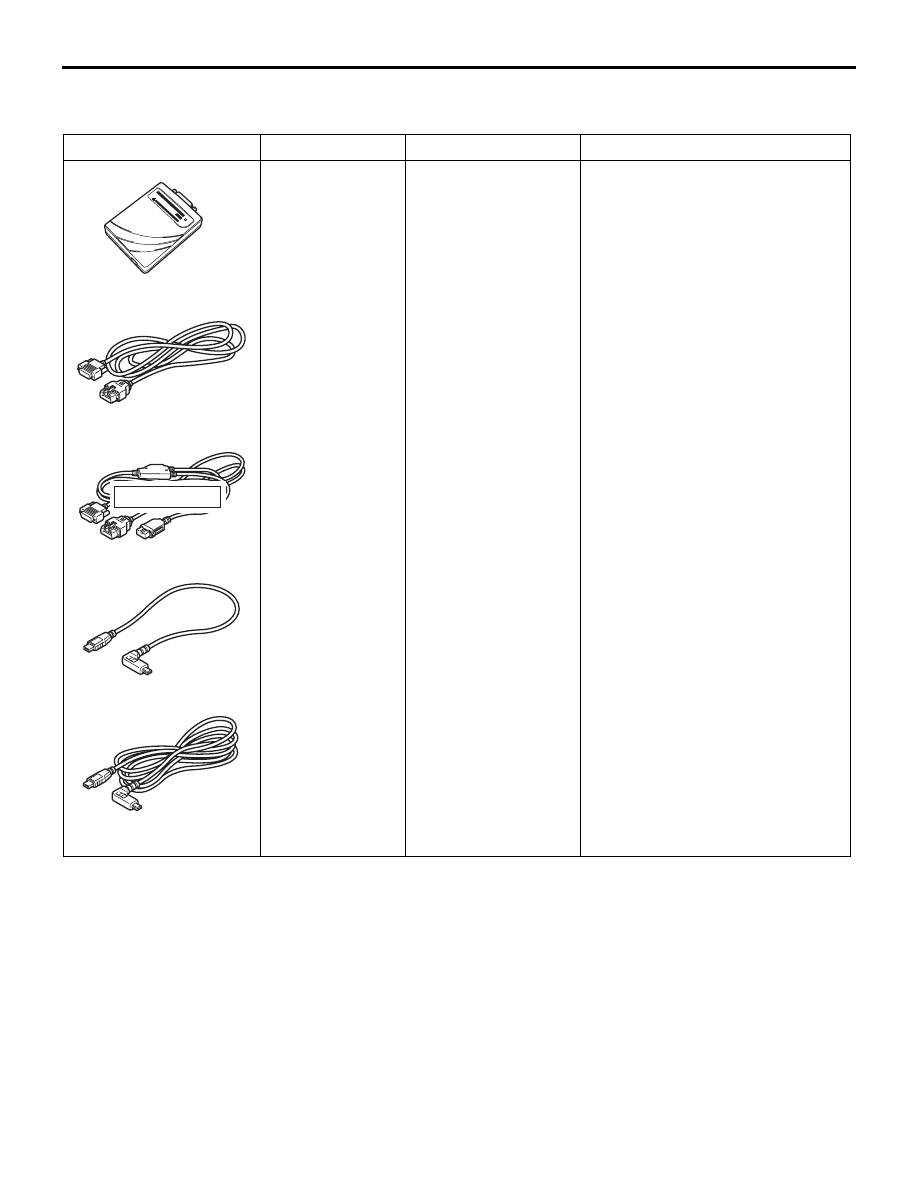

SPECIAL TOOLS

ENGINE COOLING

14-3

SPECIAL TOOLS

M1141000601818

Tool

Number

Name

Use

ACB05421

MB992745

MB992746

MB992744

MB992747

MB992748

a

b

c

d

e

DO NOT USE

AB

a. MB992744
b. MB992745
c. MB992746
d. MB992747
e. MB992748

a. Vehicle

communication
interface-Lite
(V.C.I.-Lite)

b. V.C.I.-Lite main

harness A (for
vehicles with CAN
communication)

c. V.C.I.-Lite main

harness B (for
vehicles without
CAN
communication)

d. V.C.I.-Lite USB

cable short

e. V.C.I.-Lite USB

cable long

• Reading diagnosis codes.

• Actuator test.

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

a

b

c

d

e

f

DO NOT USE

SPECIAL TOOLS

ENGINE COOLING

14-4

MB991955

a: MB991824
b: MB991827
c: MB991910
d: MB991911
e: MB991825
f: MB991826

M.U.T.-III sub
assembly

a: Vehicle

communication
interface (V. C. I.)

b: M.U.T.-III USB

cable

c: M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d: M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e: M.U.T.-III

measurement
adapter

f: M.U.T.-III trigger

harness

CAUTION

For vehicles with CAN
communication, use M.U.T.-III
main harness A to send
simulated vehicle speed. If you
connect M.U.T.-III main harness B
instead, the CAN communication
does not function correctly.

• Reading diagnosis codes.

• Actuator test.

MB991223

a

d

c

b

DO NOT USE

BF

MB991223

a: MB991219
b: MB991220
c: MB991221
d: MB991222

Harness set

a: Check harness
b: LED harness
c: LED harness

adapter

d: Probe

Checking the continuity and
measuring the voltage at the
harness connector.

Tool

Number

Name

Use

MB992006

TROUBLESHOOTING

ENGINE COOLING

14-5

TROUBLESHOOTING

INSPECTION CHART FOR TROUBLE
SYMPTOMS

M1141005601095

Trouble symptom

Inspection procedure No. Reference page

Radiator fan and condenser fan do not operate

1

P.14-5

SYMPTOM PROCEDURES

Inspection Procedure 1: Radiator Fan and Condenser Fan do not Operate

OPERATION

• Based on the signal from the engine coolant tem-

perature sensor and the signal from the second-
ary pulley speed sensor signal (vehicle speed
signal) from the CVT-ECU, and the A/C switch
signal from the A/C-ECU, the engine-ECU sends
the radiator fan and condenser fan control signal
to the ETACS-ECU via CAN bus line.

• Based on the radiator fan and condenser fan con-

trol signal from the engine-ECU, the ETACS-ECU
turns ON/OFF the radiator fan relay, condenser
fan relay, and the fan control relay to control the
rotation of the radiator fan motor and condenser
fan motor.

TECHNICAL DESCRIPTION

• If the radiator fan and condenser fan do not oper-

ate, the radiator fan motor, the condenser fan
motor, the radiator fan relay, the condenser fan
relay, the fan control relay, the ETACS-ECU may
be defective.

• The CAN bus line, ETACS-ECU, CVT system,

A/C system, or MPI system may also be defec-
tive.

PROBABLE CAUSES

• Malfunction of CAN bus system.

• Damaged harness or connector.

• Malfunction of the MPI system.

• Malfunction of the CVT system.

• Malfunction of the A/C system.

• Malfunction of fusible link SBF3.

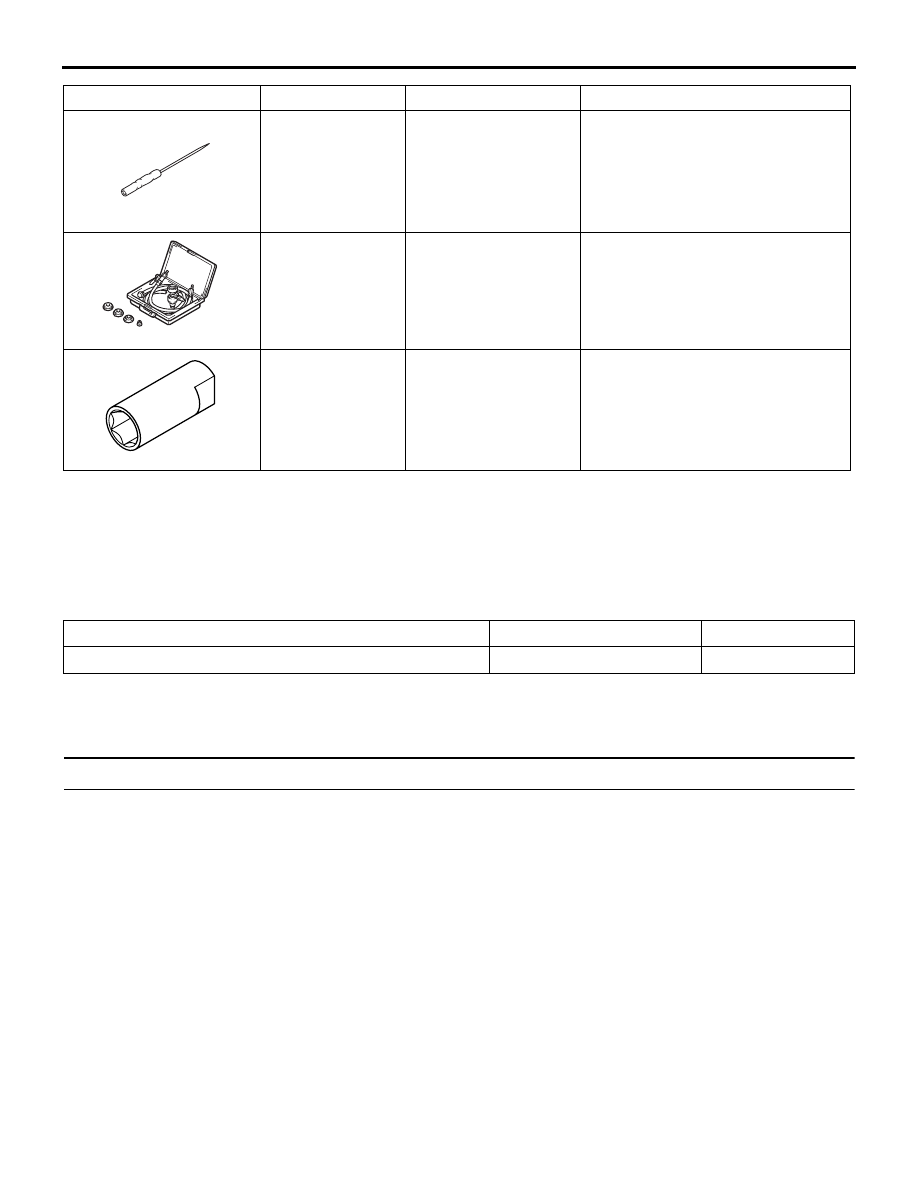

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector for loose, corroded or
damaged terminals, or terminals
pushed back in the connector.

MB991870AB

MB991871

LLC changer

Coolant refilling.

MB992042

MB992042

Water temperature
sensor wrench

Engine coolant temperature sensor
removal and installation.

Tool

Number

Name

Use
