TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-169

CAUTION

Short-circuiting the positive (+) probe between a
connector terminal and earth could damage the
vehicle wiring, the sensor, engine-ECU or all of
them. Be careful to prevent this!

4. If voltmeter shows any division from standard

value, check the corresponding sensor, actuator
and related electrical wiring, then repair or
replace.

5. After repair or replacement, recheck with the

voltmeter to confirm that the repair has corrected
the problem.

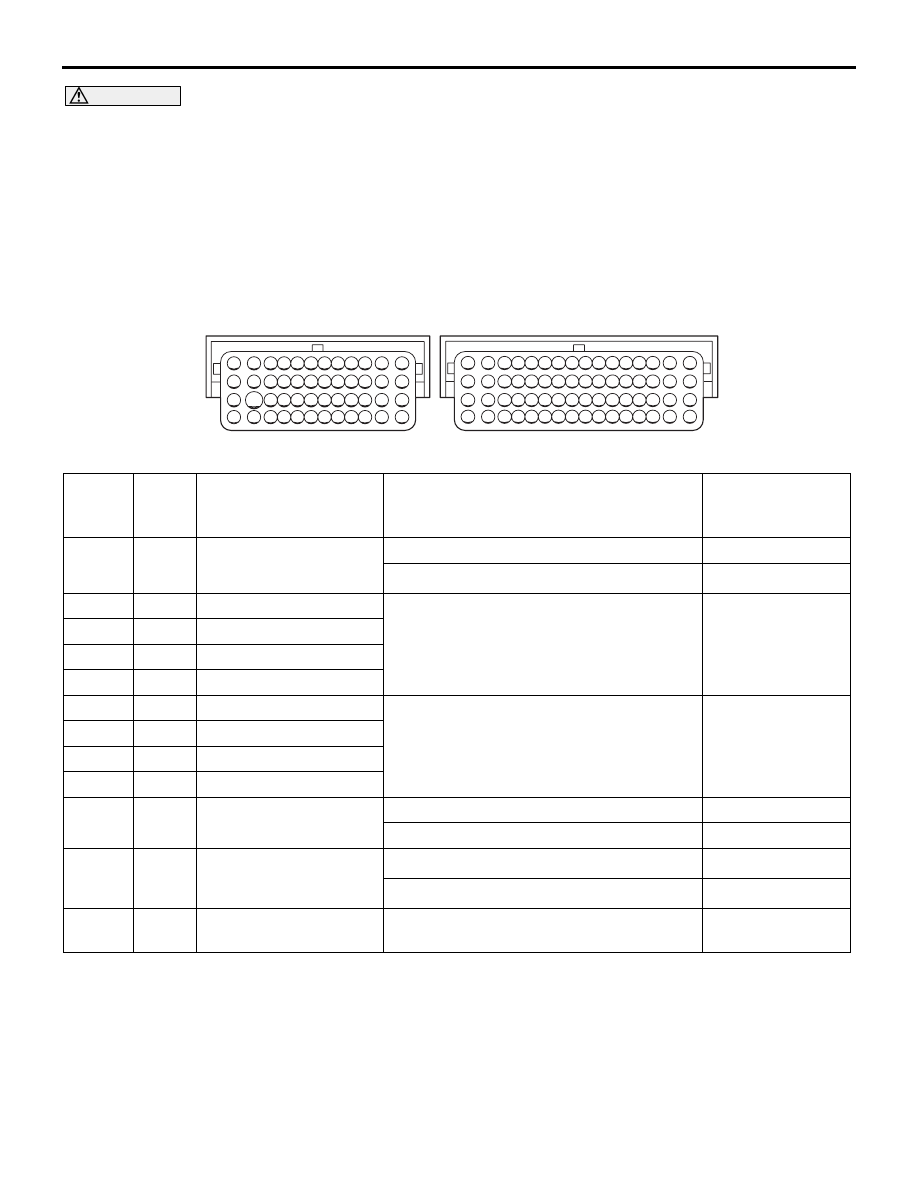

TERMINAL VOLTAGE CHECK CHART

AK502614

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

AO

Special Tool Check Harness (MB992110) Connector Terminal Arrangement

Termin
al No.

Termi
nal
code

Inspection Item

Check condition (Engine condition)

Normal condition

1

OCVI

Inlet oil feeder control
valve

Ignition switch: "ON"

System voltage

Under the high load operation.

4

− 10 V

*1

2

INJ1

No. 1 injector

Engine: While engine is idling after having
warmed up, suddenly depress the
accelerator pedal.

From 9

− 15 V

*1

, it

is slightly reduced
temporarily.

3

INJ2

No. 2 injector

18

INJ3

No. 3 injector

19

INJ4

No. 4 injector

4

CIL1

Ignition coil No. 1

Engine: 3,000 r/min

0.3

− 3.0 V

*1

5

CIL2

Ignition coil No. 2

20

CIL3

Ignition coil No. 3

21

CIL4

Ignition coil No. 4

6

NTSW Starter active signal

Engine: Cranking

System voltage

Engine: Idling

1 V or less

8

SGT

Crank angle sensor

Engine: Cranking

0.4

− 4.0 V

*1

Engine: Idle operation

2.0

− 3.0 V

*1

9

5V

Sensor impressed
voltage

Ignition switch: "ON"

System voltage

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-170

10

TPSM

Throttle position sensor
(main)

• Remove the

intake air hose at
the throttle body.

• Disconnect the

connector of the
electronic-controll
ed throttle valve.

• With the special

tool test harness
(MB991658)
bridge only the
mating terminals
of No. 3, No. 4,
No. 5, and No. 6
of the
disconnected
connectors.

• Ignition switch:

"ON" (engine
stopped)

Fully close the
throttle valve with
your finger.

0.3

− 0.7 V

Fully open the
throttle valve with
your finger.

4.0

− 4.8 V

11

TPSS

Throttle position sensor
(sub)

• Remove the

intake air hose at
the throttle body.

• Disconnect the

connector of the
electronic-controll
ed throttle valve.

• With the special

tool test harness
(MB991658)
bridge only the
mating terminals
of No. 3, No. 4,
No. 5, and No. 6
of the
disconnected
connectors.

• Ignition switch:

"ON" (engine
stopped)

Fully close the
throttle valve with
your finger.

4 V or more

Fully open the
throttle valve with
your finger.

1 V or less

12

TPS5

Applied voltage to the
throttle position sensor

Ignition switch: "ON"

4.9

− 5.1 V

14

CPI

Inlet camshaft position
sensor

Engine: Cranking

2.0

− 4.8 V

*1

Engine: Idle operation

2.0

− 3.0 V

*1

15

ETV+

Throttle valve control
servo (+)

• Ignition switch: "ON"

• Accelerator pedal: fully closed → fully

opened

Decreases slightly
from the battery
voltage

Termin
al No.

Termi
nal
code

Inspection Item

Check condition (Engine condition)

Normal condition

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-171

16

ETV-

Throttle valve control
servo (

−)

• Ignition switch: "ON"

• Accelerator pedal: fully closed → fully

opened

Decreases slightly
from the battery
voltage

26

WTS

Engine coolant
temperature sensor

Ignition switch: "ON" When engine

coolant temperature
is

−20°C

3.9

− 4.5 V

When engine
coolant temperature
is 0

°C

3.2

− 3.8 V

When engine
coolant temperature
is 20

°C

2.3

− 2.9 V

When engine
coolant temperature
is 40

°C

1.3

− 1.9 V

When engine
coolant temperature
is 60

°C

0.7

− 1.3 V

When engine
coolant temperature
is 80

°C

0.3

− 0.9 V

34

OHFL

Oxygen sensor (front)
heater

Engine: Idle operation after warm-up
(20 seconds after starting engine)

9

− 11 V

*1

Engine: Racing

System voltage

35

OHRL

Oxygen sensor (rear)
heater

Engine: Idle operation after warm-up
(20 seconds after starting engine)

9

− 11 V

*1

Engine: Racing

System voltage

36

OPSW Engine oil pressure

switch

Ignition switch: "ON"

1 V or less

Engine: Idle operation

System voltage

37

PURG Purge control solenoid

valve

Ignition switch: "ON"

System voltage

Engine: 3,000 r/min after warm-up (with 4
minutes after the engine starting sequence
is completed)

Voltage decreases

38

O2FL

Oxygen sensor (front)

Engine: Maintain 2,500 r/min after
warm-up

0.6

⇔ 1.0 V

(repeat the
alteration)

39

OFLE

Oxygen sensor (front)
offset voltage

Ignition switch: "ON"

0.4

− 0.6 V

40

O2RL

Oxygen sensor (rear)

• Transmission: Ds range

• The engine speed is maintained to

3,500 r/min or more during an
accelerated driving with the throttle
full-open

1.0

− 1.5 V

41

ORLE

Oxygen sensor (rear)
offset voltage

Ignition switch: "ON"

0.4

− 0.6 V

Termin
al No.

Termi
nal
code

Inspection Item

Check condition (Engine condition)

Normal condition

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-172

44

MAP5

Applied voltage to the
manifold absolute
pressure sensor

Ignition switch: "ON"

4.9

− 5.1 V

45

MAP

Manifold absolute
pressure sensor

Ignition switch: "ON" At 0 m altitude

3.8

− 4.2 V

At 600 m altitude

3.5

− 3.9 V

At 1,200 m altitude

3.3

− 3.7 V

At 1,800 m altitude

3.0

− 3.4 V

Engine: Idle operation after warm-up

0.6

− 1.4 V

Engine: While the engine is idling after
warm-up, quickly depress the accelerator
pedal

Varies depending
on the negative
pressure at the
inlet manifold

60

ALTG

Alternator G terminal

• Engine: Idle operation after warm-up

• Radiator fan: Non-operation

• Head lamp switch: "OFF" → "ON"

• Stop lamp: "OFF" → "ON"

• Rear defogger switch: "OFF" → "ON"

Voltage rises

61

ALTF

Alternator FR terminal

• Engine: Idle operation after warm-up

• Radiator fan: Non-operation

• Head lamp switch: "OFF" → "ON"

• Stop lamp: "OFF" → "ON"

• Rear defogger switch: "OFF" → "ON"

Voltage decreases

62

ALTL

Alternator L terminal

Ignition switch: "ON"

0.5

− 2.0 V

Engine: Idle operation

System voltage

72

RBB

Power supply voltage
applied to throttle valve
control servo

Ignition switch: "ON"

System voltage

73

C/R

Engine control relay

Ignition switch: "LOCK" (OFF)

System voltage

Ignition switch: "ON"

1 V or less

74

APSM

Accelerator pedal
position sensor (main)

Ignition switch: "ON" Release the

accelerator pedal

0.9

− 1.1 V

Depress the
accelerator pedal
fully

4.0

− 4.8 V

75

APS5

Applied voltage to the
accelerator pedal
position sensor (main)

Ignition switch: "ON"

4.9

− 5.1 V

77

APSS

Accelerator pedal
position sensor (sub)

Ignition switch: "ON" Release the

accelerator pedal.

0.4

− 0.6 V

Depress the
accelerator pedal
fully

2.0

− 2.5 V

78

5VV

Applied voltage to the
accelerator pedal
position sensor (sub)

Ignition switch: "ON"

4.9

− 5.1 V

Termin
al No.

Termi
nal
code

Inspection Item

Check condition (Engine condition)

Normal condition
