TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-173

NOTE:

*

1: The shown voltage is the average value where an analogue voltmeter is used (because a digital

voltmeter may not be able to indicate the average voltage stably).

NOTE:

*

2: If the battery is fully charged, the output reading may be incorrect.

CHECK CHART FOR RESISTANCE AND
CONTINUITY BETWEEN TERMINALS

1. Turn the ignition switch to "LOCK" (OFF) position.

2. Disconnect the engine-ECU connector.

3. Measure the resistance and check for continuity

between the terminals of the engine-ECU
harness-side connector while referring to the
check chart.

NOTE:

.

1. When measuring resistance and checking

continuity, a harness for checking contact pin
pressure should be used instead of inserting a
test probe.

2. Checking need not be carried out in the order

given in the chart.

CAUTION

If the terminals that should be checked are mis-
taken, or if connector terminals are not correctly
shorted to earth, damage may be caused to the
vehicle wiring, sensors, engine-ECU and/or ohm-

meter. Be careful to prevent this!

4. If the ohmmeter shows any deviation from the

standard value, check the corresponding sensor,
actuator and related electrical wiring, and the
repair or replace.

82

BAT1

Power supply

Ignition switch: "ON"

System voltage

84

C/RL

Throttle valve control
servo relay

Ignition switch: "LOCK" (OFF)

0

− 0.1 V

Ignition switch: "ON"

1 V or less

87

AFS

Air flow sensor

Engine: Gradually increase the speed

Voltage increase in
response to
revving

89

ATS

Intake air temperature
sensor

Ignition switch: "ON" When the intake air

temperature is
−20°C

3.8

− 4.4 V

When the intake air
temperature is 0

°C

3.2

− 3.8 V

When the intake air
temperature is 20

°C

2.3

− 2.9 V

When the intake air
temperature is 80

°C

0.4

− 1.0 V

92

IGN

Ignition switch

− IG

Ignition switch: "ON"

System voltage

96

FP/R

Fuel pump relay

Ignition switch: "ON"

System voltage

Engine: Idle operation

1 V or less

97

AFS5

Applied voltage to the
air flow sensor

Ignition switch: "ON"

4.9

− 5.1 V

102

AC/R

A/C compressor relay

• Engine: Idle operation

• A/C switch: "OFF" → "ON"

(when the compressor is active)

System voltage

→

1 V or less.

104

BACK

Backup power supply

Ignition switch: "LOCK" (OFF)

System voltage

105

ST

Ignition switch

− ST

Engine: Cranking

System voltage

106

STRL

Starter relay

Engine: Cranking

System voltage

Engine: Idle operation

1 V or less

Termin
al No.

Termi
nal
code

Inspection Item

Check condition (Engine condition)

Normal condition

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-174

5. After repair or replacement, recheck with the

ohmmeter to confirm that the repair or
replacement has corrected the problem.

AK502911

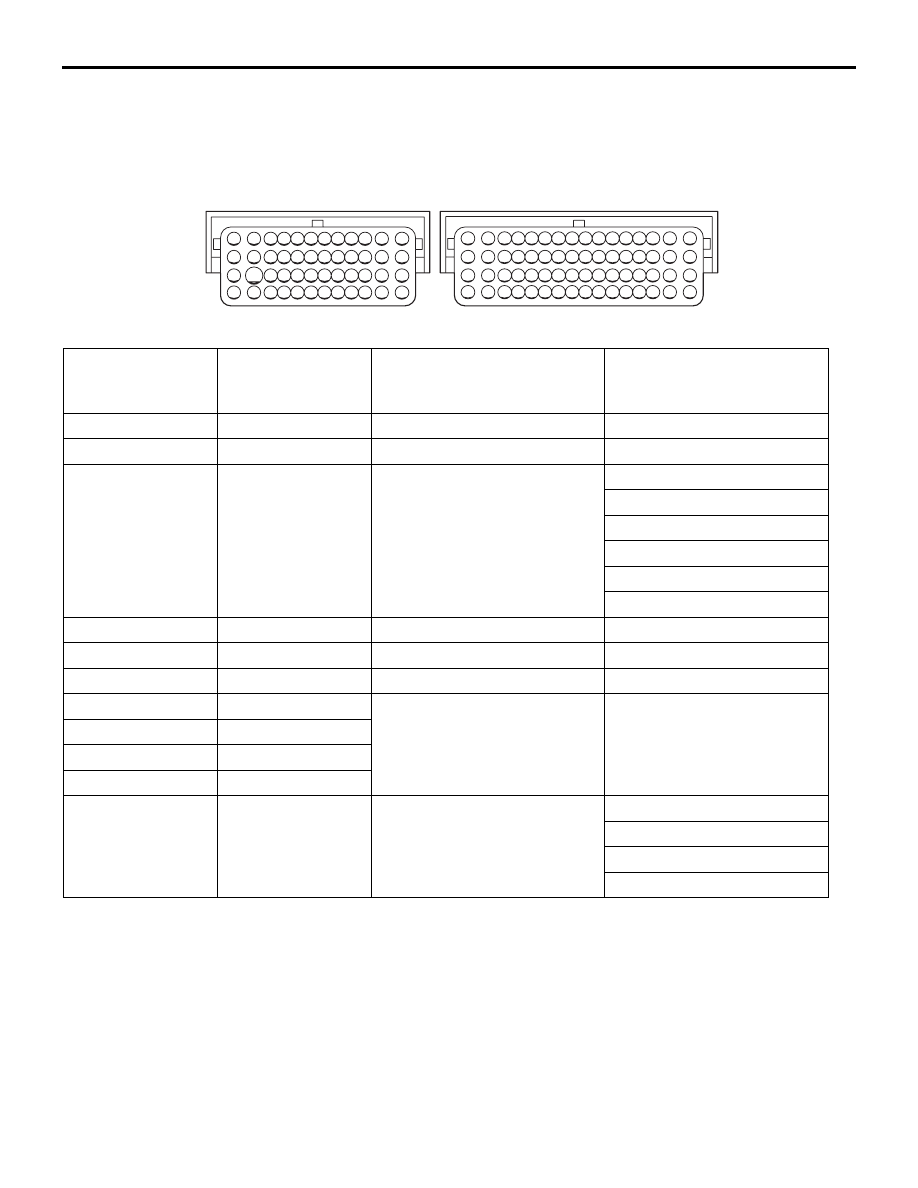

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

16 15 14 13 12 11 10 9 8 7 6 5 4 3

2

1

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

BA

Engine-ECU Harness Side Connector

Terminal No.

Terminal code

Inspection Item

Standard value, normal
condition (Check
condition)

1

− 82

DCV1

− BAT1

Inlet oil feeder control valve

6.9

− 7.9 Ω (at 20°C)

15

− 16

ETV+

− ETV-

Throttle valve control servo

0.3

− 80 Ω (at 20°C)

26

− 27

WTS

− WTSE

Engine coolant temperature
sensor

14

− 17 kΩ (at −20°C)

5.1

− 6.5 kΩ (at 0°C)

2.1

− 2.7 kΩ (at 20°C)

0.9

− 1.3 kΩ (at 40°C)

0.48

− 0.68 kΩ (at 60°C)

0.26

− 0.36 kΩ (at 80°C)

34

− 82

OHFL

− BAT1

Oxygen sensor (front) heater

4.5

− 8.0 Ω (at 20°C)

35

− 82

OHRL

− BAT1

Oxygen sensor (rear) heater

4.5

− 8.0 Ω (at 20°C)

37

− 82

PURG

− BAT1

Purge control solenoid valve

22

− 26 Ω (at 20°C)

71

− body earth

RSG

− body earth

ECU earth

Continuity (2

Ω or less)

81

− body earth

GNDB

− body earth

83

− body earth

RSH

− body earth

93

− body earth

GNDE

− body earth

88

− 89

AFSE

− ATS

Intake air temperature sensor

13

− 18 kΩ (at −20°C)

5.3

− 6.7 kΩ (at 0°C)

2.3

− 3.0 kΩ (at 20°C)

0.30

− 0.45 kΩ (at 80°C)

INSPECTION PROCEDURE USING AN
OSCILLOSCOPE

M1131154503423

The output signals of the sensors and the conditions
of the actuation signals of the actuators can be
inspected visually by observing the waveforms on
the oscilloscope.

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-175

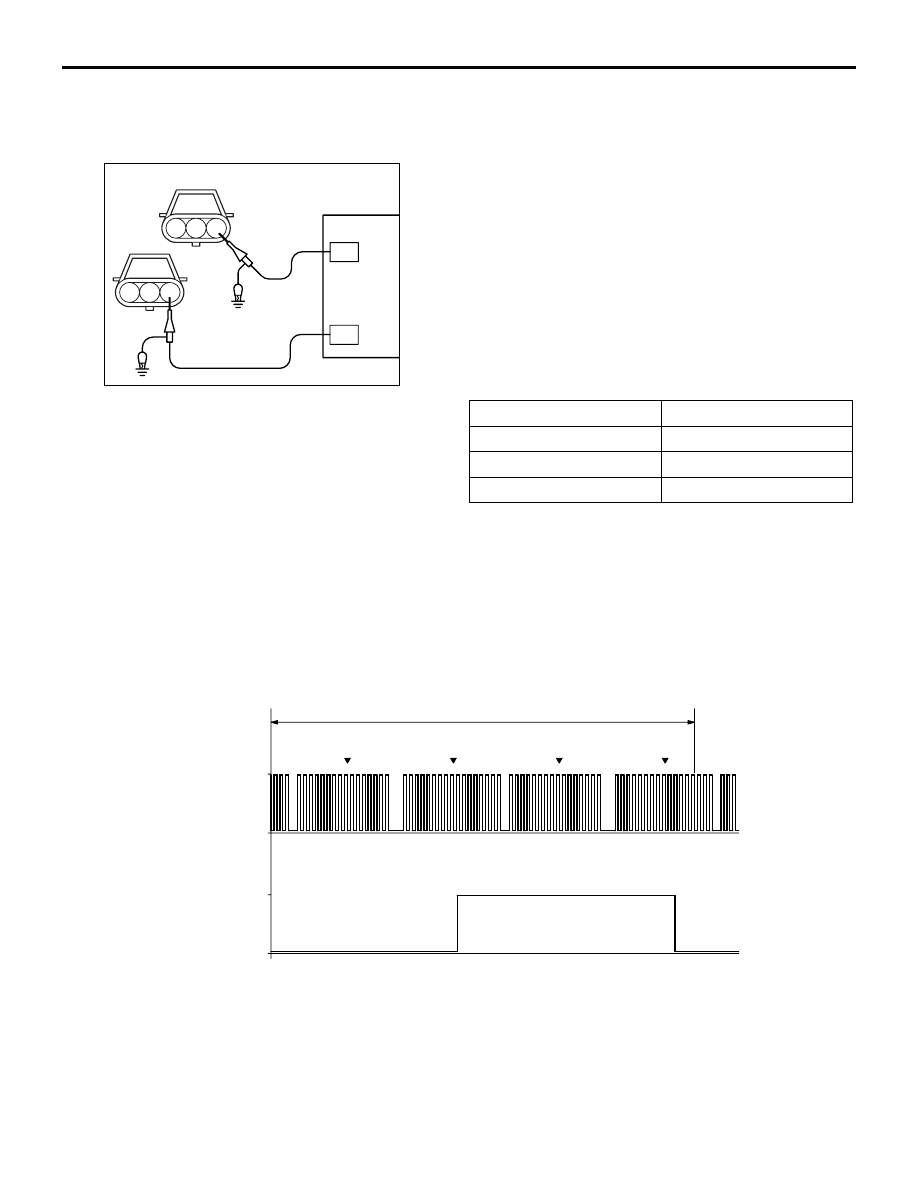

INLET CAMSHAFT POSITION SENSOR
AND CRANK ANGLE SENSOR

Measurement Method

1

2 3

1

2 3

AK502608

Inlet camshaft

position sensor
connector

Crank angle sensor
connector

Oscilloscope

CH1

CH2

AK

1. Disconnect the intake camshaft position sensor

connector and insert the special tool test harness
(MB991709) in-between the separated
connectors. (Always mate all the terminals.)

2. Disconnect the crank angle sensor connector and

insert the special tool test harness (MB991709)
in-between the separated connectors.

3. Connect the probe of each channel of the

oscilloscope to terminal No. 3 of the intake
camshaft position sensor connector and terminal
No. 3 of the crank angle sensor connector,
respectively.

Alternate Method (Measure at the
engine-ECU)

1. Disconnect the engine-ECU connector and

connect the special tool Power plant ECU check
harness (MB992110) in between.

2. Connect the oscilloscope special patterns pickup

to engine-ECU terminal CPI (When checking the
intake camshaft position sensor signal wave
pattern).

3. Connect the oscilloscope special patterns pickup

to engine-ECU terminal SGT (When checking the
crank angle sensor signal wave pattern).

Standard Wave Pattern

Observation condition

Function

Special patterns

Pattern height

Low

Pattern selector

Display

Engine

Idle

AK502609

AC

Standard wave pattern

Crank angle sensor
output wave pattern

Intake camshaft
position sensor
output ware pattern

2 engine revolutions (1 camshaft revolution)

(V)

5

0

5

0

No. 1TDC

No. 3TDC

No. 4TDC

No. 2TDC

(ms)

Description of Wave Patterns

• The inlet camshaft position sensor serves as to

detect the compression top dead centre of each

cylinder. By observing this signal simultaneously
with the crank angle sensor signal, it is possible
to identify each cylinder.

TROUBLESHOOTING

MULTIPOINT FUEL INJECTION (MPI)

13A-176

• The crank angle sensor is used to detect the

crank angle of each cylinder. While the engine
revolves for two cycles, 72 pieces of the crank
angle sensor signal (including any missing) will
be outputted.

• The engine ECU carries out the engine control,

using the fall signal (from 5 to 0 V) of the crank
angle sensor. The rise signal (from 0 to 5 V) posi-
tion does not affect the control.

Wave Pattern Observation Points

• Verify that the sensor signal frequency increases

as the engine speed rises.

Examples of Abnormal Wave Pattern

•

AK203243

Example 1
Wave pattern characteristics

Rectangular wave will be outputted while the

engine is not started.

Cause of problem

Failed sensor interface

•

AK203244

Example 2
Wave pattern characteristics

Wave pattern is displaced in the forward or back-

ward direction.

Cause of problem

Loose timing belt
Abnormal sensing section

INJECTOR

Measurement Method

AKC00025

CH1

AB

Injector
connector

Oscilloscope

1. Disconnect the injector connector and insert the

special tool Test harness (MB991658) in-between
the separated connectors. (Always mate all the
terminals.)

2. Connect the oscilloscope probe to terminal No. 2

of the injector connector.

Alternate Method (Measure at the
engine-ECU)

1. Disconnect the engine-ECU connector and

connect the special tool Power plant ECU check
harness (MB992110) in between.

2. Connect the oscilloscope special patterns pickup

to engine-ECU terminal INJ1 (When checking the
No. 1 cylinder).

3. Connect the oscilloscope special patterns pickup

to engine-ECU terminal INJ2 (When checking the
No. 2 cylinder).

4. Connect the oscilloscope special patterns pickup

to engine-ECU terminal INJ3 (When checking the
No. 3 cylinder).

5. Connect the oscilloscope special patterns pickup

to engine-ECU terminal INJ4 (When checking the
No. 4 cylinder).

Standard Wave Pattern

Observation conditions

Function

Special patterns

Pattern height

Variable

Variable knob

Adjust while viewing the
wave pattern

Pattern selector

Display

Engine

Idle
