PISTON AND CONNECTING ROD

ENGINE OVERHAUL

11B-54

Enter cylinder No. for reassembly on the side of the
connecting rod big end.

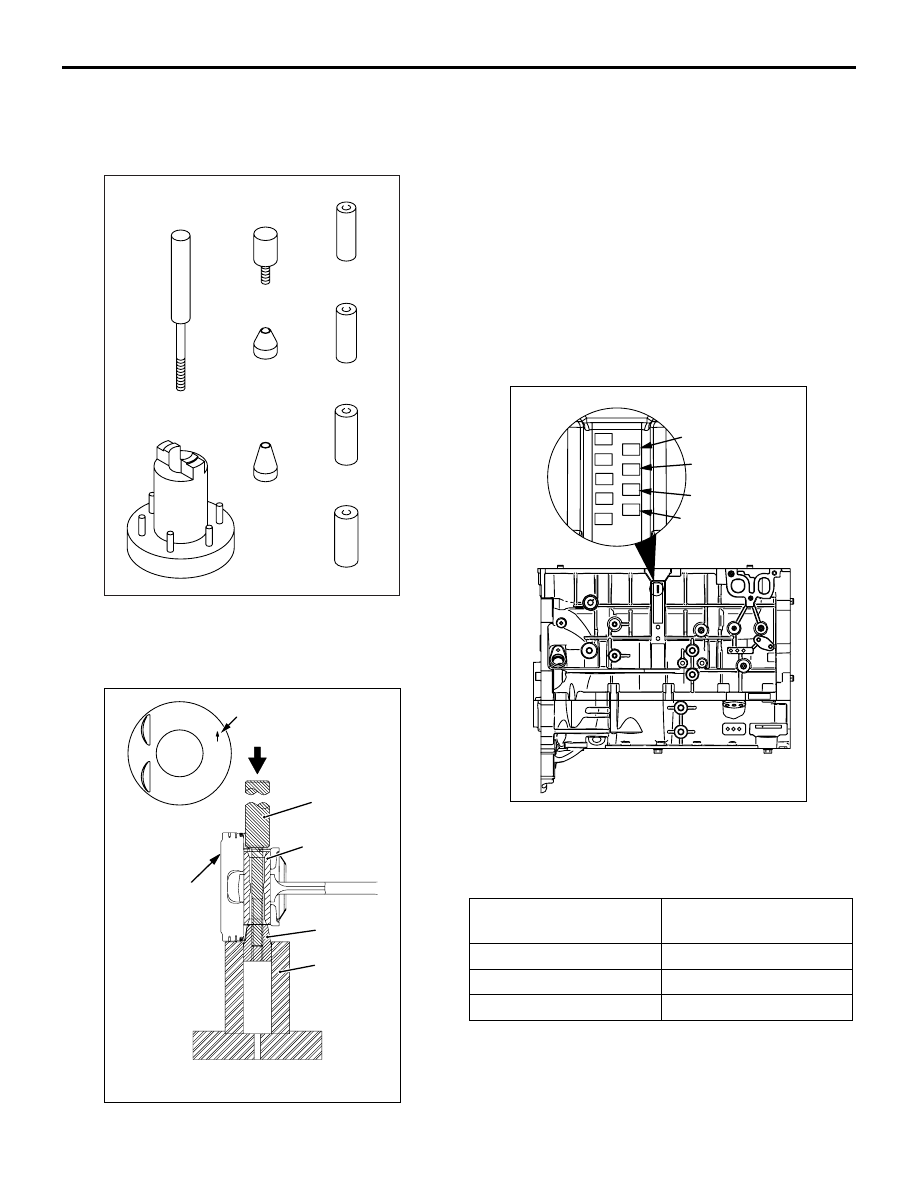

<<B>> PISTON PIN REMOVAL

AK305415AB

Push rod

Base

Guide B

Guide C

Guide D

(MB991659)

Guide A: 17.9 mm

Guide A: 18.9 mm

Guide A: 20.9 mm

Guide A: 21.9 mm

Special tool Piston pin setting tool (MD998780) con-
sists of parts shown in the illustration. Use also spe-
cial tool Guide D (MB991659) to remove the piston
pin.

AK603502

20

A

AC

Base

Guide D

Piston pin

Push rod

Front mark

Front mark

1. Insert the push rod into the piston pin from the

front mark side of the piston top surface, and
attach special tool Guide D (MB991659).

2. Set the piston and connecting rod assembly on

the base so that the front mark of the piston faces
upward.

3. Use a press to push the push rod and pull out the

piston pin.

NOTE: After pulling out the piston pin, organize
pistons, piston pins and connecting rods by cylin-
der No.

INSTALLATION SERVICE POINTS

>>A<< PISTON PIN INSTALLATION

J

2

J

3

J

4

J

5

J

1

AK503237

No.1

No.2

No.3

No.4

AC

1. When replacing a piston, check the cylinder bore

size mark stamped on the illustrated position of
the cylinder block and select a corresponding
piston from the table below.

Cylinder bore size
mark

Piston size mark

A

A

B

B or None

C

C

AK603503

20

A

AC

Piston mark size

PISTON AND CONNECTING ROD

ENGINE OVERHAUL

11B-55

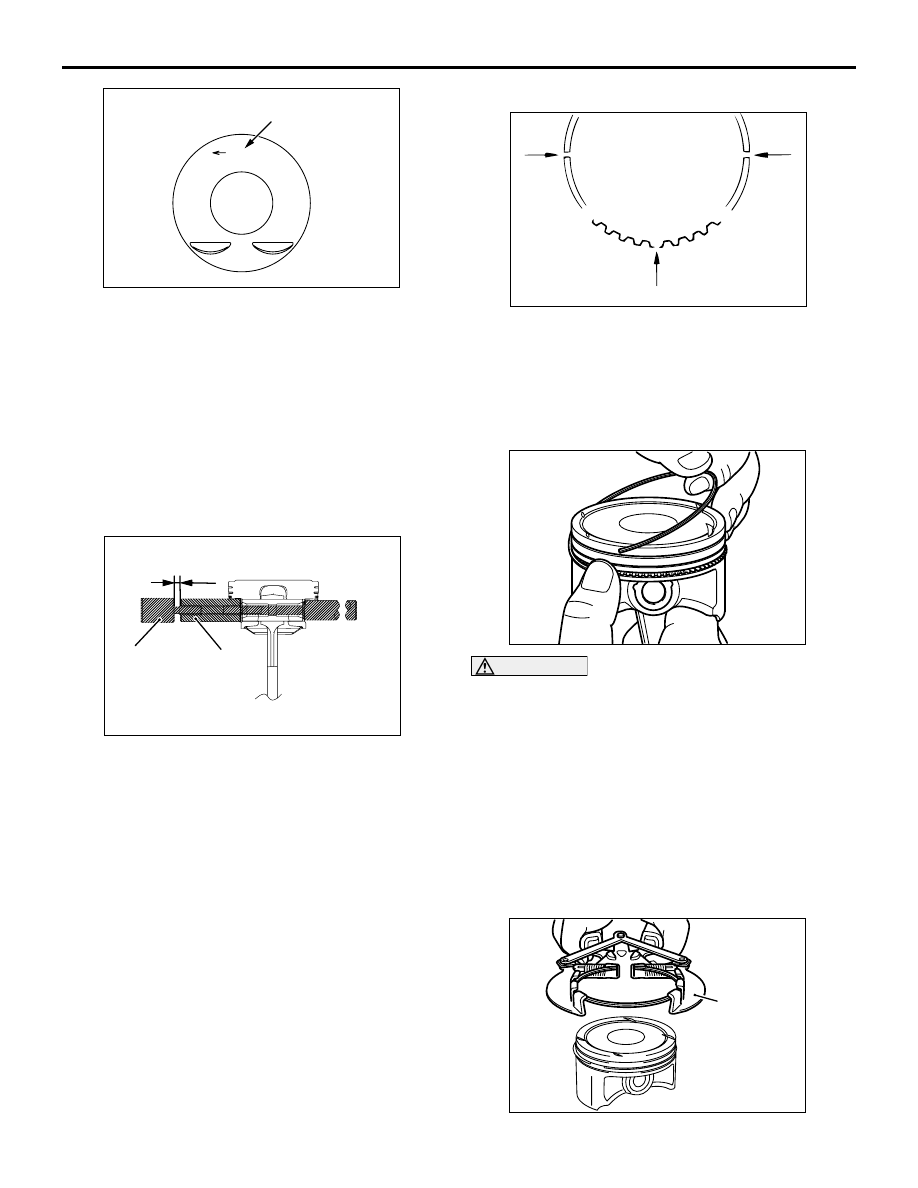

NOTE: The piston size mark is indicated on the
piston top face.

2. Insert the push rod into the piston pin and attach

guide A.

3. Align the front mark of the piston with that of the

connecting rod to assemble.

4. Apply engine oil to the circumference of the piston

pin.

5. Insert the guide A side of the piston pin

assembled in section 1 into the pin hole from the
front mark side of the piston.

AK502517AC

L

Guide A

Guide B

6. Screw guide B into guide A and open clearance

between guide A and guide B by 3 mm (make the
base in line with flushed surface) to assemble.

7. Set the piston on special tool piston setting base

so that its front mark faces upward.

8. Use a press to press fit the piston pin. If the press

fit load is below the standard value, replace the
piston pin (piston assembly) or connecting rod, or
both.

Standard value: 7,500

− 17,500 N

>>B<< OIL RING INSTALLATION

AK103812AC

Upper
side
rail
closed
gap

Lower
side
rail
closed
gap

Spacer closed gap

1. Assemble the spacer of the oil ring into the piston

ring groove. Then, assemble the upper side rail,
and after this assemble the lower side rail.

NOTE: Install the side rail and end gap of the
spacer so that they are at the position as shown in
the illustration.

AK304891

CAUTION

The side rail may be broken if its end gap is wid-
ened by a ring expander as in other piston rings.
2. When assembling the side rail, push it by fingers,

after fitting one end of the side rail into the piston
groove, for easy assembly.

3. After assembling the oil ring into the piston, make

sure that the side rail turns smoothly to either
direction.

>>C<< PISTON RING NO. 2 / PISTON
RING NO. 1 INSTALLATION

AK304892AB

Piston ring
expander

PISTON AND CONNECTING ROD

ENGINE OVERHAUL

11B-56

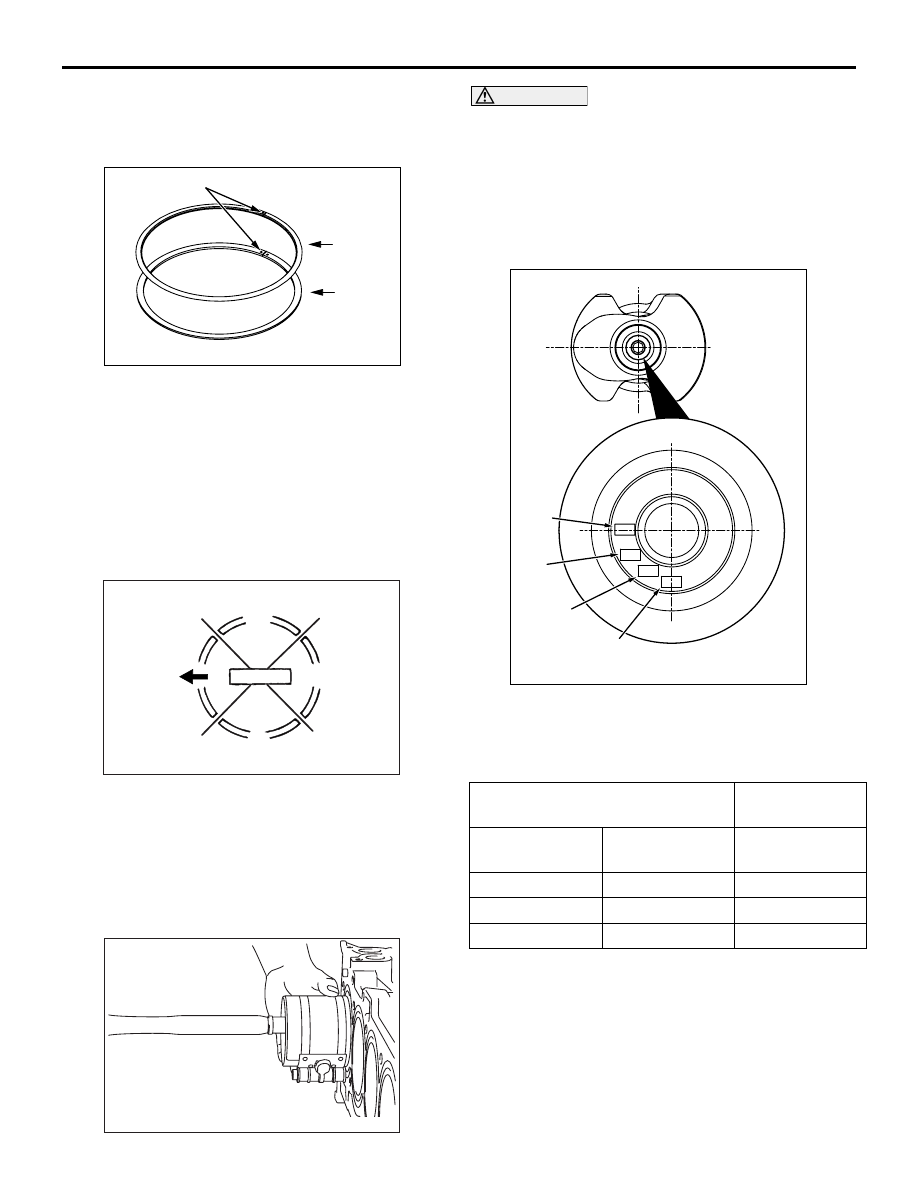

Use a piston ring expander to assemble piston rings
with their identification marks facing upward. Piston
rings can be assembled by hand without using the
piston ring expander.

AK502529

Identification mark

No.1

No.2

AF

Identification mark:

No. 1 ring: T1 or 1T
No. 2 ring: T2 or 2T

>>D<< PISTON CONNECTING ROD
ASSEMBLY INSTALLATION

1. Apply a sufficient amount of engine oil to the

circumference of the piston, piston rings and oil
ring.

AK202730

No. 1

No. 2

Side rail

Side rail

AC

Piston pin

2. Arrange end gap positions of piston rings and oil

ring (side rail and spacer) as shown in the
illustration.

3. Insert the piston and connecting rod assembly

from the top surface of the cylinder block with the
front mark of the piston top face facing toward the
timing belt side.

AK502730

CAUTION

Driving it in hard causes breakage of piston rings
and damage to the crank pin.

4. Firmly tighten the piston ring with a ring band and

insert the piston and connecting rod assembly.

>>E<< CONNECTING ROD BEARING
INSTALLATION

AK502527AC

No.1

No.2

No.3

No.4

Pin identification mark position

1. When replacing a connecting rod bearing, select

the bearing corresponding to the crankshaft pin
outside diameter according to the crankshaft pin
identification in the table below.

Crankshaft pin

Connecting rod
bearing

Identification
mark

Journal
diameter mm

Identification
mark

1

47.966

− 47.972 1

2

47.960

− 47.966 2

3

47.954

− 47.960 3

2. An identification mark of a crankshaft is stamped

at the illustrated position by No.

AK305607AF

Identification
number

2

PISTON AND CONNECTING ROD

ENGINE OVERHAUL

11B-57

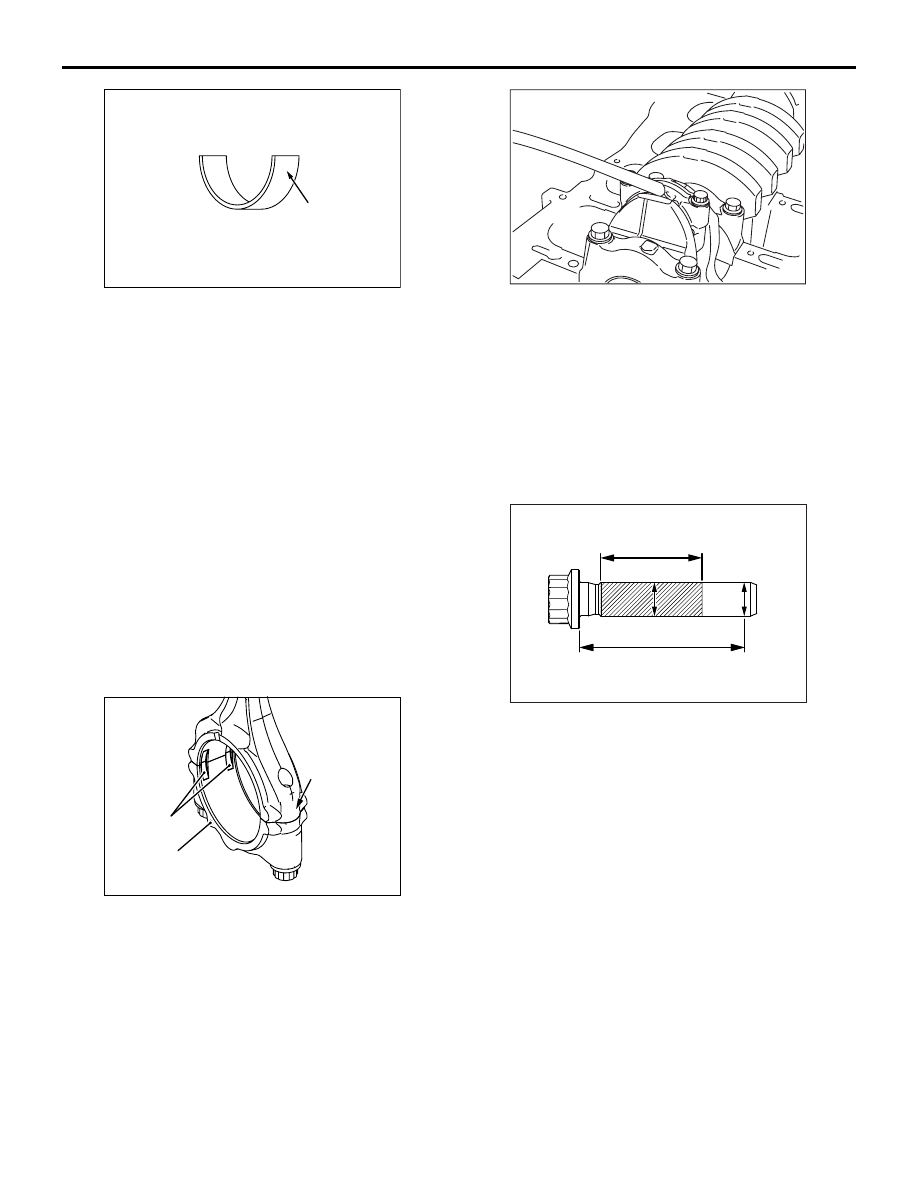

3. A connecting rod bearing has an identification

mark at the illustrated position.

>>F<< CONNECTING ROD CAP
INSTALLATION

NOTE: The connecting rod resulting from the break-
ing process has the high insertion force. The new
connecting rod assembly may possibly be difficult to
remove the connecting rod.
If difficult to remove it, alternately strike the two bolt
heads with a plastic hammer while the connecting
rod bolt is slightly loosened, or strike the centre of the
cap shaft’s inside diameter slightly and outward.
If the outside of the cap is directly struck, the lateral
force is added to the broken-out section. Thus, pay
attention to the broken-out section that might be diffi-
cult to be separated or might fall.
Clean the broken-out section before the installation
to the engine, using compression air.

AK503157

2

Cylinder No.

AD

Notch

Front mark

1. Assemble the bearing cap on the connecting rod

by aligning it with the mark put during removal. If a
new connecting rod without a mating mark is
used, assemble so that the detent notch of the
bearing is on the same side as illustrated.

AK502752

2. Make sure that clearance of the thrust of the

connecting rod big end is appropriate.

Standard value: 0.10

− 0.25 mm

Limit: 0.4 mm

>>G<< CONNECTING ROD CAP BOLT
INSTALLATION

1. Check in the following procedure before reusing

the connecting rod bolt.

AK604589AE

20.5 mm

35 mm

A

B

B

X

(1) Measure the outside diameter "A."
(2) Measure the smallest outside diameter "B"

within the range "X" shown in the illustration.

(3) If the difference of outside diameter of thread

exceeds the limit, replace the connecting rod
bolt.

Limit: 0.1 mm

2. Apply engine oil to the threaded portion and seat

surface of the bolt before installing it.

3. After installing each bolt and tightening it by

fingers, tighten bolts alternately to properly
assemble the cap.

4. Tighten the bolt in several steps until the torque

reaches 5.0 N

⋅m.

5. Tighten the bolt in several steps until the torque

reaches 20 N

⋅m.
