CAMSHAFT

ENGINE MECHANICAL

11A-23

NOTE: With the timing chain tensioner unlocked,
insert the special tool MB992103 along the ten-
sion side of the valve timing chain, according to
the special tool MB992103 top shape. The special
tool MB992103 can be inserted smoothly to the
position where the special tool MB992103 inser-
tion guideline aligns with the timing chain case
assembly top surface (B in the figure), and the
spread timing chain tension side guide can be
hold (C in the figure).

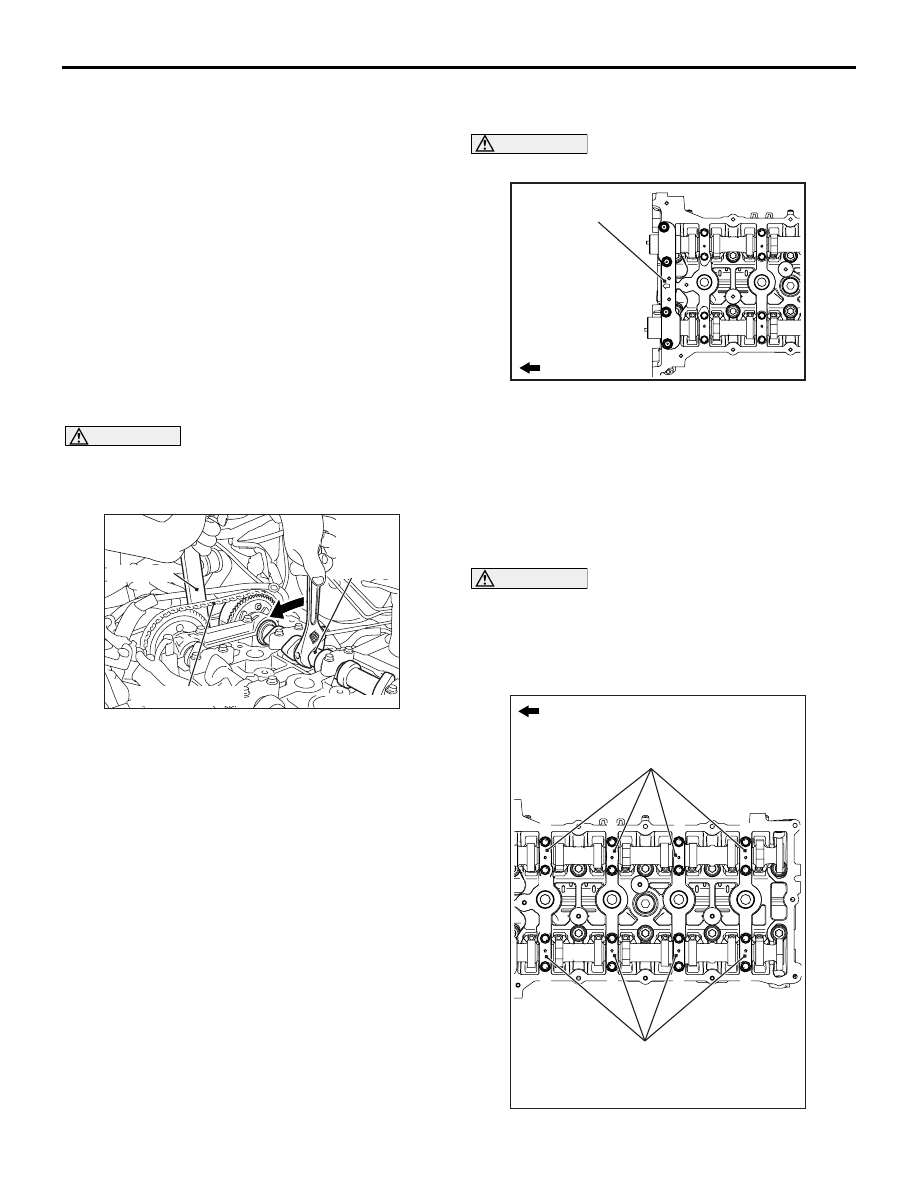

3. With the special tool MB992103 inserted up to the

insertion guide line, press the special tool
MB992103 against the inlet side camshaft
sprocket and spread and hold the timing chain
tension side guide.

4. Remove the precision flat-tipped screwdriver

unlocking the timing chain tensioner.

CAUTION

The valve timing chain may be bitten by other
parts. After sagging the valve timing chain, never
rotate the crankshaft.

AC506748AB

MB992103

Valve timing chain

Hexagon
part of
exhaust
camshaft

5. With the timing chain tension side guide spread,

hook the special tool MB992103 over the hexagon
part of the camshaft on the exhaust side, and turn
the camshaft clockwise to apply slack to the valve
timing chain between the camshaft sprockets.

<<D>> CAMSHAFT BEARING FRONT
CAP ASSEMBLY REMOVAL

CAUTION

Be careful not to drop the camshaft bearing.

AC506745

AB

1

2

3

4

Engine front

Camshaft
bearing
front cap
assembly

Loosen the camshaft bearing front cap mounting
bolts in the order of number shown in the figure, and
remove the camshaft bearing front cap assembly.

<<E>> CAMSHAFT BEARING OIL
FEEDING CAP/CAMSHAFT BEARING
CAP/CAMSHAFT BEARING THRUST CAP
REMOVAL

CAUTION

When the camshaft bearing cap mounting bolts
are loosened at once, the mounting bolts jump
out by the spring force and the threads are dam-
aged. Always loosen the mounting bolts in four
or five steps.

AC506746

AB

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

Engine front

Camshaft bearing cap

Camshaft bearing cap

CAMSHAFT

ENGINE MECHANICAL

11A-24

Loosen the camshaft bearing cap mounting bolts in
the order of number shown in the figure in four or five
steps, and remove the camshaft bearing caps.

<<F>> CAMSHAFT AND CAMSHAFT
SPROCKET ASSEMBLY (EXHAUST SIDE)
REMOVAL

AC508124AC

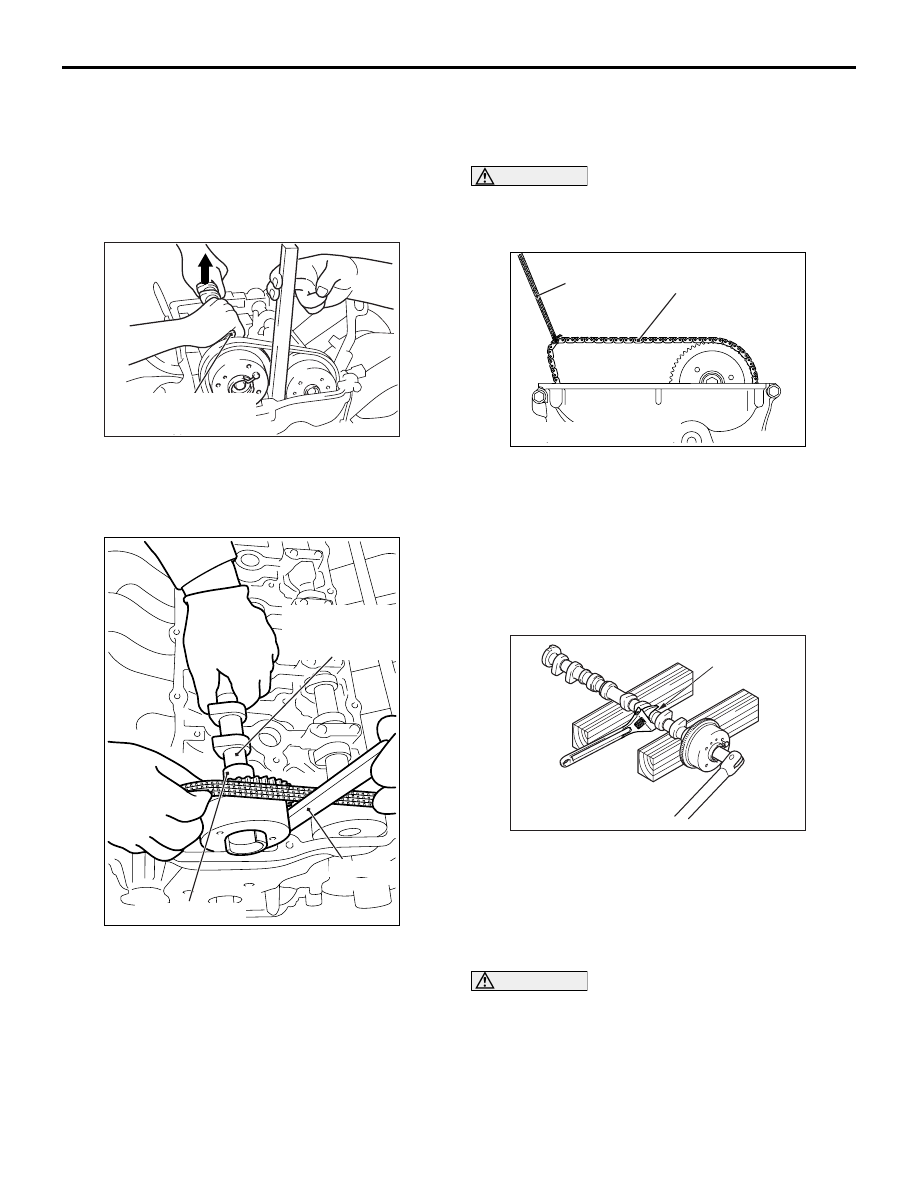

Camshaft and camshaft
sprocket assembly

1. Raise slightly the transmission side of the

camshaft and camshaft sprocket assembly
(exhaust side) by using the slack of the valve
timing chain, and remove from the cam bearing.

AC506749

AB

MB992103

Valve timing chain

Camshaft and
camshaft sprocket
assembly

2. Remove the valve timing chain from the camshaft

and camshaft sprocket assembly (exhaust side)
toward the timing chain case assembly, and
remove the camshaft and camshaft sprocket
assembly (exhaust side) toward the transmission.

3. Remove special tool chain tension release bar

(MB992103) inserted into the timing chain case
assembly inside.

CAUTION

The valve timing chain may be bitten by other
parts. After removing the camshaft and camshaft
sprocket assembly, never rotate the crankshaft.

AC509403

AB

Rope

Valve timing chain

4. After removing the camshaft and camshaft

sprocket assembly (exhaust side), hang up the
valve timing chain with a rope to prevent the valve
timing chain from falling into the timing chain case
assembly.

<<G>> SPROCKET/CAMSHAFT
REMOVAL

AC700424AB

Hexagon part
of camshaft

Hold the hexagon part of the camshaft with a monkey
wrench. Loosen the sprocket mounting bolt and
remove the sprocket from the camshaft.

<<H>> OIL FEEDER CONTROL VALVE
REMOVAL

CAUTION

After removal of the oil feeder control valve, be
careful to prevent dust from getting into the oil
passage in the cylinder head.

CAMSHAFT

ENGINE MECHANICAL

11A-25

INSTALLATION SERVICE POINTS

>>A<< O-RING/OIL FEEDER CONTROL
VALVE INSTALLATION

CAUTION

When installing the oil feeder control valve, be
careful to avoid damage to the O-ring.
Apply engine oil to the O-ring of the oil feeder control
valve and install the oil feeder control valve to the
cylinder head.

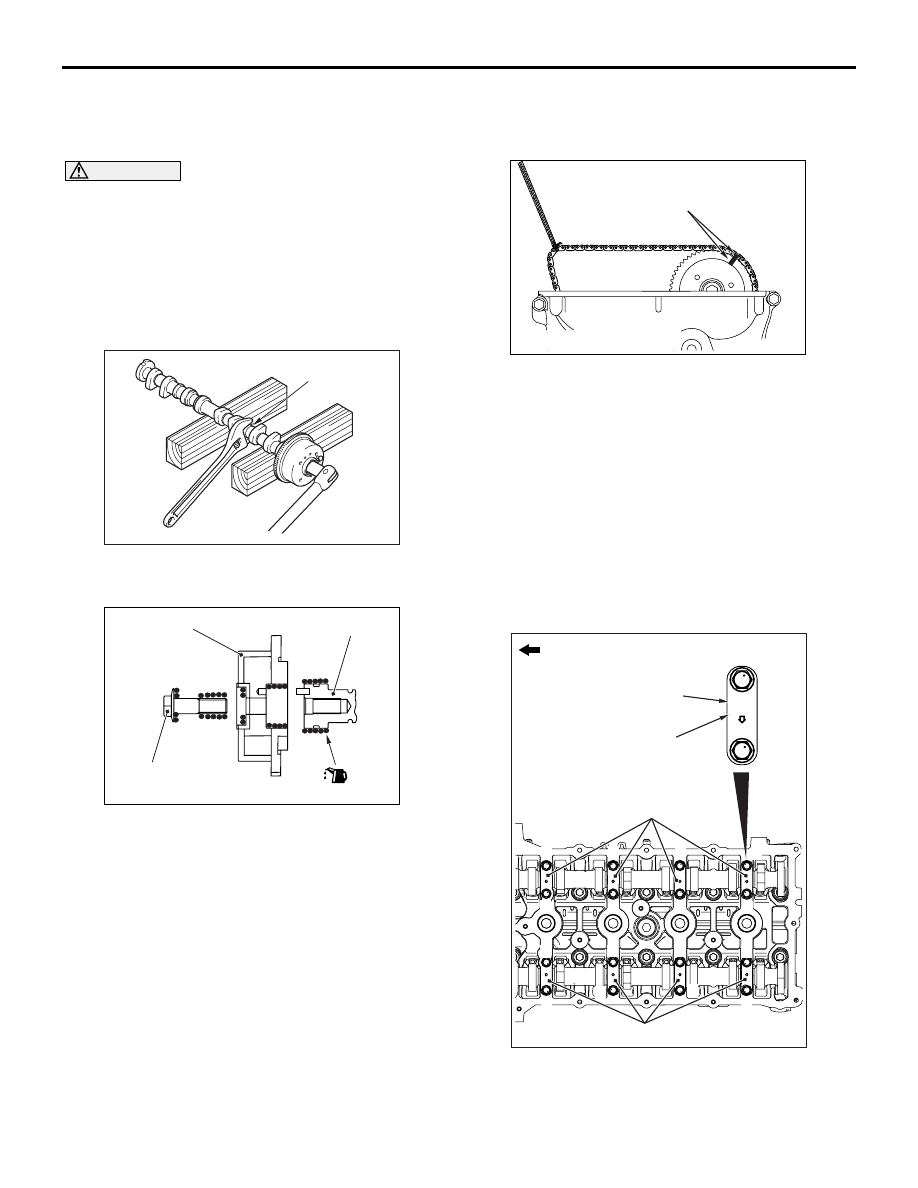

>>B<< CAMSHAFT/SPROCKET
INSTALLATION

AC611532 AD

Hexagon part
of camshaft

1. Use a monkey wrench to secure the hexagon part

of the camshaft in the same manner as removal.

AC607720AE

Camshaft

V.V.T.
sprocket

V.V.T.
sprocket bolt

2. Apply an adequate and minimum amount of

engine oil to the positions shown of the camshaft
and inlet V.V.T. sprocket assembly.

3. Install the sprocket to the camshaft.

4. Apply an adequate and minimum amount of

engine oil to the inlet V.V.T. sprocket bolt.

5. Tighten the sprocket bolt to the specified torque.

Tightening torque: 59

± 5 N⋅m

>>C<< CAMSHAFT AND CAMSHAFT
SPROCKET ASSEMBLY (INLET SIDE)
INSTALLATION

AC509403

AC

Paint markings
(inlet side)

1. Align the inlet side paint mark of the valve timing

chain which was put at removal with the paint
mark of the inlet side camshaft sprocket, and
install the camshaft sprocket to the valve timing
chain.

2. Install the camshaft and camshaft sprocket

assembly (inlet side) to the cylinder head.

>>D<< CAMSHAFT BEARING THRUST
CAP/CAMSHAFT BEARING
CAP/CAMSHAFT BEARING OIL FEEDING
CAP INSTALLATION

AC506778

AB

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

E  5

Engine front

Camshaft bearing cap

Camshaft bearing cap

Bearing cap No.

Identification of inlet side
and exhaust side

1. Install the camshaft bearing caps to the cylinder

head.

CAMSHAFT

ENGINE MECHANICAL

11A-26

NOTE: Because the camshaft bearing thrust cap
and camshaft bearing cap are the same in shape,
check the bearing cap number and additionally its
symbol to identify the inlet and exhaust sides for
correct installation.

2. Tighten each camshaft bearing cap mounting

bolts to the specified torque in the order of
number shown in the figure in two or three steps.

Tightening torque: 12

± 1 N⋅m

>>E<< CAMSHAFT BEARING/CAMSHAFT
AND CAMSHAFT SPROCKET ASSEMBLY
(EXHAUST SIDE) INSTALLATION

CAUTION

• Be careful not to drop the camshaft bearing.
•

AC611697

AC

Camshaft
bearing
front cap
assembly

Identification
mark

AC708893

Notch

Identification mark

Oil hole

AE

When installing the camshaft and camshaft
sprocket assembly (exhaust side), be careful
not to let the camshaft bearing which is
installed to the front cam bearing deviate from
its position.

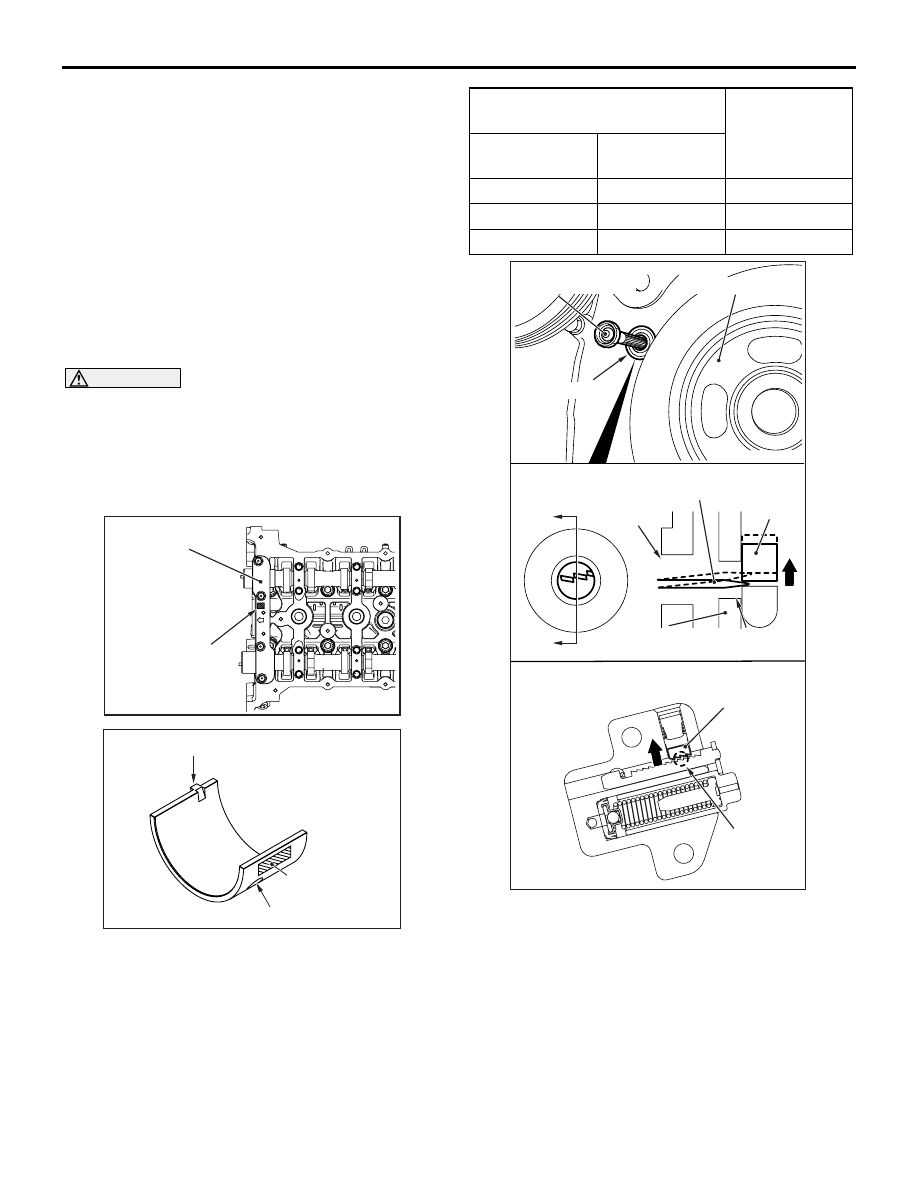

1. When replacing the camshaft bearing, select a

camshaft bearing in relevant size according to the
camshaft bearing front cap assembly identification
mark in the table below. The camshaft bearing
identification mark is stamped at the position
shown in the figure.

Camshaft bearing front cap
assembly

Camshaft
bearing
identification
mark

Identification
mark

Journal
diameter mm

1

40.000

− 40.008 1

2

40.008

− 40.016 2

3

40.016

− 40.024 3

AC509155

AB

SectionA-A

A

A

Precision flat-tipped
screwdriver

Service hole

Crankshaft pulley

Service hole

Ratchet

Precision flat-tipped screwdriver

Ratchet
release hole

Timing chain
tensioner

Ratchet

Ratchet
release hole

Timing chain tensioner
construction diagram

2. In the same manner as removal, insert the

precision flat-tipped screwdriver through the
service hole of the timing chain case, press up the
ratchet of timing chain tensioner to unlock, and
hold the unlocked timing chain tensioner.

NOTE: Lightly press down the tail end of the pre-
cision flat-tipped screwdriver to press up the tip of
the precision flat-tipped screwdriver inserted to
the timing chain tensioner to unlock.
