ETACS

CHASSIS ELECTRICAL

54A-58

Remote ENG
starter answer
back

Remote engine
starter answer back
function adjustment

Disable

No function (Initial condition)

Enable

With function

ACC power
auto cut

Time to ACC power
cut-off when the
ignition switch is in
the ACC position

Disable

No function

30 min

30 minutes (initial condition)

60 min

60 minutes

Sensitivity for
security sensor

Sensitivity level
setting of security
alarm sensor
<Vehicles with
security alarm
(vehicles with
security alarm
sensor)>

Level 1

100% sensitivity of security alarm sensor
(initial condition)

Level 2

90% sensitivity of security alarm sensor

Level 3

80% sensitivity of security alarm sensor

Level 4

70% sensitivity of security alarm sensor

Coming home
light

Disabling or
enabling coming
home light function

Disable

No function

15 sec.

The headlamps illuminate for 15 seconds.

30 sec.

The headlamps illuminate for 30 seconds.
(initial condition)

60 sec.

The headlamps illuminate for 60 seconds.

180 sec.

The headlamps illuminate for 180 seconds.

Welcome light

Disabling or
enabling welcome
light function

Disable

No function

Small lamp

The tail lamps illuminate. <initial condition>

Head lamp

The headlamps illuminate.

Outer buzzer
volume

KOS outer buzzer
volume adjustment
<Vehicles with
KOS>

Volume 1

Quieter than the standard

Volume 2

Standard volume (Initial condition)

Volume 3

Louder than the standard

A/C
Recirculation
Control

With/without
inside/outside air
automatic control
function

Disable

No function

Enable

With function (Initial condition)

A/C Switch
Control

With/without A/C
automatic control
function

Disable

No function

Enable

With function (Initial condition)

Eco Mode

Function to activate
ECO mode
air-conditioner

Eco

Activates the ECO mode.

Comfort

Deactivates the ECO mode.

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Downloaded from

www.Manualslib.com



manuals search engine



SECURITY ALARM

CHASSIS ELECTRICAL

54A-59

SECURITY ALARM

GENERAL INFORMATION

M2545700200659

<Vehicles without security alarm sensor>

When the doors are locked using the keyless entry or
KOS (excluding the locking using the key cylinder or
others), the improper opening of door or hood
causes the ETACS-ECU function and control to give
off an alarm with the flashing of hazard warning lamp
(turn-signal lamp) and the intermittent sounding of
horns. Also, with the flashing of security indicator, the

alarm state is notified (Refer to Function and Control
by ETACS-ECU

P.54A-62

).

A/C Sensible
temp.
customize

Adjusting mean
value for
temperature setting

-2

Decreases the control temperature two
degrees than the temperature displayed
on the LCD.

-1

Decreases the control temperature one
degree than the temperature displayed on
the LCD.

0

No change (Initial condition)

1

Increases the control temperature one
degree than the temperature displayed on
the LCD.

2

Increases the control temperature two
degrees than the temperature displayed
on the LCD.

FOOT / DEF Air
outlet ratio

Changes air
distribution rate for
DEF/FOOT vents
during manual
operation.

Normal

D/F2 (Initial condition)

FOOT > DEF

D/F1(more to FOOT vent): More air flows
through FOOT vents.

FOOT < DEF

D/F3(more to DEF vent): More air flows
through DEF vents.

FACE / FOOT
Air outlet ratio

Changes air
distribution rate for
FACE/FOOT vents
during manual
operation.

Normal

B/L2 (Initial condition)

FACE > FOOT

B/L1(more to FACE vent): More air flows
through FACE vents.

FACE < FOOT

B/L3(more to FOOT vent): More air flows
through FOOT vents.

Auto Rear
Defogger(Engin
e Start)

Activates the rear
window defogger
when the ambient
temperature is
low.(The rear
window defogger
has never been
activated since the
ignition switch was
turned on last time)

Disable

No function (Initial condition)

Enable

With function

Adjustment
item (M.U.T.-III
display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Downloaded from

www.Manualslib.com



manuals search engine



SECURITY ALARM

CHASSIS ELECTRICAL

54A-60

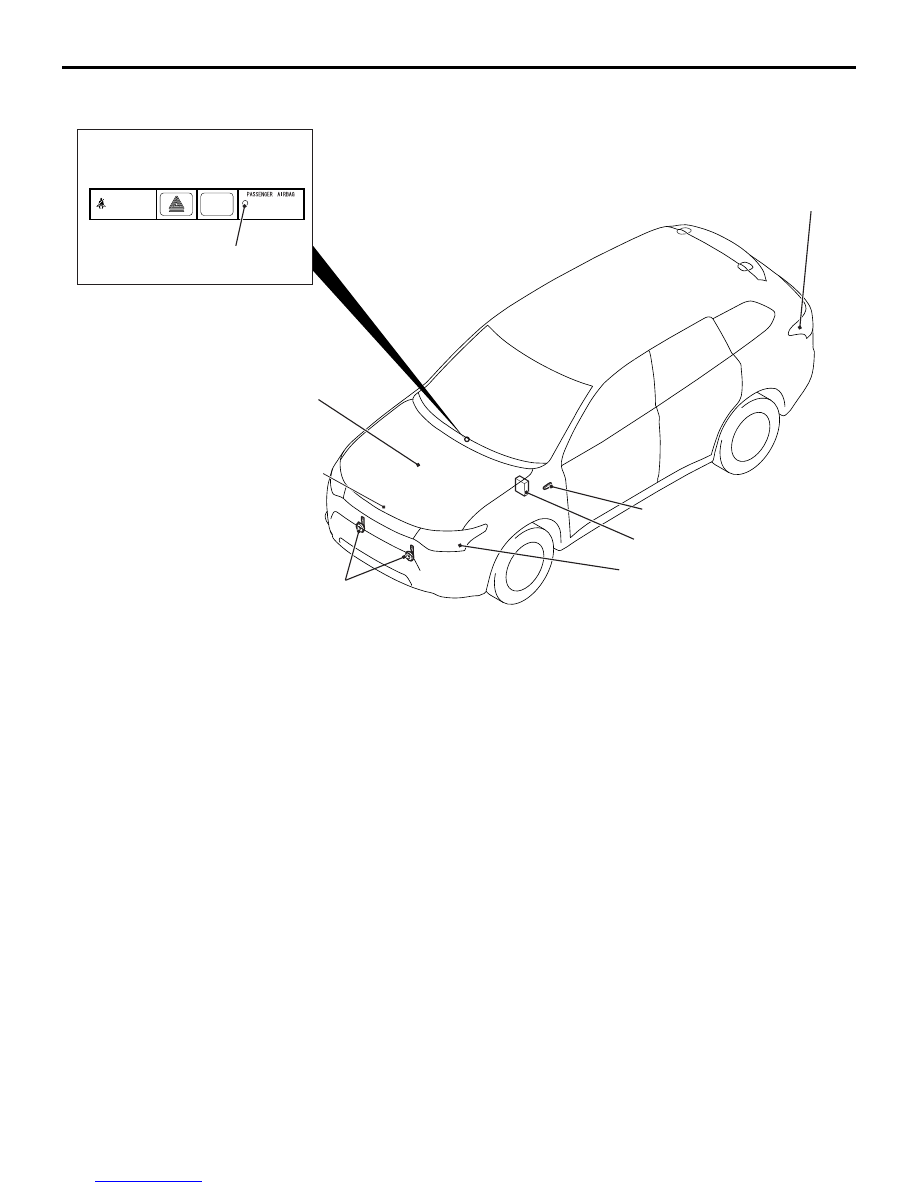

CONSTRUCTION DIAGRAM

<Vehicles with security alarm sensor>

The security alarm with the security alarm sensor
and security alarm siren has been adopted.

• The alarm for door/hood tampering and the alarm

for vehicle invasion, jack-up, or power line cutoff
to the ETACS-ECU/security alarm siren are
established.

• The security alarm sensor is connected to the

ETACS-ECU via the LIN

*1

.

• The security alarm siren is connected to the

ETACS-ECU by the LIN-TAS

*2

. (With the "Exte-

rior protection" status, the horn does not sound.)

NOTE: LIN

*1

 (low-speed body network), LIN-TAS

*2



(anti-theft alarm network)

Security alarm sensor

• The ultrasonic wave sensor is incorporated to

judge whether it is invasion or not from the
change of reflected ultrasonic wave.

• The inclination sensor is incorporated to deter-

mine that it is an irregular action if the vehicle is
raised for 3-degree angle or more at the rate of
1-degree angle or more per minute.

NOTE: The sensor sensitivity can be adjusted by the
M.U.T.-III.

Security alarm siren

• With the "Ready to be triggered" status, the LIN

communication between the security alarm siren
and ETACS-ECU is cut off to suppress the occur-
rence of the dark current.

• With the "Ready to be triggered" status, if the

ETACS-ECU detects invasion or irregular action
by the security alarm sensor or tampering by the
door switch or hood switch, the LIN communica-
tion is reactivated.

• If the ETACS-ECU detects irregular action, it

sends a sounding request signal to the security
alarm siren by the LIN communication.

• When the security alarm is in the "Ready to be

triggered" status, if the signal transmission to the
security alarm siren is cut off due to an abnormal-
ity in the power supply to the ETACS-ECU, the
occurrence of irregular action is detected and the

alarm sounds automatically

*

 without the sounding

request signal from the ETACS-ECU.

NOTE: *: The security alarm siren incorporates a
rechargeable battery.

ACC01584

Front turn-signal lamp

Side turn-signal lamp

ETACS-ECU

Hood latch switch

Rear turn-signal lamp

Security alarm horn

Horns

Security alarm indicator

AB

Hazard indicators assembly

Downloaded from

www.Manualslib.com



manuals search engine



SECURITY ALARM

CHASSIS ELECTRICAL

54A-61

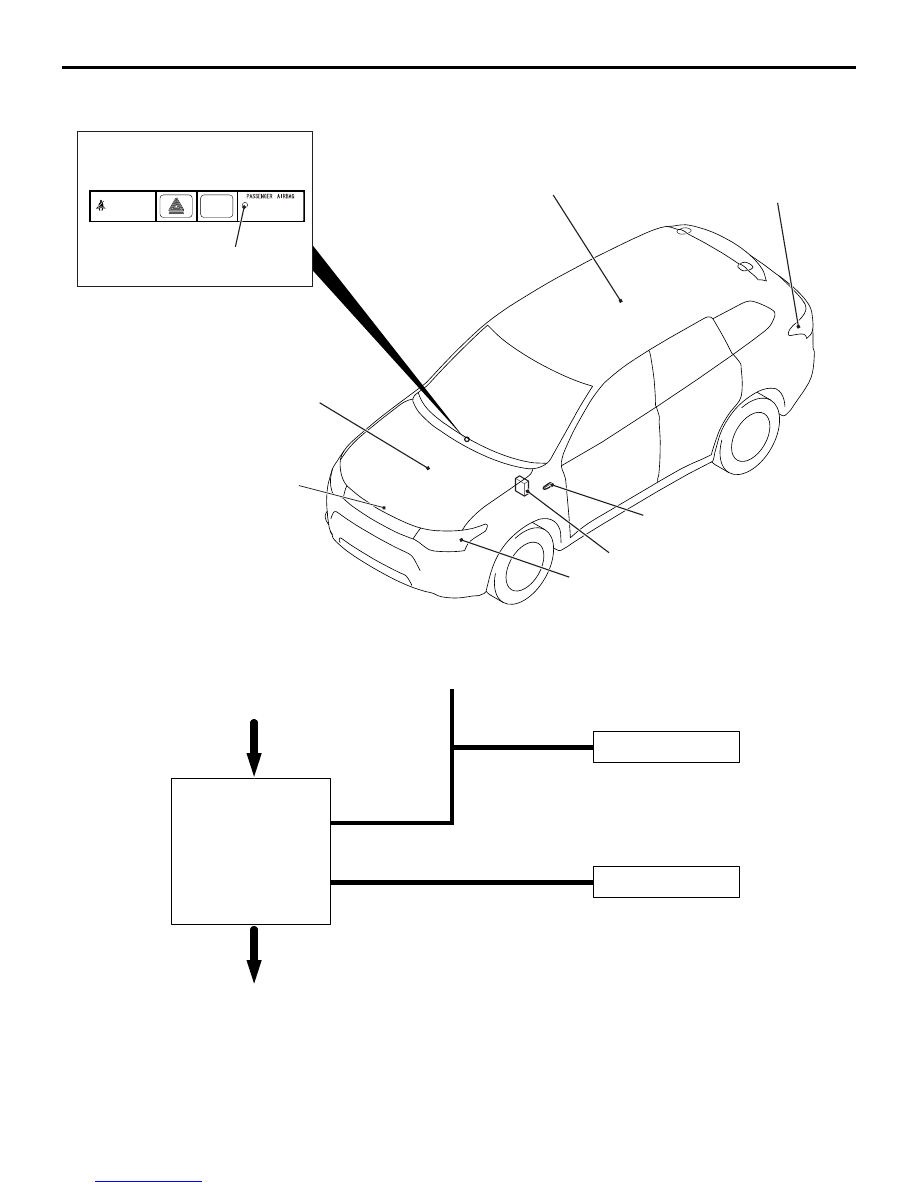

CONSTRUCTION DIAGRAM

SYSTEM BLOCK DIAGRAM

ACC01583

Front turn-signal lamp

Side turn-signal lamp

ETACS-ECU

Hood latch switch

Rear turn-signal lamp

Security alarm siren

AB

Security alarm sensor

Security alarm indicator

Hazard indicators assembly

ACC01047

Security alarm siren

Security alarm sensor

LIN-TAS

LIN

AB

ETACS-ECU

keyless entry function or the keyless operation system
ignition switch, Door switch,
Tailgate latch switch, Hood switch

Security alarm indicator, turn-signal lamp
