IMMOBILIZER SYSTEM <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-50

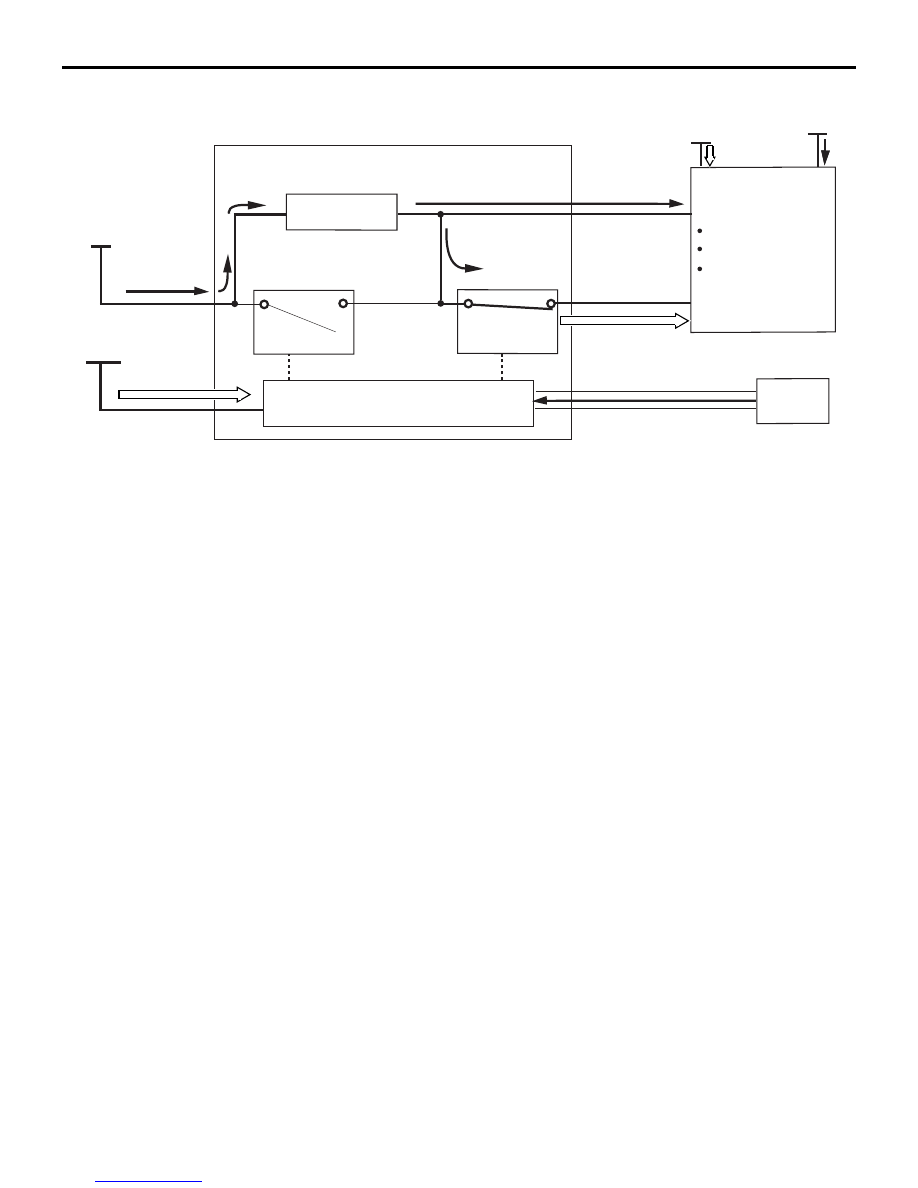

IGNITION SWITCH: ON position <at auto start by Auto Stop & Go (AS&G) System>

According to the boost command sent from the AS&G-ECU, the DC/DC converter opens the relay 1. At this
time, the battery voltage decreased by the auto start is boosted to approximately 12V, and is output to each
audio device.(Relay 1: Open, Relay 2: Close)

NOTE:

.

DC/DC converter boost stop condition (boost is stopped when any of the following applies)

•

Input voltage to DC/DC converter is 12.2 V or more.

•

DC/DC converter boost duration is 5 seconds or more.

•

Diagnosis code B1302 or B1301 is set in AS&G-ECU.

IMMOBILIZER SYSTEM <Vehicles without keyless

operation system>

GENERAL INFORMATION

M2544600200251

• The immobilizer system consists of the receiver

antenna, the ETACS-ECU, the steering lock
(immobiliser antenna) and the ignition key.

• The receiver antenna communicates with the

transponder via the steering lock to receive key-
less entry signal, and then sends the signal to the
ETACS.

• ID codes (transmitter and transponder) is regis-

tered into ETACS-ECU.

• The ETACS-ECU compares the ID code, which it

receives from the receiver antenna, with the one
stored in its memory. If the ID codes correspond,
the ETACS-ECU will permit the keyless operation
and the engine starting.

• The ignition key (transmitter and transponder)

incorporates an indicator lamp that enables the
driver to check if the signal is transmitted cor-
rectly or if the battery in the key is discharged.

• Each vehicle is provided with two ignition keys as

standard, and up to eight ignition keys can be
registered.

• Settings of the keyless entry function can be

adjusted using a customisation function.

AC905388

Battery

Ignition switch
(ON)

AS&G-ECU

Relay 1

Relay 2

Radio and CD player

Multivision display

Hands free-ECU

Battery (+B) input

ACC input

Battery (+B) output

Boost command
from AS&G-ECU

DC/DC converter

ACC output

<Multivision display>

AG

Battery

ACC

<Multivision display>

Control section

Boost section

Downloaded from

www.Manualslib.com



manuals search engine



IMMOBILIZER SYSTEM <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-51

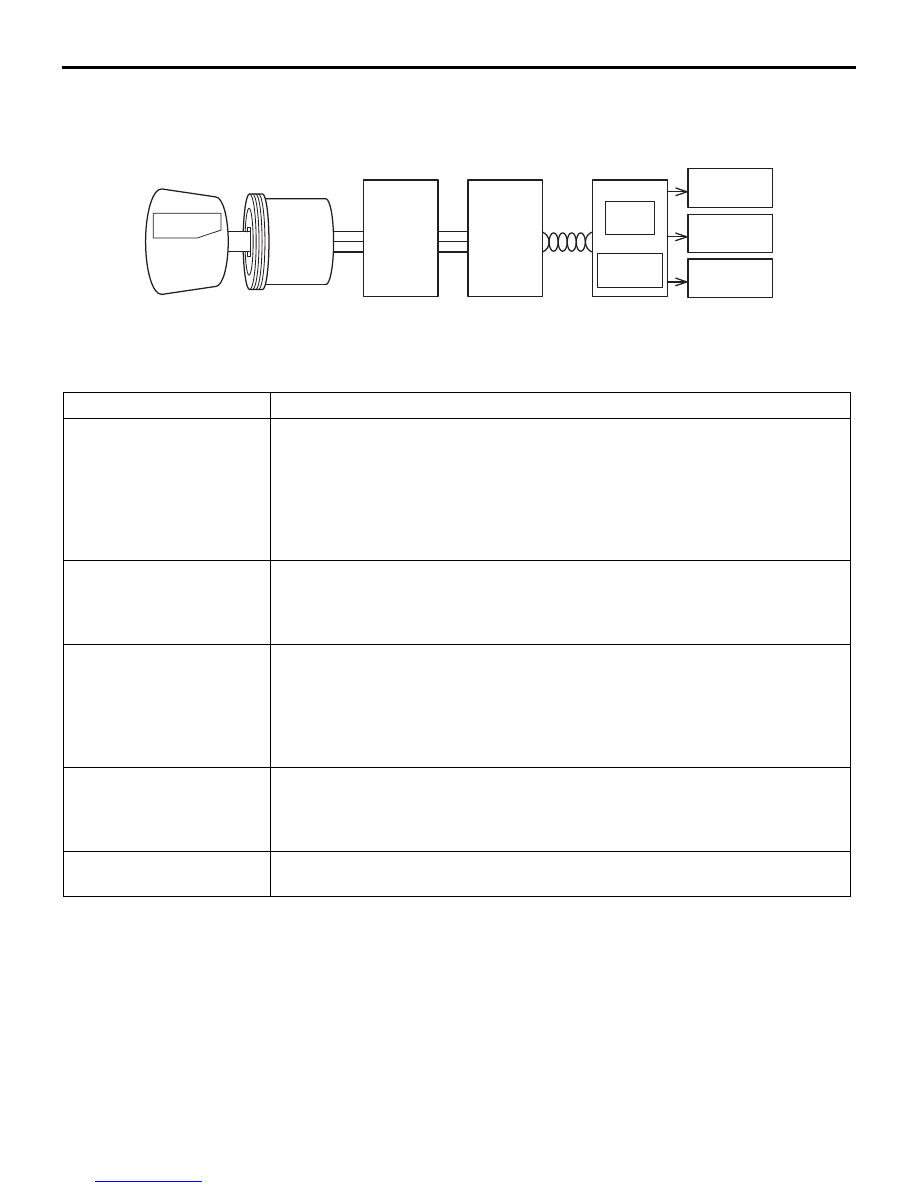

CONSTRUCTION DIAGRAM

MAIN COMPONENTS

ACB05551

Transponder

Ignition key

Immobilizer
antenna

Receiver
antenna

ETACS-ECU

Engine-ECU

Ignition

Injection

CPU

CAN

CAN-C

AB

Steering lock

ID

Starter relay

Component name

Outline of function

Receiver antenna

Receives the operation signals from the lock/unlock switches on the ignition
key (transmitter and transponder), sends them to ETACS-ECU
Sends signal to the transponder in the ignition key and receives the reply data
from the transponder via the steering lock (immobilizer antenna), sends the
reply data to ETACS-ECU.
Communication with transponder is operated by ETACS, Receiver antenna is a
driver module for transponder communication.

Steering lock (immobilizer
antenna)

Wireless communication with ignition key (transponder) receives the ID code
(key ID) of the ignition key (transponder) needed for starting the engine,
transponder communication is conducted via this antenna and receiver
antenna drives this antenna.

Ignition key (transmitter
and transponder)

The ignition key (transponder) receives signals for certification sent from
ETACS-ECU via receiver antenna and immobilizer antenna, and sends the
reply data signal to ETACS-ECU via receiver antenna and immobilizer
antenna.
The ignition key (transmitter) also sends signals to receiver antenna when the
lock/unlock switches on it are operated.

ETACS-ECU

Conduct certification communication with the engine by using the CAN
communications.
Operate the receiver antenna for the transponder communication, and store
the IDs using the immobilizer communication.

Engine-ECU

Communicates with ETACS-ECU via CAN. Permits/inhibits the engine starting
and controls the engine operation.

Downloaded from

www.Manualslib.com



manuals search engine



IMMOBILIZER SYSTEM <Vehicles without keyless operation system>

CHASSIS ELECTRICAL

54A-52

System configuration

OPERATION

1. When the ignition key is inserted to the ignition

switch or the ignition switch is turned to the ON
position, ETACS-ECU starts operation of receiver
antenna, and starts communication with ignition
key (transponder) by radio frequency.

2. When the ignition key receives the request signal

to start the communication from receiver antenna
via immobilizer antenna, then transponder starts
the communication and send the signal for
communication to receiver antenna via
immobilizer antenna.

3. Receiver antenna sends the codes (key ID, etc)

sent from the ignition key to the ETACS-ECU.

4. ETACS-ECU compares the codes (key ID, etc)

sent from receiver antenna with the
already-registered ID code and self calculated
value, and then reflect the result of transponder
communication to the certification communication
with engine ECU.

NOTE:

.

•

The transponder integrated in the ignition key
uses the power supplied from receiver antenna
via immobilizer antenna. Therefore, it can be
used regardless of the battery in ignition key (for
transmitter).

•

Two ignition keys (transmitter and transponder)
are provided, and up to eight keys can be regis-
tered to one vehicle as needed.

•

When ETACS-ECU is replaced or when the key
is lost or added, the ID codes for all the keys (key
ID) must be registered using M.U.T.-III.

ACC00115

ETACS-ECU

Turn-signal lamp

Receiver
antenna

Steering lock
(immobilizer
antenna)

Engine-ECU

Lock switch

Unlock switch

CAN-C
communication

Ignition key

Radio
frequency
signal
(Transponder)

Radio
frequency
signal (Transmitter)

Room lamp,
Ignition key cylinder
illumination lamp

Power window switch

Door lock actuator

Door mirror assembly

AB

Transmitter

Transponder

Tailgate latch
assembly

Downloaded from

www.Manualslib.com



manuals search engine



ETACS

CHASSIS ELECTRICAL

54A-53

ETACS

GENERAL INFORMATION

M2545400200744

ETACS

*

-ECU has three main functions (gateway

function, coding function, body electrical equipment
control function).

NOTE:

*

: ETACS (Electronic Time and Alarm Control

System)

GATEWAY FUNCTION

As a central ECU for the on-vehicle communication
network system established in the vehicle, the gate-
way function is integrated into ETACS-ECU. The
gateway function offers the following functions:

• Data transfer among four networks

*1

Transfers the data flowing in a network to another

network in real time.

NOTE:

*1

: CAN

*2

-C (power train network),

CAN

*2

-C-Mid (middle-speed body network), LIN

*3

(low-speed body network) and LIN-TAS

*4

(anti-theft alarm system network)

NOTE:

*2

: For details of CAN, refer to GROUP 54C,

Controller Area Network (CAN)

P.54C-2

.

NOTE:

*3, *4

: For details of LIN, refer to GROUP 54B,

Local Interconnect Network (LIN)

P.54B-2

.

• Diagnosis of each network communication line

Detects and stores an open circuit and short circuit of

communication line.

• Communication error diagnosis of network ECUs

Detects and stores the ECU that is not properly

transmitting data.

CODING FUNCTION

By writing the coding data such as vehicle model,
destination, and equipment level to ECUs, the func-
tions of ECUs can be changed. There are two types
of coding method, the local coding and global coding.

BODY ELECTRICAL EQUIPMENT
CONTROL FUNCTION

This function controls the following electrical equip-
ment.

• Exterior lamps

• Wiper, washer

• Central door locking system

• Interior lamp

• Electric-folding door mirror <vehicles with electric

retractable remote controlled door mirrors>

• Keyless entry <Vehicles without keyless opera-

tion system>

• Power supply control

• Immobilizer system <Vehicles without keyless

operation system>

• Headlamp automatic levelling system <vehicles

with headlamp automatic levelling system>

• Security alarm system <Vehicles with security

alarm>

FUNCTION AND CONTROL BY ETACS-ECU.

M2545400300547

POWER SUPPLY CONTROL

ACC POWER CUT-OFF FUNCTION <INI-
TIAL CONDITION: 30 MINUTES>

The function has been added that the ACC power
supply is cut-off when 30 or 60 minutes has elapsed

with the ignition switch in the ACC position.

NOTE:  Using a customise function, the availability of
ACC power cut-off function and its time to ACC
power cut-off can be set. (Refer to Customise Func-
tion

P.54A-54

).

ACC01043AB

ETACS-ECU

LIN

CAN-C-Mid

CAN-C

LIN-TAS
