AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-46

CONSTRUCTION DIAGRAM

FUNCTION

Various attractive new sound adjusting functions are
added, to select sound setting precisely, according to
various user preferences.

Surround technology: DTS Neural
Surround

Multi-channel surround enhancement technology
developed by DTS, surround sound from the rear
speakers, even 2-channel music source.

Media expander: PremiDIA-HD

Compensate sound quality of the compressed digital
music source.

Automatic volume control technology:
Dolby Volume

Auto volume level adjusting technology developed by
Dolby, reduce volume changes between different vol-
ume level source.

Wide stereo technology: PremiDIA-WIDE

Emphasize stereo image more expanded, beyond
cabin space.

Listening Position selector

Sound quality optimization according to the location
of the listeners.

3 levels speed compensated volume
(SCV)

Select from 3 levels of SCV effect (+OFF) accord-
ingly from driving noise (current model: fixed value,
SCV ON or OFF).

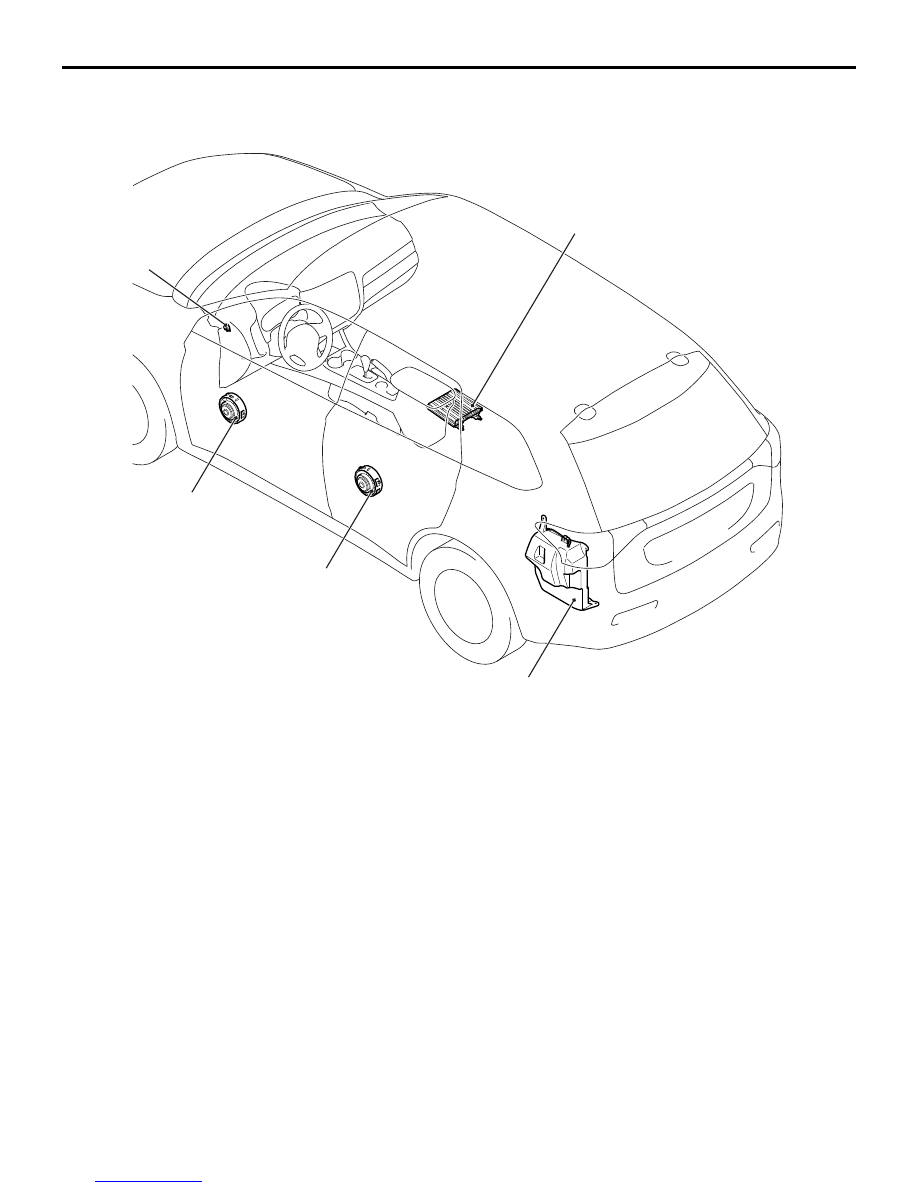

AUDIO AMPLIFIER

M2547000200258

As a separate amplifier, 8-ch audio amplifier incorpo-
rating digital signal processor (total maximum output
of 710 W) has been introduced.

ACC00014

Subwoofer

Rear door speaker

Front door speaker

Tweeter

AB

Audio amplifier

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-47

By using AUREUS

® 32 bit digital signal processor

and BURR-BROWN

® 24 bit D/A converter, system

has higher accretion of digital sound processing, and
it makes predominantly clear sound.

SPEAKER

M2545000100437

9 speakers [tweeter, front door, rear door (2-way),
subwoofer] are provided.

SPECIFICATIONS

TWEETER

The 3.5 cm soft dome tweeters are incorporated in
the front door sash trim.
By using light weight CCAW (Copper-Clad Alumin-
ium Wire) voice coil and Tetoron

® diaphragm, mak-

ing much clear and comfortable high frequency
sound.

DOOR SPEAKER

The 16 cm polypropylene cone speakers (woofer)
are incorporated in the front door. The 16 cm + 3.5
cm polypropylene cone 2-way coaxial speakers
(woofer + tweeter) are incorporated in the rear door.

Vacuum moulded 3D shape cone woofer has advan-
tages for lighter weight and higher stiffness. By mak-
ing horn shaped surrounding of the tweeter, makes
sound connection smoothly from low to high fre-
quency.

SUBWOOFER

The 25 cm dual voice coil subwoofer has been
installed to the quarter trim in the luggage room, ena-
bling the playback of dynamic deep bass.
Gain more power than current model although sub-
woofer unit size is same. Position and direction of it
are decided enthusiastically for excellent sound.

Item

Allowable input power W

Rated input power W

Tweeter

50

25

Front door speaker

80

40

Rear door speaker

80

40

Subwoofer

150/150

75/75

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-48

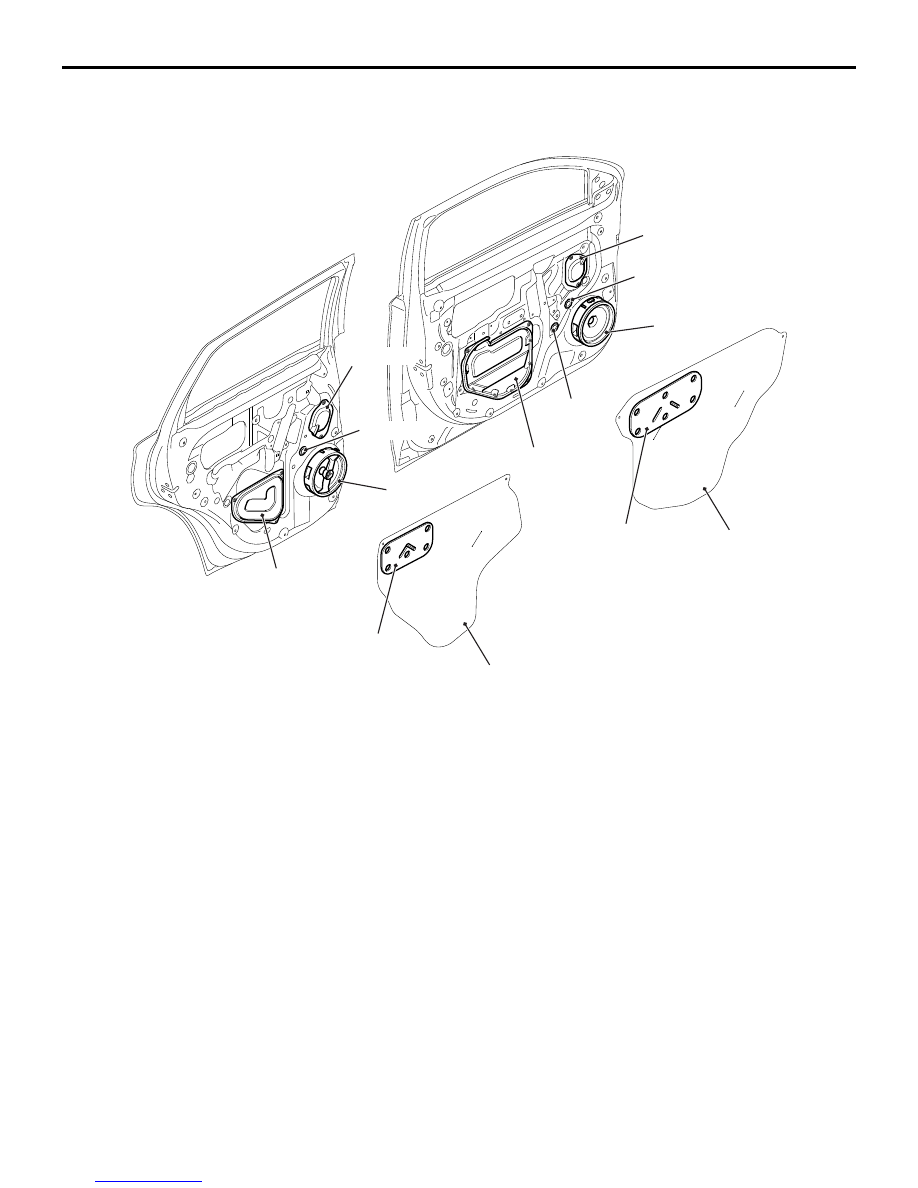

DOOR AS A SPEAKER BOX

The openings of doors is blocked by using the sheet
metal cover, resin cover, resin plug and urethane
integrated resin sheet to make the door into a
speaker box, thus improving the sound quality. As an
advantage of the sheet metal cover, the rigidity of the
areas around the speaker has been increased, and
the higher sound pressure, suppression of high har-
monic, and suppression of dumping are achieved to
improve sound quality.

DIGITAL RADIO

M2543900100014

Digital Audio Broadcast (DAB) (digital radio) is sup-
ported. A DAB tuner is installed in the front inner pil-
lar lower.

Features

• CD audio like high-quality sound

• Improved radio reception due to digital radio

wave

• A DAB-DAB link function enables the driver to

receive multiple radio stations which are broad-
casting the same contents sequentially.

• Text information such as song title or artist is dis-

played.

DC/DC CONVERTER

M2546800100016

The DC/DC converter has been established which
prevents the reset occurrence and sound jump of
radio and CD player, multivision display and hands
free-ECU caused by the power supply voltage drop
at the auto start by Auto Stop & Go (AS&G) System.

ACB05473

Front door
speaker

Rear door
speaker

Sheet metal
cover

Resin cover

AB

Front door
water proof film

Rear door
water proof film

Urethane integrated
resin sheet

Urethane integrated
resin sheet

Resin plug

Resin plug

Resin plug

Resin cover

Sheet metal
cover

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-49

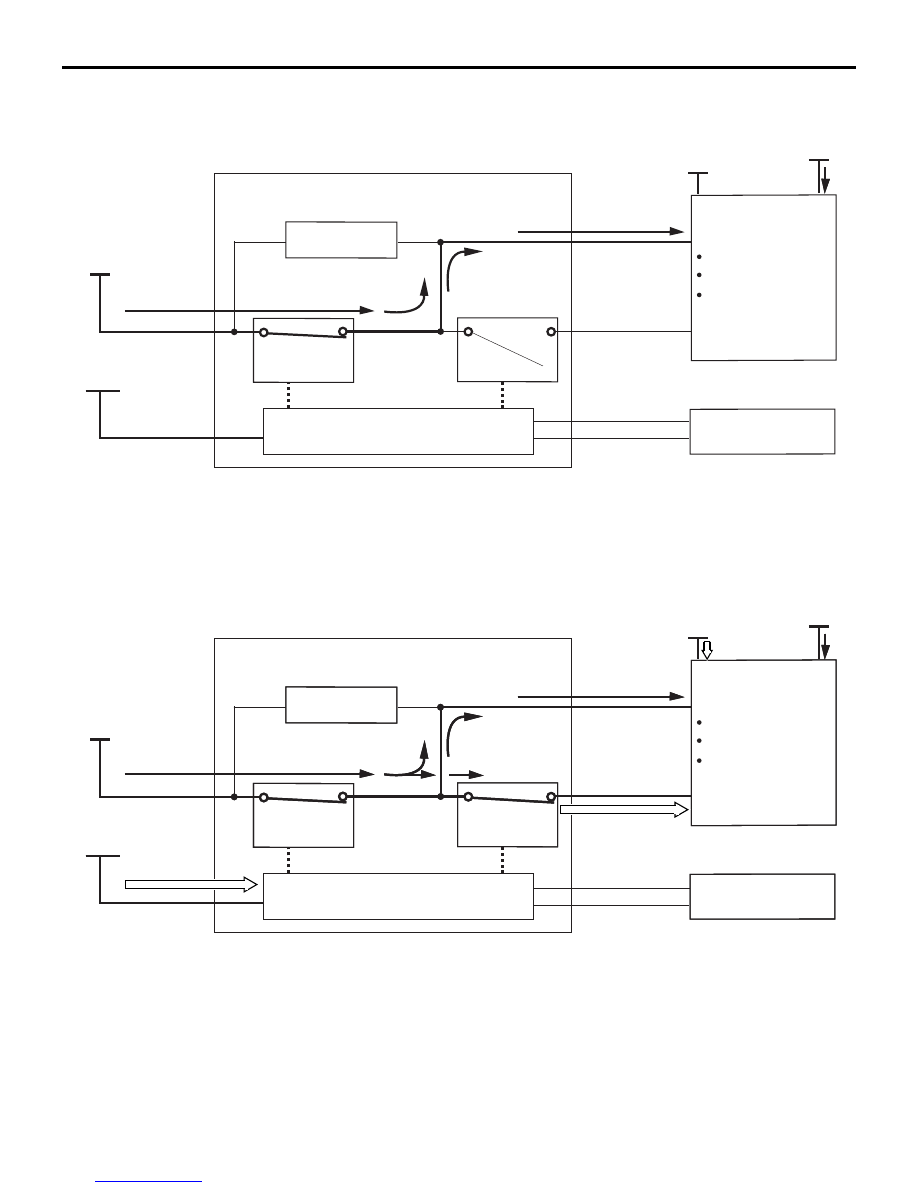

General operation of DC/DC converter

 IGNITION SWITCH:OFF

The DC/DC converter outputs the battery voltage input from the battery to each audio device. (Relay 1:
Close, Relay 2: Open)

IGNITION SWITCH: ON or ACC position <except at auto start by Auto Stop & Go
(AS&G) system>

When there is an ACC input from the ignition switch, the DC/DC converter closes the relay 2, and the ACC
output <multivision display, AUDIO display (instrument panel assembly centre)> is sent from the DC/DC con-
verter to each device. (Relay 1: Close, Relay 2: Close)

AC905396

Battery

Ignition switch
(OFF)

AS&G-ECU

Relay 1

Boost section

Relay 2

Radio and CD player

Multivision display

Hands free-ECU

Control section

Battery (+B) output

DC/DC converter

Battery (+B) input

AH

Battery

ACC

<Multivision display>

AC905398

Battery

Ignition switch
(ACC/ON)

AS&G-ECU

Relay 1

Boost section

Relay 2

Radio and CD player

Multivision display

Hands free-ECU

Control section

ACC input

Battery (+B) output

ACC output

<Multivision display>

DC/DC converter

AC905398

Battery(+B) input

AF

Battery

ACC

<Multivision display>
