Mitsubishi Outlander (2013+). Manual - part 214





AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-38

RADIO AND CD PLAYER

M2544900400632

For the audio unit, the following two types have been
established: the 1CD audio as well as the display
audio. To have best acoustical characteristics, inte-
grated amplifier is tuned to the acoustic.

1CD audio

• Harmonized face panel design and colour with

around trim parts.

• 2 line bright white letters on VFD (Vacuum Fluo-

rescent Display), umber illumination.

Display audio

• Harmonized face panel design and colour with

around trim parts.

• 6.1 inch QVGA full colour display, with touch

panel, umber illumination.

• Compatible with rear view camera interface.

SPECIFICATIONS

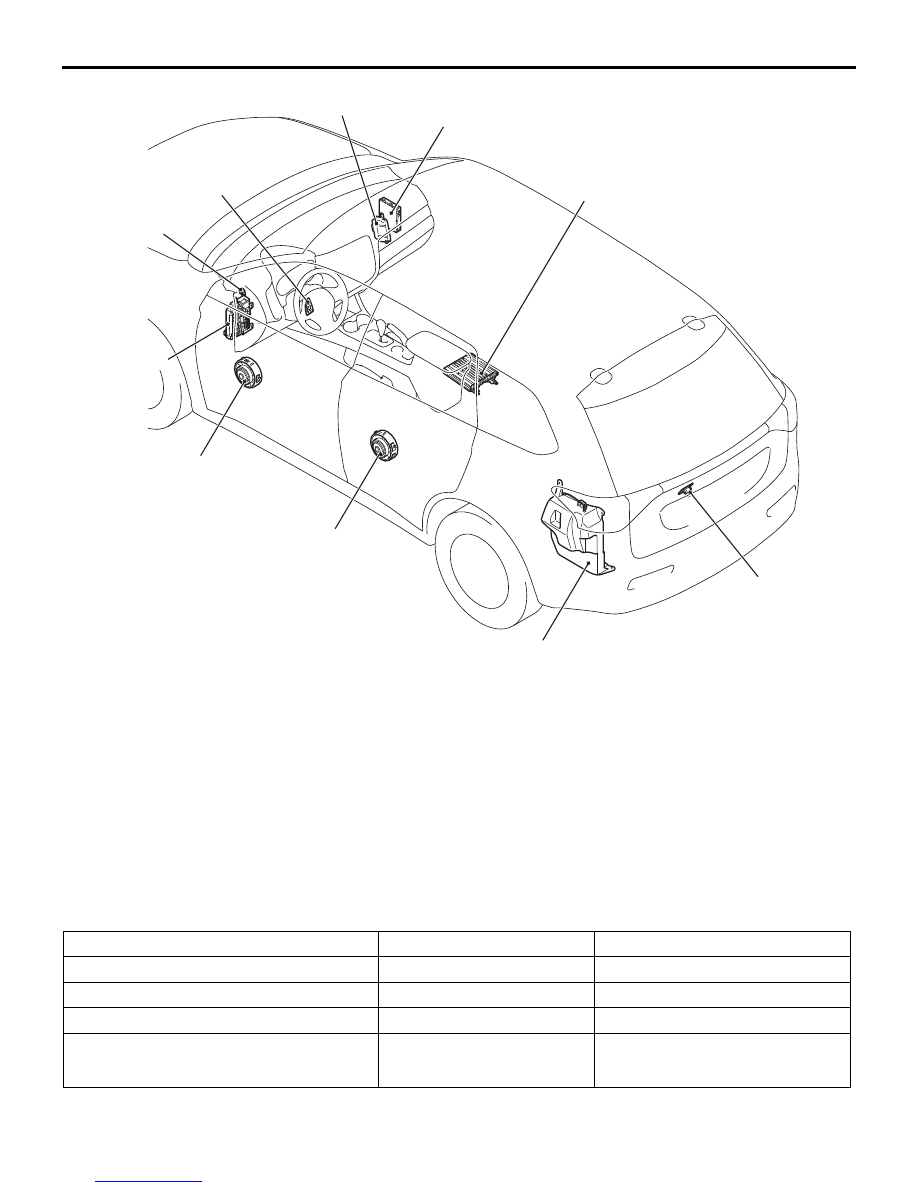

ACC00993

Subwoofer

Rear view camera

Audio amplifier

Rear door speaker

Front door speaker

Tweeter

Steering wheel
remote control switch

AB

ETACS-ECU

DAB tuner

DC/DC converter

Item

1CD audio

Display audio

FM/MW/LW electronic tuning radio

Equipped

Equipped

DAB function <Vehicles with DAB tuner>

Equipped

Equipped

RDS function

Equipped

Equipped

CD player, compatible with MP3



format

(CD-R/CD-RW supported)

*1

Equipped

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-39

NOTE:

.

*1

: Some MP3/WMA/AAC format and

CD-R/CD-RW may not be played.

*2

: A iPod

®

/portable music player/USB memory

device (MP3/WMA/AAC compatible) can be con-
nected through the USB connection to play its
stored audio file or charge its battery. Some
devices may not be compatible with the hands
free ECU.

CD player, compatible with
MP3/WMA/AAC format (CD-R/CD-RW

supported)

*1

Equipped

Audio integrated 4 channel power
amplifier

General 140 W

General 140 W

Supports iPod

®/portable music

player/USB memory device
(MP3/WMA/AAC compatible)

connection

*2

Equipped

Equipped

Item

1CD audio

Display audio

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-40

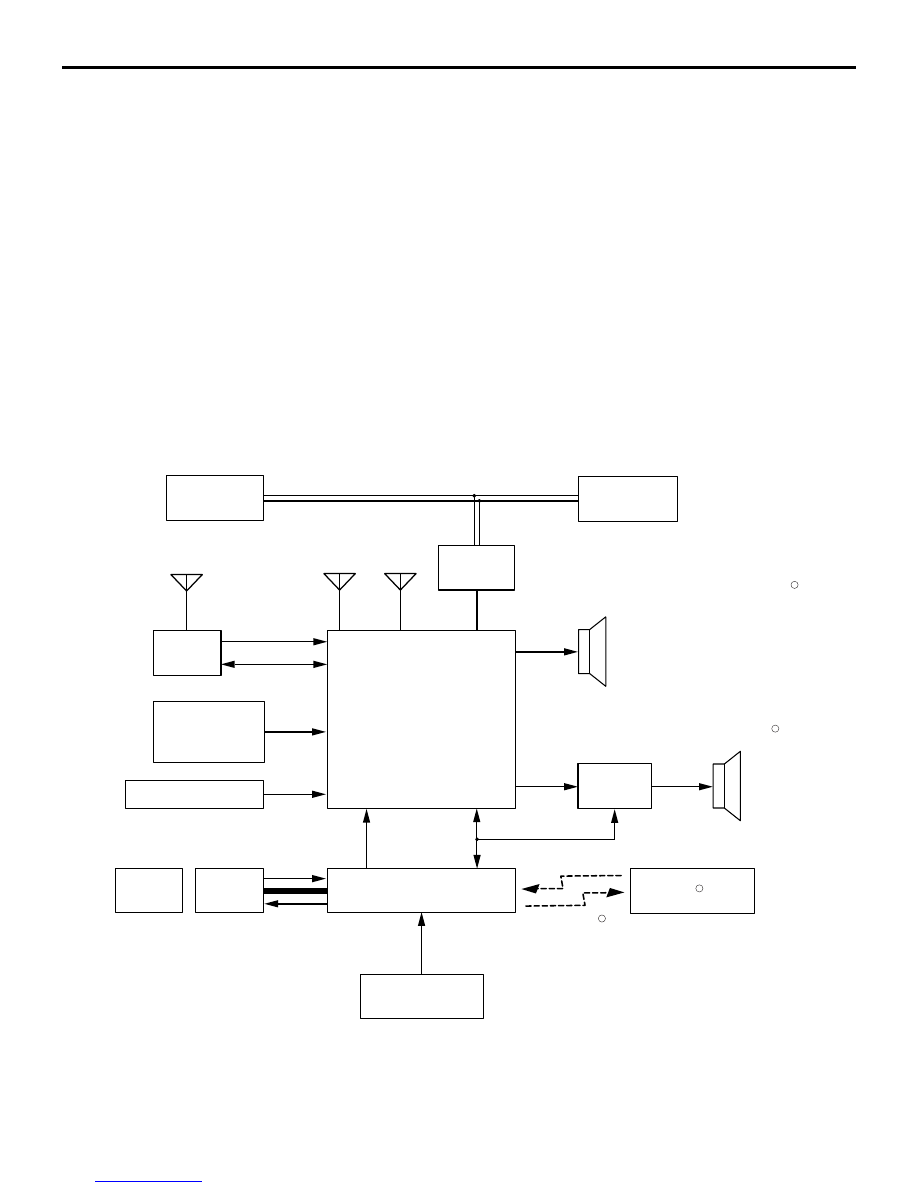

SYSTEM BLOCK DIAGRAM

MITSUBISHI MULTI COMMUNICATION
SYSTEM (MMCS)

M2544800100571

For Mitsubishi Multi Communication System
(MMCS), the multivision display (7 inch WVGA dis-
play of wide 2 DIN size) with CD drive and SD mem-
ory card drive is established.
Two slots of SD memory card available. One uses
map data and software program etc., the other uses
music data (MP3, WMA, etc.) playback.
Lift customer satisfaction point to improve following
items from current model.

Refresh Design

Adopt high-definition screen

• Change WQVGA (480 x 234 dot) display into

WVGA (800 x 480 dot) in the same size. So, sup-
ply sharper image.

Change panel and screen design

• Change the name of panel buttons easy to under-

stand.

• Adopt rotary switches to change volume intui-

tively.

ACC00980 AB

<Vehicles without
hands-free interface system>

<Vehicles with
DAB tuner>

<Vehicles with
hands-free interface system>

USB
adapter

USB
device

Combination
meter

ETACS-ECU

Steering wheel
remote control
switch

Rear view
camera


Sound

Sound

Speaker

Radio
antenna (for analog)

Radio
antenna (for digital)

Communication

Communication

DAB
tuner

Sound

Audio
control

USB
adapter

USB
device

Sound

Audio
control

Sound

Hands free ECU

Bluetooth

R

Bluetooth  device

R

Microphone unit

Sound

Radio and CD player

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-41

• Group each menu easy to understand (Left side:

AV, Right side: Navigation, Under: Setting).

• Create expensive-looking high gross black and

plating on the panel.

Improve Functions

Improve the base feature of MMCS

• Add 3D map view and 3D landmarks

• Add highway (motorway) map

• Add junction view

• Display speed limit

Display guidance point in the combination meter

• Displaying guidance information displayed in

MMCS in combination meter, confirm guidance
point safety.

Improve Usability

Add map of new countries

• Add new countries as below.

• Finland

• Baltic States (Latvia, Lithuania, Estonia)

• Belarus

• Moldova

Enhance AV Functions

Display two screen at a time

• Display map screen and other screen (AV, Infor-

mation etc.) at a time

SYSTEM BLOCK DIAGRAM

ACC00981 AB

USB
adapter

USB
device

Multivision display
(MMCS)

<Vehicles with Rockford Fosgate
premium sound system>

Speaker

Steering wheel
remote control
switch

Rear view camera

CAN box

Combination
meter

ETACS-ECU

Sound


Sound

Sound

Speaker

R

<Vehicles without Rockford Fosgate
premium sound system>

R

GPS
antenna

Communication

Sound

Audio
control

Sound

Hands free ECU

Bluetooth

R

Bluetooth  device

R

Microphone unit

Sound

<Vehicles
with
DAB tuner>

Sound

Radio
antenna
(for digital)

Radio
antenna
(for analog)

Communication

DAB
tuner

Downloaded from

www.Manualslib.com



manuals search engine
