Mitsubishi Outlander (2013+). Manual - part 213





REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-34

BACK SENSOR

CORNER SENSOR

Distance
between
back
sensor and
obstacles

Buzzer duration

The standard mode

The towing bar mode

Less than
approximat
ely 40 cm

Buzzer: OFF

Approximat
ely 40 to 60
cm

Approximat
ely 60 to 80
cm

Approximat
ely 80 to
100 cm

Approximat
ely 100 to
120 cm

Approximat
ely 120 to
150 cm

Distance
between
corner
sensor and
obstacles

Buzzer duration

Less than
approximat
ely 25 cm

Approximat
ely 25 to 40
cm

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

0.2s

0.2s

0.2s

0.2s

AC

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC

AC808133

Buzzer: ON

Buzzer: OFF

0.4s

0.4s

0.4s

AC

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

0.2s

0.2s

0.2s

0.2s

AC

AC808134

Buzzer: ON

Buzzer: OFF

0.6s

0.6s

AC

AC808133

Buzzer: ON

Buzzer: OFF

0.4s

0.4s

0.4s

AC

AC808135

Buzzer: ON

Buzzer: OFF

0.8s

0.8s

AC

AC808134

Buzzer: ON

Buzzer: OFF

0.6s

0.6s

AC

AC808131

Buzzer: ON

Buzzer: OFF

Continuity

AC

AC808128

Buzzer: ON

Buzzer: OFF

0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s 0.1s

AC

Downloaded from

www.Manualslib.com



manuals search engine



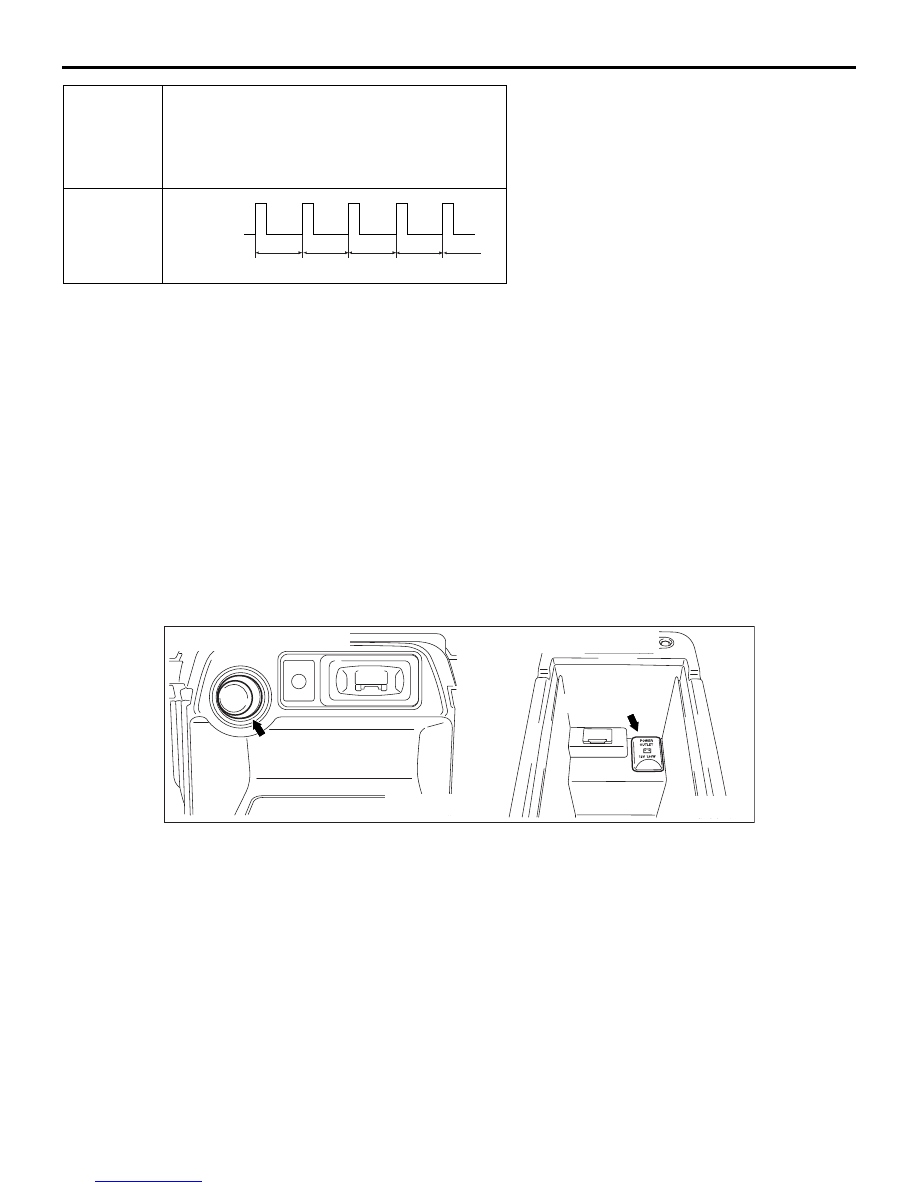

ACCESSORY SOCKET

CHASSIS ELECTRICAL

54A-35

FAIL-SAFE FUNCTION

1. When the ultrasonic noise is received, the bass

toned buzzer sound continuously. When the ultra-
sonic noise stops, the normal operation will be
resumed immediately.

2. When the abnormality such as the open circuit of

a sensor occurs, the sensor turns OFF and the
high toned buzzer sounds for 5 seconds. When
the normal signal is received, the normal state
will be resumed.

3. When an abnormality occurs in the system, the

reversing sensor indicator keeps flashing with
0.8-second interval until the system returns to the
normal condition. However, if the system is
turned OFF by using the switch, the indicator
stops its flashing.

ACCESSORY SOCKET

GENERAL INFORMATION

M2544400200796

• The instrument centre panel is equipped with a

accessory socket as standard. <Vehicles for
EUR>

• The instrument centre panel is equipped with a

cigarette lighter as option. <Vehicles for EUR>

• The instrument centre panel is equipped with a

cigarette lighter as standard. <Vehicles for Rus-
sia>

• The rear console contains a plug-in type acces-

sory socket, which is useful when using a acces-
sory device

• The maximum load is 120 W when a single

accessory socket is used.

Approximat
ely 40 to 50
cm

Distance
between
corner
sensor and
obstacles

Buzzer duration

AC808132

Buzzer: ON

Buzzer: OFF

0.2s

0.2s

0.2s

0.2s

0.2s

AC

ACB05420

ACB05500

ACC00868

Cigarette lighter or
Accessory socket

Accessory socket

AB

<Instrument centre panel>

<Rear floor console>

Downloaded from

www.Manualslib.com



manuals search engine



COLUMN SWITCH

CHASSIS ELECTRICAL

54A-36

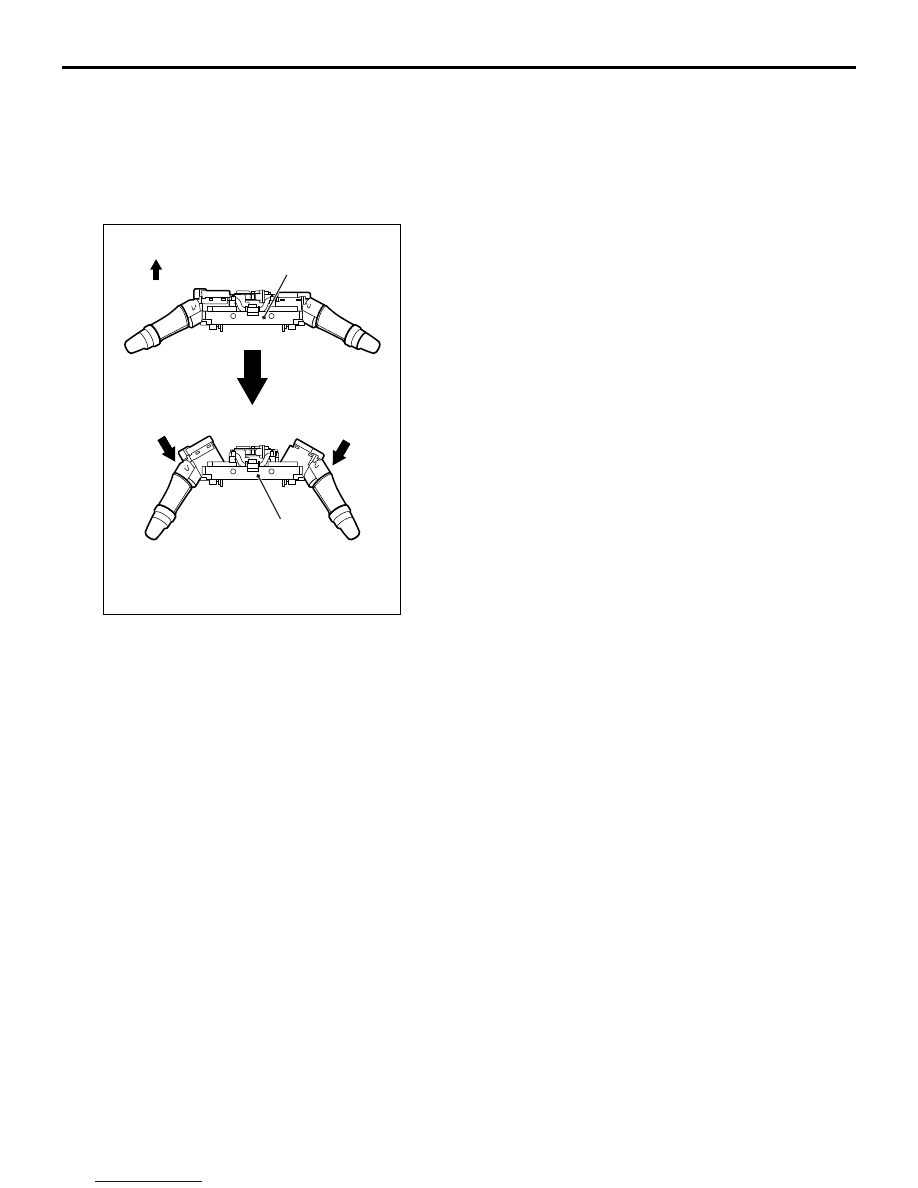

COLUMN SWITCH

GENERAL INFORMATION

M2546100200166

Column switch has a function to ensure the driver's
safety upon an impact of frontal collision.

FUNCTION

If the column switch moves to the front of the vehicle
and hits the instrument panel or meter bezel due to
the impact of frontal collision, the steering wheel
moves to the front of the vehicle because the right
and left levers fall down, ensuring the driver's safety.
In addition, the column switch is ensured of the rigid-
ity that the levers do not fall down by the normal
operation, but it cannot be reused after deformation
occurrence.

AUDIO AND NAVIGATION SYSTEM

GENERAL INFORMATION

M2547000100596

• For the audio unit (radio and CD player), the fol-

lowing two types have been established: the 1CD
audio as well as the display audio.

• For Mitsubishi Multi Communication System

(MMCS), the multivision display with CD drive
and SD memory card drive is established.

• A rear view camera has been established to the

tailgate.

• On the spoke of steering wheel, the steering

wheel remote control switch has been installed.

• An USB adapter is equipped in the rear console.

• The hands-free interface system has been estab-

lished.

• For the speaker system, the following two types

have been established: the 6 speakers as well as

the 9 speakers at 7 positions

*

.

NOTE:

*

Vehicles with Rockford Fosgate

®

 premium

sound system.

• A roof antenna has been mounted for receiving

radio broadcast.

• The Rockford Fosgate® premium sound system

(audio amplifier and 9 speakers at 7 positions)
has been established.

• Digital Audio Broadcast (DAB) (digital radio) is

supported. <Vehicles with DAB tuner>

• A DC/DC converter is installed in order to avoid

the power supply voltage drop when Auto Stop &
Go (AS&G) System starts the engine automati-
cally.<Vehicles with Auto Stop & Go (AS&G) Sys-
tem>

ACB02479

Front of vehicle

AB

Collision load

Collision load

Column switch

Column switch

Downloaded from

www.Manualslib.com



manuals search engine



AUDIO AND NAVIGATION SYSTEM

CHASSIS ELECTRICAL

54A-37

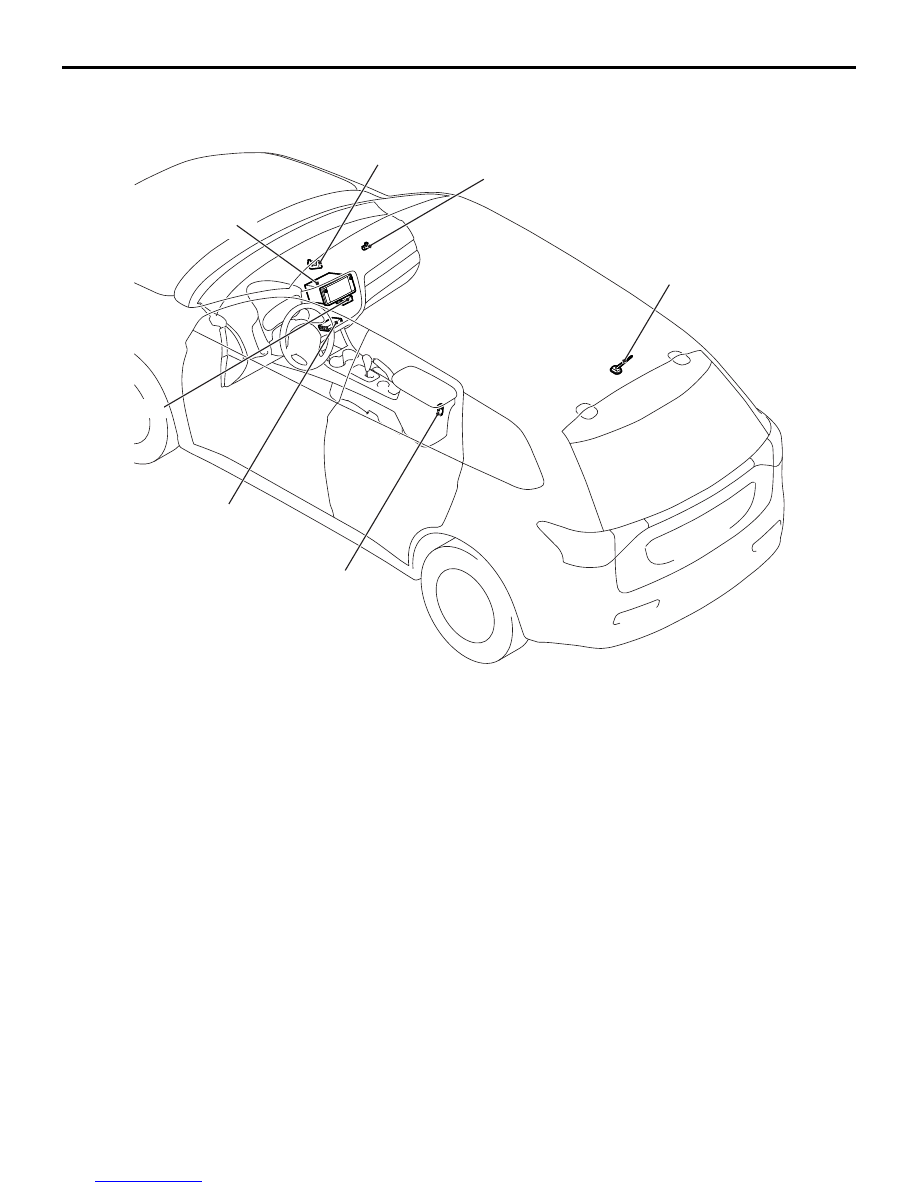

CONSTRUCTION DIAGRAM

ACB05387

ACB05387AB

 Roof antenna

USB adapter

GPS antenna

Microphone unit

Radio and CD player or
multivision display (MMCS)

Hands free ECU

CAN box

Downloaded from

www.Manualslib.com



manuals search engine
