COMBINATION METER

CHASSIS ELECTRICAL

54A-30

BUZZER

M2545500600404

Using its own signal or signal sent via CAN commu-
nication, the combination meter sounds the inte-
grated buzzer.

FRONT SEAT BELT REMINDER
FUNCTION

When the driver's seat belt is released

1. When the ignition switch is turned ON, the

driver's seat belt warning lamp illuminates and
the buzzer sounds for 6 seconds.

2. <Vehicles for Russia> 60 seconds after the igni-

tion switch is turned ON, if the vehicle speed
exceeds 8 km/h, the driver's seat belt warning
lamp illuminates and blinks for 90 seconds. The
buzzer sounds simultaneously with the blinks of
the warning lamp.

Item

Relating ECU

Front seat belt reminder function

Combination meter

FCM collision warning buzzer/FCM approaching warning buzzer

ACC/FCM-ECU

ACC approaching warning buzzer

ACC/FCM-ECU

ACC automatic cancelling buzzer

ACC/FCM-ECU

LDW warning buzzer

LDW-ECU

ACC vehicle stop/ACC vehicle-travelling-ahead missing indication buzzer

ACC/FCM-ECU

ACC_FCM set/FCM set/ACC_FCM deactivation/cruise control set
indication buzzer

ACC/FCM-ECU, engine-ECU

ASLF overspeed buzzer

Engine-ECU

AS&G buzzer

AS&G-ECU, engine-ECU

Electric steering wheel lock malfunction warning buzzer (vehicles with
OSS)

OSS

OSS-related malfunction warning buzzer (vehicles with OSS)

OSS

Engine switch reminder buzzer (vehicles with OSS)

OSS

A/T shift cancel buzzer

CVT-ECU or A/T-ECU

Paddle shift cancel prohibition buzzer <Vehicles with paddle shift>

Security alarm buzzer

ETACS-ECU

Lamp reminder buzzer function

ETACS-ECU

Keyless operation key reminder buzzer (vehicles with KOS)

KOS

Door-ajar warning buzzer function

ETACS-ECU

Freeze warning buzzer

Combination meter

Parking brake reminder buzzer function

Combination meter

Multi-information display interrupt display buzzer

Combination meter

ETACS-ECU function customisation buzzer

ETACS-ECU

A/C operation buzzer

A/C-ECU

Audio operation buzzer

Radio and CD player,
Multivision display

Meter information switch or rheostat illumination switch <High contrast
meter> operation buzzer

Combination meter

Turn-signal lamp buzzer function

ETACS-ECU

Rest reminder buzzer

Combination meter

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-31

3. <Except vehicles for Russia> If the vehicle speed

exceeds 8 km/h, the driver's seat belt warning
lamp illuminates and blinks for 90 seconds. The
buzzer sounds simultaneously with the blinks of
the warning lamp.

4. On Step 2 or 3 completion, if the seat belt is not

fastened when the vehicle speed changes from 3
km/h to 8 km/h, the warning lamp illuminates and
blinks again and the buzzer sounds again.

When the front passenger's seat belt is released

• Control is the same as when the driver's seat belt

is not fastened.

FCM COLLISION WARNING BUZZER/FCM
APPROACHING WARNING BUZZER

Sounds when the FCM activates.

ACC APPROACHING WARNING BUZZER

Sounds when your vehicle is too close to the vehicle
travelling ahead during ACC operation.

ACC AUTOMATIC CANCELLING BUZZER

Sounds when the ACC deactivates.

LDW WARNING BUZZER

Sounds when the LDW enters an alert mode.

ACC VEHICLE STOP/ACC
VEHICLE-TRAVELLING-AHEAD MISSING
INDICATION BUZZER

If the vehicle-travelling-ahead stops during the ACC
operation, your vehicle will also stop automatically.
When the driver does not depress the brake pedal
under this condition, this buzzer will sound. Sounds
when the vehicle-travelling-ahead is missing.

ACC_FCM SET/FCM SET/ACC_FCM
DEACTIVATION/CRUISE CONTROL SET
INDICATION BUZZER

When the cruise control switch or the FCM ON/OFF
switch is operated, a buzzer request signal will be
sent to the combination meter. Then the combination
meter will sound its buzzer.

ASLF OVER SPEED BUZZER

The cruise control system has a speed limiter. If a
predetermined speed limit is reached, the buzzer will
sound.

AS&G BUZZER

The buzzer will sound if any of the following condi-
tions is satisfied during the Auto Stop & Go (AS&G)
system operation.

• In case the hood is opened.

• The driver's seat belt is unfastened and the

driver's door is opened.

• When detecting that the gearshift lever is in other

than neutral position. <M/T>

ELECTRIC STEERING WHEEL LOCK
WARNING BUZZER (VEHICLES WITH
OSS)

A buzzer will sound when the steering wheel lock is
not activated/deactivated normally.

OSS-RELATED MALFUNCTION
WARNING BUZZER (VEHICLES WITH
OSS)

A buzzer will sound when an error occurs in the
OSS-ECU power supply system.

ENGINE SWITCH REMINDER BUZZER
(VEHICLES WITH OSS)

With the engine switch in the ON position, when the
driver's door is opened, the buzzer sounds.

A/T SHIFT CANCEL BUZZER/PADDLE
SHIFT CANCEL PROHIBITION BUZZER
<VEHICLES WITH PADDLE SHIFT>

The buzzer sounds when the shift change on the
transmission side is not made although the downshift
operation is performed with the selector lever or pad-
dle shift.

SECURITY ALARM

Previous alarm
Sounds when the system proceeds to an alarm
standby state.

Main alarm
Sounds as prior notice for several seconds before
the system proceeds to a alarm state.

LAMP REMINDER BUZZER FUNCTION

With the ignition switch in the LOCK (OFF) position,
when the driver's door is opened with the tail lamp
switch remaining ON, the buzzer sounds.

Downloaded from

www.Manualslib.com



manuals search engine



REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-32

KEYLESS OPERATION KEY REMINDER
BUZZER (VEHICLES WITH KOS)

With the ignition switch in the LOCK (OFF) position,
when the driver's door is opened with the keyless
operation key left in the vehicle, the buzzer sounds.

DOOR-AJAR WARNING BUZZER
FUNCTION

With the ignition switch in the ON position, when any
of the doors (including the tailgate) is open and the
vehicle speed information sent via the CAN commu-
nication is 8 km/h or more, the buzzer sounds.

FREEZE WARNING BUZZER

When the ignition switch is in the ON position, if the
ambient temperature is at 3

°C or below, the buzzer

sounds.

PARKING BRAKE REMINDER BUZZER
FUNCTION

With the ignition switch in the ON position, if the
parking brake has not been reset (parking brake
switch: ON), and when the vehicle speed information
transmitted via CAN communication is 8 km/h or
more, the buzzer sounds.

MULTI-INFORMATION DISPLAY
INTERRUPT DISPLAY BUZZER

When the interrupt display is displayed on the
multi-information display because of alarms, the
buzzer sounds.

ETACS-ECU FUNCTION CUSTOMIZATION
BUZZER

When entering into the customize mode of
ETACS-ECU functions or when the customisation is
executed, the buzzer sounds in each case.

A/C OPERATION BUZZER, AUDIO
OPERATION BUZZER

According to the buzzer sounding request signal
which is received when the A/C, radio and CD player,
CD changer or audio visual navigation unit is oper-
ated, the buzzer sounds.

METER INFORMATION SWITCH OR
RHEOSTAT ILLUMINATION SWITCH
<HIGH CONTRAST METER> OPERATION
BUZZER

When the meter information switch or rheostat illumi-
nation switch <High contrast meter> is operated, the
buzzer sounds.

TURN-SIGNAL LAMP BUZZER FUNCTION

The buzzer sounds in synchronisation with the turn
signal lamp operation.

REST REMINDER BUZZER

When the time to take a rest which was set on the
multi-information display is reached, the buzzer
sounds.

REVERSING SENSOR (CORNER SENSOR AND BACK

SENSOR)

GENERAL INFORMATION

M2545200200353

The ultrasonic sensors installed on the rear corner
bumper and rear bumper detect obstacles at the
vehicle corners. These sensors have been adopted
to inform the driver of the obstacle distance from the
vehicle using the buzzer in corner sensor/back sen-
sor-ECU, and to improve the safety and vehicle driv-
ability during driving the vehicle into a garage and
parking in a narrow space.

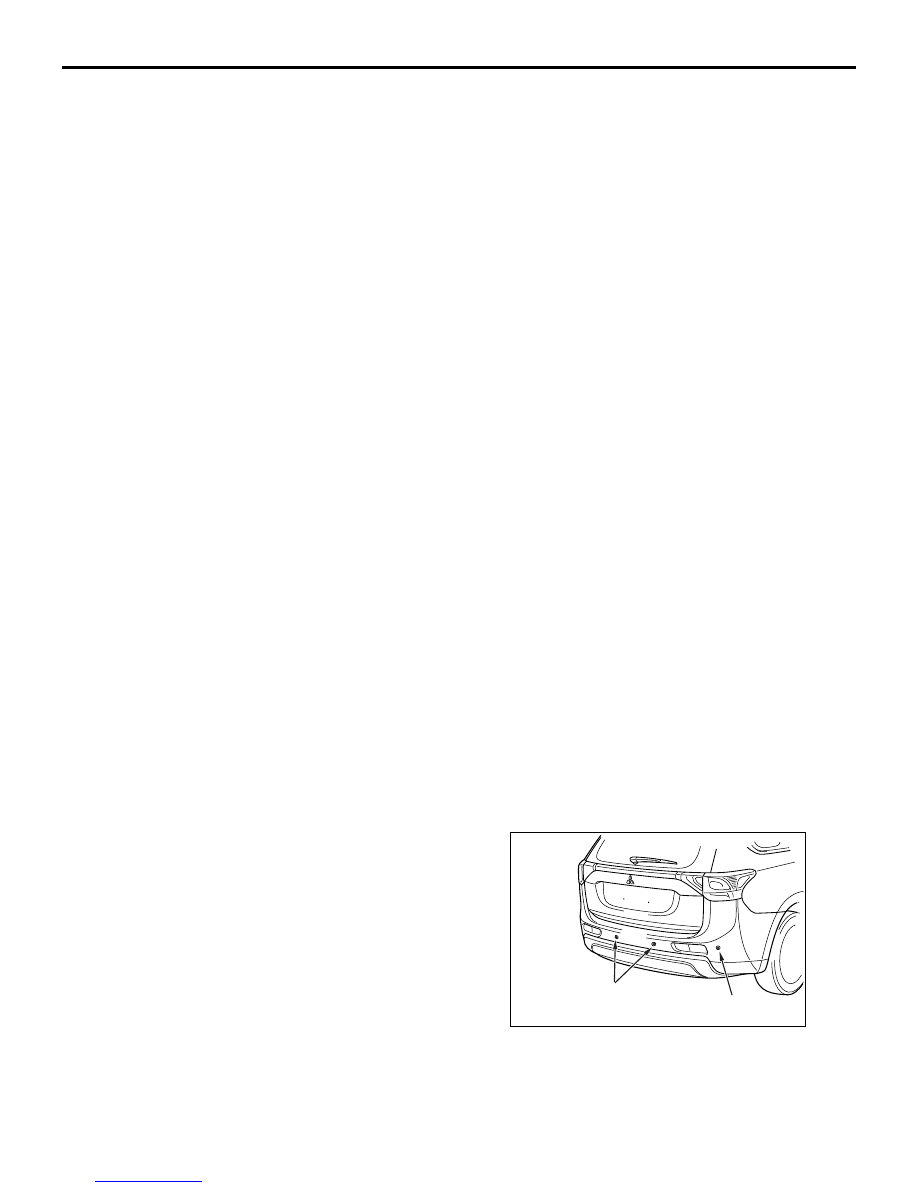

ACC00225

Rear corner sensor

AB

Back sensor

Downloaded from

www.Manualslib.com



manuals search engine



REVERSING SENSOR (CORNER SENSOR AND BACK SENSOR)

CHASSIS ELECTRICAL

54A-33

CAUTION

When the illuminated licence plate is installed, the sensors may not operate because of noise from
the plate.Refer to FAIL-SAFE FUNCTION (1)

• Automatically active system by select reverse

position

• Depending on whether the vehicle is equipped

with a towing bar, you can change sensors
between the standard mode and the towing bar
mode. The towing bar mode changes the system
to exclude in the area in which the towing bar is
mounted from the detection areas.

NOTE: The detection range of the sensor varies with temperature and humidity. Obstacles below the bump-
ers or a curbstone not taller than the sensor position may be hard to be detected.

OPERATION

ACTIVATION/DEACTIVATION OF REVERSING SENSOR SYSTEM

By shifting the gear to the reverse position and oper-
ating the sonar switch (corner sensor switch), the
system can be turned ON (reversing sensor indica-
tor: ON) and OFF (reversing sensor indicator: OFF).

THE TOWING BAR MODE SWITCHING

By operating the sonar switch (corner sensor switch),
"TOWING BAR MODE" and "STANDARD MODE"
can be changed.

1. Turn the ignition switch to the ON position.
2. Move the shift lever or selector lever to the "R"

(reverse) position.

3. Turn off the reversing sensor system by operating

the sonar switch (corner sensor switch).(Revers-
ing sensor indicator: OFF)

4. Press and hold the sonar switch (corner sensor

switch) for approximately 5 seconds.

5. The buzzer* sounds and the mode is switched

between "TOWING BAR MODE" and "STAND-
ARD MODE".

NOTE: *: Sounds twice when the mode is switched
to "TOWING BAR MODE". Sounds once when the
mode is switched to "STANDARD MODE".

BUZZER DURATION

The buzzer sound of the corner sensor/back sensors
is the same. The buzzer in the corner sensor/back
sensor-ECU sounds based on the closer alarm cycle
having a higher priority.

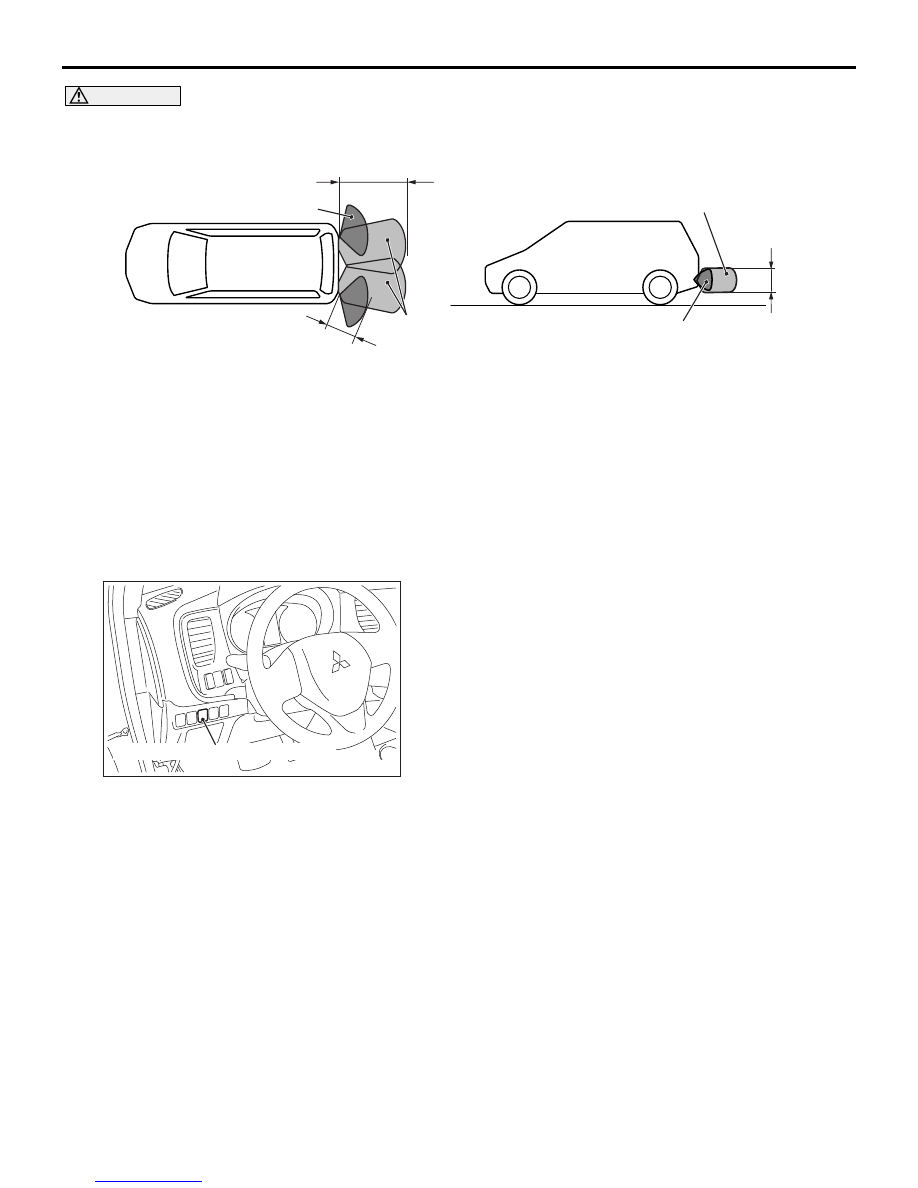

AC808517

AB

Corner sensor detection range

Back sensor detection range

Approx. 50 cm

Back sensor detection range

Approx.
60 cm

Corner sensor detection range

Approx. 100 cm (MAX 150cm)

ACC00007AB

Sonar switch (Corner sensor switch)
