COMBINATION METER

CHASSIS ELECTRICAL

54A-22

COMBINATION METER

GENERAL INFORMATION

M2545500201078

There are two types of the combination meter; stand-
ard meter and high contrast meter. A speedometer is
located at the right, a liquid crystal display at the cen-
tre lower part, a tachometer at the left, and a meter
information switch <Standard meter> or rheostat illu-
mination switch <High contrast meter> at the right
lower part. The combination meter has the following
features:

Standard meter

• A segment-type LCD is adopted. For details refer

to

P.54A-24

.

• An ECO drive assist indicator makes the driver

aware of economical driving to reduce fuel con-
sumption.

• Pressing an ECO mode switch illuminates an

ECO indicator in the meter.

High contrast meter

• A colour liquid crystal display has been adopted.

For details refer to

P.54A-26

.

• A navigation indicator has been adopted. <Vehi-

cles with MMCS>

• A meter information switch is located in the

instrument panel.

• Pressing an ECO mode switch illuminates an

ECO indicator in the multi-information display in
the meter.

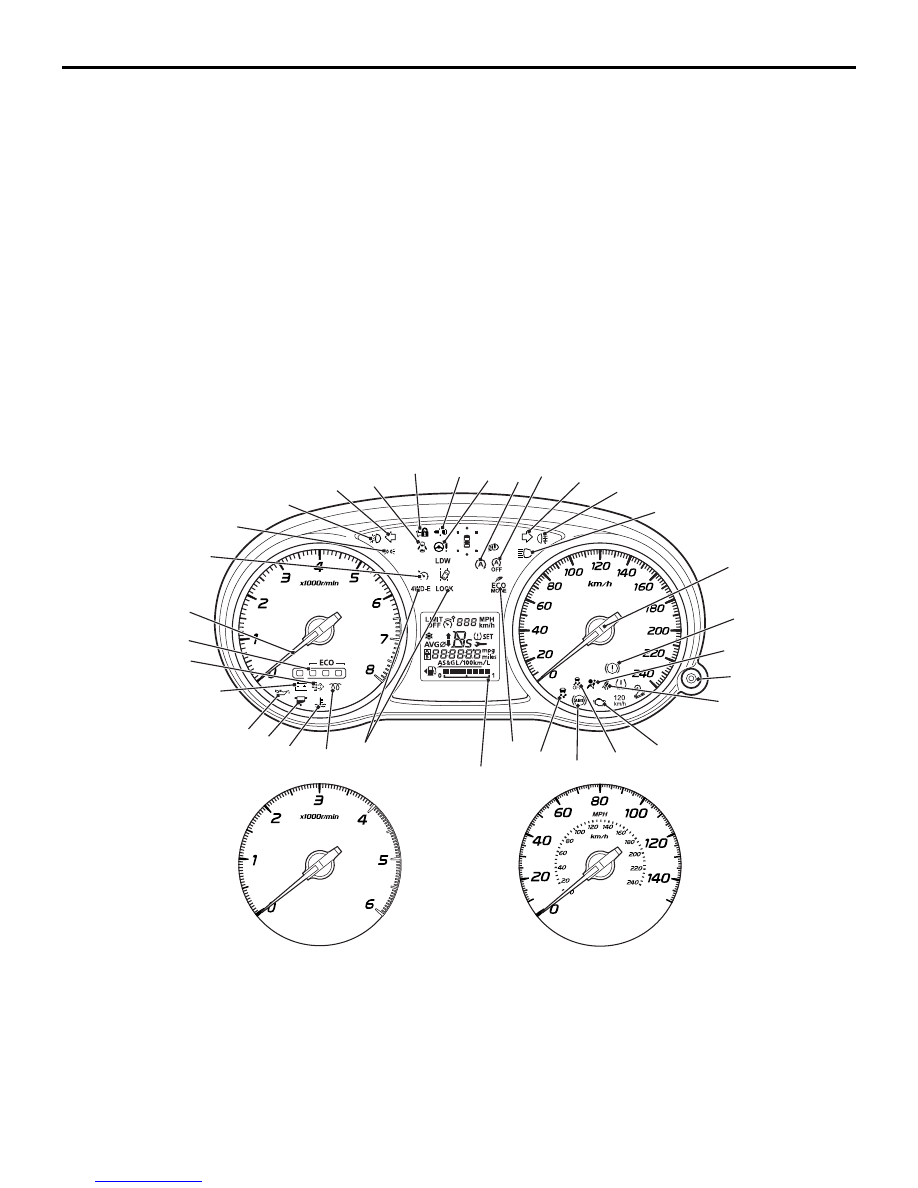

CONSTRUCTION DIAGRAM

ACC00843AB

2

Multi-information display

6

4

11

13

12

14

16

20

21

22

17

15

18, 19

8

10

9

7

3

5

23

1

Tachometer

Speedometer (km)

Meter information
switch

Speedometer (mile and km)

Tachometer <diesel powered vehicles>

24

25

26

27

28

29

30

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-23

Standard meter

1. Position lamp indicator lamp
2. Front fog lamp indicator lamp
3. Turn-signal lamp indicator/hazard warning indica-

tor lamp (LH side)

4. Door-ajar warning lamp
5. Immobilizer/electric steering lock/security alarm

warning lamp

6. Keyless operation system indicator lamp
7. Electric power steering system warning lamp
8. Turn-signal lamp indicator/hazard warning indica-

tor lamp (RH side)

9. Rear fog lamp indicator lamp

10. High-beam indicator lamp
11. Brake warning lamp
12. Supplemental restraint system warning lamp
13. Driver’s seat belt warning lamp
14. Check engine warning lamp
15. Active stability control system OFF indicator lamp
16. Anti-skid braking system warning lamp
17. Active stability control system ON indicator lamp
18. 4WD-ECO indicator lamp
19. 4WD-lock indicator lamp

20. Coolant temperature warning lamp
21. Oil pressure warning lamp
22. Charging warning lamp
23. Cruise control system indicator lamp
24. Auto stop & Go (AS&G) system indicator lamp
25. Auto stop & Go (AS&G) system OFF indicator

lamp

26. ECO mode indicator lamp
27. Diesel preheat indicator lamp
28. Fuel filter indicator lamp
29. Diesel particulate filter (DPF) warning lamp*
30. ECO drive assist indicator

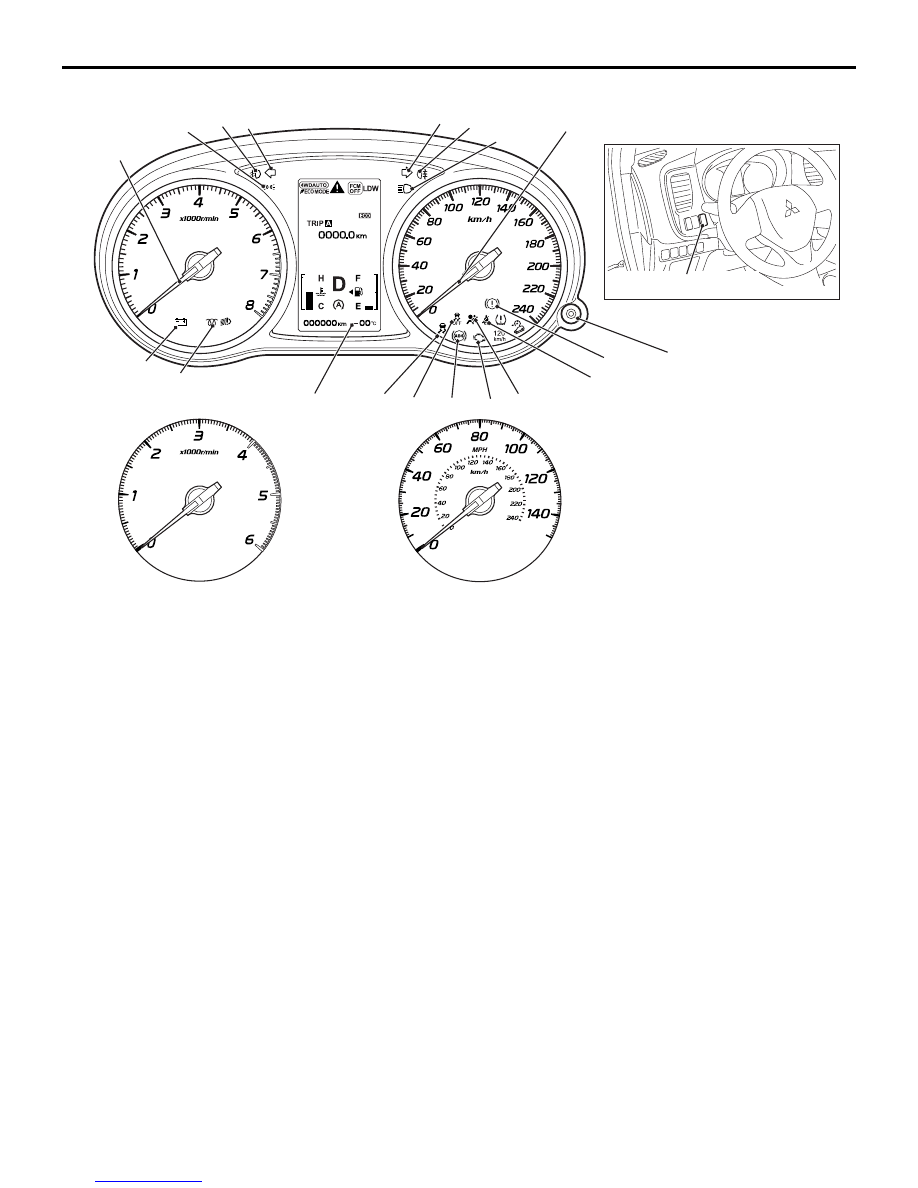

High contrast meter

1. Position lamp indicator lamp
2. Front fog lamp indicator lamp
3. Turn-signal lamp indicator/hazard warning indica-

tor lamp (LH side)

4. Turn-signal lamp indicator/hazard warning indica-

tor lamp (RH side)

5. Rear fog lamp indicator lamp
6. High-beam indicator lamp
7. Brake warning lamp
8. Driver’s seat belt warning lamp

ACC01604

ACB05980

Multi-information display

<High contrast meter>

Tachometer

14

2

3

1

4

6

5

7

8

9

10

11

13

12

Meter information switch

Rheostat illumination
switch

15

Speedometer (km)

Speedometer (mile and km)

Tachometer <diesel powered vehicles>

AB

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-24

9. Supplemental restraint system warning lamp

10. Check engine warning lamp
11. Anti-skid braking system warning lamp
12. Active stability control system OFF indicator lamp
13. Active stability control system ON indicator lamp
14. Charging warning lamp
15. Diesel preheat indicator lamp

MULTI-INFORMATION DISPLAY
<STANDARD METER>

M2545500500537

In the multi-information display, the followings are
displayed; "Odometer", "TRIP A", "TRIP B", "Meter
illumination control", "Driving range", "Average fuel
consumption", "AS&G status", "Outside temperature

and frost warning", "Service reminder

*

".

NOTE:

.

•

*

: Is not displayed during driving.

METER ILLUMINATION CONTROL

The brightness of the combination meter can be
adjusted in eight stages (LEVEL 1 to LEVEL 8) by
pushing the meter information switch when the meter
is illuminated. Current illumination level will be dis-
played each time the meter information switch is
pushed. The illumination level can be changed by
operating the meter information switch according to

specified procedure

*

. The brightness of each bright-

ness level is as described in the table below.

NOTE: The brightness can be set separately for the
daytime and nighttime. The configured information is
stored in the RAM. In the initial setting of brightness,
the daytime is set at LEVEL 8 and the nighttime is
set at LEVEL 7.

BRIGHTNESS LEVEL TABLE

ACB06035

Current brightness level

Display

Brightness level

Level 5, 6

Level 7, 8

Level 3, 4

Level 1, 2

AB

Brightness
level

Dial brightness

Pointer brightness

LCD display brightness

Day

Night

Day

Night

Day

Night

LEVEL 8

100%

100%

100%

100%

100%

35%

LEVEL 7

90%

58.8%

90%

58.8%

90%

19%

LEVEL 6

81%

34.3%

81%

34.3%

81%

10.4%

LEVEL 5

71%

20.3%

71%

20.3%

71%

5.5%

LEVEL 4

61%

11.8%

61%

11.8%

61%

3.1%

LEVEL 3

51%

6.8%

51%

6.8%

51%

1.6%

LEVEL 2

42%

3.8%

42%

3.8%

42%

0.7%

LEVEL 1

32%

2.3%

32%

2.3%

32%

0.3%

Downloaded from

www.Manualslib.com



manuals search engine



COMBINATION METER

CHASSIS ELECTRICAL

54A-25

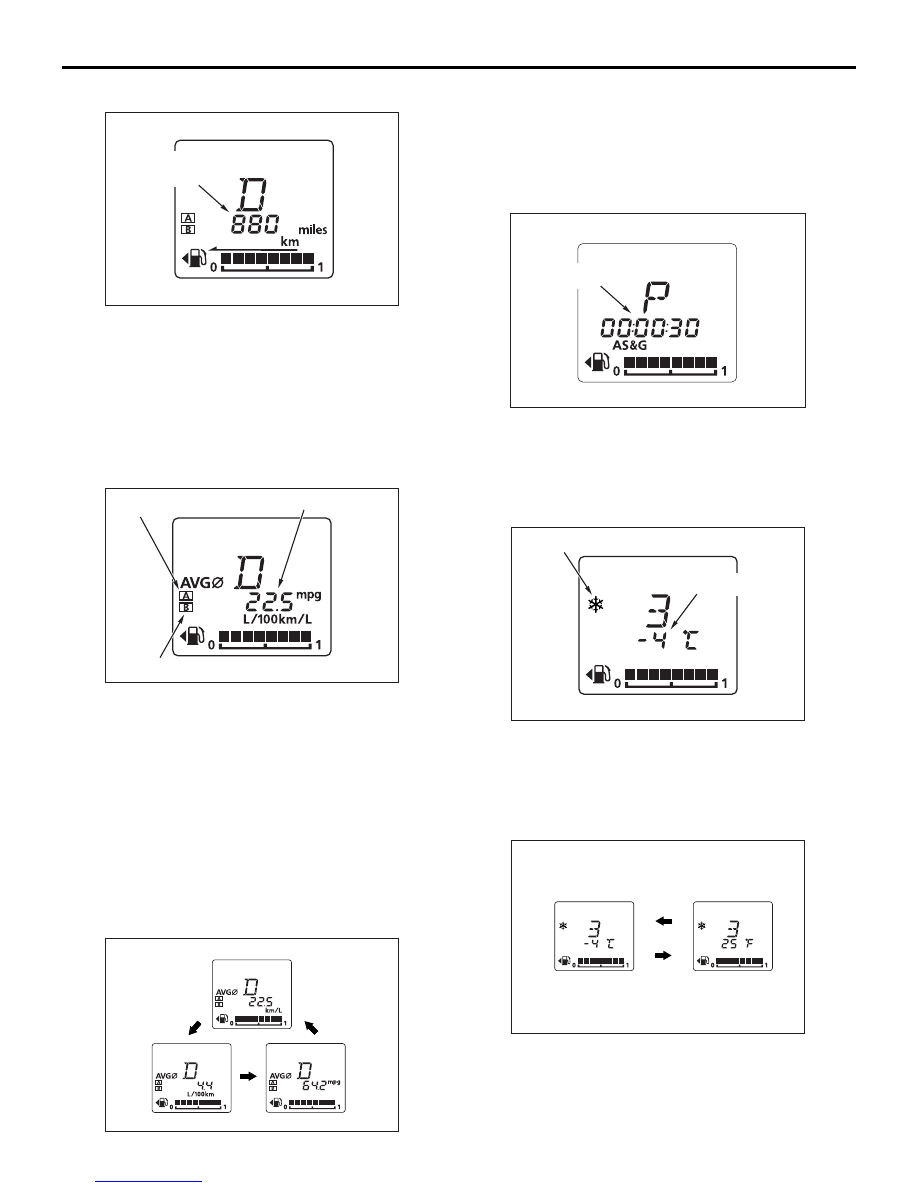

DRIVING RANGE DISPLAY
