Mitsubishi Outlander (2013+). Manual - part 209
LIGHTING
CHASSIS ELECTRICAL
54A-18
INTERIOR LAMP
INTERIOR LAMP DIMMER CONTROL FUNCTION (INITIAL CONDITION: 15 SECONDS)
When the interior lamp switch is on the door position,
ETACS-ECU controls the interior lamp as follows.
1. When the ignition switch is OFF:
By opening any door or tailgate, the lamp turns ON
(100%), and dims (50%) when the door or tail-
gate is closed, then and turns off after 15 sec-
onds.
However, when the ignition switch is turned ON or
the door lock is operated, the lamps turn off at
that time.
2. When the ignition switch is ON:
By opening any door or tailgate, the lamp (100%)
turns ON and OFF when the door or tailgate is
closed.
3. When all doors and the tailgate are closed, and
the ignition key is removed
*
:
With all the doors closed, when the ignition key is
removed, the lamp turns ON (100%) after approx-
imately 1 second (after the engine is stopped),
and then gradually dims down to OFF after 15
seconds.
By inserting the ignition key again or operating the
door lock with the lamp lit, the lamps turns off.
NOTE:
.
•
*
: For the vehicles with KOS, it is operated the
same way when the steering lock is locked or
when the emergency key is removed from the
key cylinder.
•
For the vehicles with the keyless entry system,
the delayed lamp-off time and the operation times
of the keyless entry interior lamp answer back
can be changed by the customisation function.
(Refer to Customisation Function
P.54A-20
).
AC607916AB

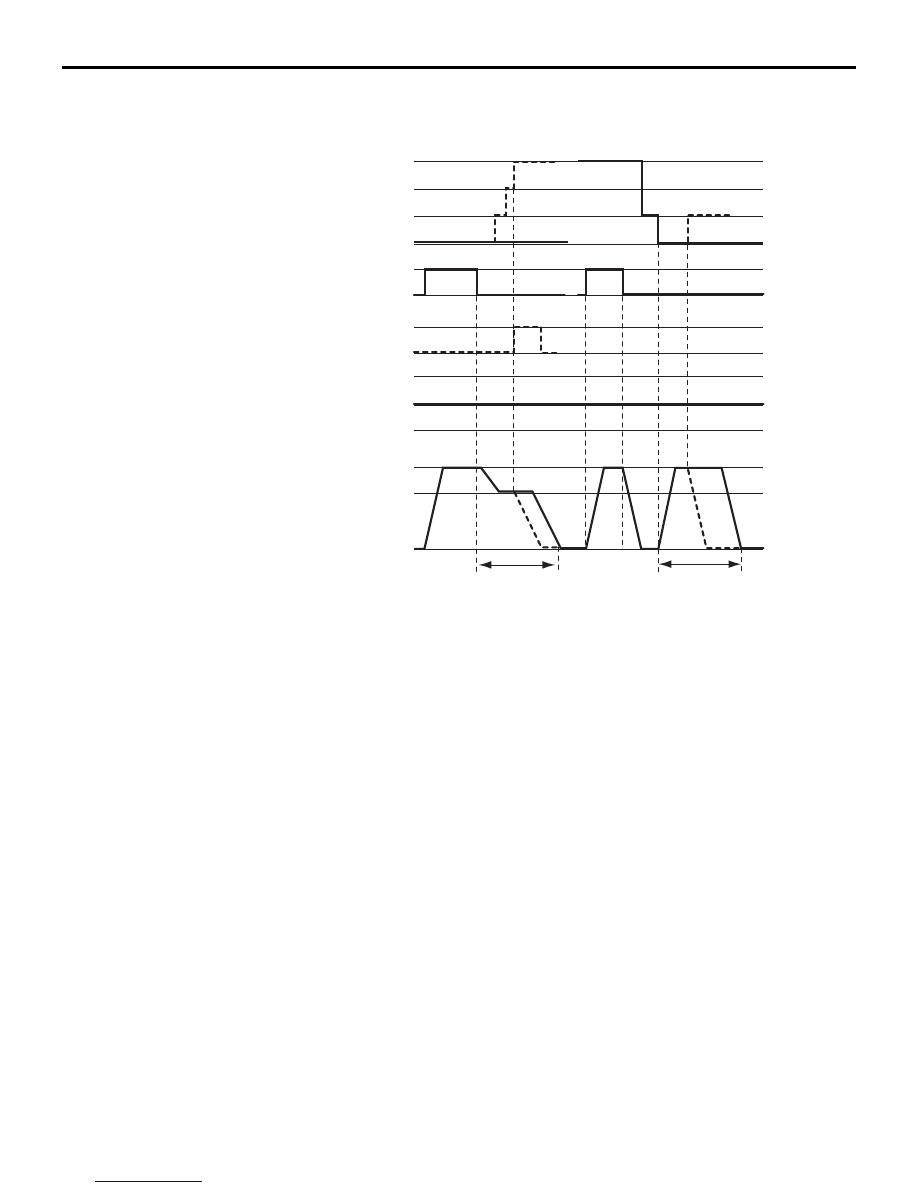

(All closed) OFF
(Any one open) ON
ON
OFF
Key removed
ACC
LOCK
UNLOCK
OFF
Door switch
(Unlock) OFF
(Lock) ON
Driver's door lock
actuator switch (lock switch)
Ignition switch
100%
0%
50%
Interior lamp brightness
Keyless entry
lock or unlock signal
15 seconds
15 seconds
