LIGHTING

CHASSIS ELECTRICAL

54A-10

System block diagram

Height sensor (rear)

Detects the elongation/contraction of the rear suspension and
transmits the signal to the ETACS-ECU.

Headlamp assembly (integrating
headlamp automatic levelling motor)

Drives the headlamp reflector by receiving signals from the
ETACS-ECU.

Combination meter

Send an odometer indication value to the ETACS-ECU.

ABS-ECU or ASC-ECU

Transfers the vehicle travel distance information to the
ETACS-ECU.

Engine-ECU

Transfers engine speed signals and accelerator pedal position
signals to the ETACS-ECU.

ETACS-ECU

• Transfers lighting switch position signals, all door switch

ON/OFF signals, tailgate latch switch ON/OFF signals,
hazard warning lamp switch ON/OFF signals, headlamp
(low-beam) ON/OFF status signals.

• Controls the headlamp automatic levelling motor integrated in

the headlamp assembly based on the signals form switches
and sensors to control the beam direction according to the
vehicle posture.

Diagnosis connector

Outputs diagnosis codes.

Parts name

Functional description

ACB05989AB

Ignition switch (IG1)

Diagnosis connector

Combination meter

Engine-ECU

ABS-ECU or
ASC-ECU

ETACS-ECU

(CAN-C
communication)

(CAN-C-Mid
communication)

Headlamp assembly (LH)
(integrating headlamp
automatic levelling motor)

Headlamp assembly (RH)
(integrating headlamp
automatic levelling motor)

Height sensor (front)

Height sensor (rear)

Downloaded from

www.Manualslib.com



manuals search engine



LIGHTING

CHASSIS ELECTRICAL

54A-11

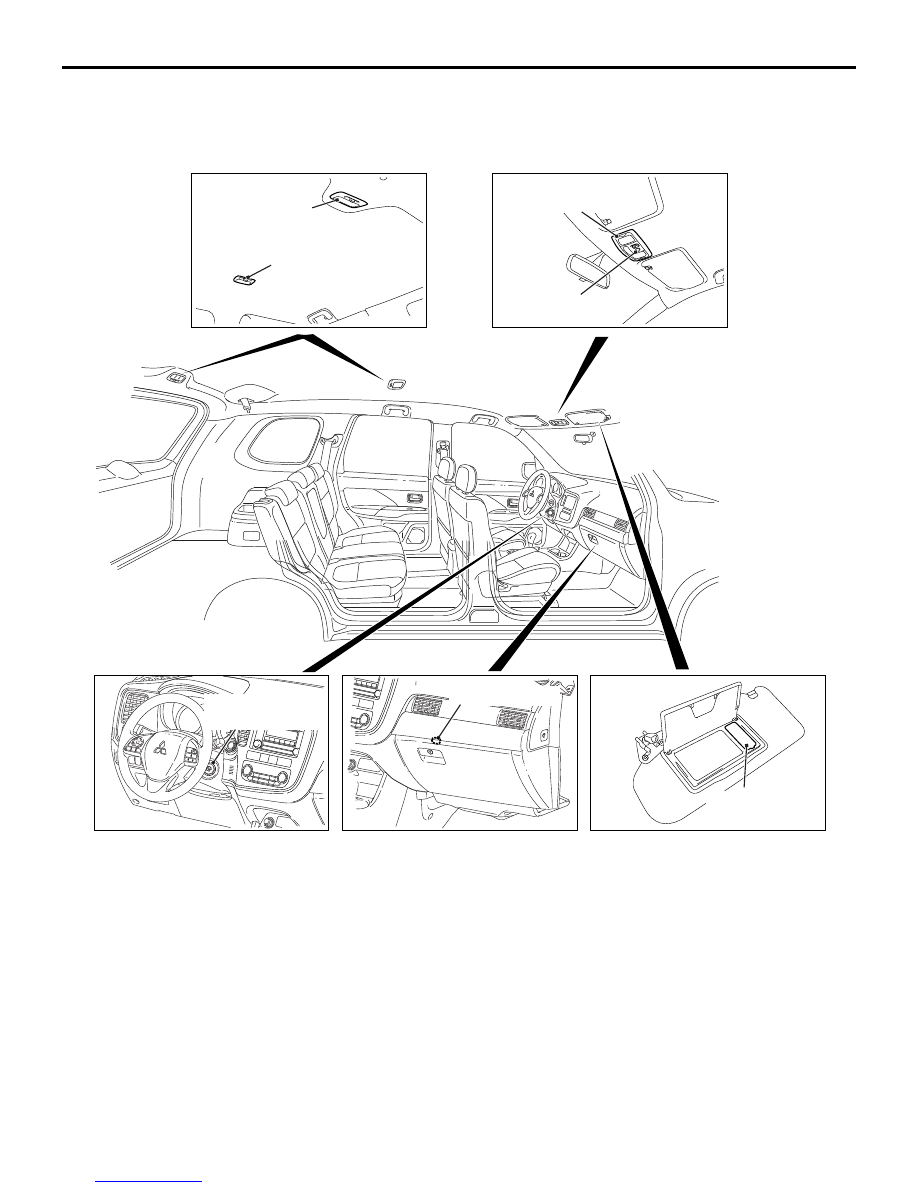

INTERIOR LAMP

M2544300400823

CONSTRUCTION DIAGRAM

• A front room lamp, installed to the front part of the

roof, has been equipped with the lens-push type
map & room lamp which can be operated easily
from the driver's and front passenger's seat,
offering an excellent operability for turning on and
off the lamp.

• The front room lamp incorporates a downlight.

• The rear room lamp which illuminates the rear

passenger's seat is installed to above the second
seat.

• The luggage room lamp which illuminates the

luggage room is installed to the upper part of the
luggage room.

• A glove box lamp has been added to the glove

box.

• A ignition key cylinder illumination lamp has been

added to the ignition key cylinder. <Vehicles with-
out KOS>

• The vanity mirror lamps have been installed on

the sun visors of driver's and front passenger's
seats.

• The interior lamp dimmer control function, interior

lamp automatic-shutoff function and ignition key
cylinder illumination lamp control function have
been adopted for the interior lamp (Refer to Func-
tion and Control by ETACS-ECU

P.54A-12

).

ACB05571

ACC00330

ACB05572

ACB05573

AB

Ignition key cylinder
illumination lamp

Glove box lamp

Vanity mirror lamp

Luggage compartment lamp

Rear room lamp

Front room lamp
(map and room lamp)

Downlight

Downloaded from

www.Manualslib.com



manuals search engine



LIGHTING

CHASSIS ELECTRICAL

54A-12

Specifications

FUNCTION AND CONTROL BY ETACS-ECU.

M2544300600980

Following functions are controlled by ETACS-ECU.

Item

Specification

Front room lamp (map and room lamp) W

× quantity

8

× 2

Downlight

LED type

rear room lamp W

8

Luggage compartment lamp W

8

Glove box lamp W

1.4

Ignition key cylinder illumination lamp W <Vehicles without KOS>

1.4

Vanity mirror lamp W

2

Function

Function
description

Headlamp

Headlamp automatic-shutdown function

Auto lamp function <vehicles with lighting control sensor or
vehicles with LDW>

Auto lamp function <vehicles with photo sensor>

Wiper-linked auto lamp function <vehicles with photo sensor>

Daytime running lamp function

Welcome light function

Coming home light function

Flasher timer function

Turn-signal lamp

Comfort flasher function

Hazard warning lamp

ESS (Emergency Stop signal System)

Fog lamp

Front fog lamp function

Rear fog lamp function

Interior lamp

Interior lamp dimmer control function

Interior lamp automatic-shutoff function

Ignition key cylinder illumination lamp control function

Downloaded from

www.Manualslib.com



manuals search engine



LIGHTING

CHASSIS ELECTRICAL

54A-13

HEADLAMP

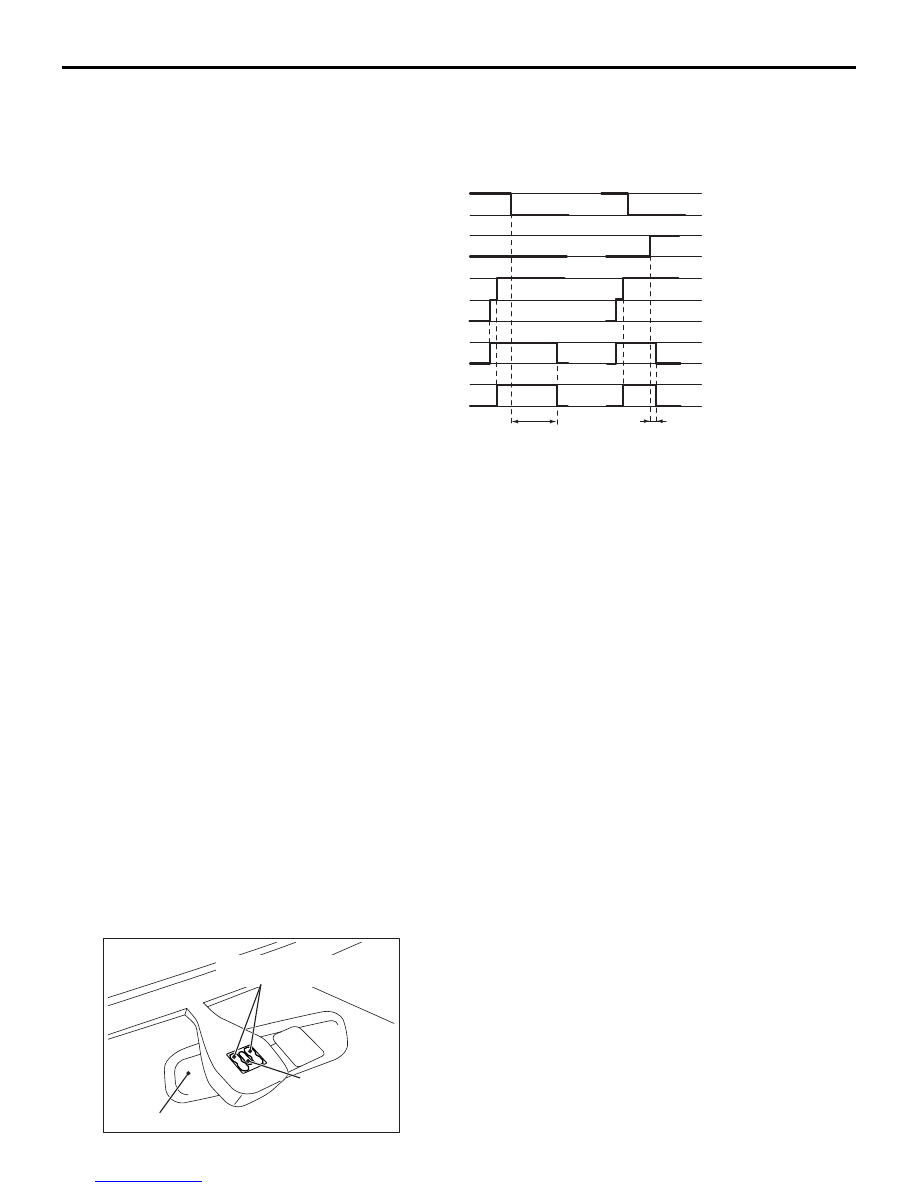

HEADLAMP AUTOMATIC-SHUTDOWN FUNCTION (INITIAL CONDITION: WITH
FUNCTION)

Even when the lighting switch (tail lamp switch or
headlamp switch) is ON, the headlamp (including the
tail lamps) turns off automatically with any of the fol-
lowing conditions to prevent the battery discharge
caused by unattended operation.

• If the ignition switch is turned OFF with the light-

ing switch ON, the lamp turns off automatically
after 3 minutes. If the driver's door is opened dur-
ing the 3 minutes, the lamp turns off after 1 sec-
ond.

• If the lighting switch is turned to the tail lamp posi-

tion or headlamp position from OFF with the igni-
tion switch OFF, the lamps do not turn off
automatically.

NOTE: This function can be cancelled through cus-
tomisation (Refer to Customisation Function

P.54A-20

).

AUTO LAMP FUNCTION (INITIAL
CONDITION: ILLUMINATES IN
STANDARD AMBIENT BRIGHTNESS)
<vehicles with lighting control sensor or
vehicles with LDW>

• Auto lamp function automatically turns ON/OFF

the headlamp and tail lamp according to the sig-
nal from the lighting control sensor (lamp sensor)
attached to the windshield when the lighting
switch is in the AUTO position.

• The lamp sensor and the rain sensor are incorpo-

rated into the lighting control sensor. The lamp
sensor is used for the auto lamp function, and the

rain sensor for the rain sensitive wiper function

*

.

NOTE:

*

: For the rain sensitive wiper function, refer

to GROUP 51, Windshield Wiper and Washer

P.51-7

.

• The lighting control sensor (lamp sensor) detects

the front and surrounding brightness of the vehi-
cle. With this detection, it is judged that the vehi-
cle enters a tunnel or just drives under a bridge.
When it is judged that the vehicle drives through
a tunnel, the headlamp and tail lamp are auto-
matically turned ON. When it is judged that the
vehicle drives under a bridge, the headlamp and
tail lamp are not turned ON automatically. When
the vehicle surroundings get dark in case such as
evening, the headlamp and tail lamp are auto-
matically turned ON.

• The timing that the headlamp and tail lamp are

automatically turned ON when the vehicle sur-
roundings get dark in case such as evening can
be adjusted by the customisation function. (Refer
to Customisation Function

P.54A-20

.)

AC606266

OFF

OFF

ON

OFF

ON

OFF

ON

AB

Driver's

door switch

Lighting switch

Headlamp output

Tail lamp output

Ignition switch (IG)

Tail lamp

Headlamp

(Closed) OFF

(Open) ON

1 second

3 minutes

AC703843AC

Lighting control
sensor
(lamp sensor)

Interior mirror

Lighting control sensor
(rain sensor)
