Mitsubishi Outlander (2013+). Manual - part 205

54A-2

SECURITY ALARM . . . . . . . . . . . . . .

54A-59

GENERAL INFORMATION. . . . . . . . . . . . .

54A-59

ETACS-ECU FUNCTIONS AND CONTROLS
<Vehicles without security alarm sensor>. .

54A-62

ETACS-ECU FUNCTIONS AND CONTROLS
<Vehicles with security alarm sensor> . . . .

54A-63

CUSTOMISATION FUNCTION. . . . . . . . . .

54A-63

LANE DEPARTURE WARNING

SYSTEM (LDW) . . . . . . . . . . . . . . . . .

54A-64

General . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-64

SYSTEM OPERATION . . . . . . . . . . . . . . . .

54A-66

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . .

54A-66

Downloaded from

www.Manualslib.com

manuals search engine

DIAGNOSIS SYSTEM

CHASSIS ELECTRICAL

54A-3

DIAGNOSIS SYSTEM

GENERAL INFORMATION

M2544100200740

For improved serviceability, a diagnosis connecter
for inspection of M.U.T.-III is built into the instrument
panel, near the position of the driver's left foot.

NOTE:

•

: Indicates that the diagnosis function is set.

−

: Indicates that the diagnosis function is not set.

System name

Diagnosis
code set

Output of
service
data

Actuator
test

Erasure of
diagnosis
code by the
M.U.T.-III

Freeze
frame
data

Special
function

Coding

MPI

•

Diesel

•

A/T, CVT

•

−

•

−

Electric power
steering (EPS)

•

−

ABS, ASC

•

−

SRS air bag

•

Air conditioner

•

−

LDW

•

−

ETACS ECU

•

KOS

•

IMMO/Keyless

•

−

•

LIN

•

−

•

−

•

−

ACC

•

−

•

−

Combination
meter

•

−

Steering angle
sensor

−

•

−

AND (CAN box
unit)

•

−

•

−

Audio

•

−

•

−

ETG

•

4WD

•

−

•

−

AS&G

•

−

•

−

OSS

•

Corner sensor

•

−

•

−

•

−

Downloaded from

www.Manualslib.com

manuals search engine

BATTERY

CHASSIS ELECTRICAL

54A-4

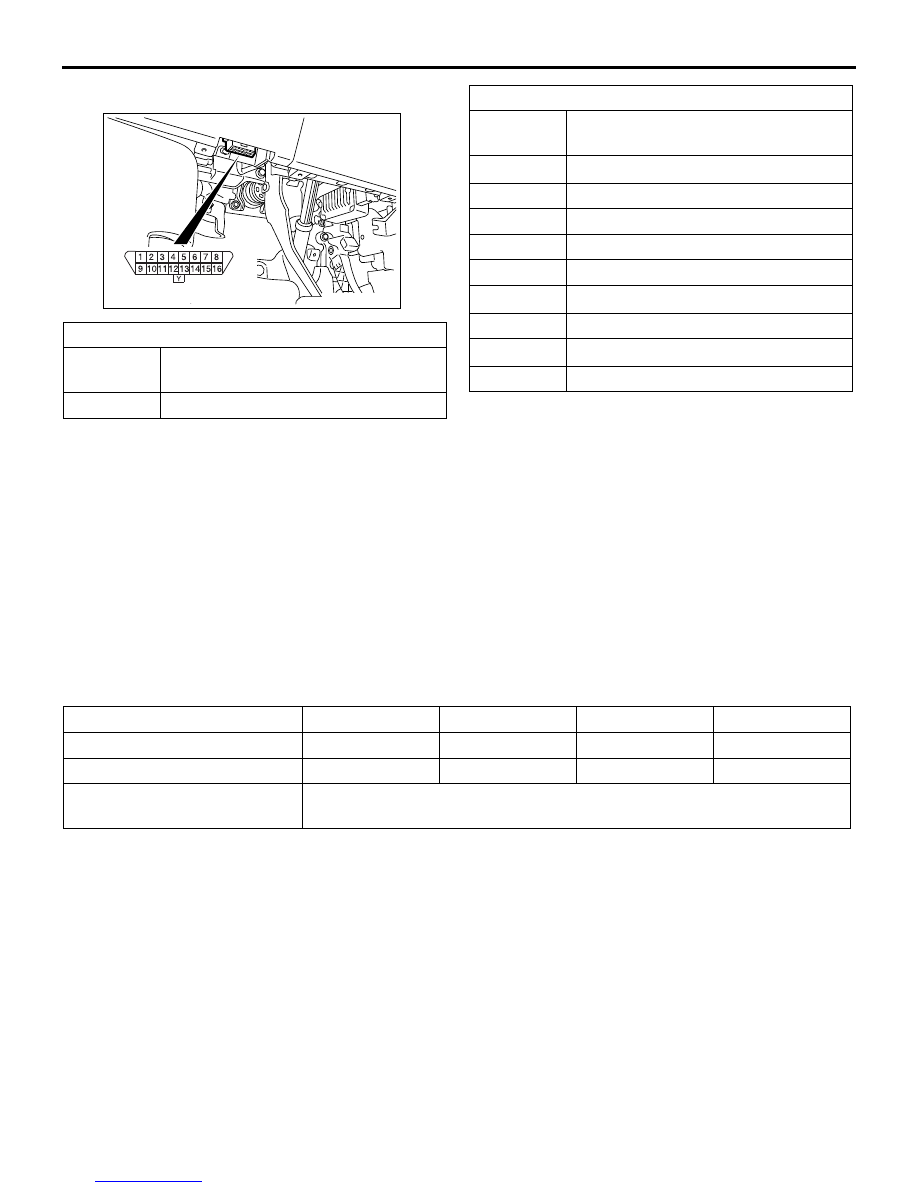

DIAGNOSIS CONNECTOR

BATTERY

GENERAL INFORMATION

M2544200200855

<Except vehicles for Russia>

• The 75D23L battery has been adopted. <4J11

(vehicles without AS&G system)>

• The 95D31L battery has been adopted. <4N14

(vehicles without AS&G system)>

• The Q-85 battery has been adopted. <4J11 (vehi-

cles with AS&G system)>

• The T-105 battery has been adopted. <4N14

(vehicles with AS&G system)>

<Vehicles for Russia>

• The 75D23L battery has been adopted.

Diagnosis connector

Terminal
No.

Connecting contents

Diagnosis control

ACB05016

Diagnosis connector

2, 3

−

Earth

CAN communication line (CAN_H)

7, 8

MPI

9 to 13

−

CAN communication line (CAN_L)

−

Battery power supply

Diagnosis connector

Terminal
No.

Connecting contents

Item

75D23L

95D31L

Q-85

T-105

Voltage V

Capacity (5-hour rate) Ah

Electrolytic fluid specific gravity
(fully charged state at 20

°C)

1.220

− 1.290

Downloaded from

www.Manualslib.com

manuals search engine

LIGHTING

CHASSIS ELECTRICAL

54A-5

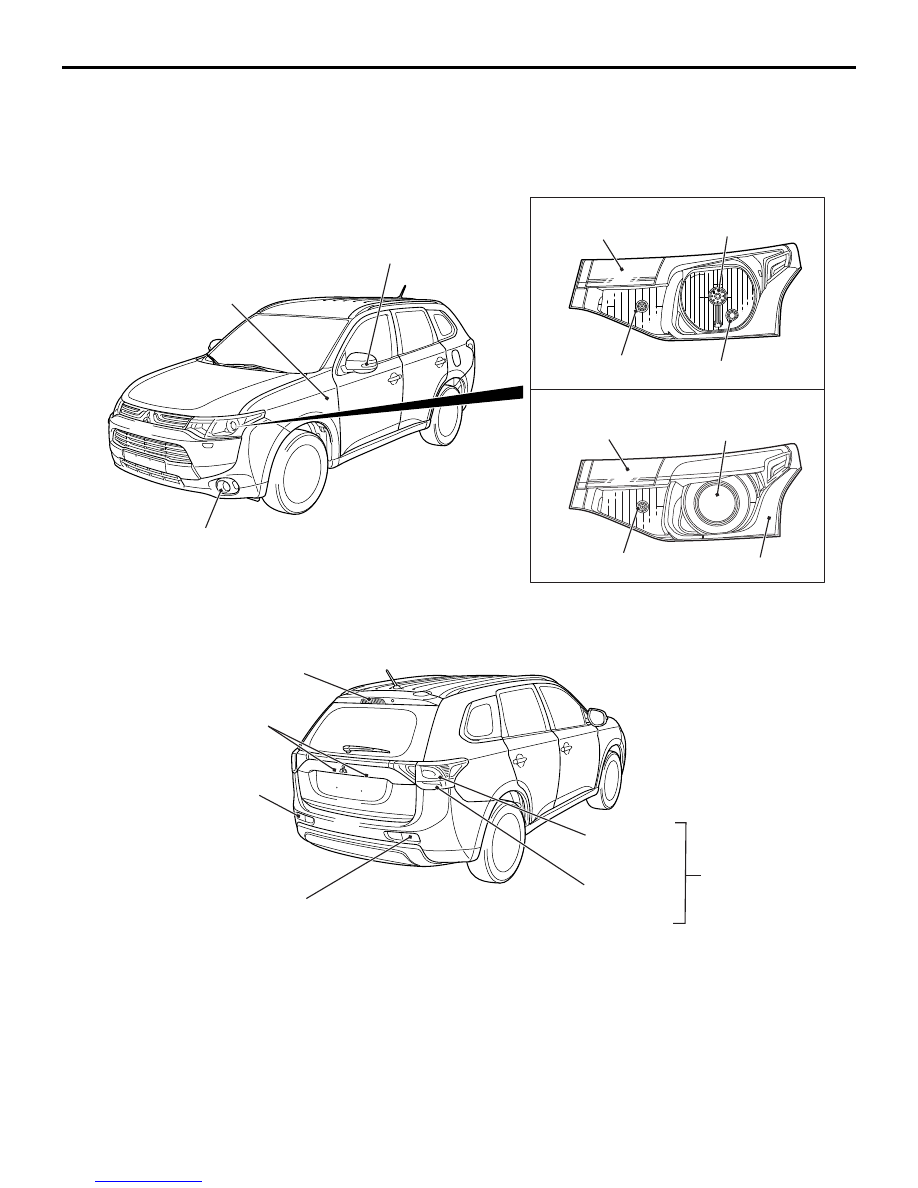

LIGHTING

EXTERIOR LAMPS

M2544300301131

Construction diagram

• There are two types of headlamp assemblies:

halogen type and discharge type (optional).

• The headlamp assembly employs the four-lamp

integrated with the headlamp (low-beam), head-
lamp (high-beam), front turn-signal lamp, and
position lamp.

• The newly adopted discharge headlamp for low

beam provides a much better view than ordinary
halogen lamps. <Vehicles with discharge type
headlamp>

• Switching of the high-beam and low-beam illumi-

nation of the discharge type headlamp is control-
led by moving the lightproof board in the projector
unit according to the signal from the column
switch (lighting switch).

ACC00151

Low-beam

Position lamp

High-beam

Front turn-signal lamp

<Halogen type headlamp assembly>

<Discharge type headlamp assembly>

Position lamp

Side turn-signal lamp
(Fender panel type)

Side turn-signal lamp
(Door mirror type)

Front fog lamp (vehicles without daytime running lamp),
Front fog lamp (vehicles with daytime running lamp),
Daytime running lamp

High-beam

Low-beam

Front turn-signal lamp

ACC00150

Stop/tail lamp

Rear
turn-signal
lamp

Licence plate lamp

High-mounted stop lamp

Rear
combination
lamp

Rear fog lamp <LHD>,
Back-up lamp <RHD>,
or Reflector

Rear fog lamp <RHD>,
Back-up lamp <LHD>,
or Reflector
