Mitsubishi Outlander (2013+). Manual - part 220

SECURITY ALARM

CHASSIS ELECTRICAL

54A-62

ETACS-ECU FUNCTIONS AND CONTROLS <Vehicles without security alarm sensor>

M2545700300407

SECURITY ALARM FUNCTION (Default: interior protection 10 seconds)

OPERATION

1. Operating the door lock with the keyless entry

transmitter or keyless operation key (except for
operating the door lock with the key cylinder)
makes the vehicle ready for the alarm, and "ping"
tone starts.

2. After 20 seconds, the incorrect door opening

(opening door or tailgate without unlocking by the
keyless entry) sounds the room alarm with "Beep"
tone under the alarm state.

3. After 10 seconds, in addition to the "Beep" tone,

the hazard lamps blink, and the horns sound
intermittently for 27 seconds to execute exterior
protection. If the hood is opened while the vehicle
is under the alarm state or the interior protection
state, the exterior protection will be executed
immediately.

NOTE: *:Using a customisation function, the shift
time from the interior protection to the exterior pro-
tection can be changed to 6 seconds.(Refer to CUS-
TOMISATION FUNCTION

P.54A-63

ALARM HISTORY OUTPUT FUNCTION

If the interior protection or the exterior protection is
activated between the last OFF operation and the
next ON operation of the ignition switch, this function
informs the driver by flashing the security alarm indi-
cator and by the buzzer.

ACC01999

System disarmed

Door(s) is locked by the keyless entry function
or the keyless operation system
(including lock operation by the timer lock).

Ready to be armed

Ready to be triggered

Hood is opened.
or
Door(s) or tailgate is opened in
an unauthorized way.

Warning

When any operation above is done.

· Door(s) is unlocked by the
keyless entry function
or the keyless operation system.
· Inserting the key in the key cylinder
or keyless operation key is approved,
and
turning the ignition switch to ACC or ON.

All doors, tailgate and
hood remains closed
for 20 seconds.

NOTE:
*: Interior protection and
Exterior protection

Downloaded from

www.Manualslib.com

manuals search engine

SECURITY ALARM

CHASSIS ELECTRICAL

54A-63

ETACS-ECU FUNCTIONS AND CONTROLS <Vehicles with security alarm sensor>

M2545700300399

SECURITY ALARM FUNCTION

OPERATION

1. Locks the doors by the keyless entry transmitter

or keyless operation key (except for operating the
door lock with the key cylinder).

2. "Ready to be armed" is set, the "Ping" tone

sounds and the security indicator starts blinking.
(The security alarm sensor is not disabled

temporally

3. After 20 seconds, the status shifts to "Ready to be

triggered".

4. Irregular door opening or tailgate opening

(opening of door or tailgate without unlocking
using the keyless entry transmitter or keyless
operation key)

5. After the transferring to the "Warning" status, the

ETACS-ECU generates the "Beep" tone, the
hazard warning lamp flashes, and the security
alarm siren sounds intermittently (Maximum 10
times) for 27 seconds.

• With the "Ready to be triggered" status, the fol-

lowing operation or status immediately transfers
the status to "Warning".

• Open the hood.

• Abnormality in ETACS-ECU power supply

• Abnormality in communication and power

supply of the security alarm siren

NOTE:

: When turning the ignition switch to the

"OFF" position and the windshield mist switch to ON
for 5 seconds or longer (operate the wiper lever
upward), the buzzer incorporated in the combination
meter sounds once and the security alarm sensor is
disabled until the ignition switch is turned to the
"ACC" or "ON " position. To reactivate the security
alarm sensor, turn the windshield mist switch to ON
for 5 seconds or longer (operate the wiper lever
upward). When the security alarm is activated, the
buzzer incorporated in the combination meter
sounds twice.

ALARM HISTORY OUTPUT FUNCTION

If the exterior protection is activated between the last
OFF operation and the next ON operation of the igni-
tion switch, this function informs the driver by flash-
ing the security alarm indicator and by the buzzer.

CUSTOMISATION FUNCTION

M2545700400482

By operating the M.U.T.-III ETACS system, the fol-
lowing functions can be customised. The pro-

grammed information is held even when the battery
is disconnected.

ACC01999

System disarmed

Door(s) is locked by the keyless entry function
or the keyless operation system
(including lock operation by the timer lock).

Ready to be armed

Ready to be triggered

Hood is opened.
or
Door(s) or tailgate is opened in
an unauthorized way.

Warning

When any operation above is done.

All doors, tailgate and
hood remains closed
for 20 seconds.

NOTE:
*: Exterior protection

Downloaded from

www.Manualslib.com

manuals search engine

LANE DEPARTURE WARNING SYSTEM (LDW)

CHASSIS ELECTRICAL

54A-64

LANE DEPARTURE WARNING SYSTEM (LDW)

General

M2549800100015

A lane departure warning system will warn the driver
when the vehicle begins to move out of its lane. The
LDW-ECU (integrating LDW camera), which is
mounted behind the windshield, monitors the road
ahead. If the system recognises that the driver is
about to move out of its lane, the combination meter
will provide a visual warning (on the multi-information
display) and an audible warning (buzzer).

NOTE: If there are bad weather or poor road condi-
tions, the system may not operate correctly.

Adjustment item
(M.U.T.-III display)

Adjustment item

Adjusting content
(M.U.T.-III display)

Adjusting content

Alarm

Enables/disables security
alarm

Disable

Without function

Enable

With function (initial
condition)

Duration of pre-alarm

Adjustment of pre-alarm
(interior alarm) continue
time <Vehicles without
security alarm sensor>

10 sec.

10 seconds (initial
condition)

6 sec.

6 seconds

Sensitivity for security
sensor

Sensitivity level setting of
security alarm sensor
<Vehicles with security
alarm sensor>

Level 1

100% sensitivity of
security alarm sensor
(initial condition)

Level 2

90% sensitivity of security
alarm sensor

Level 3

80% sensitivity of security
alarm sensor

Level 4

70% sensitivity of security
alarm sensor

Downloaded from

www.Manualslib.com

manuals search engine

LANE DEPARTURE WARNING SYSTEM (LDW)

CHASSIS ELECTRICAL

54A-65

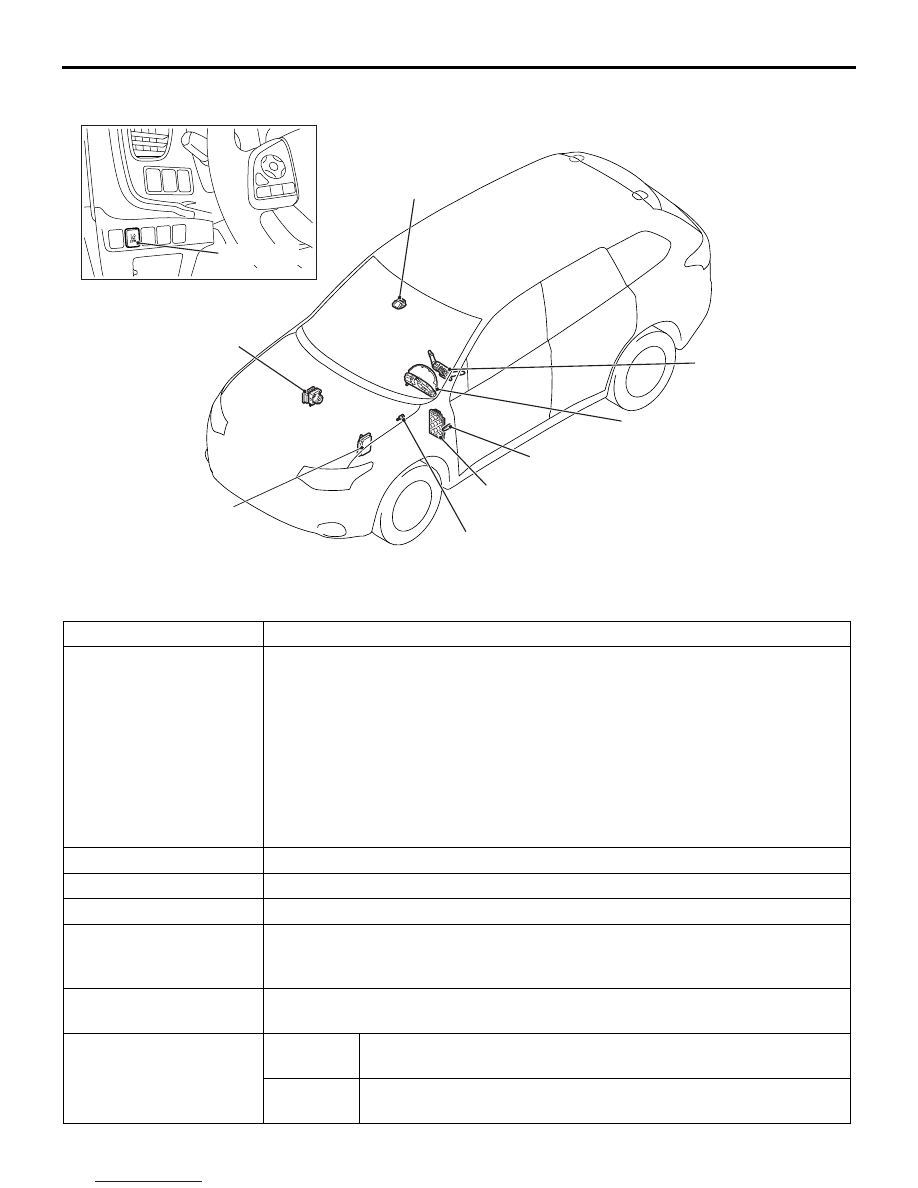

Construction diagram

Main components and functions

ACC00954

Column switch
Steering wheel sensor

Side turn-signal lamp

ETACS-ECU

Engine-ECU

ASC-ECU

LDW-ECU

Combination meter

Stop lamp switch

ACC00901

LDW switch

Component name

Functional Description

LDW-ECU (integrating
LDW camera)

Controls the LDW by using the following inputs/outputs and communications.

• Stores a proper lane recognition and parameter information based on the

variant coding which this ECU receives via CAN communication with the
ETACS-ECU.

• Receives a signal from the stop lamp switch, the side turn-signal lamp and

the LDW switch via CAN communication with the ETACS-ECU.

• Receives signals from the ECUs via CAN communication with the

engine-ECU, the ASC-ECU and the steering wheel sensor.

• Sends status information, a visual and audible LDW indicator/warning

requests to the combination meter via CAN communication.

LDW switch

Sends the LDW activation/deactivation status via harness wires.

Ignition switch

Supplies power when the ignition switch is turned "ON" or "Start".

Stop lamp switch

Sends the brake pedal depression/release status to the ETACS-ECU.

Column switch (Side
turn-signal lamp switch
(LH) or (RH))

Sends a turn-signal lamp signal to the ETACS-ECU via LIN communication.

Combination meter

Displays the audible and visual LDW indicator and warning according to the
signals which are sent by the LDW-ECU.

Combination meter
(multi-information display)

LDW
indicator

Displays the LDW status. Also informs the driver that the LDW
camera is initialised or the LDW camera image is tuned.

LDW
warning

Displays if the LDW fails.
