LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL
BODY CONSTRUCTION
1-26
LOCATIONS USING URETHANE FOAM AND FOAM
MATERIAL
M4010018000405
CAUTION
The sound dampening foam material may burn
when heated. Always observe the following
instructions:
• Never use a gas burner to burn the areas
where sound dampening foam material are
used.
• When cutting the parts which are provided
with sound dampening foam material, ensure
to use tools (air saw, etc.) that do not gener-
ate fire.
• If there are residual sound dampening foam
material remaining on the cut section (body
side), remove the sound dampening foam
material from periphery of the welding area
before welding work.

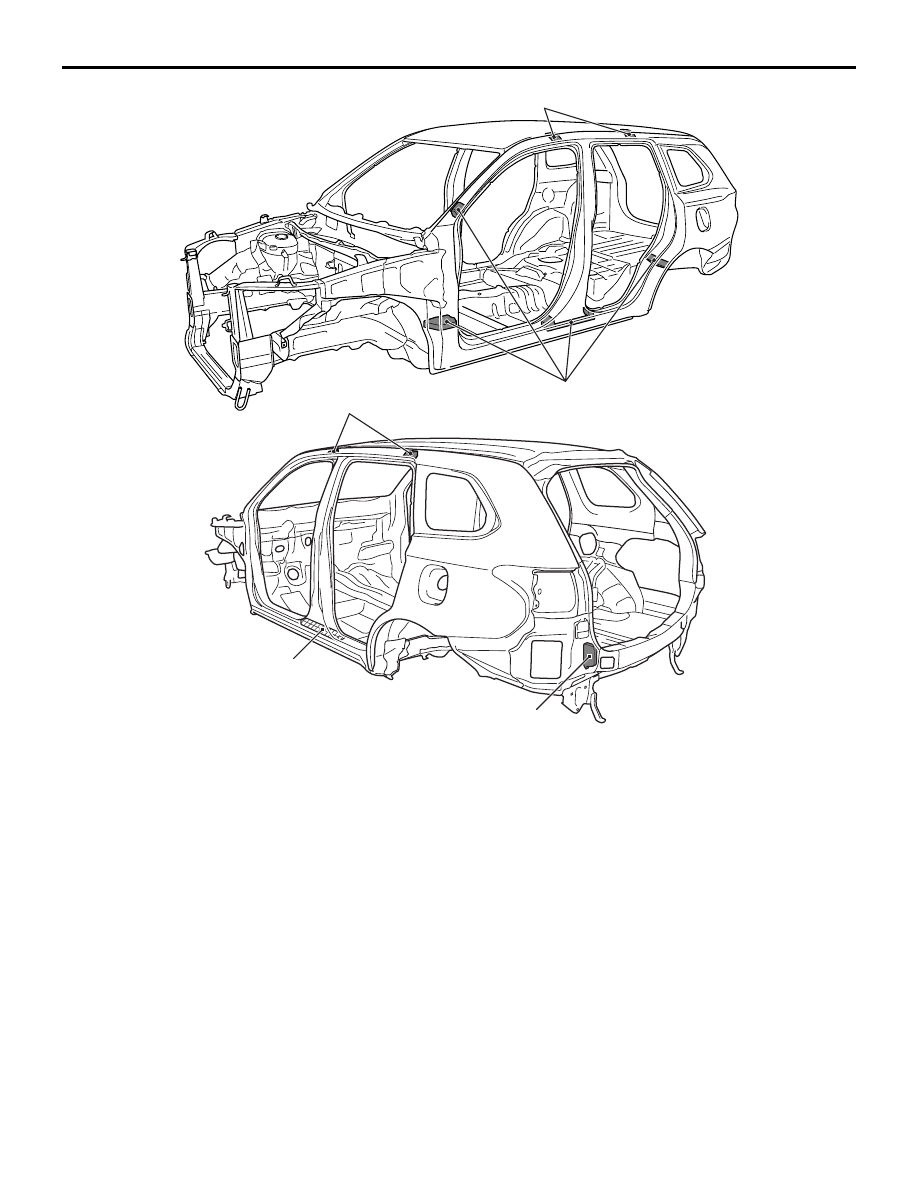

1. The sound dampening foam material has been
adopted to the upper and lower sections of the
front pillar, roof side rail section, centre pillar
lower section, wheel house arch, and rear end
inside to shield from external noise.
2. Urethane foam has been inserted into the centre
pillar lower section to shield from external noise.

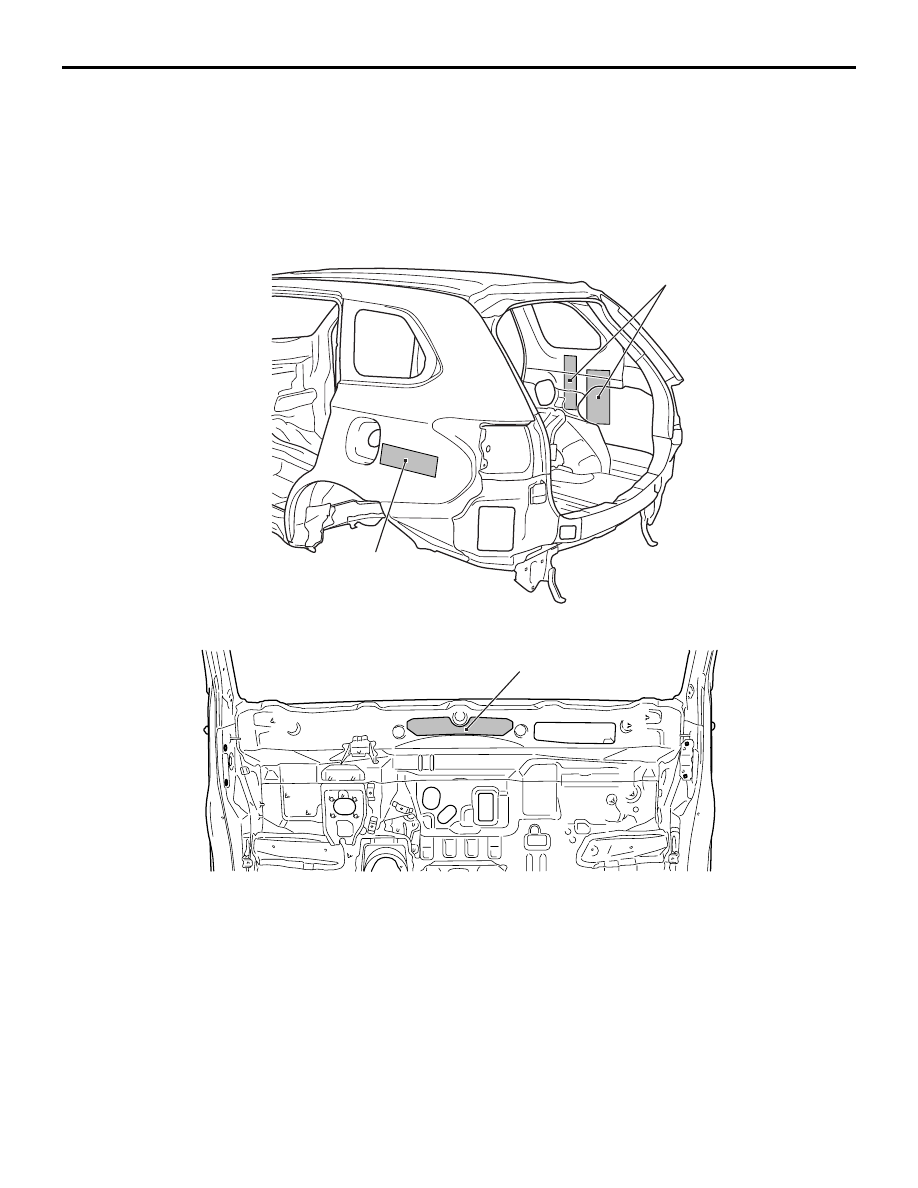

ABC00051
AB

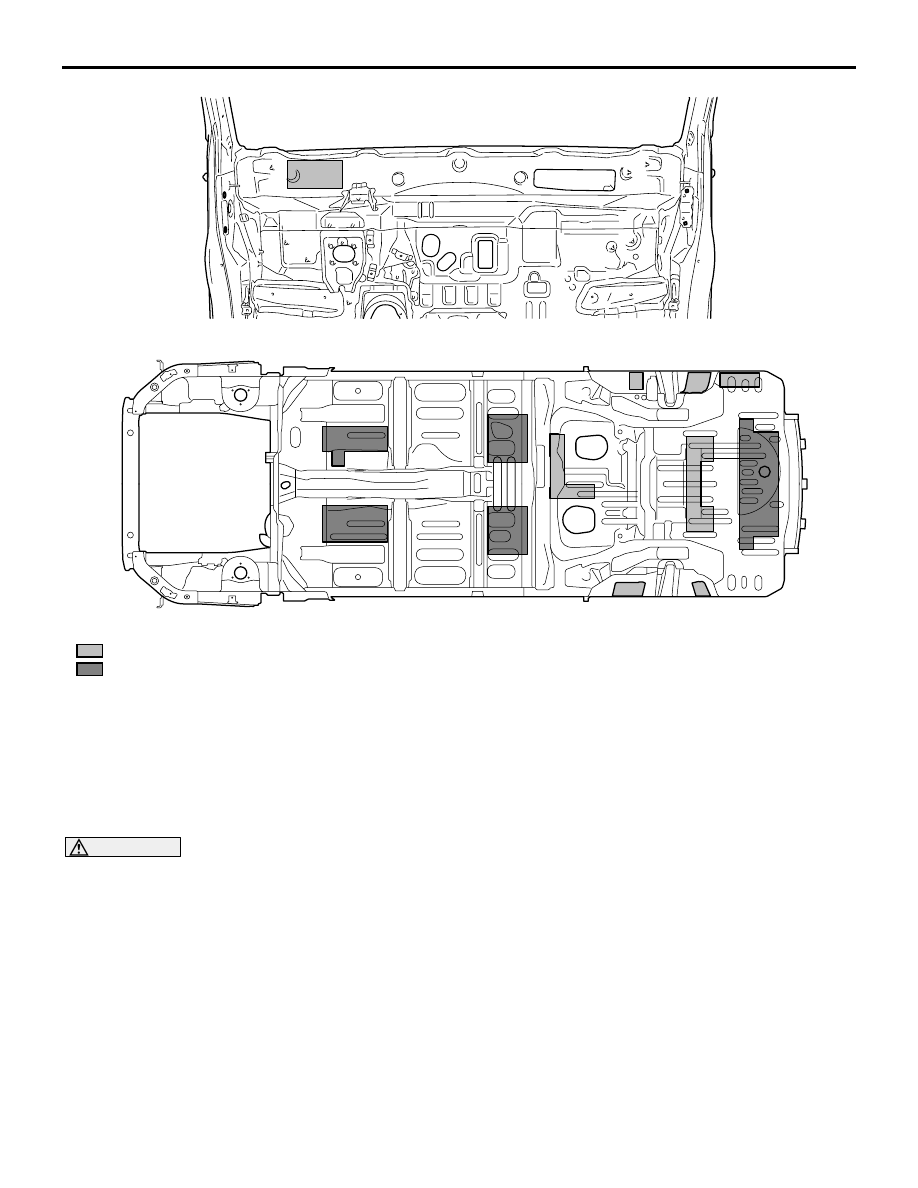

: 2.5 mm film thick spray-type anti-vibration agent. (Place two 1.6 mm melting sheet one on top of another.)
: 4.0 mm film thick spray-type anti-vibration agent. (Place three 1.6 mm melting sheet one on top of another.)
( ) indicates the number of 1.6 mm thick melting sheets that are used for repair.
NOTE:
