BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-18

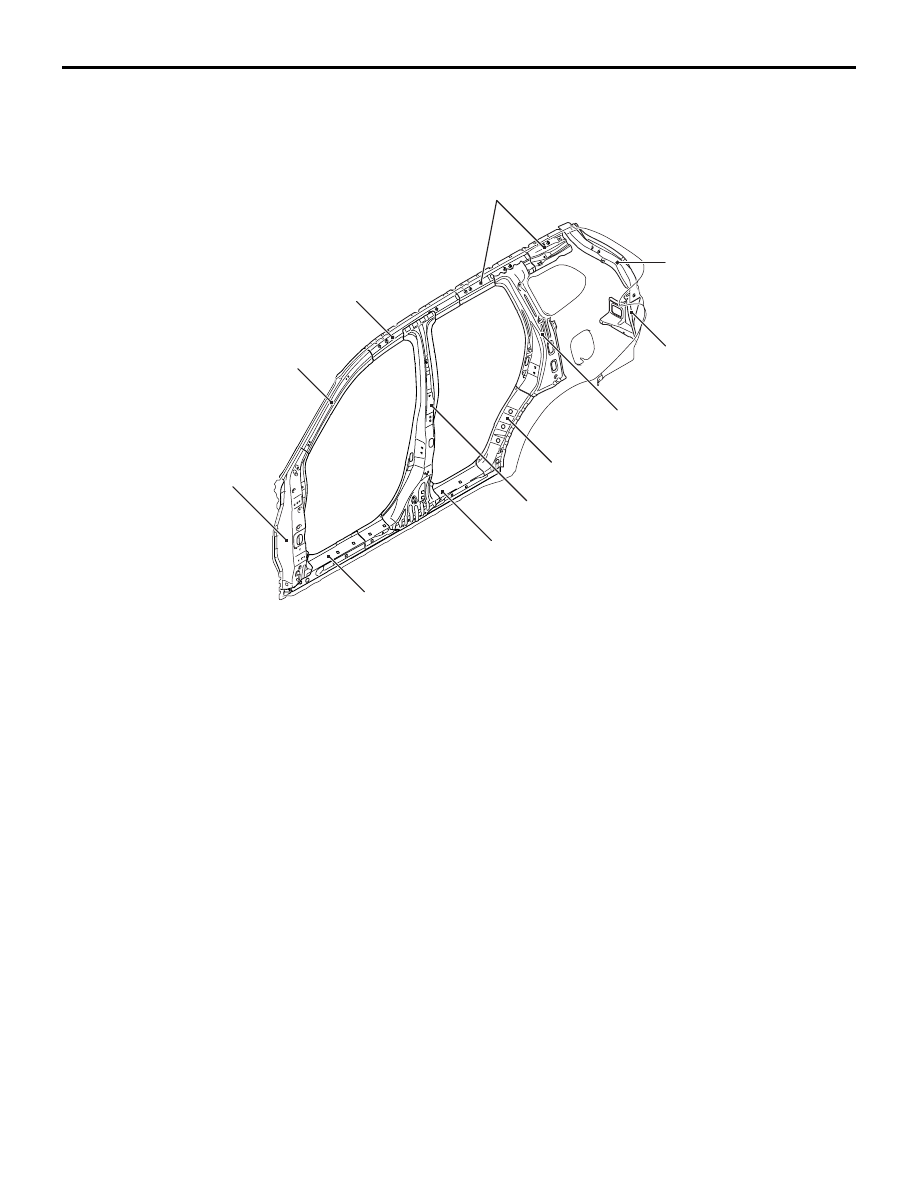

SIDE STRUCTURE REINFORCEMENT

The ring structure of the side structure reinforcement
has been adopted to improve the side collision char-
acteristics and the rigidity of the whole vehicle.

REAR BODY

M4010012001002

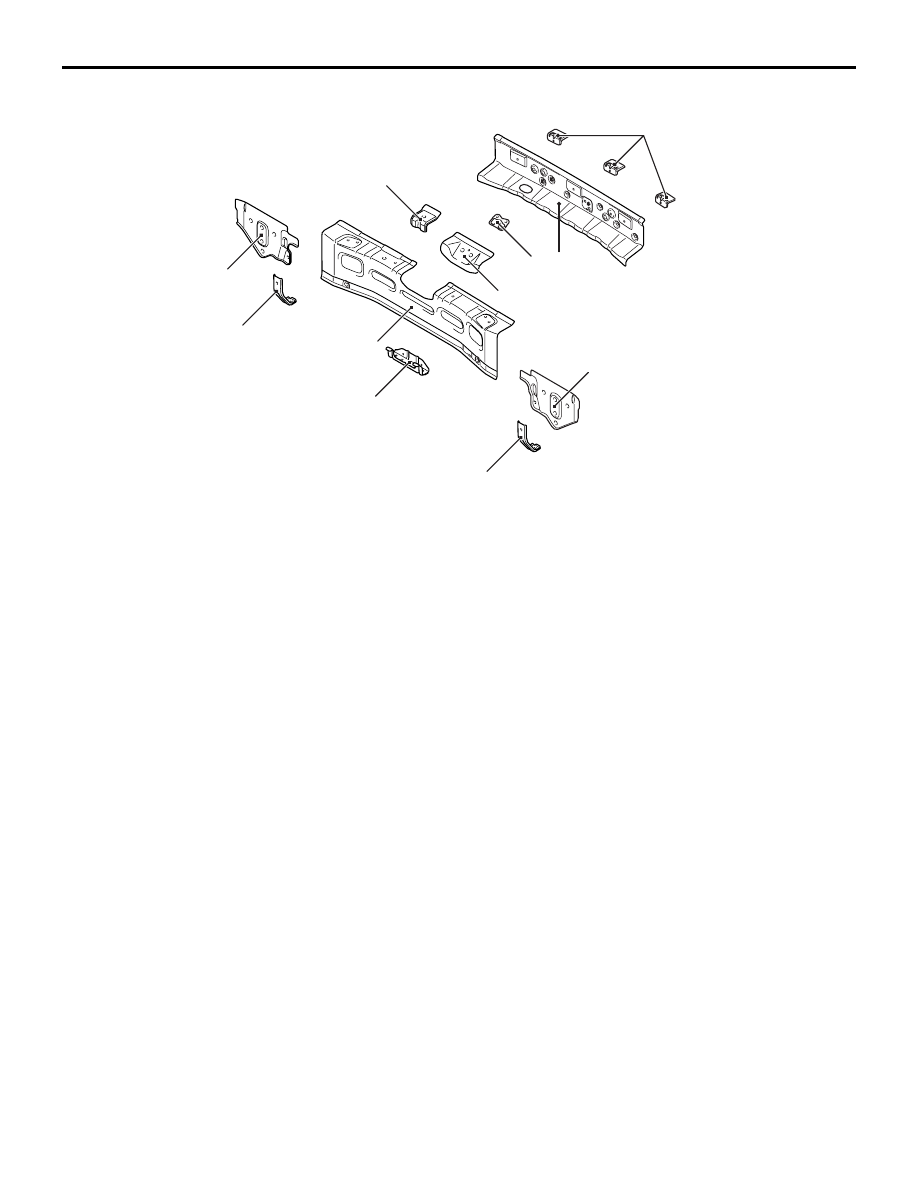

REAR END CROSSMEMBER

The 590-MPa class high tensile strength steel panels
have been adopted for the rear end inner crossmem-
ber side to improve the frontal collision characteris-
tics.

ABB00770

Front pillar
reinforcement lower

AB

Front pillar
reinforcement upper

Gate pillar upper
reinforcement

Side sill reinforcement
outer front

Side sill reinforcement
outer rear

Centre pillar
reinforcement

Rear pillar reinforcement
lower

Rear pillar reinforcement
upper

Gate pillar lower
reinforcement

Roof side rail
reinforcement centre

Roof side rail
reinforcement rear

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-19

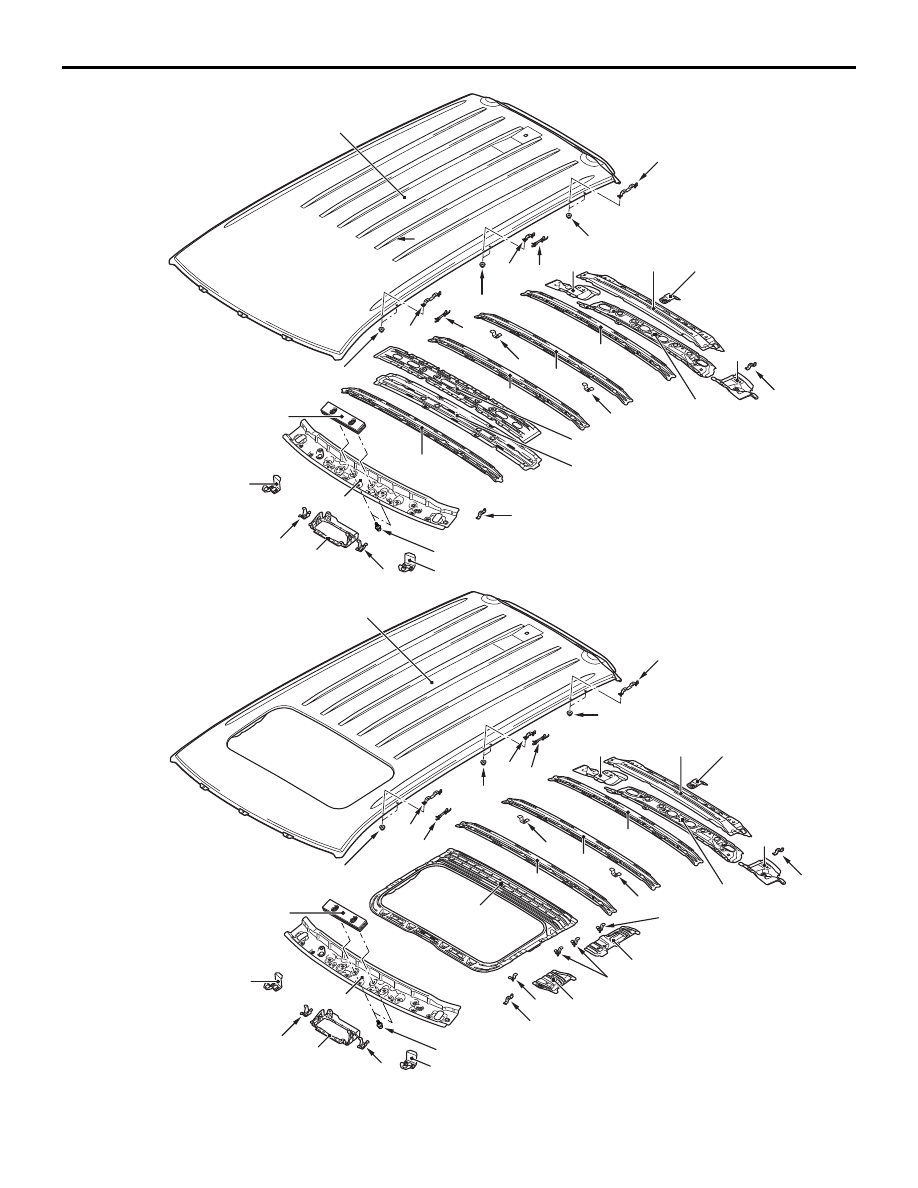

ROOF

M4010013001782

The 590-MPa class high tensile strength steel panels
has been adopted for the roof bow centre lower to
improve the side collision characteristics.

ABB00771

3

2

1

3

4*

9

8 7

6

5

4*

AB

*: Indicates 590MPa-high-tensile steel panels.

NOTE:

1.

Rear end inner centre crossmember

2.

Spare tyre bracket

3.

Rear bumper bracket

4.

Rear end inner crossmember side

5.

Spare tyre reinforcement rear end

6.

Rear bumper reinforcement

7.

Rear end panel outer

8.

Nut plate

9.

Tailgate striker reinforcement

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-20

ABB00772

3

2

1

2

3

4

5

6

7

8

9

10

15

11

16*

17

12

13

19

18

19

13

14

6

AB

*: Indicates 590MPa-high-tensile steel panels.

NOTE:

21

20

20

9

5.5 ± 1.5 N·m

5.5 ± 1.5 N·m

21 ± 8 N·m

5.5 ± 1.5 N·m

<Vehicles without Sunroof>

ABB00773

<Vehicles with Sunroof>

1

2

3

4

5

6

7

8

9

10

11

12

13

22

24

26

25

23

22

19

19

13

14

6

AB

21 20

20

9

5.5 ± 1.5 N·m

5.5 ± 1.5 N·m

5.5 ± 1.5 N·m

3

2

21 ± 8 N·m

18

1.

Map lamp bracket

2.

Holder bracket

3.

Sunvisor bracket

4.

Roof rail front

5.

Roof panel

6.

Tailgate hinge reinforcement

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-21

UNDER BODY

M4010014001633

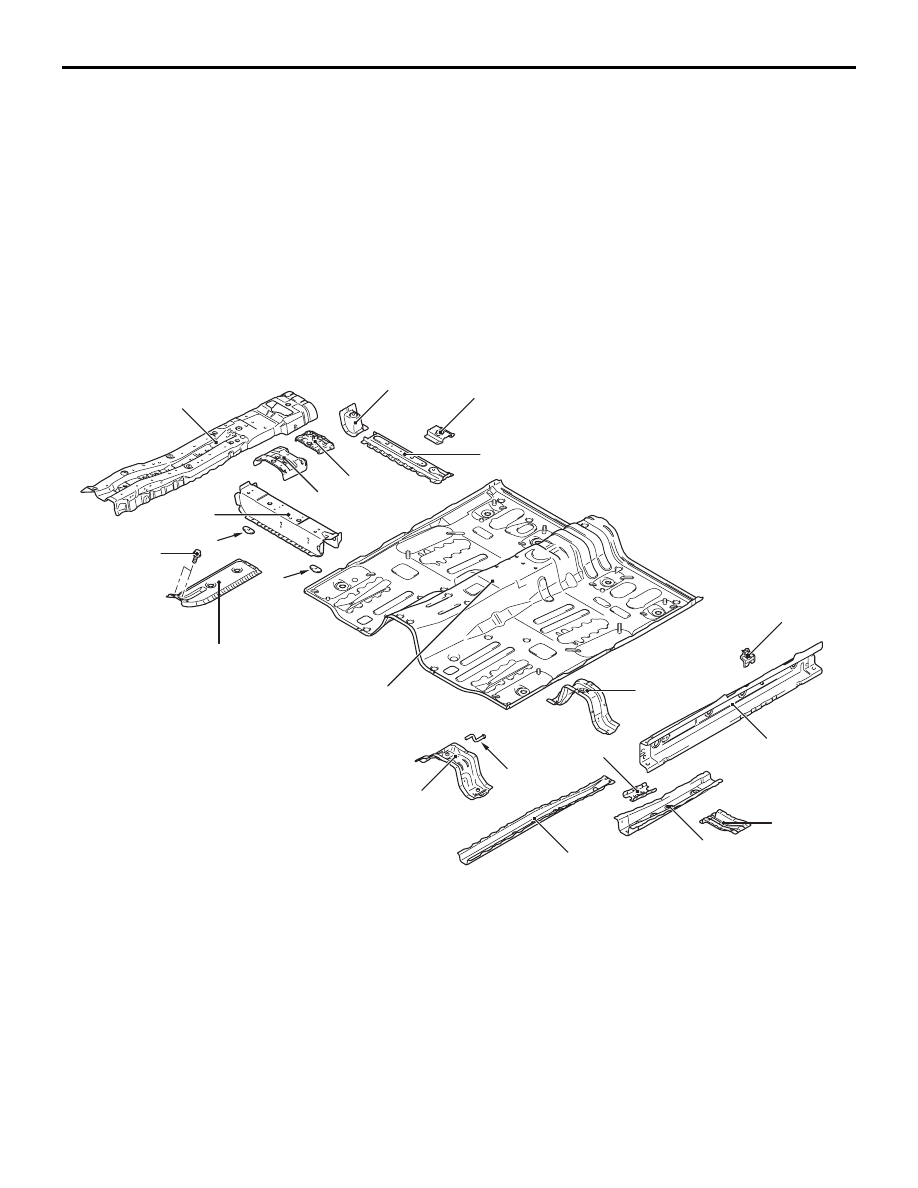

FRONT FLOOR

The 590-MPa class high tensile strength steel panels
have been adopted for the front floor sidemember
and front floor sidemember front, and the 980-MPa
class ultra high tensile strength steel panels for the
front floor crossmember front and front floor side sill
inner to improve the body rigidity.

7.

Roof rail rear outer

8.

Second seat belt bracket centre

9.

Roof rail bracket <Vehicles with roof rail>

10. Roof rail rear inner
11. Roof bow D
12. Roof bow C
13. Head lining bracket
14. Roof bow B
15. Roof bow centre upper
16. Roof bow centre lower
17. Roof bow A
18. Weight assembly
19. Roof rail bracket <Vehicles with roof rail>
20. Roof carrier bracket <Vehicles without roof rail>
21. Roof rail bracket <Vehicles with roof rail>

22. Set bracket rear
23. Sunroof bracket
24. Set bracket front
25. Set bracket front
26. Roof reinforcement

ABB00774 AB

9

10

7

5

1

3

8

12**

13

11

6

14*

16*

17

18

19

15

4**

2*

*: Indicates 590MPa-high-tensile steel panels.

**: Indicates 980MPa-ultra-high-tensile steel panels.

NOTE :

3

18 ± 7 N·m

1.

Front floor

2.

Front floor sidemember

3.

Nut plate

4.

Front floor crossmember front

5.

Parking brake lever reinforcement

6.

Backbone reinforcement

7.

Parking brake cable reinforcement

8.

Seat centre bracket rear

9.

Seat side bracket rear

10. Front floor crossmember rear
11. Seat belt reinforcement

12. Front floor side sill inner
13. Front floor reinforcement
14. Front floor sidemember front
15. Front floor sidemember plate
16. Front floor sidemember
17. Backbone crossmember front
18. Muffler hanger hook
19. Front floor crossmember rear centre
