BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-22

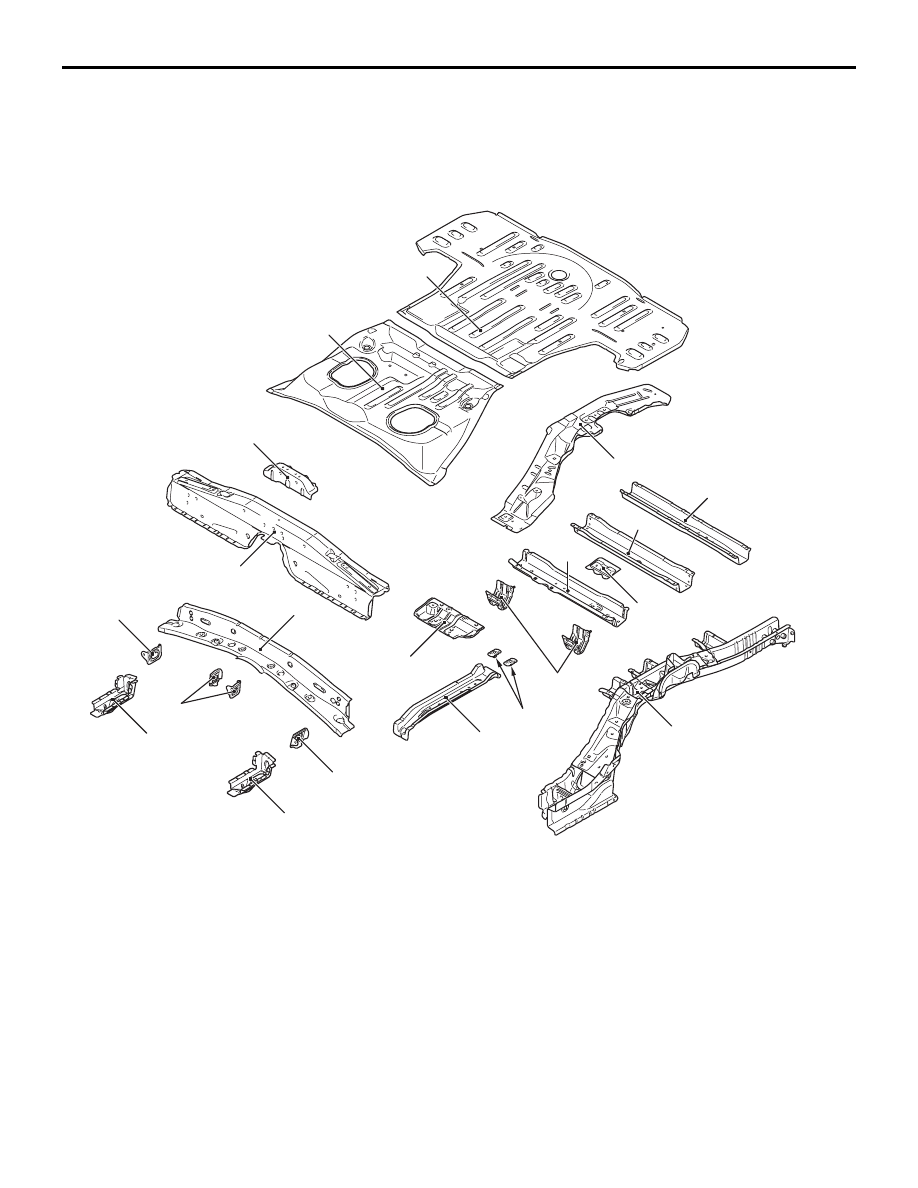

REAR FLOOR

The 590-MPa class high tensile strength steel panels
have been adopted for the rear floor extension, sec-
ond seat rear reinforcement centre and rear seat
crossmember to improve the side collision character-
istics.

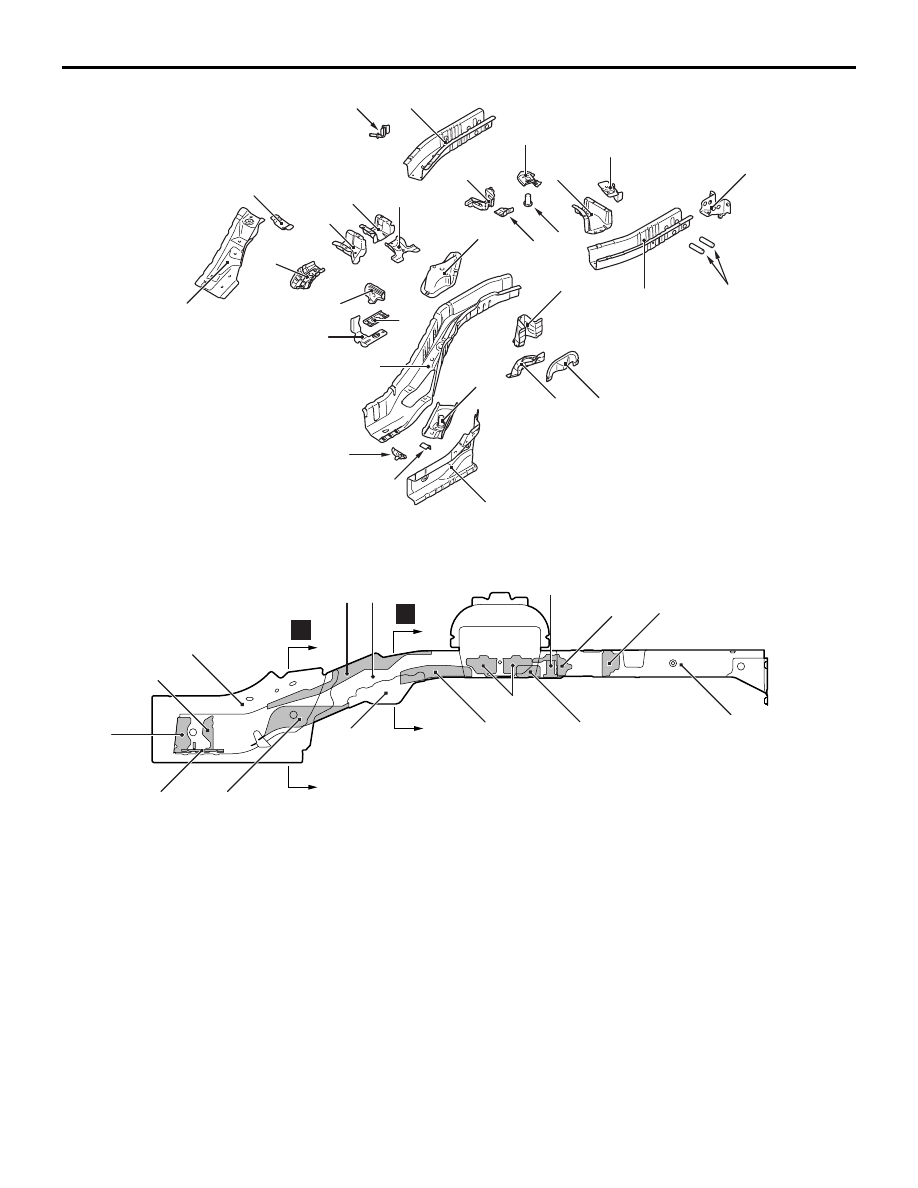

REAR FLOOR SIDEMEMBER REIN-
FORCEMENT

The 590-MPa class high tensile strength steel panels
have been adopted for the rear bumper support, rear
floor side sill inner and rear floor sidemember bulk-
head to improve the rear collision characteristics.

ABC00047

AB

1*

2

3

4

5

6

7

8

9

10

12

14*

15

15

17

13*

18

16

16

*: Indicates 590MPa-high-tensile steel panels.

NOTE :

11

1.

Rear floor extension

2.

Second seat front bracket centre

3.

Rear seat under floor

4.

Rear floor

5.

Rear floor side panel

6.

Rear floor crossmember rear end

7.

Rear floor crossmember centre

8.

Third seat bracket centre front

9.

Rear floor crossmember front

10. Fuel tank rear bracket
11. Nut plate
12. Front stringer
13. Second seat rear reinforcement centre
14. Rear seat crossmember

15. Rear seat crossmember bulkhead side
16. Sidemember front floor extension
17. Rear seat crossmember bulkhead inner
18. Rear floor sidemember

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-23

ABB00776

AB

1

2

3

4

5

3

6

7*

8

9

10

11

12

13*

14

15

16

17

19*

22

23

24

25

27

28

21

18

20

*: Indicates 590MPa-high-tensile steel panels.

NOTE :

26

ABB00777AB

A

B

19

17

13

6

25

26

20

3

27

28

1

21

16

12

18

1.

Rear floor sidemember reinforcement

2.

Third seat bracket side front

3.

Rear floor sidemember extension

4.

Muffler hanger rear (Right side)

5.

Rear floor crossmember extension rear

6.

Third seat anchor reinforcement

7.

Rear bumper support

8.

Shipping pipe

9.

Rear spring house panel

10. Rear spring house bracket
11. Rear spring house reinforcement
12. Rear suspension bracket front
13. Rear floor side sill inner
14. Rear brake hose bracket
15. Rear parking brake cable rear bracket
16. Rear floor sidemember lower

17. Rear floor sidemember extension front
18. Rear tie down plate
19. Rear floor sidemember bulkhead
20. Rear floor sidemember reinforcement rear
21. Trailing arm bracket
22. Rear floor crossmember extension front
23. Rear floor crossmember extension centre
24. Rear floor crossmember extension centre lower
25. Rear floor sidemember bulkhead rear
26. Rear floor sidemember reinforcement rear
27. Rear suspension bracket rear
28. Pipe nut

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-24

DOOR

M4010015001120

An uneven thickness steel sheet* has been used for
the front door panel inners to make the forward part
of the vehicle thicker for reduction in vehicle weight
and higher rigidity.

NOTE: *: A steel sheet of varying thickness that is
welded into one steel sheet.

ABB00778AB

1

16

21

13

A

ABB00779AB

1

16

20

12

B

ABB00780

6

1

13

10

3

AB

11

2

5

8

9

7

4

12

Welded area

(Front door)

SILENCER APPLICATION LOCATIONS

BODY CONSTRUCTION

1-25

SILENCER APPLICATION LOCATIONS

M4010000100128

A silencer (spray-type anti-vibration agent) have
been adhered on the top part of the floor and the
inside of the cowl top panel inner to improve
anti-vibration performance and to shut out exhaust
gas heat.

ABB00781

19

14

23

16

AB

24

15

18

21

20

17

25

(Rear door)

22

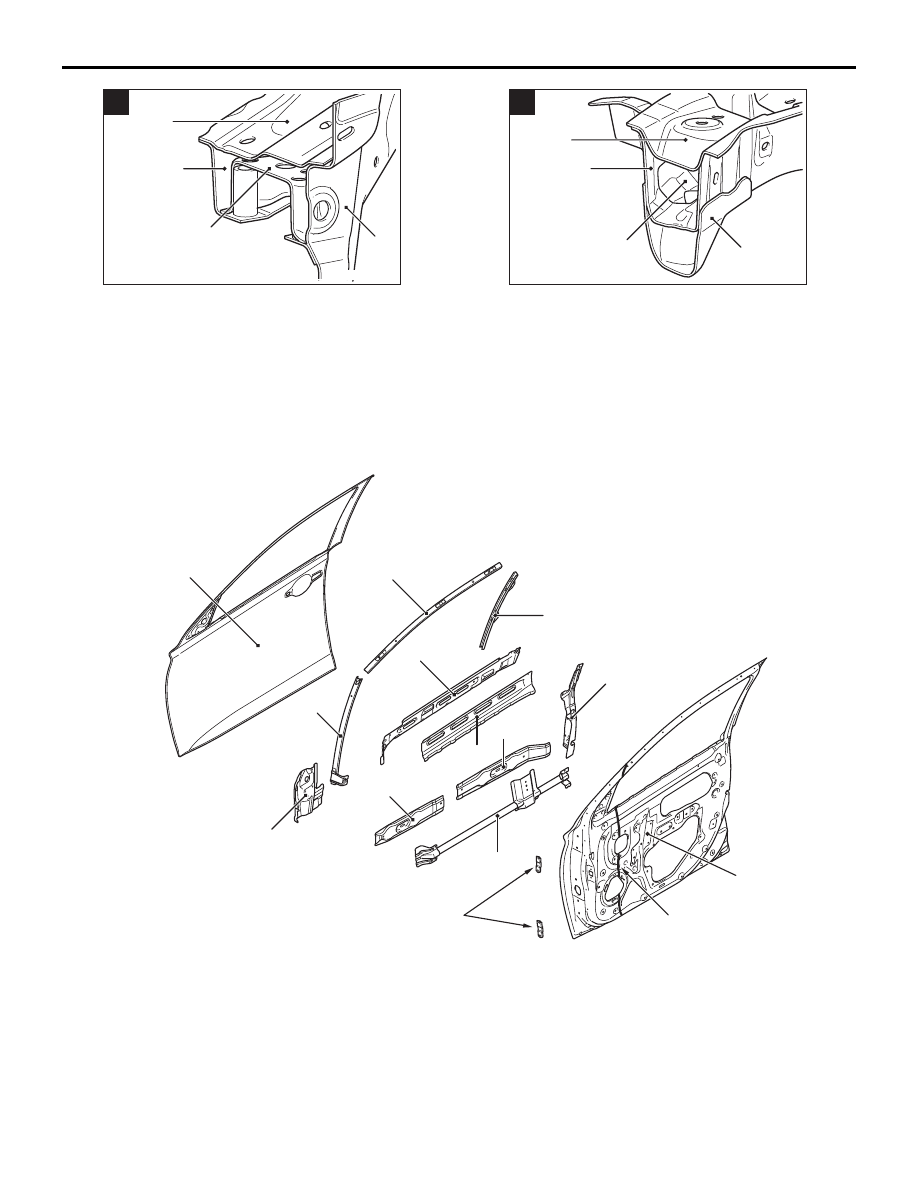

1.

Front door panel outer

2.

Front door window upper sash

3.

Front door window rear sash

4.

Front door latch reinforcement

5.

Front door panel inner

6.

Nut plate

7.

Front door side door beam

8.

Front door outer stiffener rear

9.

Front door outer stiffener front

10. Front door mirror reinforcement
11. Front door window front sash
12. Front door beltline outer reinforcement
13. Front door beltline inner reinforcement

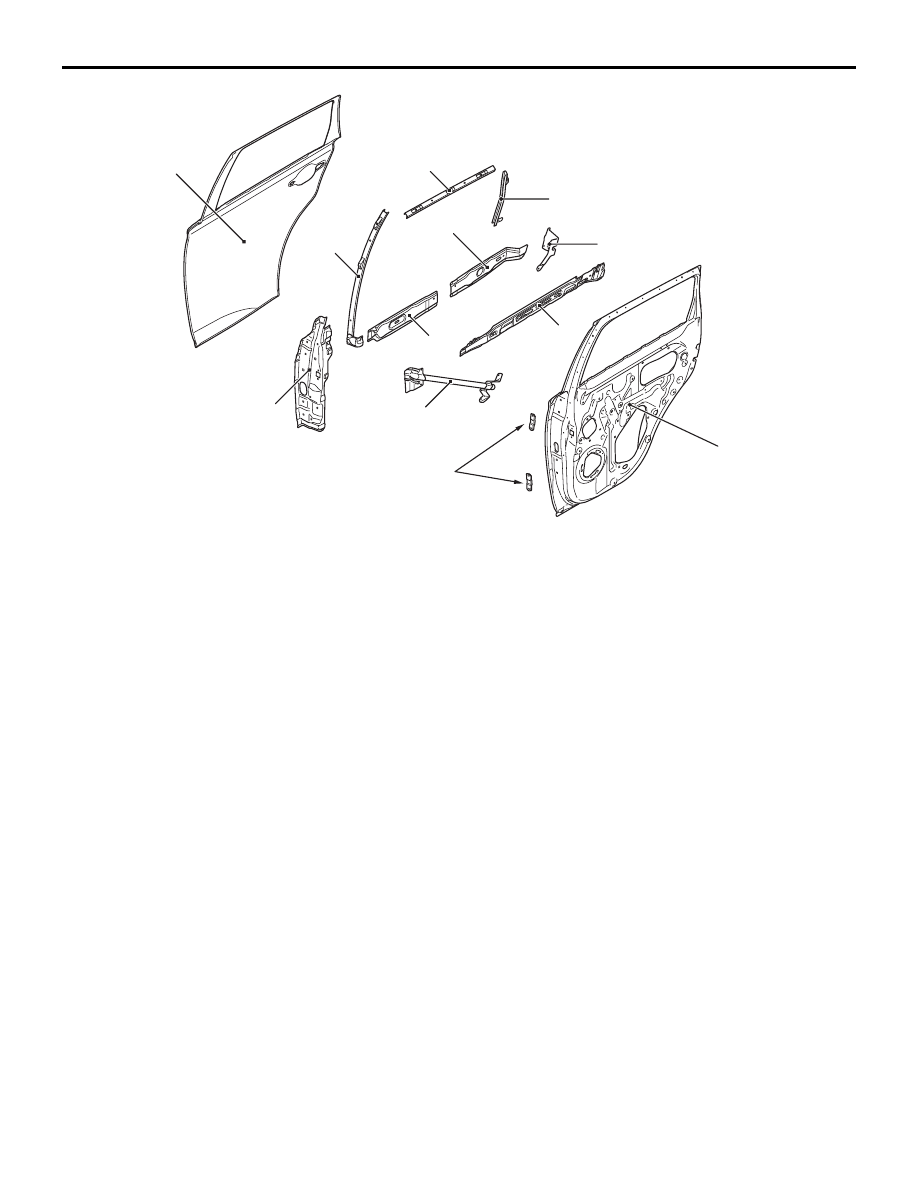

14. Rear door panel outer
15. Rear door window upper sash
16. Rear door window rear sash
17. Rear door latch reinforcement
18. Rear door panel inner
19. Nut plate
20. Rear door side door beam
21. Rear door outer stiffener rear
22. Rear door outer stiffener front
23. Rear door hinge reinforcement
24. Rear door window front sash
25. Rear door beltline outer reinforcement
