BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-14

FRONT DECK

DASH PANEL

• The front frame structure is supported in three

directions by the dash crossmember centre, dash
crossmember lower and front sidemember rear in
order to improve the frontal collision characteris-
tics, and increase the vehicle body rigidity.

• The 590-MPa class high tensile strength steel

panels have been adopted for the dash cross-
member centre, dash crossmember side and
dash panel reinforcement to improve the frontal
collision characteristics.

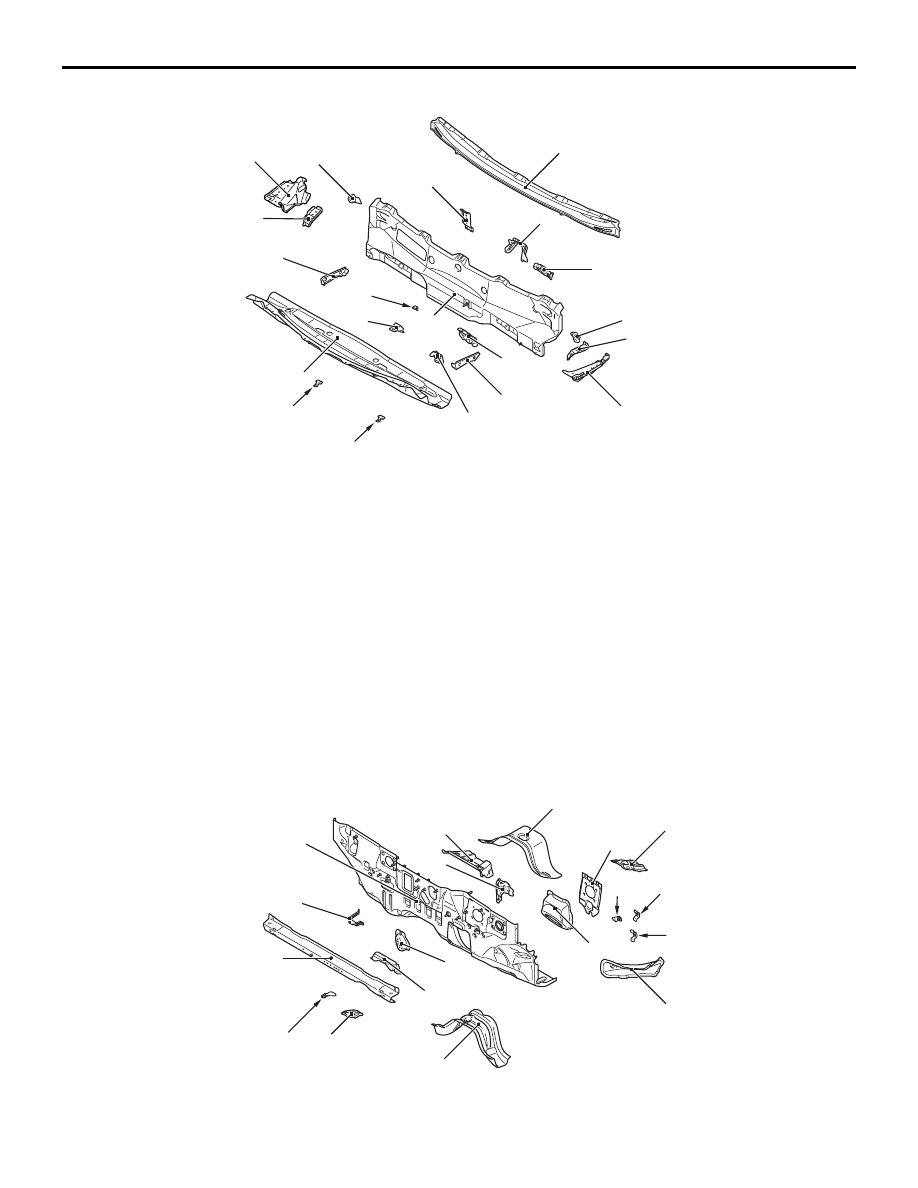

ABB00728

1

2

2

3

6

8

12

13

14

15

10

11

11

9

7

5

5

3

4

AB

4

1.

Cowl top panel lower

2.

Cowl top stay side

3.

Wiper side bracket

4.

Upper frame extension inner

5.

Fender bracket

6.

Cowl top panel upper

7.

Deck crossmember bracket

8.

Brake pedal support bracket

9.

Brake pedal reinforcement upper

10. Wiper front bracket
11. Harness bracket
12. Wiper bracket centre
13. Harness bracket
14. Cowl top panel inner
15. Cowl top stay centre

ABB00729

1

2

3*

4

5

6

7

8

9

11

10

12*

13*

14*

16

15

17

18*

AB

*: Indicates 590MPa-high-tensile steel panels.

NOTE:

1.

Brake tube bracket

2.

Harness bracket

3.

Dash crossmember centre

4.

Dash heat protector bracket

5.

Dash panel

6.

Backbone reinforcement front

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-15

SIDE BODY

M4010011001623

SIDE STRUCTURE

• The 590 MPa-high-tensile steel panel has been

adopted for the centre pillar and the roof side rail,
and the 980 MPa-ultra-high-tensile steel panel
has been adopted for the front pillar and the side
sill to improve the collision characteristics.

• The front pillar, centre pillar and rear pillar have

been connected to the roof, and the closed sec-
tion structure has been adopted to the tailgate
opening to improve body rigidity, steering stability,
and riding comfort.

7.

Dash panel lower

8.

Front floor sidemember reinforcement upper

9.

EPS ECU A bracket

10. EPS ECU B bracket
11. EPS ECU C bracket
12. Dash crossmember side
13. Dash crossmember lower
14. Dash crossmember extension
15. Canister bracket
16. Accelerator pedal bracket
17. Steering shaft bracket
18. Dash panel reinforcement

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-16

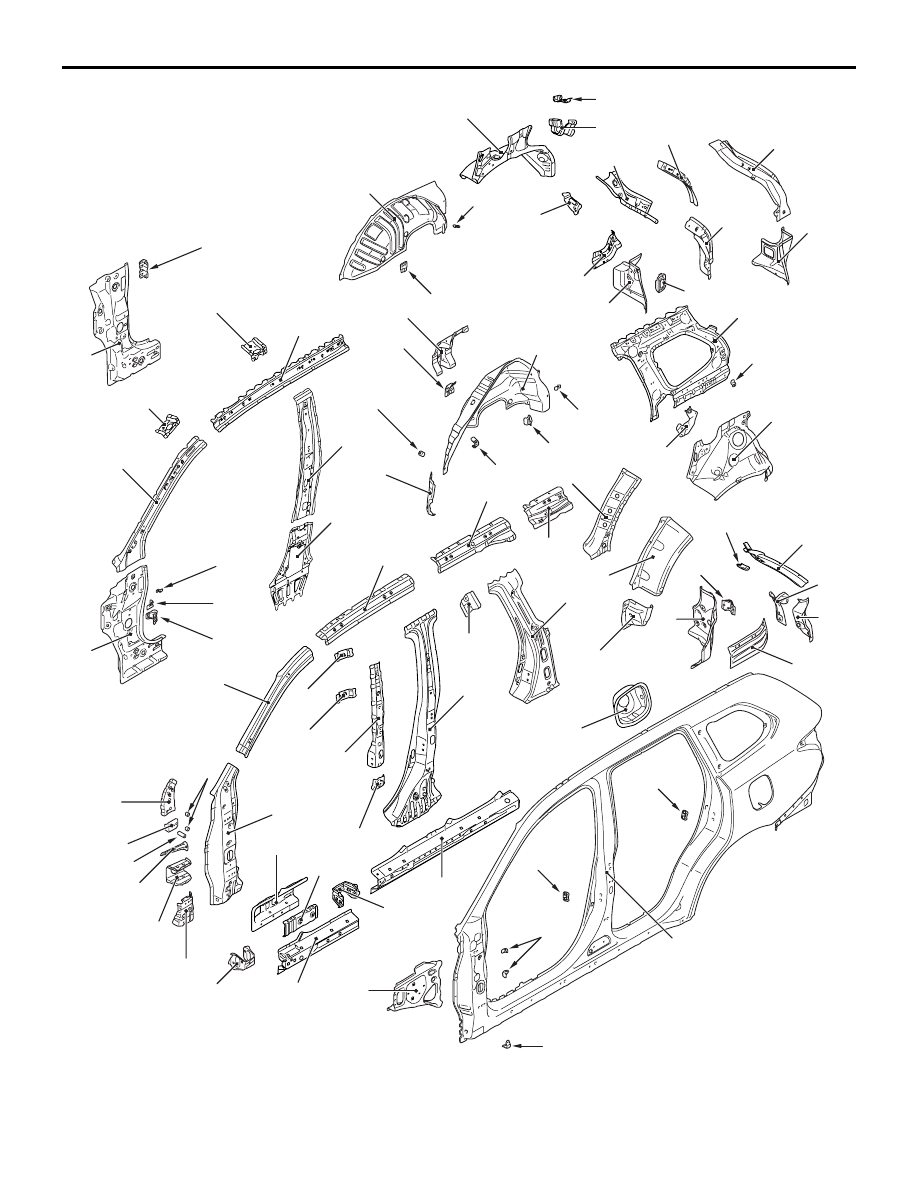

ABC00041

1

1

2

3

4

5

6**

7

8

9*

10*

11

13

13

19

75

12

14

15

16

16

18

22

23

24

25

21

20

26

27

28

29

31

32

35

36

37

39

40

41

42

43

45

46

AB

47

47

48

49

50

51**

52

54**

53

55

56*

57*

58

59

60

61

62*

63

63

64**

66

67

68*

69

70*

71

72

73

74

65*

44

38

30

32

33

34

17

*: Indicates 590MPa-high-tensile steel panels.

**: Indicates 980MPa-ultra-high-tensile steel panels.

NOTE:

1.

Front inner pillar lower

2.

Hood opener bracket (Left side)

3.

Cowl side trim bracket

4.

Harness bracket

5.

Deck crossmember bracket (Right side)

6.

Front upper inner pillar

7.

Roof rail extension front inner

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-17

8.

Roof rail extension rear inner <Vehicles without
sunroof>

9.

Roof side rail inner

10. Centre pillar inner upper
11. Centre pillar inner lower
12. Side sill end plate
13. Harness bracket
14. Cargo hook bracket
15. Rear wheel house reinforcement
16. Rear wheel house inner panel
17. Filler pipe mounting bracket (Left side)
18. Rear wheel house reinforcement rear (Left side)
19. Harness bracket (Right side)
20. Gate inner pillar extension lower
21. Gate inner pillar extension centre
22. Gate inner pillar extension upper
23. Gate inner pillar upper
24. Gate pillar inner reinforcement (Left side) <Vehicles

with electric tailgate>

25. Gate inner pillar lower
26. Gate pillar lower bulkhead
27. Gate pillar upper reinforcement
28. Gate pillar lower reinforcement
29. Quarter inner upper panel
30. Harness bracket
31. Second seat belt reinforcement lower
32. Quarter inner lower panel
33. Jack support (Right side)
34. Jack bracket (Right side)
35. Rear pillar reinforcement lower
36. Quarter inner front extension
37. Quarter inner front extension lower
38. Quarter outer panel extension upper
39. Gas spring reinforcement
40. Tailgate damper reinforcement side
41. Rear lamp housing
42. Rear lamp housing extension
43. Quarter outer panel extension rear
44. Quarter panel extension lower inner
45. Fuel filler neck bracket (Left side)
46. Side outer panel
47. Nut plate
48. Front fender bracket
49. Fender bracket
50. Front deck frame rear upper
51. Side sill reinforcement outer rear
52. Side sill bulkhead A
53. Side sill reinforcement support front
54. Side sill reinforcement outer front
55. Side sill inner support front
56. Side sill bulkhead front
57. Front pillar reinforcement lower
58. Front door hinge reinforcement lower
59. Front pillar reinforcement bulkhead centre
60. Front door checker reinforcement
61. Front door hinge reinforcement upper
62. Front pillar reinforcement lower support
63. Deck support pipe (Left side)
64. Front pillar reinforcement upper

65. Roof side rail reinforcement centre
66. Centre pillar seat belt reinforcement upper
67. Centre pillar seat belt reinforcement lower
68. Rear door hinge reinforcement
69. Rear door hinge reinforcement lower
70. Centre pillar reinforcement
71. Roof side rail reinforcement rear
72. Roof side rail reinforcement rear
73. Second seat belt reinforcement upper
74. Rear pillar reinforcement upper
75. Harness bracket (Right side)
