AB202341AB

Side outer panel

I

Quarter outer
extension upper

Acoustic foam

Gate pillar
reinforcement

AB200232

AB

Side outer panel

J

Front pillar
reinforcement lower

Acoustic foam

AB202334AB

Urethane foam

K

AB300067AB

Urethane foam

M

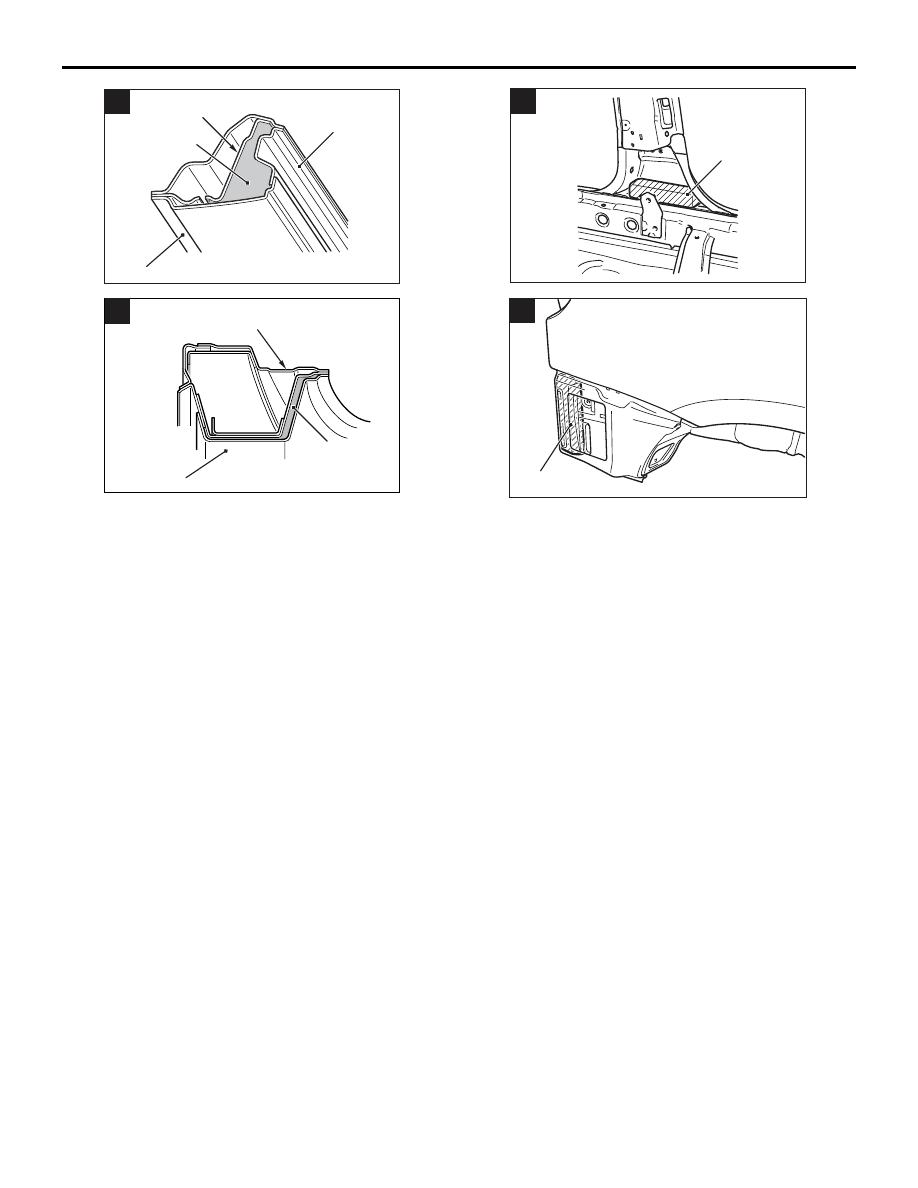

LOCATIONS USING URETHANE FOAM AND FOAM MATERIAL

BODY CONSTRUCTION

1-25

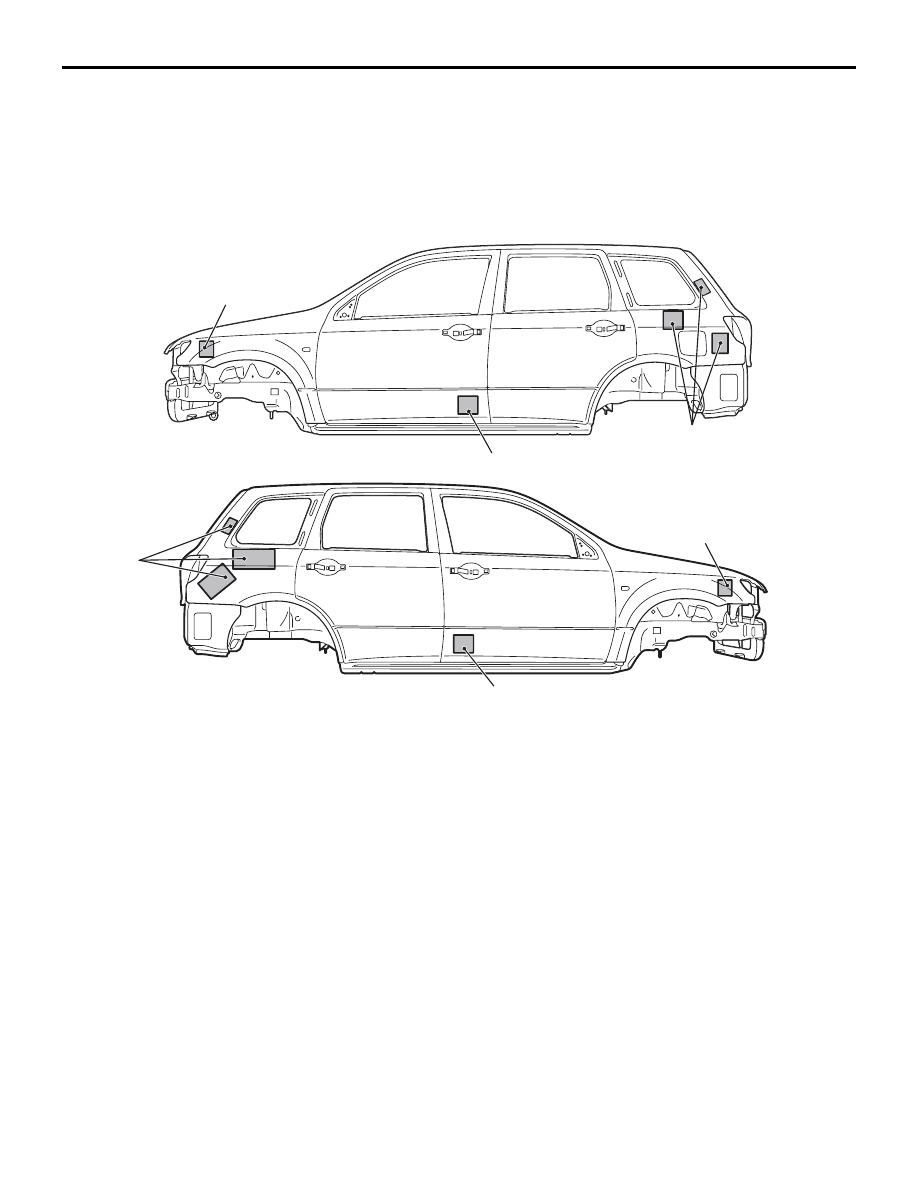

STIFFENER AND DAMP SHEET APPLICATION LOCATIONS

BODY CONSTRUCTION

1-26

STIFFENER AND DAMP SHEET APPLICATION LOCATIONS

M4010008000169

Sound insulation was improved with anti-vibration
effects and heightening surface rigidity with a stiff-
ener on the inner side of the side outer panel, and
front fender, as well as a damping sheet adhered to
the inner side of the front door.

NOTE: The main contents of a stiffener are epoxy
resin. It comes in a sheet form and contains a mix-
ture of glass fibre and filler, and cures (stiffens) when
heated. It is used to improve the rigidity of the outer
plate.

AB200175

AB202206

AB202330AB

Stiffener

Damp sheet

Stiffener

Stiffener

Stiffener

Damp sheet

2-1

GROUP 2

BODY DIMENSIONS

CONTENTS

BODY DIMENSIONS AND



MEASUREMENT METHODS. . . . . . .

2-2

TYPE A (PROJECTED DIMENSIONS)

2-4

UNDER BODY  . . . . . . . . . . . . . . . . . . . . . .

2-4

SUSPENSION INSTALLATION DIMENSIONS

2-6

TYPE B (ACTUAL-MEASUREMENT
DIMENSIONS). . . . . . . . . . . . . . . . . . .

2-8

UNDER BODY. . . . . . . . . . . . . . . . . . . . . . .

2-8

SUSPENSION INSTALLATION DIMENSIONS

2-10

FRONT BODY . . . . . . . . . . . . . . . . . . . . . . .

2-12

SIDE BODY . . . . . . . . . . . . . . . . . . . . . . . . .

2-14

REAR BODY . . . . . . . . . . . . . . . . . . . . . . . .

2-16

INTERIOR . . . . . . . . . . . . . . . . . . . . . . . . . .

2-18

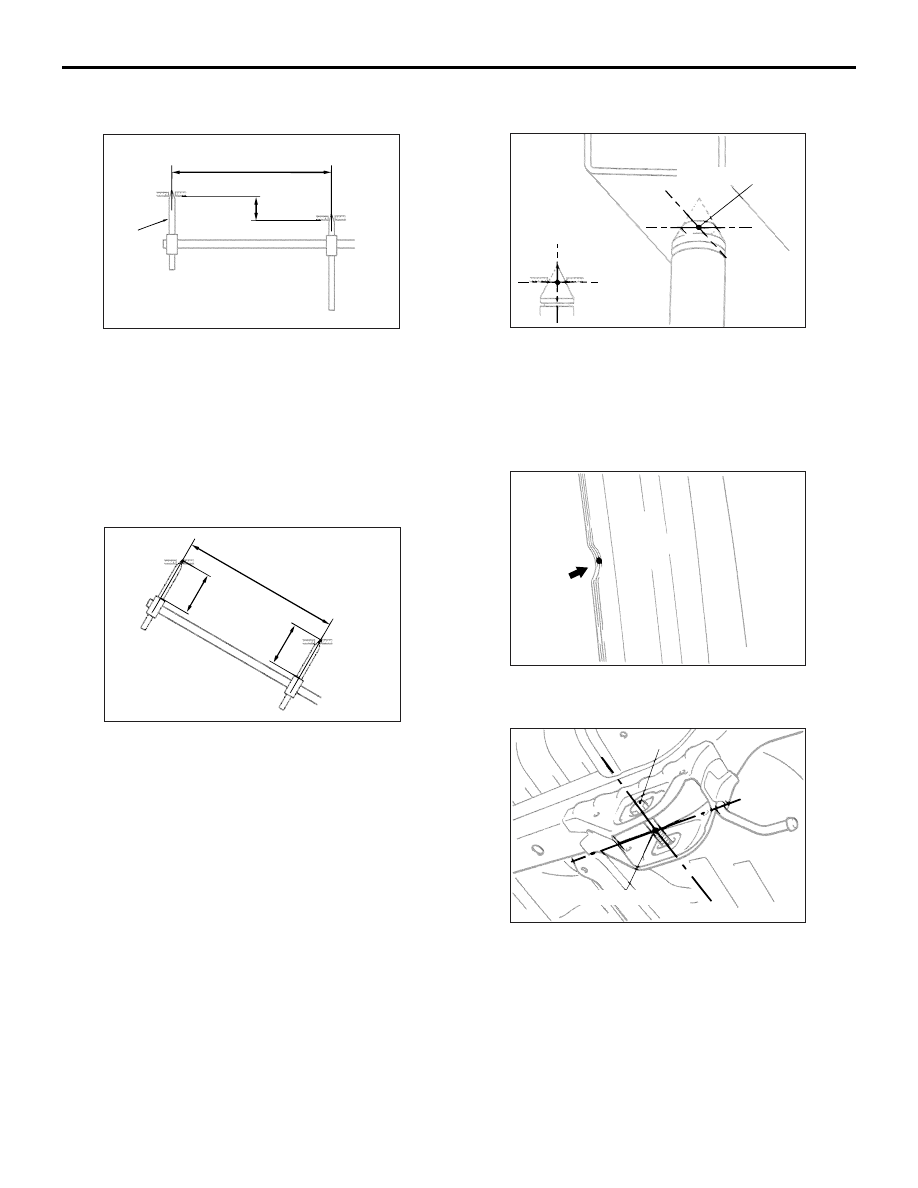

BODY DIMENSIONS AND MEASUREMENT METHODS

BODY DIMENSIONS

2-2

BODY DIMENSIONS AND MEASUREMENT METHODS

M4020001000318

AB100778

Projected dimension

Height

Probe

AB

1. Type A (projected dimensions)

• Indicates the dimension when a measurement

location is projected onto the plane.

• The difference in height of the measurement

points should be taken into consideration when
measuring.

•

AB100779AB

Actual-measured dimension

A

A'

The height indicates a distance from the
assumed standard line established 100 mm
below the lowest measurement point.

2. Type B (actual-measurement dimensions)

• Indicates the actual distance between the meas-

urement points.

• Measure using a tracking gauge or a measuring

tape, etc.

NOTE:

.

•

Make the lengths of the tracking gauge
probes the same (A=A’).

•

AB100780

AB100780AB

Centre of hole

Do not bend or twist the measuring tape.

3. Insert the tracking gauge probes securely into the

measurement holes.

4. When the standard dimensions in the illustration

are enclosed by rectangle, this indicates that the
symmetrical left and right positions have the same
dimensions.

AB100781AB

5. When using a notch for dimension measurement,

set the measuring point at the centre of the notch.

AB100782AB

Bolt

Measurement point

6. When measuring the suspension mounting arm,

or link mounting position, use the suspension
mounting bolt, etc. (Type B only)

7. The body centre points are shown for the purpose

of checking the position of the left and right
symmetry location.
