BODY DIMENSIONS AND MEASUREMENT METHODS

BODY DIMENSIONS

2-3

NOTES

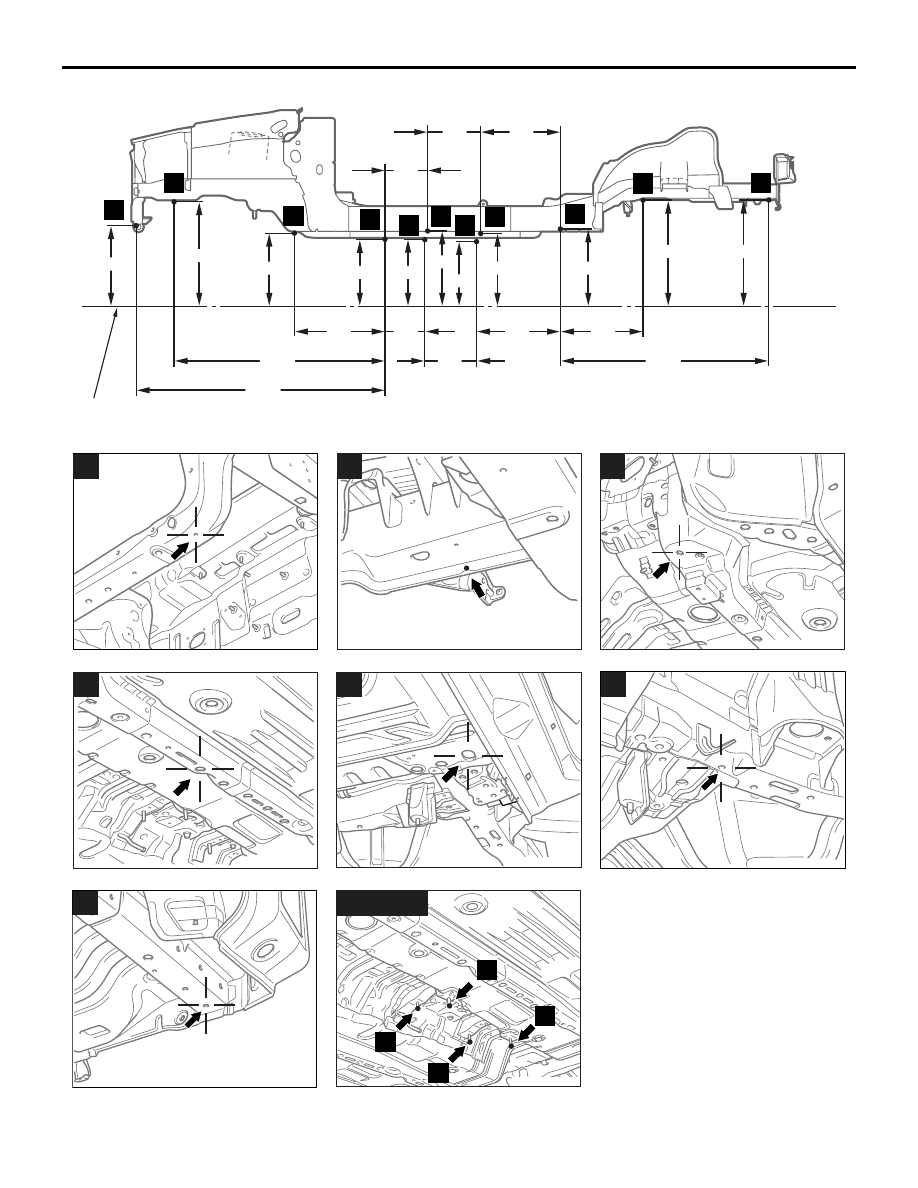

TYPE A (PROJECTED DIMENSIONS)

BODY DIMENSIONS

2-4

TYPE A (PROJECTED DIMENSIONS)

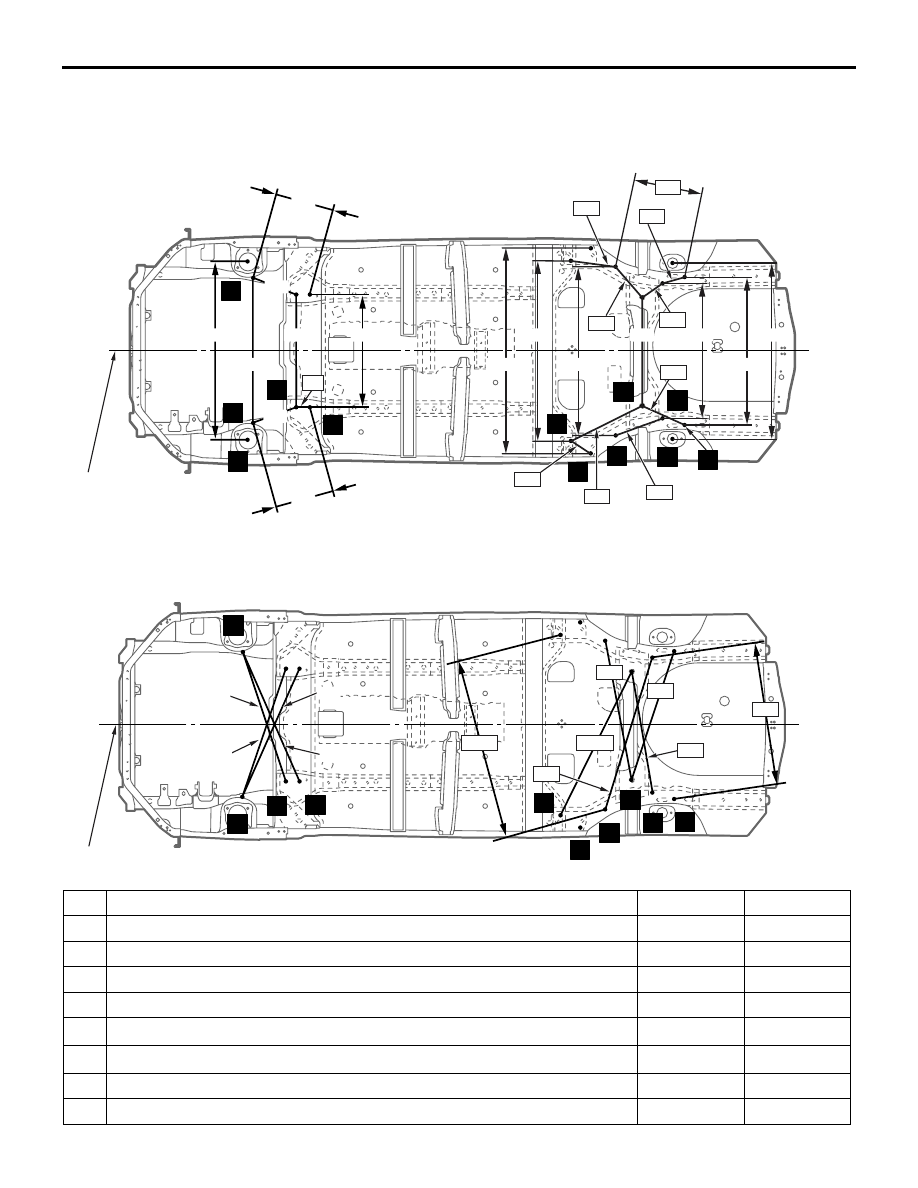

UNDER BODY

M4020005000804

AB200356

1

2

3

4

5

6

7

9

8

11

10

AD

 mm

750

1,010

982

786

713

714

199

341

338

1,220

926

960

582

764

1,333

247

180

Centre line of the vehicle

AB200243

AD

1

2

3

4

8

9

11

10

5

6

7

905

1,157

1,225

1,462

1,212

1,717

1,213

909

737

702

872

843

Centre line of the vehicle

No. Standard measurement point

Hole shape Size mm

1*

Centre of under cover mounting hole

Round

8

2

Front sidemember inner notch

−

−

3*

Centre of crossmember mounting hole

Round

18

4*

Centre of front floor sidemember positioning hole

Round

25

5*

Centre of rear seat crossmember side water draining hole

Oblong

38

× 22

6

Centre of rear floor sidemember water draining hole

Round

16

7*

Centre of towing hook mounting hole

Round

15

8

Tip of centre bearing mounting bolt (4WD) (left-front side)

−

−

9

Tip of centre bearing mounting bolt (4WD) (right-front side)

−

−

10

Tip of centre bearing mounting bolt(4WD) (left-rear side)

−

−

11

Tip of centre bearing mounting bolt (4WD) (right-rear side)

−

−

NOTE: The * mark indicates the mounting position for the frame centring gauge.

AB200625AD

1

2

3

5

6

7

4

8

9

11

10

74

185

339

122

100

102

175

164

253

340

504

185

345

345

563

509

338

250

563

1,327

1,335

1,545

mm

Standard line

TYPE A (PROJECTED DIMENSIONS)

BODY DIMENSIONS

2-5

NOTE: The assumed standard line is established 100 mm below the measurement point No.4.

AB200154

1

AB

AB100056AB

2

AB200366AB

3

AB100059AB

4

AB200364AB

5

AB200364

AB200160

6

AB

AB200246AB

7

AB200289

8

9

10

11

8,9,10,11

AB

TYPE A (PROJECTED DIMENSIONS)

BODY DIMENSIONS

2-6

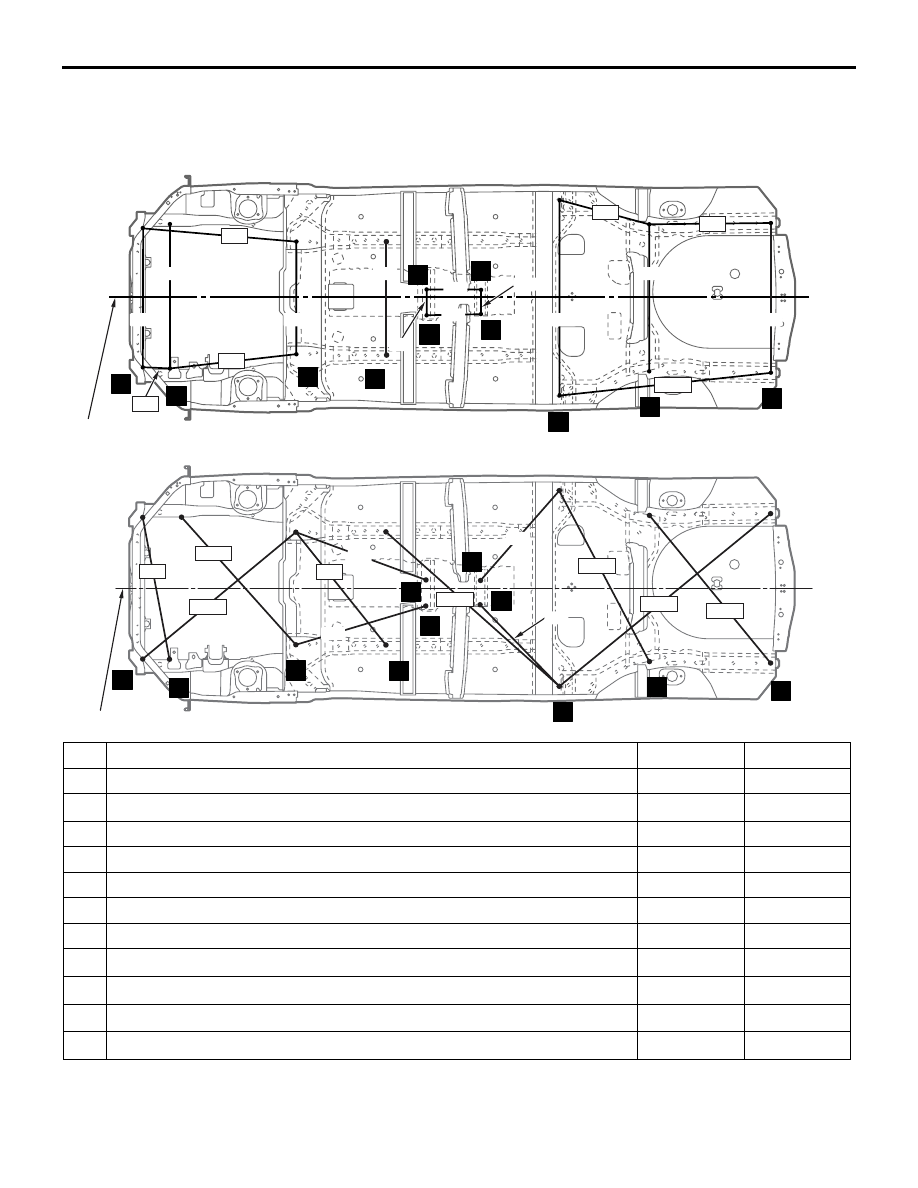

SUSPENSION INSTALLATION
DIMENSIONS

M4020013000661

AB200354

AD

17

18

19

20

21

mm

12

3

14

15

16

13

22

1,000

372

290

713

713

906

288

370

1,110

1,110

1,262

1,128

932

876

684

130

185

127

180

341

373

302

256

484

86

Centre line of the vehicle

AB200355

AD

3

14

16

15

17

18

19

22

21

20

1,115

857

882

851

888

970

847

854

795

912

1,003

Centre line of the vehicle

No. Standard measurement point

Hole shape Size mm

3

Centre of crossmember mounting hole

Round

18

4

Centre of front floor sidemember positioning hole

Round

25

12

Centre of front shock absorber mounting hole

Round

110

13

Centre of rear shock absorber mounting hole

Round

64

14

Tip of crossmember mounting bolt (left)

−

−

15

Tip of crossmember mounting bolt (right)

−

−

16

Centre of crossmember mounting hole

Round

11

17

Centre of trailing arm mounting hole

Round

16
