Mitsubishi Outlander. Body repair manual - part 7

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-17

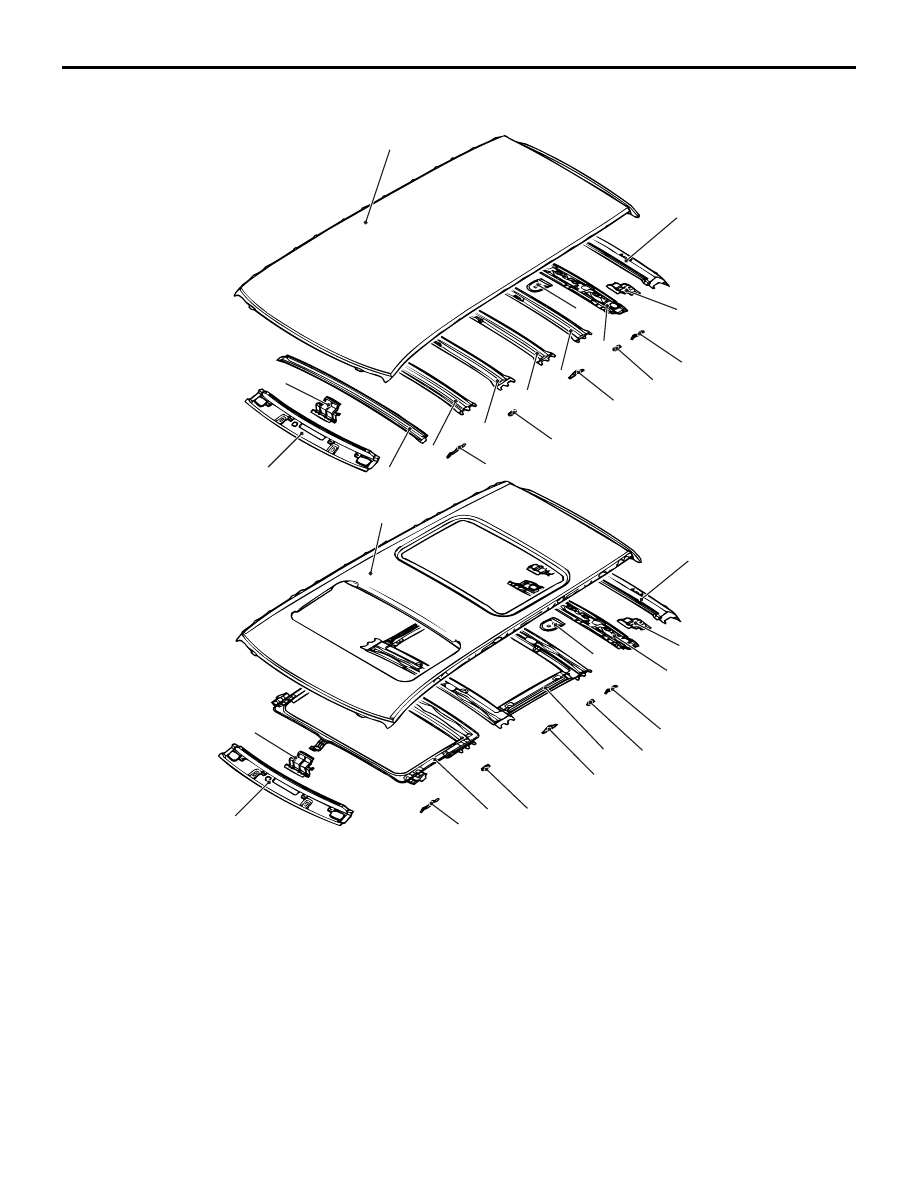

ROOF

M4010013000165

AB300102

AB300103

AB300145

Standard roof

Sunroof and

roof window glass

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

7

18

17

1

2

3

4

5

6

8

9

7

7

12

AB

16

10

1.

Roof rail front

2.

Map lamp bracket

3.

Roof panel

4.

Roof rail rear outer

5.

Tailgate hinge reinforcement

6.

Roof rack bracket (Vehicles with roof rail)

7.

Roof carrier bracket (Vehicles without roof rail)

8.

Roof rack bracket centre (Vehicles with roof rail)

9.

Roof rail rear inner

10. Roof antenna reinforcement
11. Roof bow C
12. Roof rack bracket front (Vehicles with roof rail)
13. Roof bow B
14. Roof bow A
15. Roof bow centre
16. Roof bow front
17. Roof reinforcement rear
18. Roof reinforcement front

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-18

UNDER BODY

M4010014000179

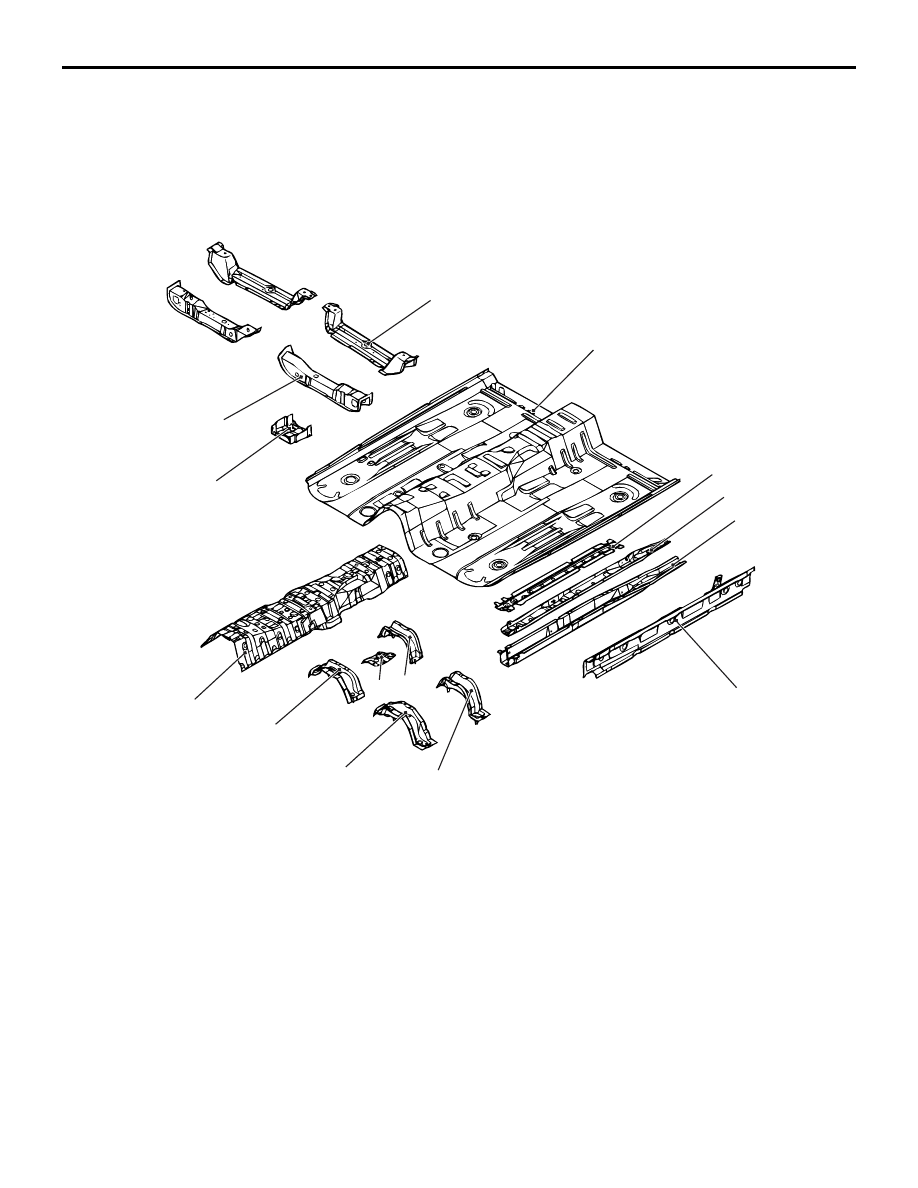

FRONT FLOOR

The front floor sidemember and front floor cross-
member rear section was designed with large form,
to suppress cabin deformation and improve safety
upon impact.

AB202390AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

1.

Instrument panel bracket reinforcement

2.

Front floor crossmember front

3.

Front floor crossmember rear

4.

Front floor pan

5.

Front floor sidemember reinforcement front

6.

Front floor sidemember reinforcement rear

7.

Front floor sidemember

8.

Front floor side sill inner

9.

Backbone crossmember rear (4WD)

10. Backbone crossmember rear (2WD)
11. Parking brake lever reinforcement
12. Backbone crossmember front (4WD)
13. Backbone crossmember front (2WD)
14 Backbone reinforcement

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-19

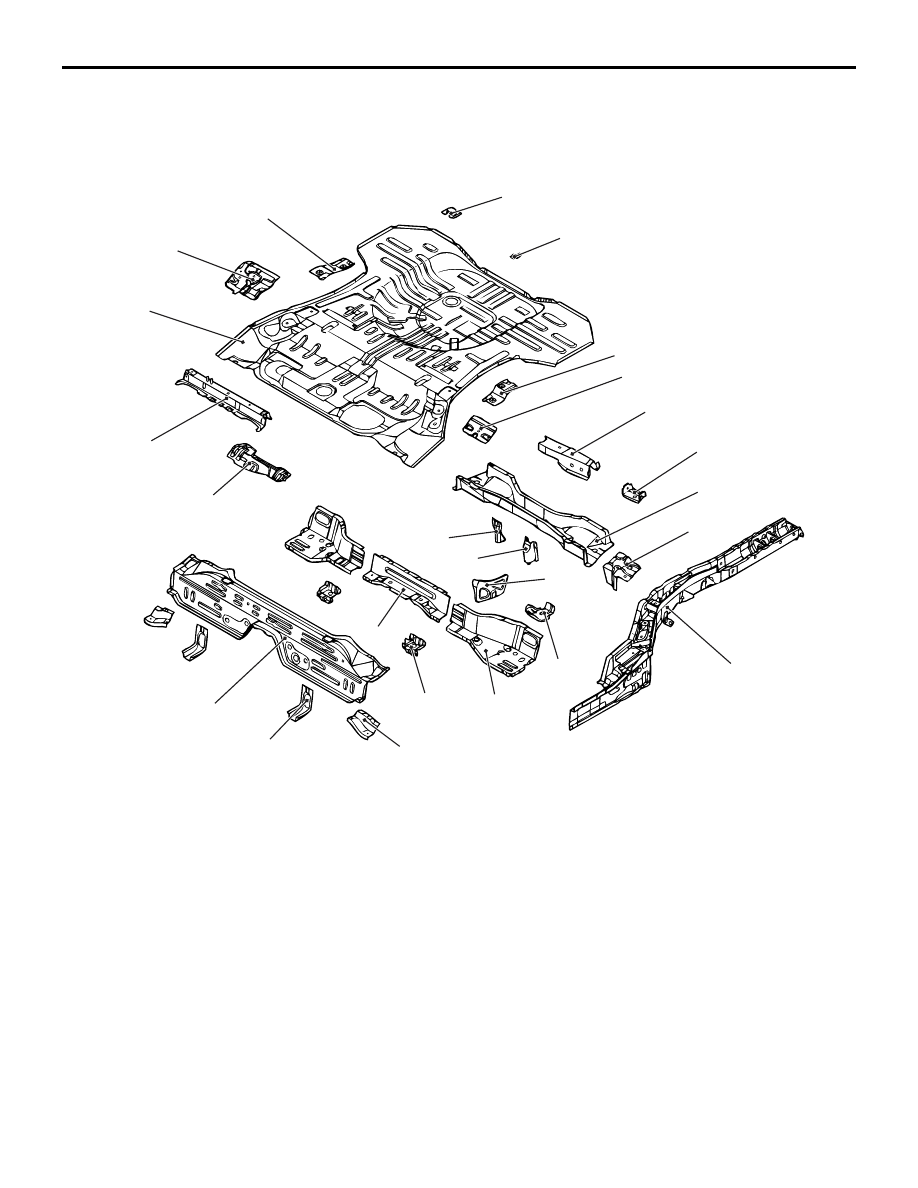

REAR FLOOR

The trailer towing capacity has been increased as
the rear floor sidemember extension and towing
hook reinforcement have been thickened to improve
rigidity.

AB202027AC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

6

7

1.

Child anchor bracket

2.

Rear floor crossmember upper

3.

Rear floor pan

4.

Spare tyre bracket

5.

Heat protector bracket

6.

Rear floor brace plate

7.

Seat belt rear floor reinforcement

8.

Upper arm crossmember reinforcement

9.

Rear suspension crossmember centre support

10. Upper arm crossmember
11. Rear suspension crossmember centre bracket
12. Fuel tank rear bracket
13. Fuel tank rear bracket centre

14. Rear floor sidemember
15. Tie down reinforcement
16. Rear seat crossmember side bracket
17. Rear seat crossmember side
18. Fuel tank front bracket
19. Rear seat crossmember centre
20. Rear floor crossmember reinforcement side
21. Front floor sidemember extension
22. Rear floor extension

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-20

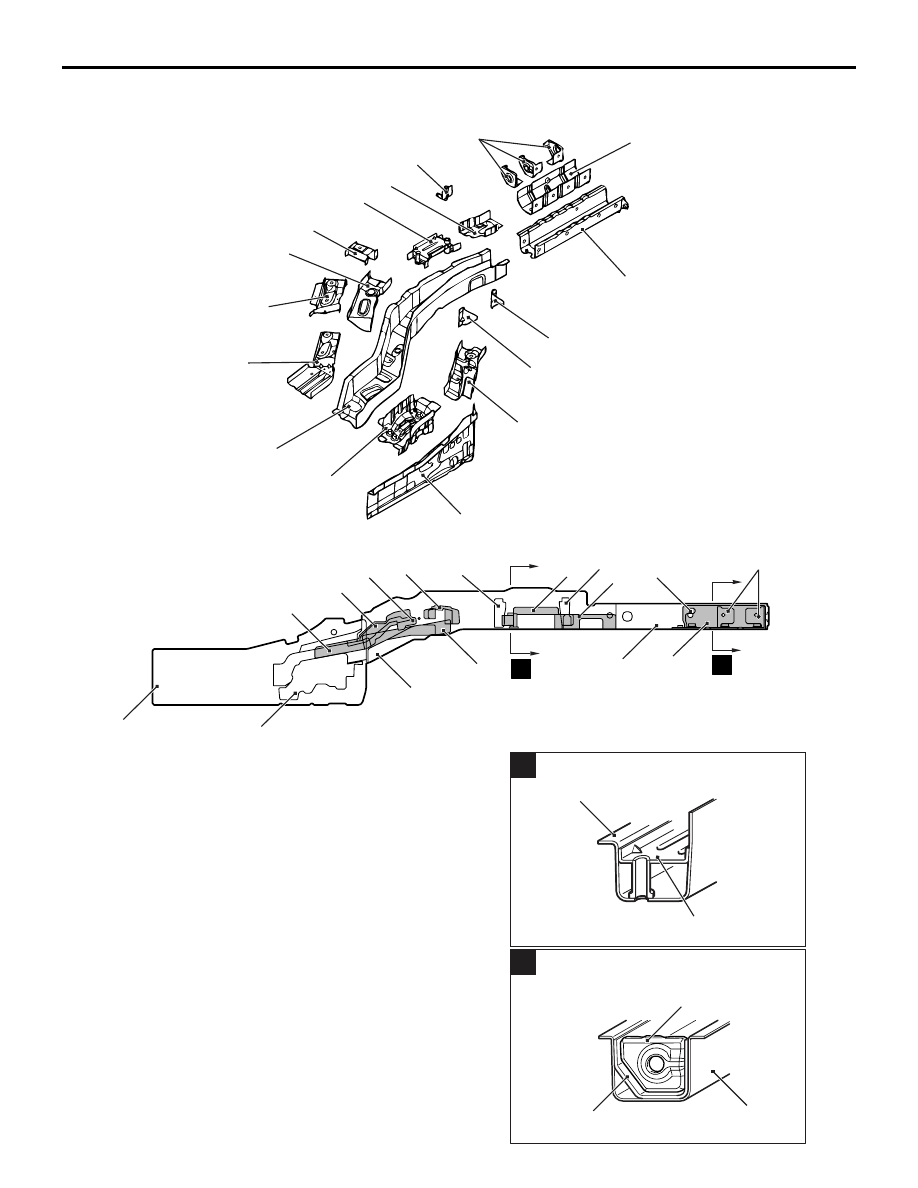

REAR FLOOR SIDEMEMBER



REINFORCEMENT

AB201994

1

3

4

5

6

7

8

9

10

11

12

13

14

15

16

AC

2

AB200021

1

2

3

4

5

6

7

8

10

11

12

13

14

16

10

15

A

B

AC

1.

Trailing arm bracket

2.

Rear floor sidemember

3.

Rear seat back reinforcement side front

4.

Rear seat back bracket side front

5.

Rear floor sidemember reinforcement

6.

Rear seat back side

7.

Rear suspension bracket

8.

Rear floor sidemember reinforcement rear (Left side)

9.

Muffler hanger rear (Right side)

10. Towing hook reinforcement bulkhead
11. Towing hook reinforcement
12. Rear floor sidemember extension
13. Rear spring house bracket support rear
14. Rear spring house bracket support front
15. Rear suspension crossmember front bracket
16. Rear floor side sill inner

AB200091AB

A

2

7

AB200225

B

AB

10

11

12
