Mitsubishi Outlander. Body repair manual - part 6





BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-13

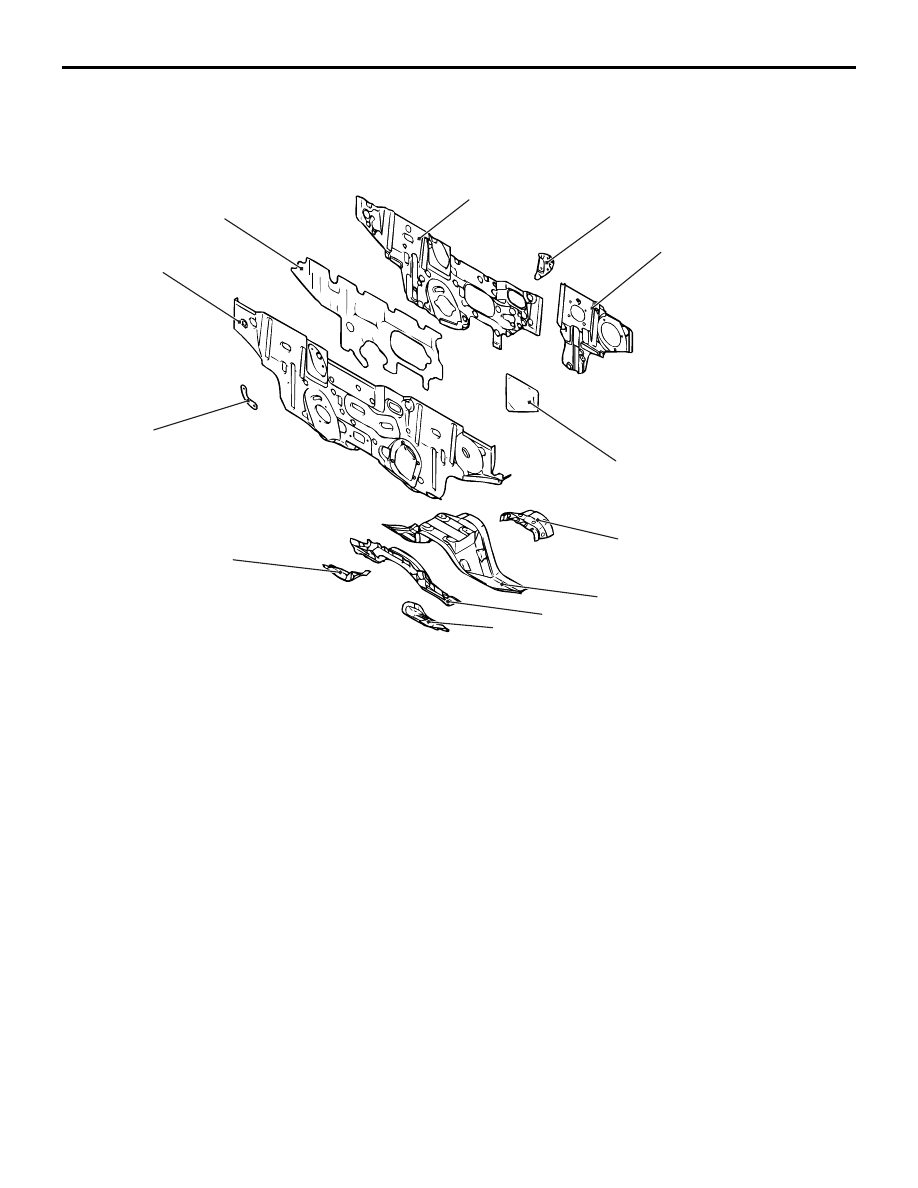

DASH PANEL

• Floor deformation upon impact was reduced by

featuring a thicker dash panel lower steel sheet
and adding a dash panel crossmember to
improve safety upon impact.

•

AB202162AD

1

2

3

4

5

6

7

8

9

10

11

12

1.

Dash panel reinforcement lower

2.

Parking brake pedal reinforcement (R.H. drive
vehicles)

3.

Dash panel

4.

Dash silencer centre

5.

Dash silencer panel

6.

Accelerator pedal reinforcement (L.H. drive vehicles)

7.

Dash panel reinforcement

8.

Dash silencer side

9.

Dash reinforcement lower

10. Dash panel lower
11. Dash panel crossmember
12. Dash panel reinforcement lower

A silencer was added between the dash panel
and dash silencer panel to suppress noise and
vibration from the engine.

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-14

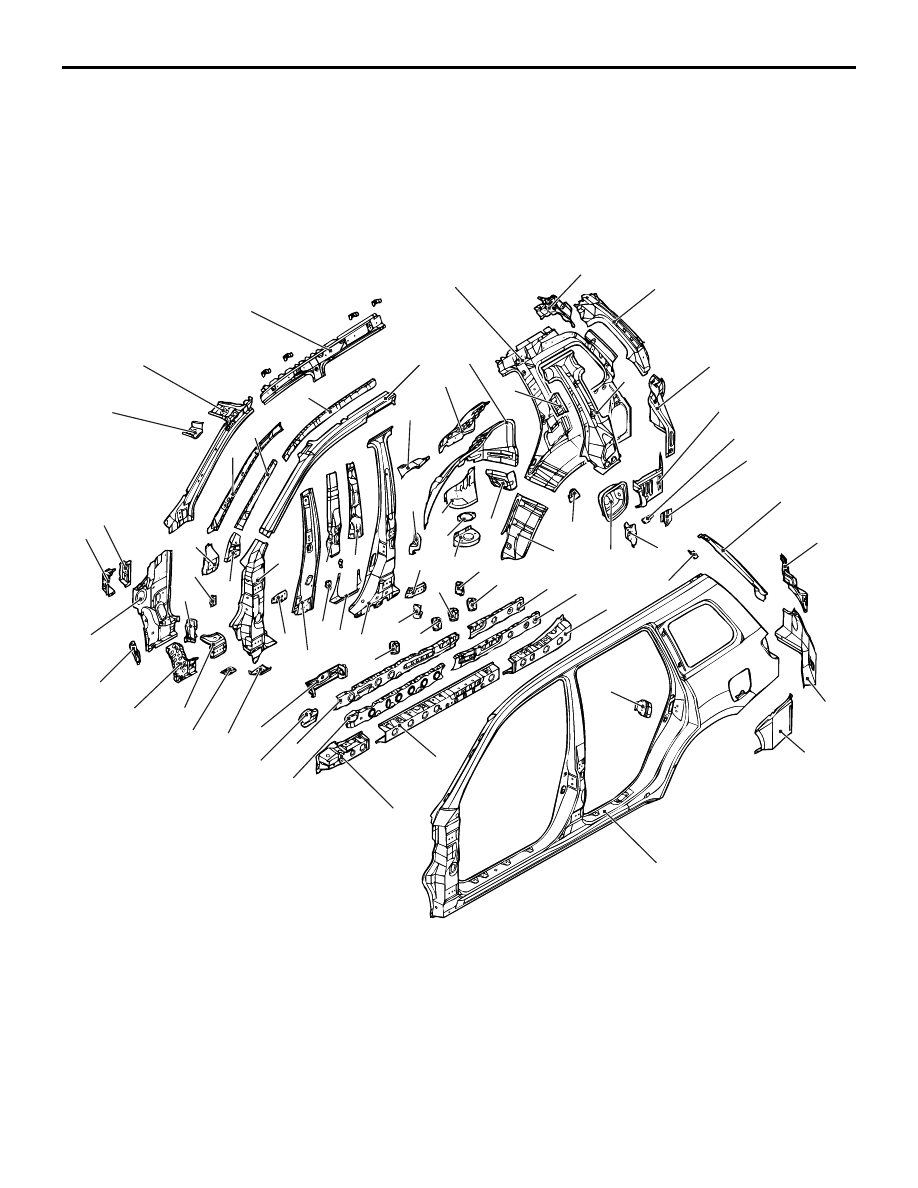

SIDE BODY

M4010011000170

SIDE STRUCTURE

• The rear suspension spring assembling area

(spring house reinforcement, spring house
bracket plate, and spring house bracket) was
placed in a lower position to improve front, rear,
left and right direction rigidity and improve driving
safety.

• Torsional rigidity was heightened and driving sta-

bility was improved by bonding the side outer
panel and pillar reinforcement (front pillar rein-
forcement upper or rear pillar reinforcement
upper) with the inner panel (side roof rail inner or
quarter inner panel).

AB202344 AM

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

 61

62

63

64

65

66

67

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

68

69

70

71

1.

Side sill to floor plate

2.

Front pillar inner lower reinforcement

3.

Front pillar inner lower extension

4.

Front pillar inner lower

5.

Deck crossmember bracket front

6.

Deck crossmember bracket rear

7.

Sun visor bracket

8.

Front pillar inner upper

9.

Front pillar inner upper reinforcement

10. Front pillar support

11. Side roof support
12. Front pillar reinforcement upper
13. Side roof rail inner
14. Quarter inner panel
15. Quarter inner extension upper
16. Gate pillar reinforcement
17. Quarter inner extension
18. Seat belt reinforcement upper
19. Rear pillar reinforcement upper
20. Quarter inner extension lower
21. Canister bracket plate (Left side)

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-15

22. Canister bracket (Left side)
23. Quarter inner plate
24. Fuel filler neck bracket (Left side)
25. Seat belt reinforcement lower
26. Quarter inner extension front
27. Gas spring reinforcement
28. Quarter outer extension upper
29. Rear lamp housing upper
30. Rear lamp housing lower
31. Quarter outer extension lower
32. Striker reinforcement
33. Side outer panel
34. Side sill outer reinforcement rear
35. Side sill reinforcement support rear (Left side)
36. Side sill reinforcement support rear (Right side)
37. Side sill outer reinforcement centre
38. Side sill outer reinforcement front
39. Side sill reinforcement support (Left side)
40. Side sill reinforcement support (Right side)
41. Side sill reinforcement support extension (Left side)
42. Side sill front bulkhead
43. Side sill front bulkhead (Left side)
44. Side sill bulkhead C (Left side)
45. Side sill bulkhead D (Left side)
46. Side sill bulkhead E (Left side)
47. Side sill bulkhead G (Right side)
48. Side sill bulkhead F (Right side)

49. Front pillar reinforcement lower bulkhead
50. Front door hinge reinforcement lower
51. Front pillar reinforcement lower extension
52. Front door check reinforcement
53. Front pillar reinforcement lower
54. Front door hinge reinforcement   upper
55. Front pillar reinforcement upper bulkhead
56. Centre inner plate
57. Centre pillar inner
58. Front door check reinforcement
59. Centre pillar inner lower
60. Centre pillar seat belt reinforcement
61. Rear door hinge reinforcement upper
62. Centre pillar reinforcement
63. Rear door hinge reinforcement lower
64. Side sill end plate
65. Rear wheel house reinforcement
66. Spring house panel
67. Rear wheel house inner panel
68. Rear wheel house inner extension
69. Spring house reinforcement
70. Spring house bracket plate
71. Spring house bracket

BODY CONSTRUCTION CHARACTERISTICS

BODY CONSTRUCTION

1-16

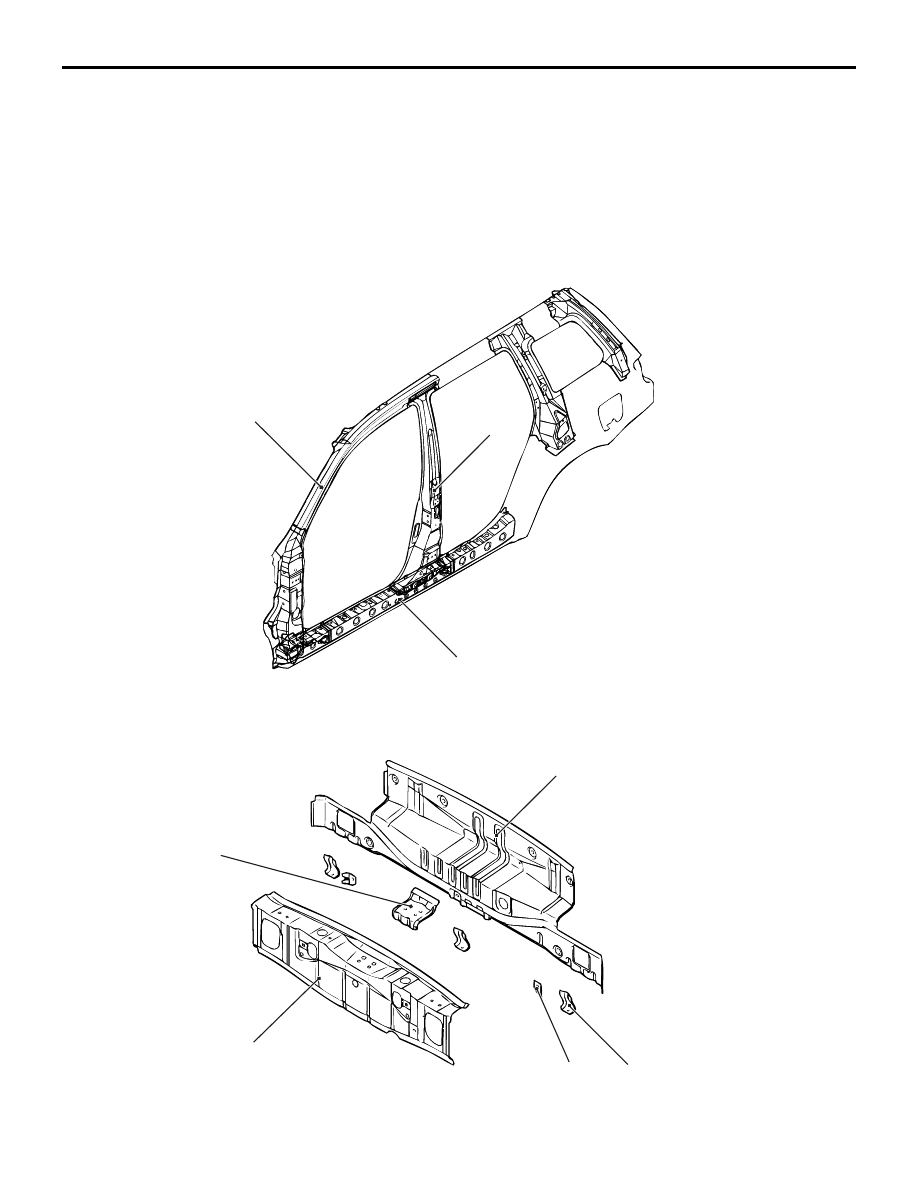

SIDE STRUCTURE REINFORCEMENT

1. A reinforcement was added in the front pillar. This

suppresses the level of deformation of the door
opening and recession of the deck crossmember
upon front impact and offset impact. The design
is also expected to improve passenger rescuabil-
ity and to minimize the level of injuries.

2. An uneven thickness steel sheet* in which the

sheet thickness is thinner on the side sill side was

employed for the centre pillar reinforcement to

ensure safety upon side impact and lightweight-

ness.

3. The side sill outer reinforcement section was

designed with large form, to suppress cabin

deformation and improve safety upon impact.

NOTE: *: A steel sheet of varying thickness that is

welded into one steel sheet.

AB300039AB

1

2

3

REAR BODY

M4010012000151

REAR END CROSSMEMBER

AB202349AH

1

2

3

4

5

1.

Rear end crossmember inner

2.

Tailgate striker reinforcement

3.

Rear end crossmember outer

4.

Rear bumper bracket

5.

Rear end outer plate
