SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-65

Step 6. Check the wiring harness between C-217
ETACS-ECU connector terminal No. 2 and fusible
link (1).

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors A-14, C-122 and junction
block connector C-204, and repair if necessary.

•

Check the power supply line for open or short
circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the central door locking system works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308776

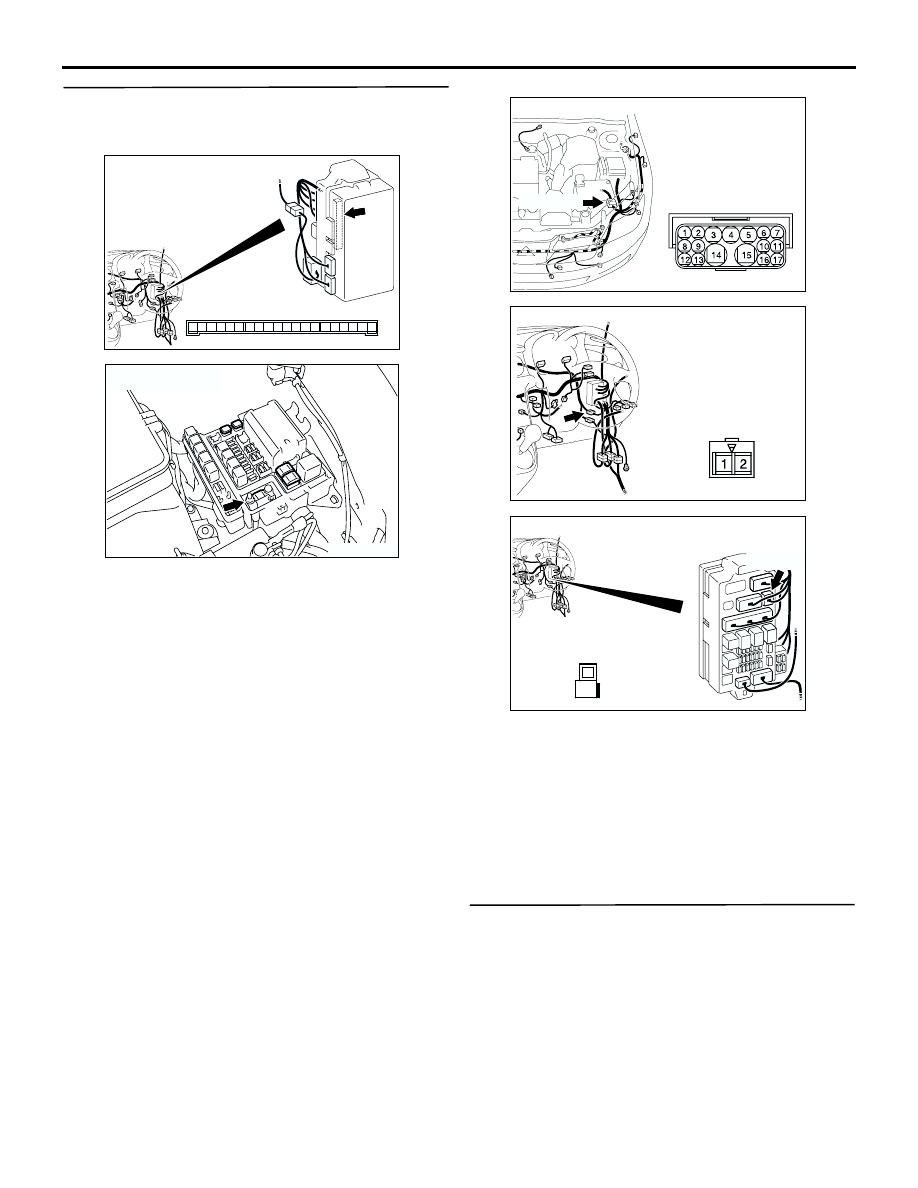

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC208065AE

Fusible link: No.1

AC308686AB

Connector: A-14

A-14 (GR)

<RHD>

AC308769

AC

Connector: C-122 <RHD>

AC308772

Connector: C-204

Harness side

AB

1

C-204(B)

Junction block (Front view)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-66

INSPECTION PROCEDURE C-2: A Door or a Tailgate can not be Locked or Unlocked by the Central
Door Locking System. <L.H. drive vehicles>

ETACS-ECU

DOOR LOCK
ACTUATOR
(FRONT: LH)

DOOR LOCK
ACTUATOR
(FRONT: RH)

DOOR LOCK
ACTUATOR
(REAR: LH)

DOOR LOCK
ACTUATOR
(REAR: RH)

TAILGATE
LOCK
ACTUATOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

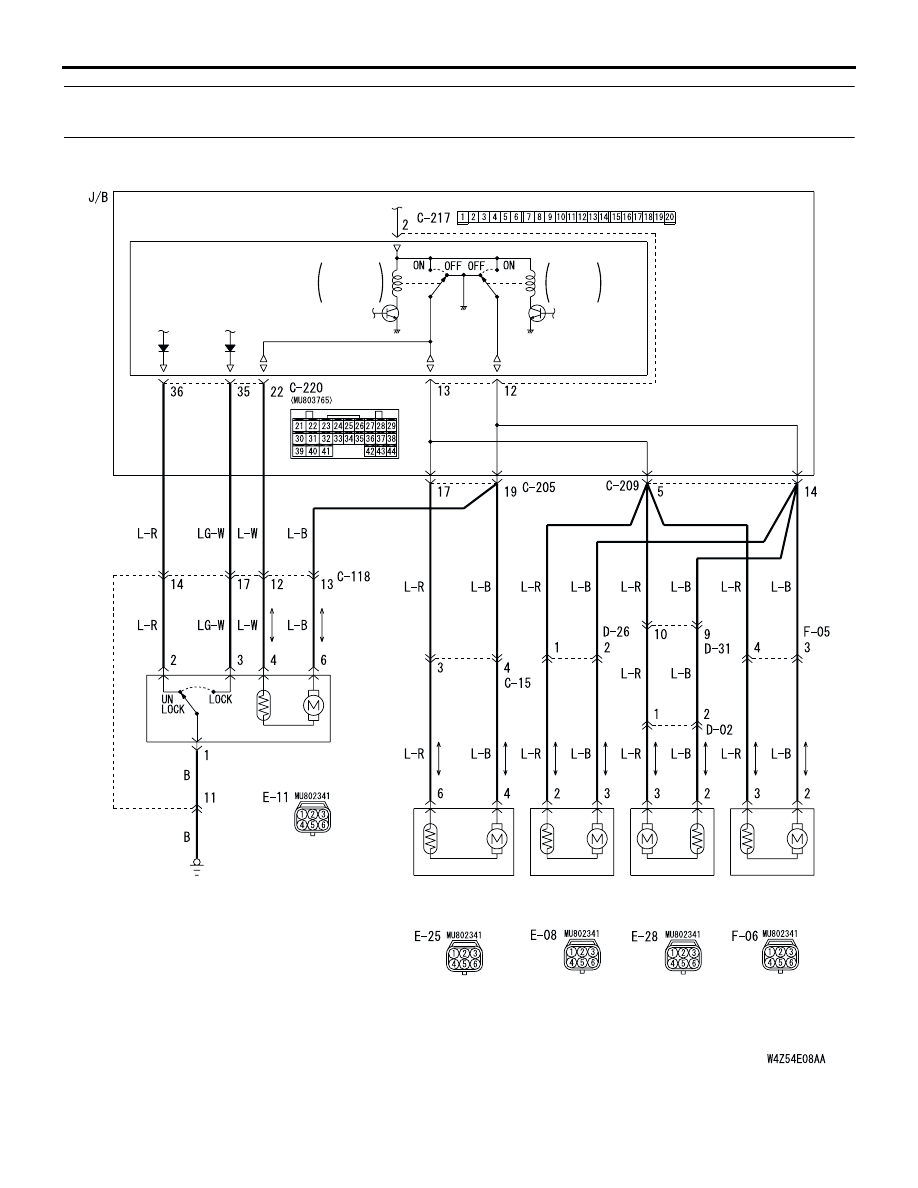

Central Door Lock Circuit <LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-67

COMMENT ON TROUBLE SYMPTOM
If a door or the tailgate can not be locked or unlocked
by the central door locking system, the door lock
actuator or the tailgate lock actuator may be
defective.

POSSIBLE CAUSES

•

Malfunction of the door lock actuator

•

Malfunction of the tailgate lock actuator

•

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Confirm which door lock actuator is
defective.

Q: Which door fails to lock correctly?

Driver's door :

Go to Step 2.

Front passenger's door :

Go to Step 6.

Rear right door :

Go to Step 10.

Rear left door :

Go to Step 14.

Tailgate :

Go to Step 18.

Step 2. Connector check: E-11 door lock actuator
(front: LH) connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

Step 3. Check the door lock actuator (front: LH)

Check that the door lock actuator (front: LH) works
normally. Refer to GROUP 42

−

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the door lock actuator (front: LH).

Step 4. Connector check: C-217, C-220
ETACS-ECU connector

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the defective connector.

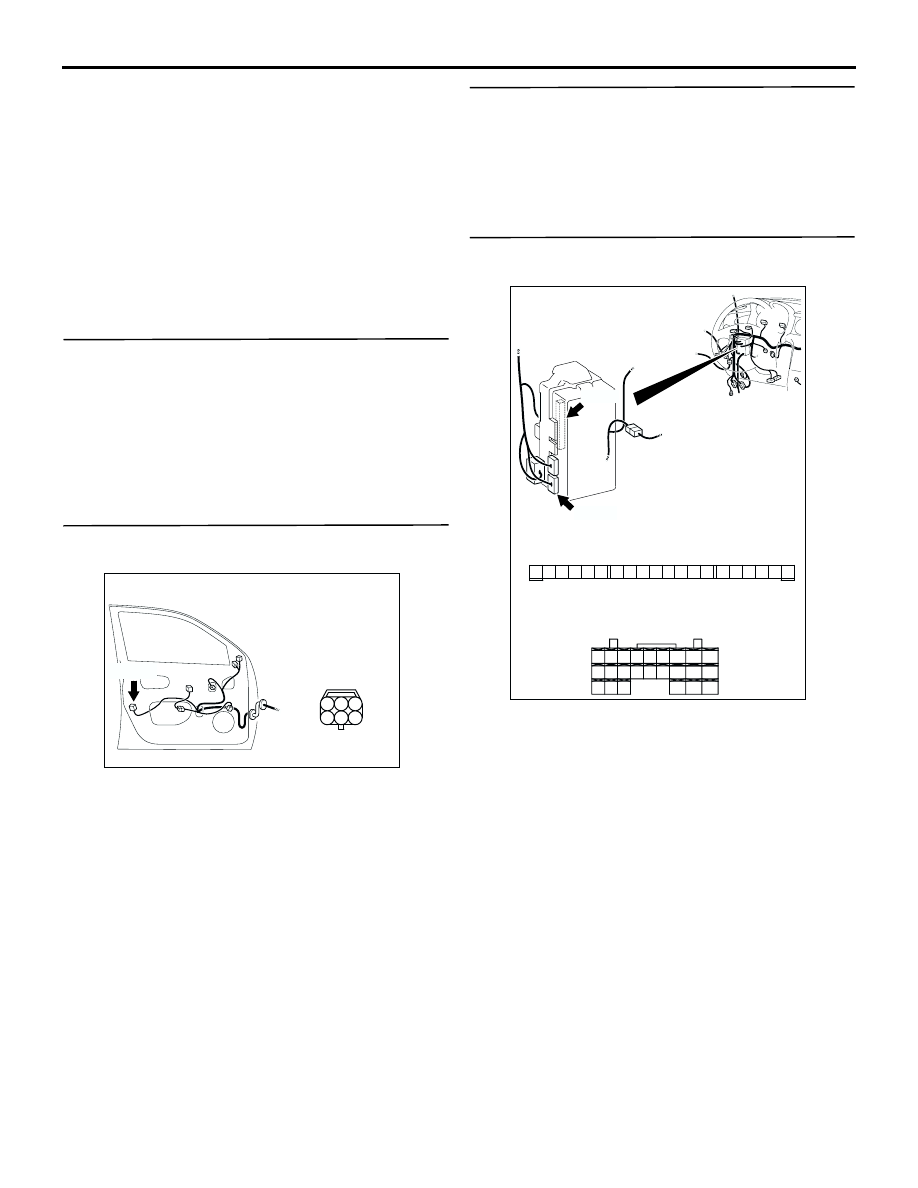

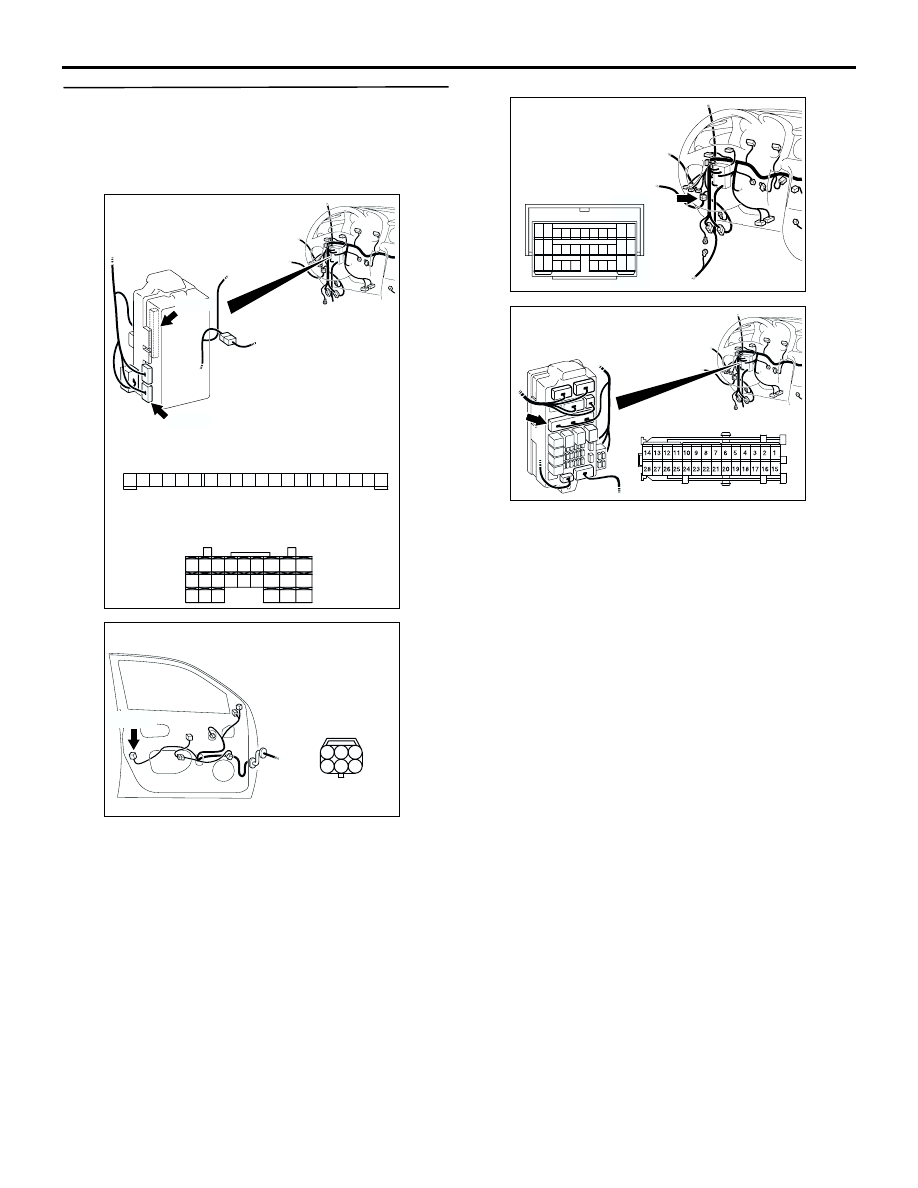

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308723

Connectors: C-217, C-220
<LHD>

C-220

AB

C-220

Junction block (Rear view)

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

Junction block side

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

Harness side

C-217

C-217

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-68

Step 5. Check the wiring harness from C-217
ETACS-ECU connector terminal No. 12 and C-220
ETACS-ECU connector No. 22 to E-11 door lock
actuator (front: LH) connector terminal Nos. 6
and 4.

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-118 and junction block
connector C-205, and repair if necessary.

•

Check the input and output lines for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

AC308723

Connectors: C-217, C-220
<LHD>

C-220

AB

C-220

Junction block (Rear view)

28

37

43

29

44

38

23

32

41

24

25

26

27

34

42

3635

33

21

22

30

39

40

31

Junction block side

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

Harness side

C-217

C-217

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308716

AH

Connector: C-118
<LHD>

32

22

11

27

16

5

24

13

2

12

23

1

15

14

26

25

3 4

29

19

8

18

17

28

6 7

21

20

30 31

9 10

AC308720

Connector: C-205

Harness side

AC

Junction block (Front view)

<LHD>
