Mitsubishi Outlander (2003+). Manual - part 443





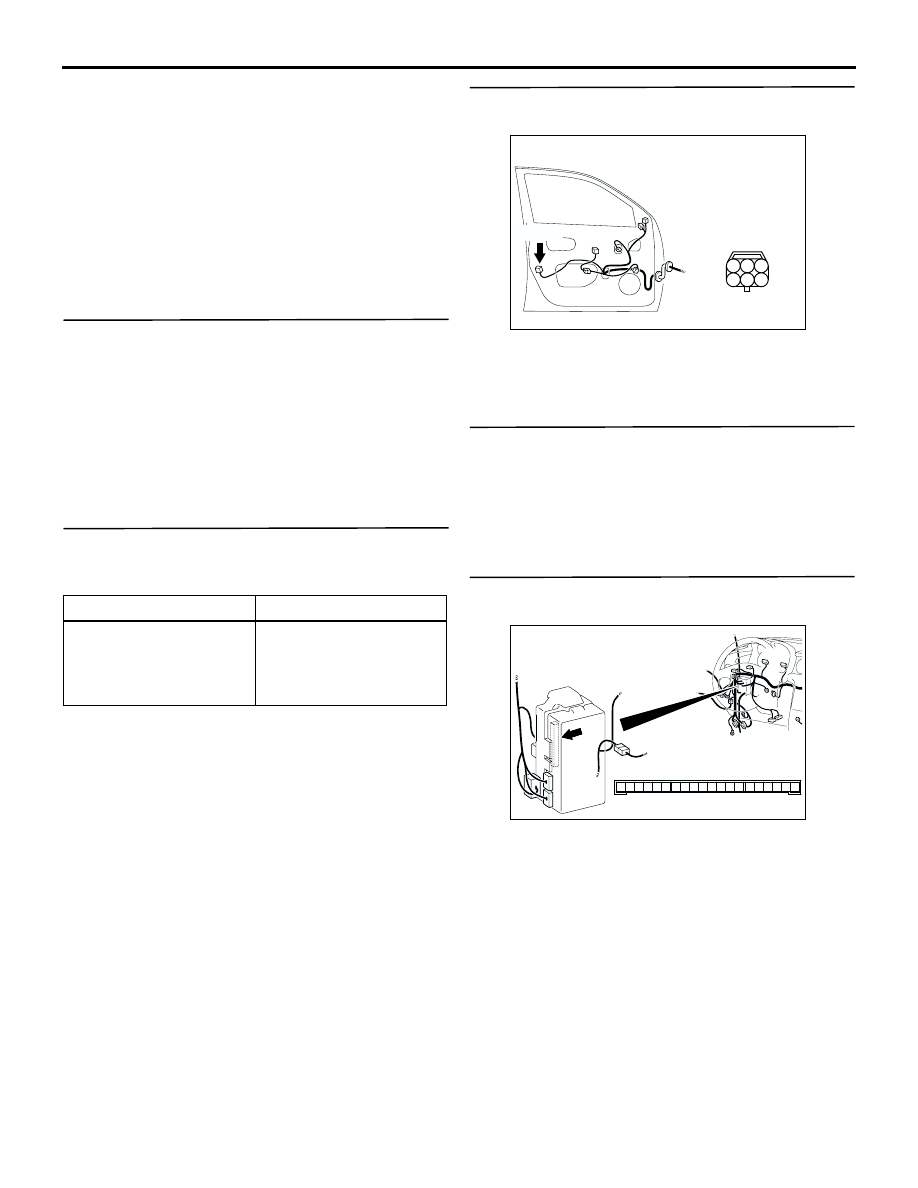

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-61

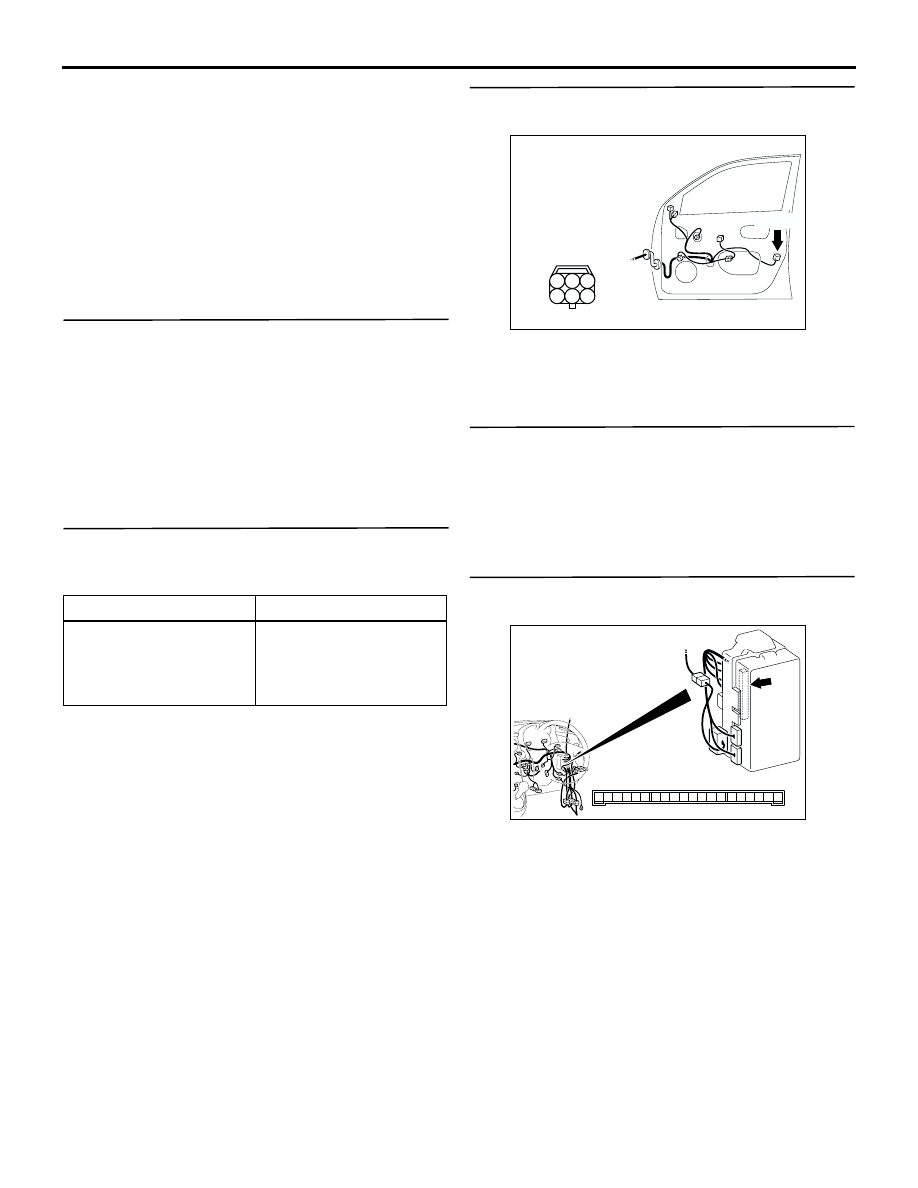

COMMENT ON TROUBLE SYMPTOM
If the central door locking system does not work at
all, the door lock actuator (front: LH) or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

Malfunction of the door lock actuator (front: LH)

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power supply circuit.

When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit"

P.54B-52

.

Step 2. Pulse check

Check the input signal from the driver's door lock
actuator switch.

OK: The MUT-II/III sound or the voltmeter
needle fluctuate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure N-12 "The
driver's door lock actuator signal is not
received <L.H. drive vehicles>

P.54B-350

."

Step 3. Connector check: E-11 door lock actuator
(front: LH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the door lock actuator (front: LH)

Check that the door lock actuator (front: LH) works
normally. Refer to GROUP 42

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door lock actuator (front: LH).

Step 5. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

System switch

Check condition

Driver's door lock
actuator switch

When the driver's key
cylinder or inside lock
knob is unlocked or
locked

AC308791AB

Connector: E-11

Harness side

E-11(B)

5

6

4

2

3

1

<LHD>

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-62

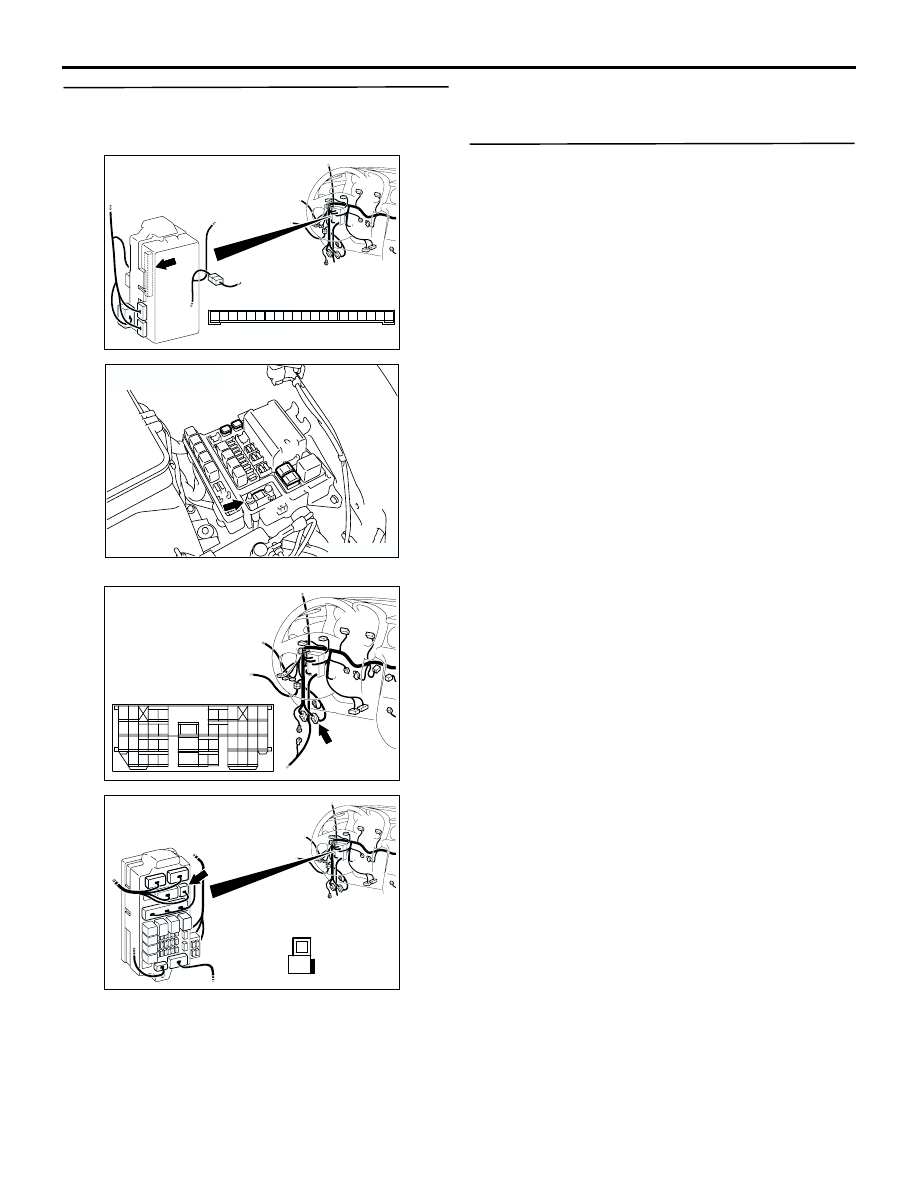

Step 6. Check the wiring harness between C-217
ETACS-ECU connector terminal No. 2 and fusible
link (1).

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-116 and junction block
connector C-204, and repair if necessary.

Check the power supply line for open or short
circuit.

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Repair the wiring harness.

Step 7. Retest the system.

Check that the central door locking system works
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC208065AE

Fusible link: No.1

AC308716

AG

Connector: C-116

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

<LHD>

AC308720

Connector: C-204

Harness side

AB

1

C-204(B)

Junction block (Front view)

<LHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-63

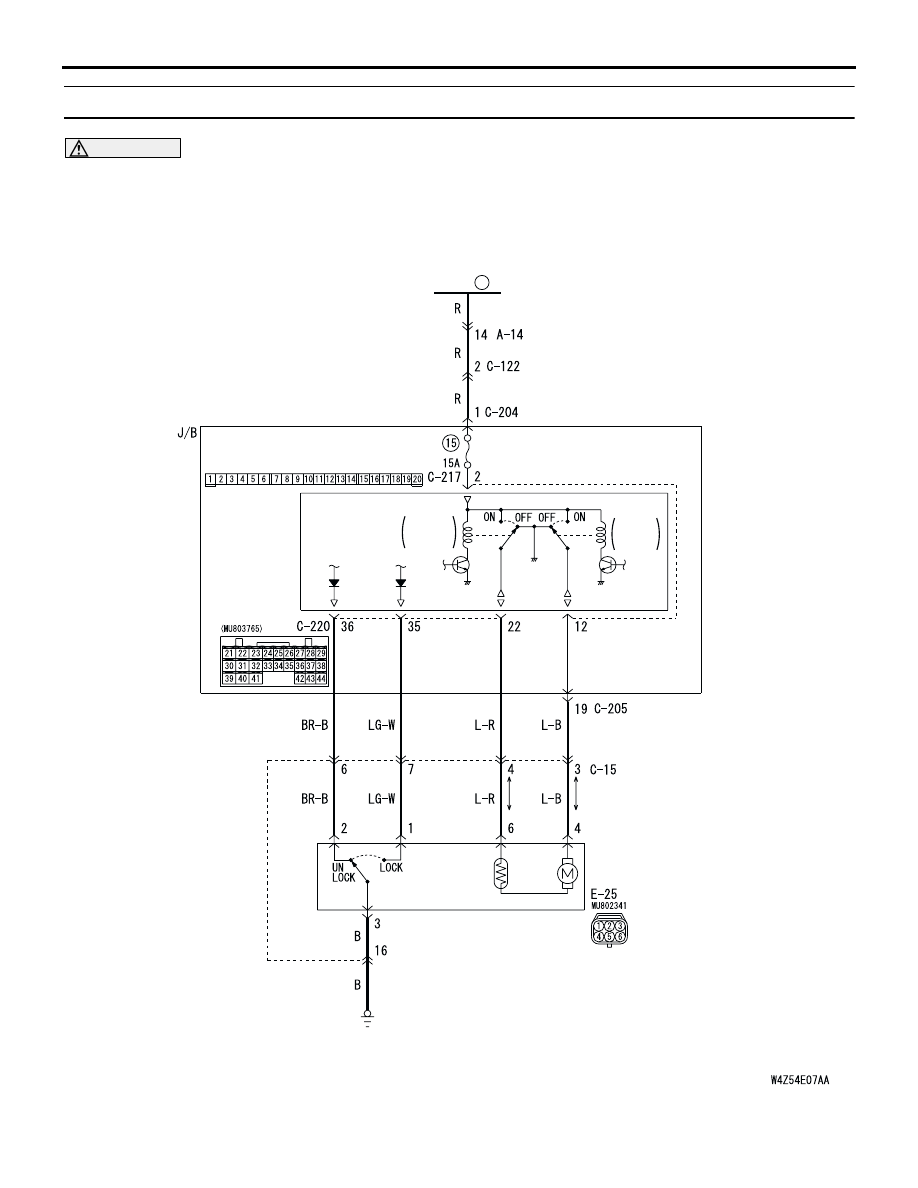

INSPECTION PROCEDURE C-1: Central Door Locking System does not Work. <R.H. drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

FUSIBLE
LINK

 1

ETACS-ECU

DOOR LOCK
ACTUATOR
(FRONT: RH)

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

Central Door Lock Power Supply Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-64

COMMENT ON TROUBLE SYMPTOM
If the central door locking system does not work at
all, the door lock actuator (front: RH) or the
ETACS-ECU may be defective.

POSSIBLE CAUSES

Malfunction of the door lock actuator (front: RH)

Malfunction of the ETACS-ECU

Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power supply circuit.

When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit"

P.54B-52

.

Step 2. Pulse check

Check the input signal from the driver's door lock
actuator switch.

OK: The MUT-II/III sound or the voltmeter
needle fluctuate.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to inspection procedure N-12 "The
driver's door lock actuator signal is not
received <R.H. drive vehicles>

P.54B-354

 ."

Step 3. Connector check: E-25 door lock actuator
(front: RH) connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the defective connector.

Step 4. Check the door lock actuator (front: RH)

Check that the door lock actuator (front: RH) works
normally. Refer to GROUP 42

 Door

P.42-35

.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the door lock actuator (front: RH).

Step 5. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the defective connector.

System switch

Check condition

Driver's door lock
actuator switch

When the driver's key
cylinder or inside lock
knob is unlocked or
locked

AC308797AB

Connector: E-25

Harness side

E-25(B)

5

6

4

2

3

1

<RHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>
