SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-57

Step 5. Check the wiring harness between C-217
ETACS-ECU connector terminal No.3 and body
earth.

NOTE:

Prior to the wiring harness inspection, check junction
block connector C-205, and repair if necessary.

•

Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Repair the wiring harness.

Step 6. Retest the system.

Check that the battery power supply circuit to the
ETACS-ECU is normal.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

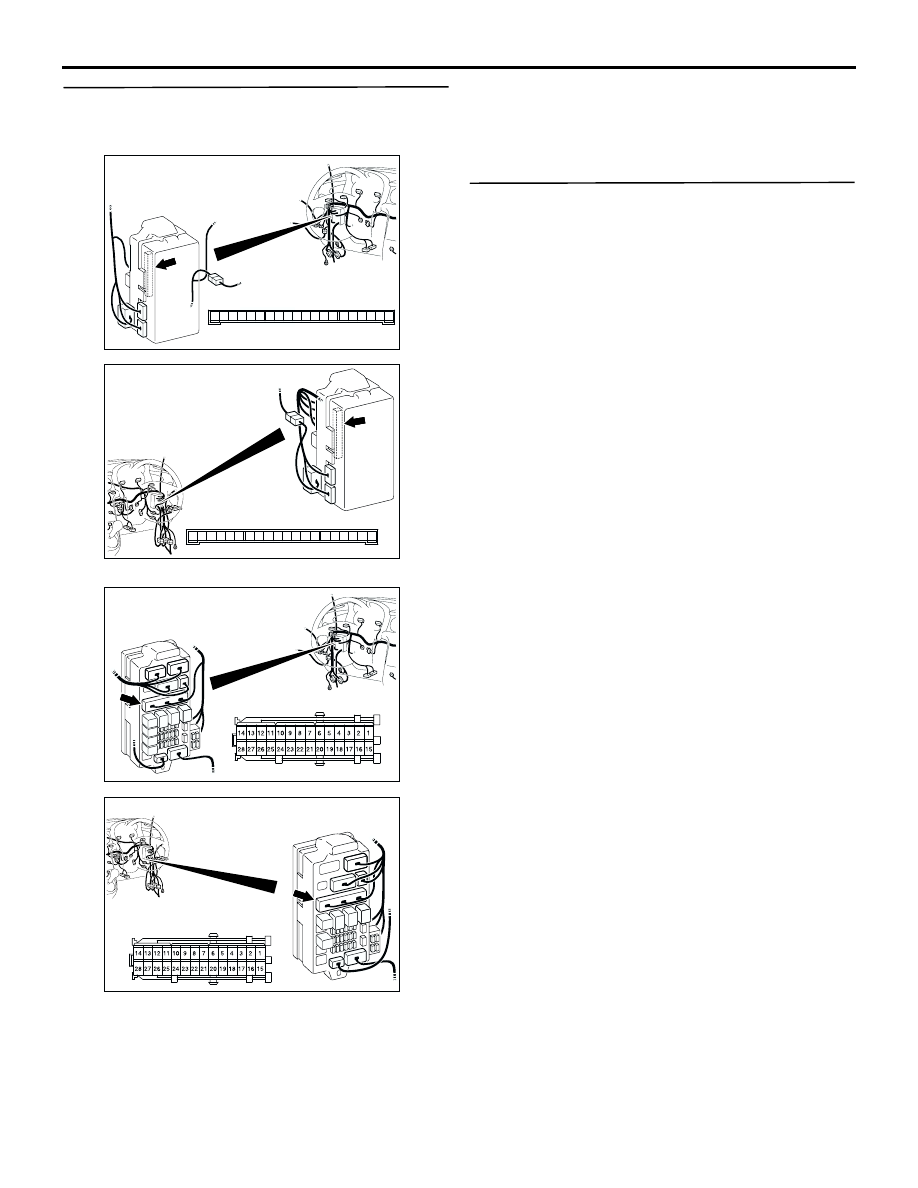

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308720

Connector: C-205

Harness side

AC

Junction block (Front view)

<LHD>

AC308772

Connector: C-205

Harness side

AC

Junction block (Front view)

<RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-58

TONE ALARM

INSPECTION PROCEDURE B-1: Lamp reminder buzzer function does not work normally.

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

COMMENTS ON TROUBLE SYMPTOM
The ETACS-ECU operates this function in
accordance with the input signals below.

•

Ignition switch (IG1)

•

Driver's door switch

•

Tail lamp switch

•

Headlamp switch

If this function does not work normally, these input
signal circuit(s) or the ETACS-ECU may be
defective.

POSSIBLE CAUSES

•

Malfunction of the driver's door switch

•

Malfunction of the column switch

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

DIAGNOSTIC PROCEDURE

Step 1. Check the power supply circuit.

When the ignition switch is turned to the LOCK
(OFF) position, check if the hazard warning lamps
illuminate.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Refer to inspection procedure A-2 "Check
the ETACS-ECU battery power supply
circuit

P.54B-52

."

ETACS-ECU

INPUT SIGNAL

· DRIVER'S DOOR SWITCH

· TAIL LAMP SWITCH

· IGNITION SWITCH (IG1)

· HEADLAMP SWITCH

Lamp Reminder Tone Alarm Function

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-59

Step 2. Pulse check

Check the input signals below, which are related to
the lamp reminder buzzer function.

OK: The MUT-II/III sounds or the voltmeter
needle fluctuates.

Q: Is the check result normal?

All the signals are received normally. :

Go to Step

3.

The ignition switch (IG1) signal is not received. :

Refer to inspection procedure N-2 "The
ignition switch (IG1) signal is not received

P.54B-301

."

The driver's door switch signal is not received. :

Refer to inspection procedure N-4 "The front
door switch signal is not received

P.54B-315

 <L. H. drive vehicles> or

P.54B-317

 <R. H. drive vehicles>."

The tail lamp switch signal is not received. :

Refer

to inspection procedure N-5 "The column
switch (lighting and turn-signal lamp switch)
signal is not received

P.54B-319

."

The headlamp switch signal is not received. :

Refer to inspection procedure N-5 "The
column switch (lighting and turn-signal lamp
switch) signal is not received

P.54B-319

."

Step 3. Retest the system.

The lamp reminder buzzer function should work
normally.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00

−

 How to

Cope with Intermittent Malfunction

P.00-6

).

NO :

Replace the ETACS-ECU.

System switch

Check condition

Ignition switch (IG1)

When turned from ACC
to ON

Driver's door switch

When the driver's door is
opened

Tail lamp switch

When the lighting switch
is turned to the TAIL
position

Headlamp switch

When the lighting switch
is turned to the
HEADLAMP position

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-60

CENTRAL DOOR LOCKING SYSTEM

INSPECTION PROCEDURE C-1: Central Door Locking System does not Work. <L.H. drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

FUSIBLE
LINK

 1

DOOR LOCK
ACTUATOR
(FRONT: LH)

ETACS-ECU

DOOR
UNLOCK
RELAY

DOOR
LOCK
RELAY

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

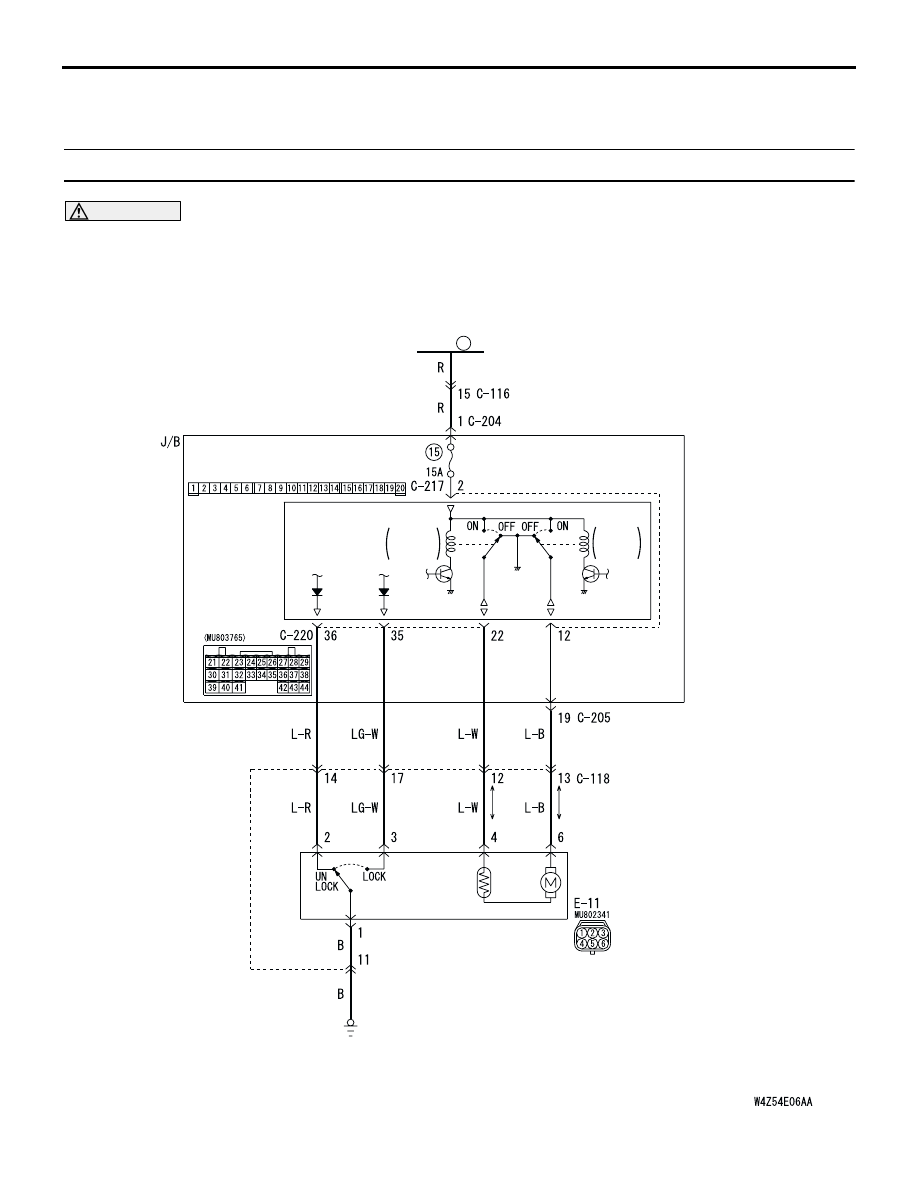

Central Door Lock Power Supply Circuit <LHD>
