SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-53

COMMENTS ON TROUBLE SYMPTOM
If this circuit is defective and the ignition switch is at
the LOCK (OFF) position, the ETACS-ECU does not
work. In this case, the functions below will be
suspended.

•

Lamp reminder function

•

Keyless entry system

•

Ignition key cylinder illumination lamp

•

Headlamp automatic-shutdown function

However, when the ignition switch is at the ON
position, the functions below will work.

•

Reading diagnosis code and checking input
signal by MUT-II/III.

•

Central door locking

•

Headlamp and tail lamp

•

Hazard warning lamp

•

Room lamps

POSSIBLE CAUSES

•

Malfunction of the ETACS-ECU

•

Damaged harness wires and connectors

BATTERY

ETACS-ECU

Wire colour code
B : Black     LG : Light green
G : Green     L : Blue
W : White     Y : Yellow
SB : Sky blue     BR : Brown
O : Orange     GR : Gray
R : Red     P : Pink     V : Violet

RELAY
BOX

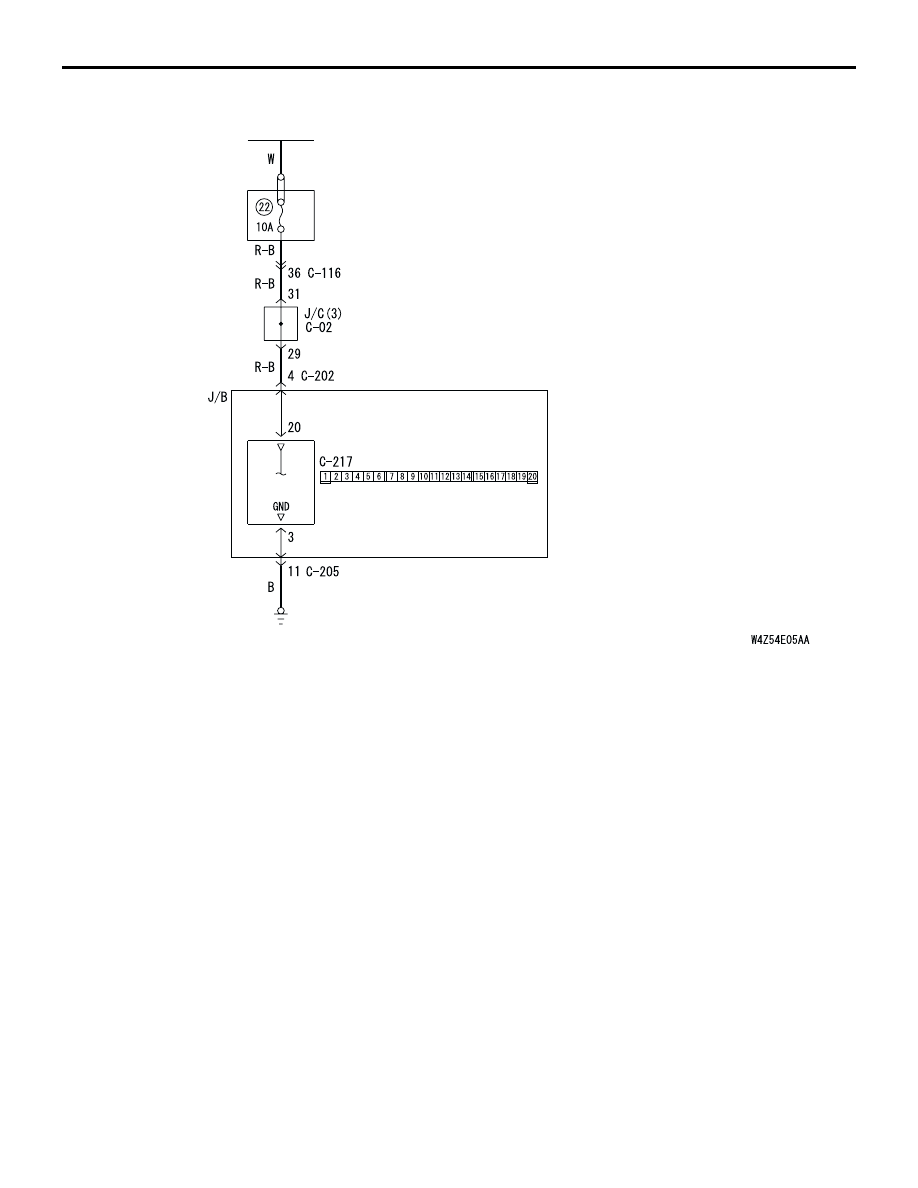

ETACS-ECU Power Supply Circuit <RHD>

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-54

DIAGNOSTIC PROCEDURE

Step 1. Connector check: C-217 ETACS-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

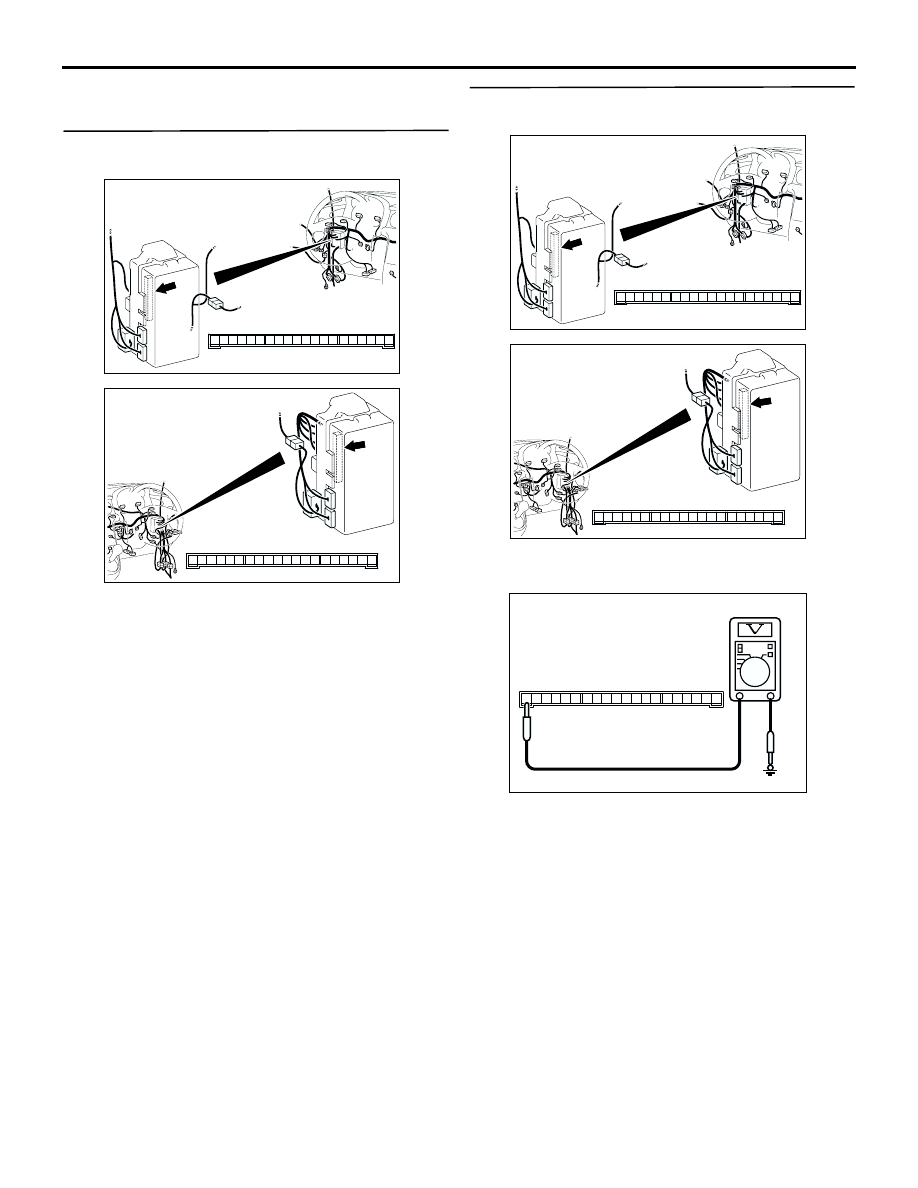

Step 2. Measure the voltage at the C-217
ETACS-ECU connector.

(1) Remove the ETACS-ECU, and measure at the

junction block side.

(2) Voltage between C-217 ETACS-ECU connector

terminal No.20 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

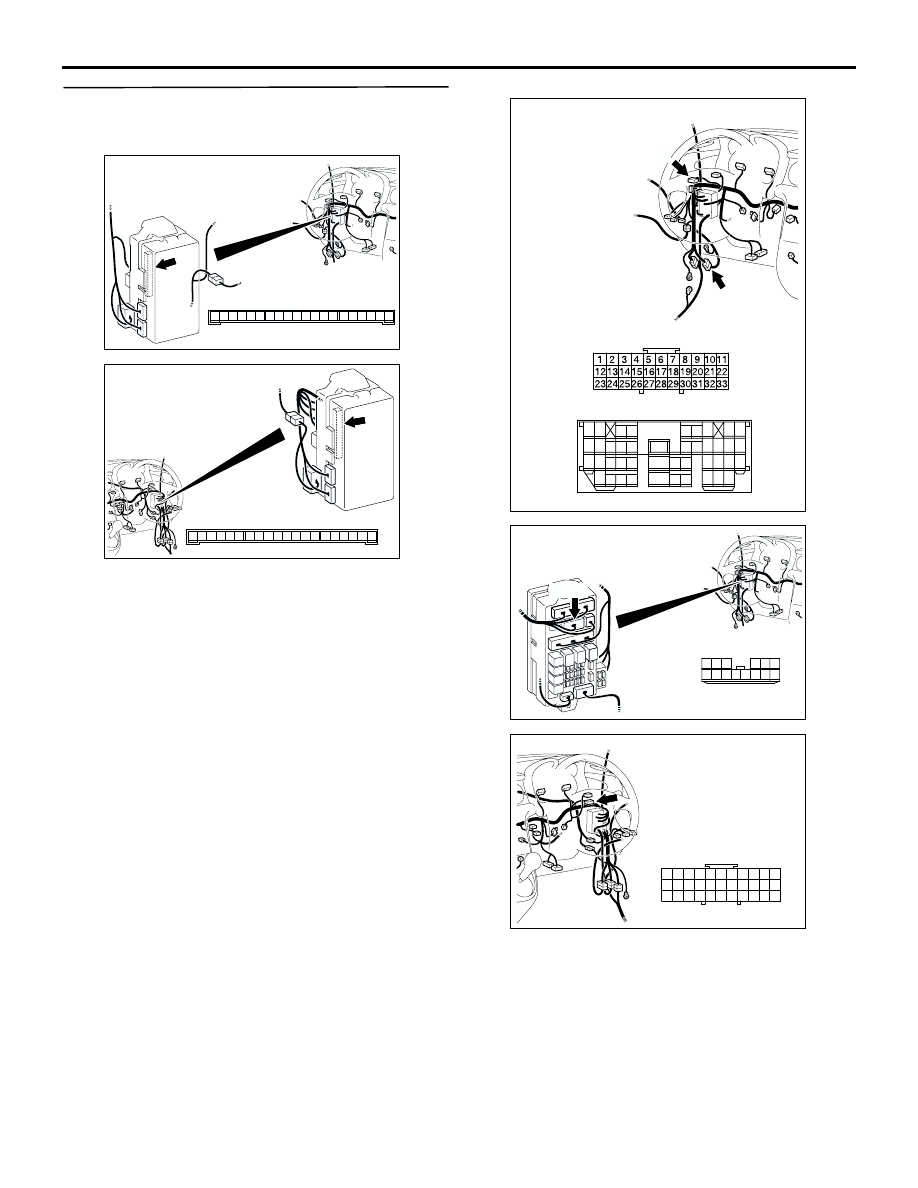

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC308722

Connector: C-217

Junction block (Rear view)

Junction block side

AD

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<LHD>

AC308776

Connector: C-217

Junction block (Rear view)

Junction block side

AC

3

1

2

14

4

5

7 6

8

1110 9

1312

17

15

16

18

19

20

<RHD>

AC301541AS

Connector C-217
(Junction block side)

2019

7

13

17

18

1615 14

10

11

12

9 8

2

6 5

3

4

1
