STEP 2. Connector check: Combination meter
connector C-04 and engine coolant temperature
gauge unit connector B-109

Q: Is combination meter connector C-04 and engine

coolant temperature gauge unit connector B-109 in
good condition?

YES :

Go to Step 3.

NO :

Repair or replace the damage
component(s).

STEP 3. Retest the system.

Q: Is the engine coolant temperature gauge normal?

YES :

The procedure is complete. (If no

malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service
Points-How to Cope with Intermittent
Malfunction

P.00-6

).

NO :

Go to Step 4.

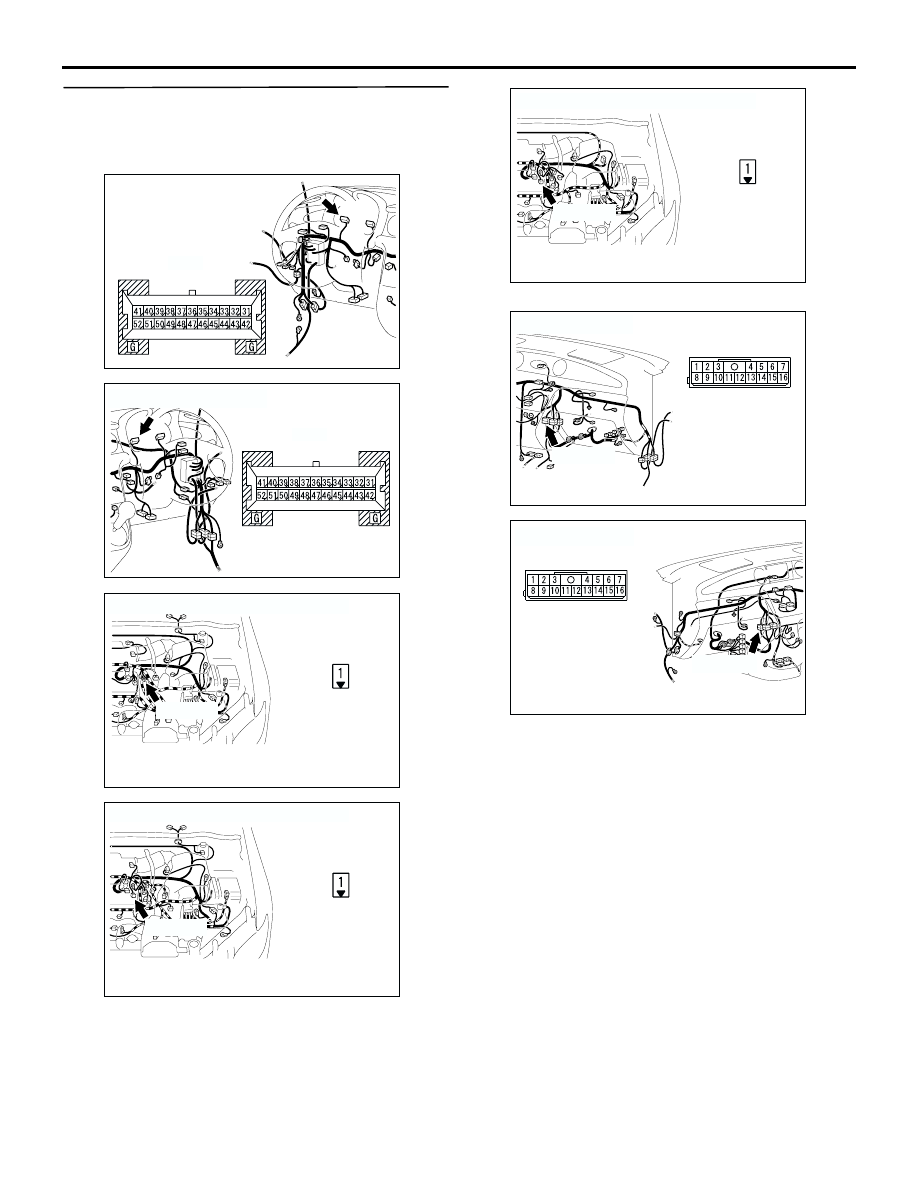

AC308716

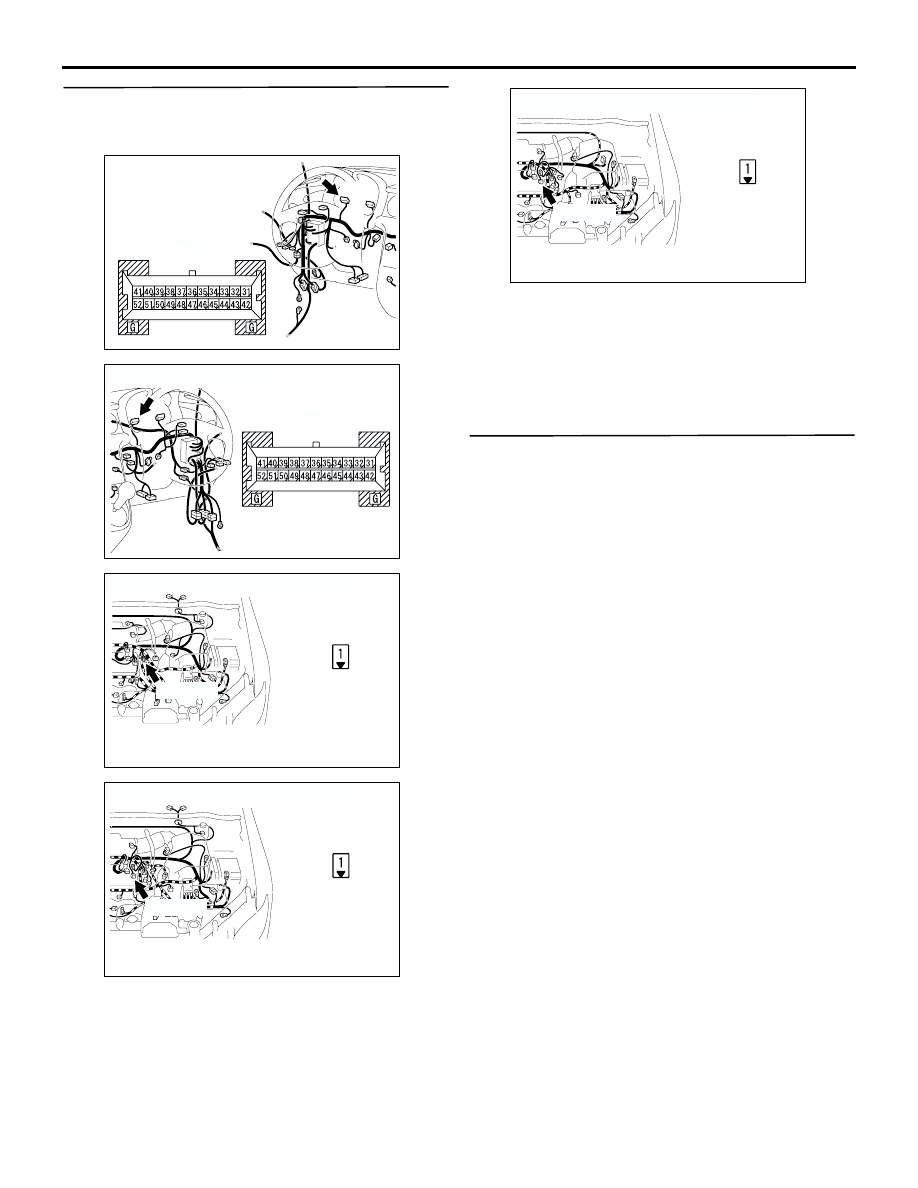

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308694

Connector: B-109 <2000>

B-109(B)

AF

Harness side

AC308708

Connector: B-109 <2400 LHD>

B-109(B)

AH

Harness side

AC308713

Connector: B-109 <2400 RHD>

B-109(B)

AD

Harness side

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-60

STEP 4. Check the wiring harness between
combination meter connector C-04 (terminal 44)
and engine coolant temperature gauge unit
connector B-109 (terminal 1).

NOTE:

Prior to the wiring harness inspection, check
intermediate connectors C-104, and repair if
necessary.

Q: Is the wiring harness between combination meter

connector C-04 (terminal 44) and engine coolant
temperature gauge unit connector B-109 (terminal
1) in good condition?

YES :

Go to Step 6.

NO :

Repair or replace the damage
component(s).

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308694

Connector: B-109 <2000>

B-109(B)

AF

Harness side

AC308708

Connector: B-109 <2400 LHD>

B-109(B)

AH

Harness side

AC308713

Connector: B-109 <2400 RHD>

B-109(B)

AD

Harness side

AC308718

AL

C-104 (B)

Connector: C-104 <LHD>

AC308735

AR

C-104 (B)

Connector: C-104 <RHD>

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-61

STEP 5. Check the engine coolant temperature
gauge circuit.
(1) Disconnect the B-109 engine coolant

temperature gauge unit connector.

(2) Connect a test lamp (12 V

−

 3.4 W to 12 V

−

 7.0

W) to the wiring harness side connector.

(3) Ignition switch: ON

Q: Does the engine coolant temperature gauge in the

combination meter fluctuate about half of it full
scale?

YES :

Replace the engine coolant temperature

gauge unit.

NO :

Go to Step 6.

STEP 6. Retest the system

Q: Is the engine coolant temperature gauge normal?

YES :

The procedure is complete. (If no

malfunctions are found in all steps, an
intermittent malfunction is suspected. Refer
to GROUP 00, How to Use
Troubleshooting/Inspection Service
Points-How to Cope with Intermittent
Malfunction

P.00-6

).

NO :

Replace the combination meter.

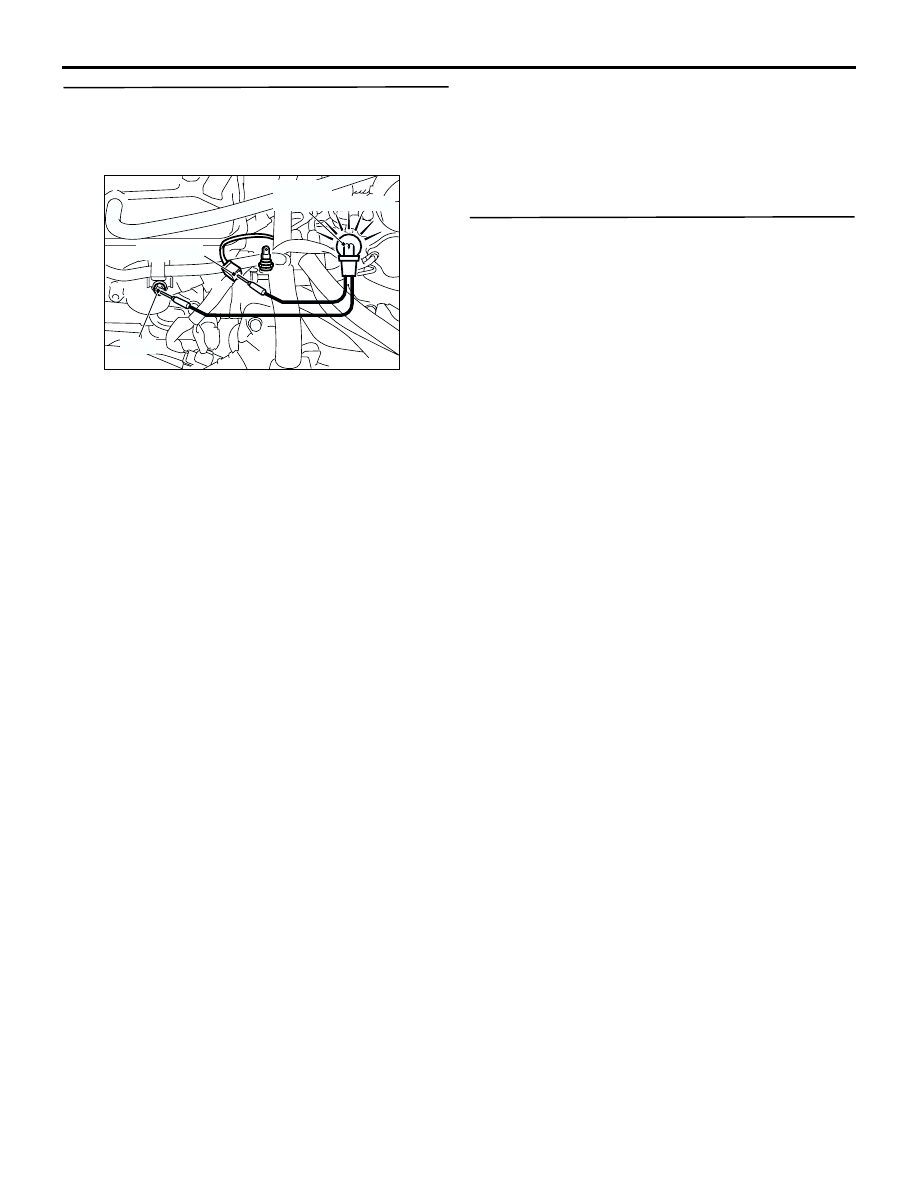

AC102026AD

Connector

Earth

Test lamp
(12 V 3.4 W - 7.0 W)

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-62

INSPECTION PROCEDURE 6: Combination meter does not work. (the instruments do not work)

TECHNICAL DESCRIPTION (COMMENT)
The cause is thought to be malfunction of the power,
earth circuitry or combination meter.

TROUBLESHOOTING HINTS

•

Malfunction of the combination meter

•

Damaged wiring harness or connectors

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

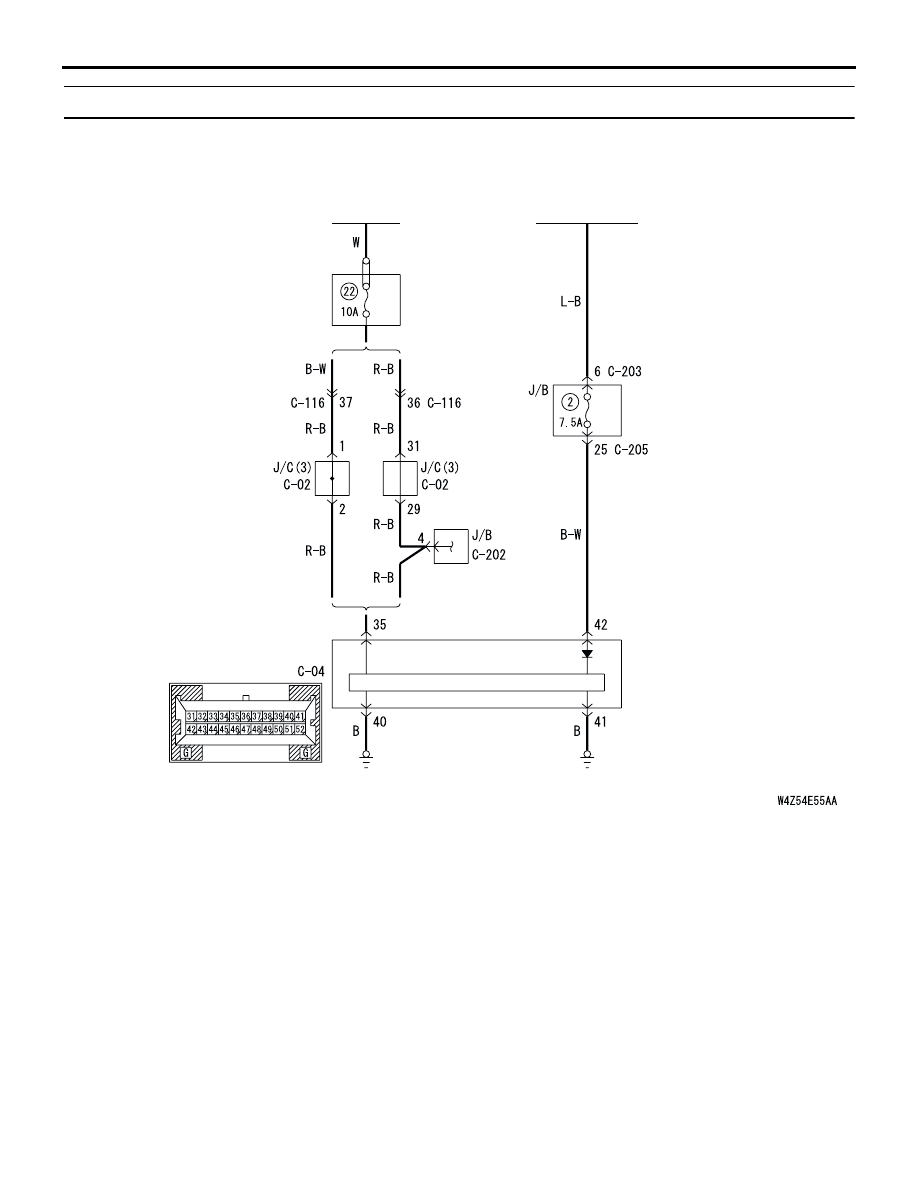

IGNITION
SWITCH (IG1)

BATTERY

COMBINATION
METER

LHD

RHD

CONTROL CIRCUIT

Combination meter does not work. (the instruments do not work)
