COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-63

DIAGNOSIS PROCEDURE

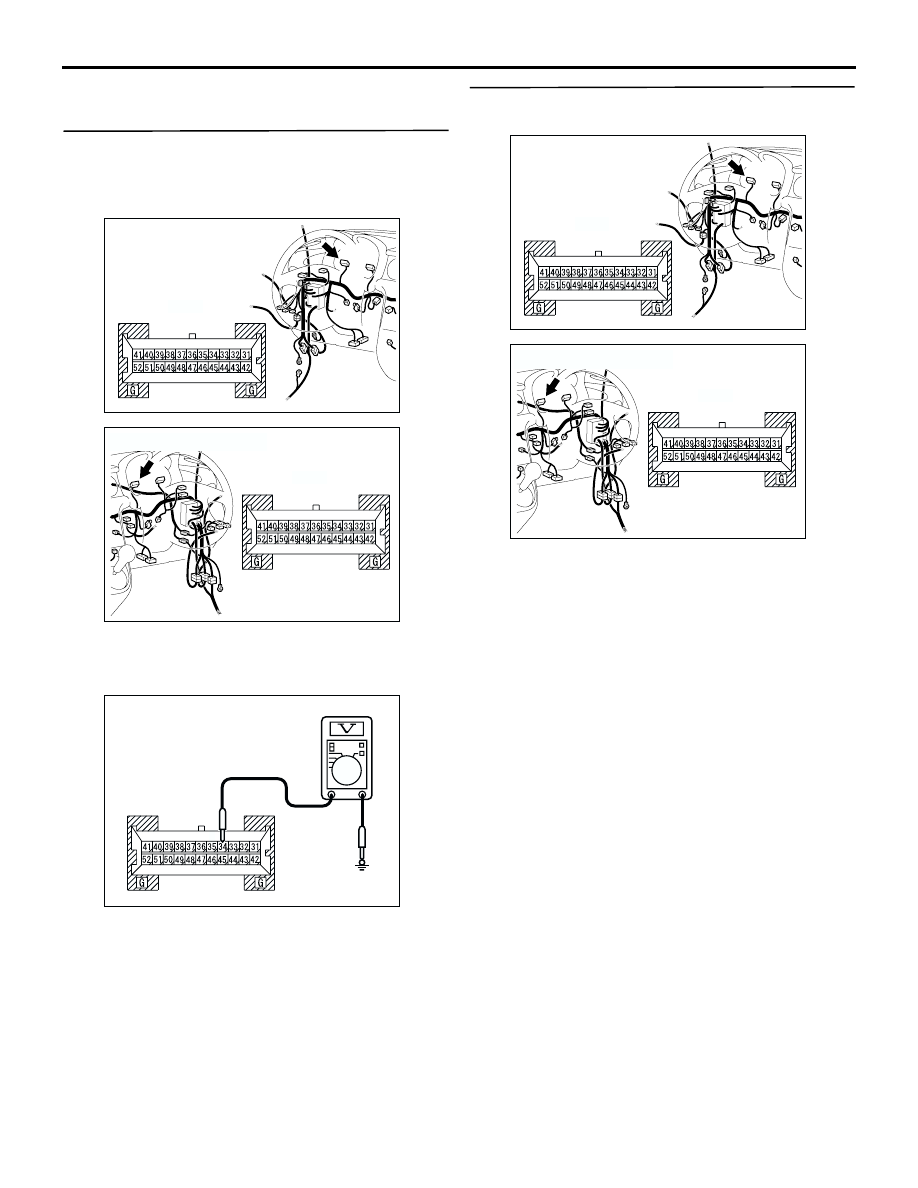

STEP 1. Measure the voltage at combination
meter connector C-04 in order to check the
battery circuit of power supply system to the
combination meter.

(1) Disconnect the combination meter connector

C-04 and measure the voltage at combination
meter connector C-04 harness side.

(2) Measure the voltage between terminal 34 and

earth.

OK: System voltage

Q: IS the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 2.

STEP 2. Connector check: Combination meter
connector C-04 for damage.

Q: Is combination meter connector C-04 in good

condition?

YES :

Go to Step 3.

NO :

Repair or replace the connector. Check to
see that all meters operate.

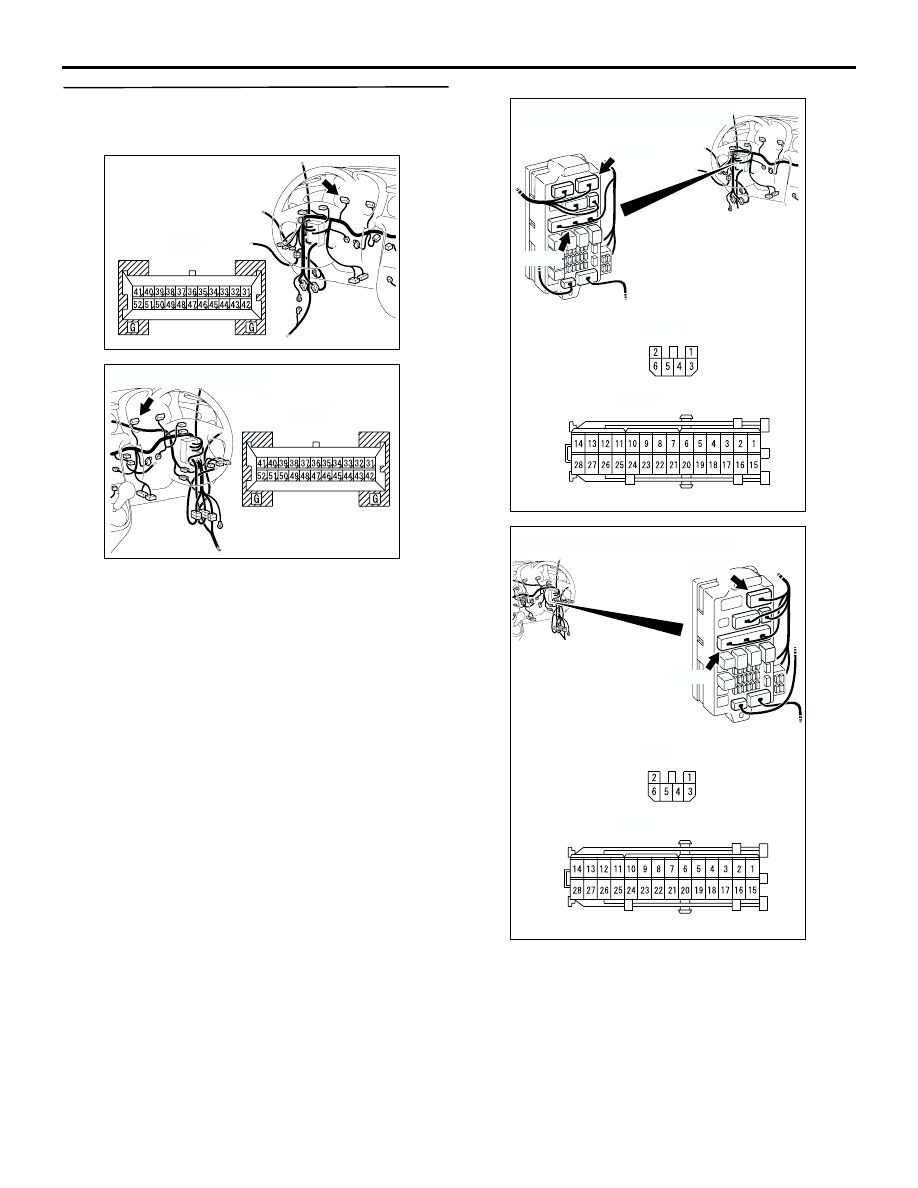

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC309270AB

C-04 Harness side

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-64

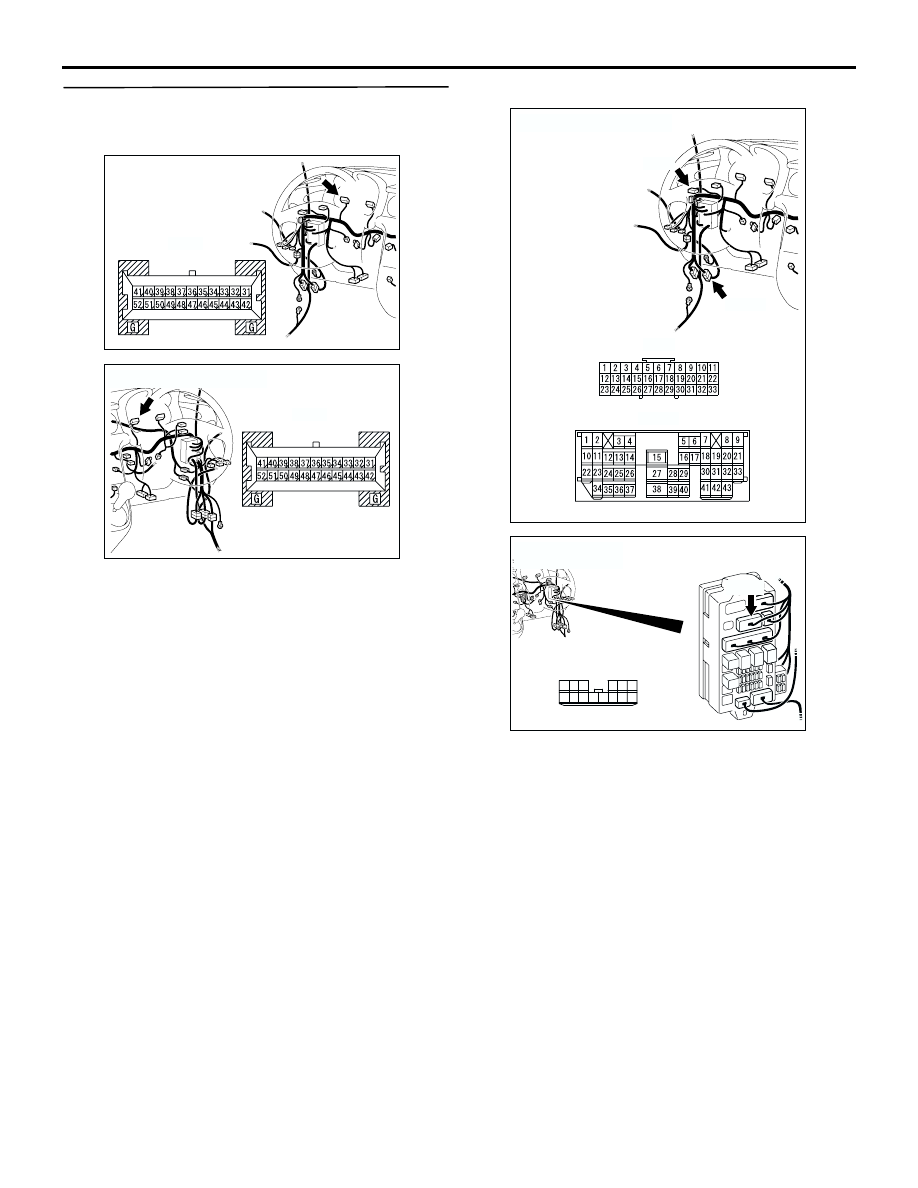

STEP 3. Check the wiring harness between
combination meter connector C-04 (terminal 34)
and battery.

NOTE:

.

Prior to the wiring harness inspection, check
intermediate connectors C-116 <LHD>, junction
block connectors C-202 and joint connector C-02
<LHD>, and repair if necessary.

Q: Are the wiring harness between combination meter

connector C-04 (terminal 34) and fusible link (1) in
good condition?

YES :

There is no action to be taken.

NO :

Repair or replace the wiring harness. Check
to see that all meters operate.

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308717

AS

C-02

C-116

Connectors: C-02, C-116 <LHD>

C-02

C-116

AC308772

C-202

Harness side

10

1

6

14

5

12

13

4

11

7

2

3

8

9

Connector: C-202
<RHD>

AL

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-65

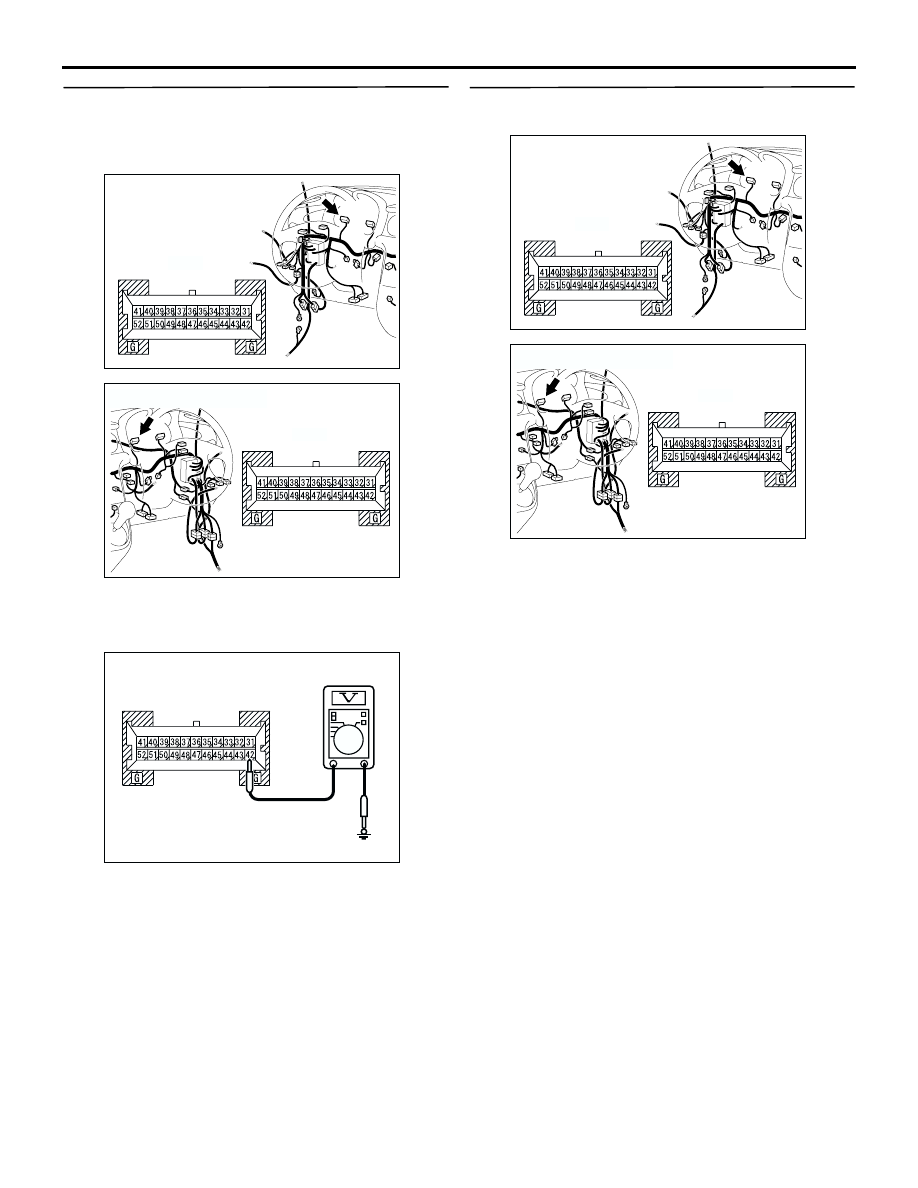

STEP 4. Measure the voltage at combination
meter connector C-04 to check the battery circuit
of power supply system to the combination
meter.

(1) Measure at combination meter connector C-04

without disconnecting the connector.

(2) Turn the ignition switch to “ON” position.

(3) Measure the voltage between terminal 42 and

earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 7.

NO :

Go to Step 5.

STEP 5. Connector check: combination meter
connector C-04

Q: Is combination meter connector C-04 in good

condition?

YES :

Go to Step 6.

NO :

Repair or replace the connector. Check to
see that all meters operate.

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC211674AB

C-04 Harness connector:
Component side

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-66

STEP 6. Check the wiring harness between
combination meter connector C-04 (terminal 42)
and ignition switch (IG1).

NOTE:

Prior to the wiring harness inspection, check
Junction block connectors C-203 and C-205, and
repair if necessary.

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308721AM

C-205

C-203

Connectors: C-203, C-205 <LHD>

C-203 harness side

C-205 harness side

AC308773AN

C-205

C-203

Connectors: C-203, C-205 <RHD>

C-203 harness side

C-205 harness side
