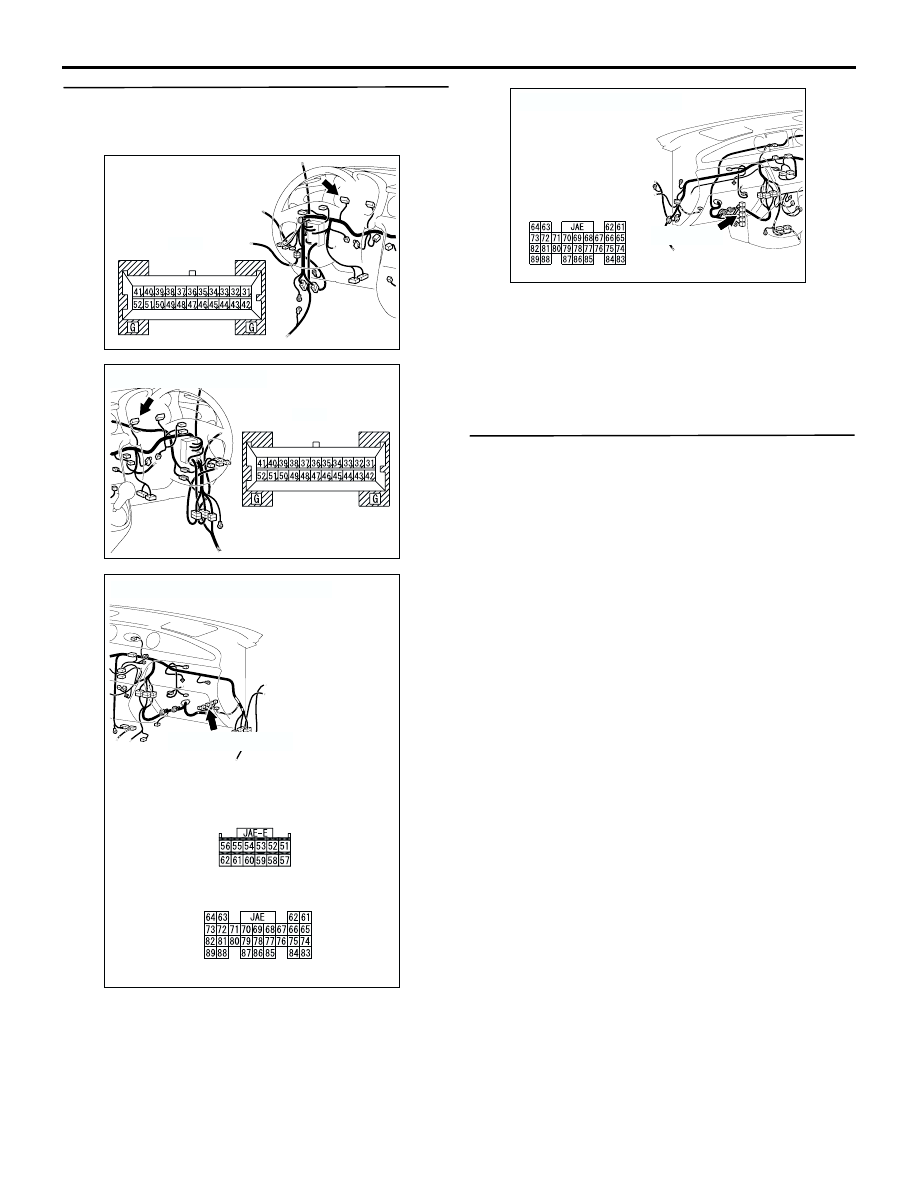

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-51

STEP 2. Connector check: Combination meter
connector C-04 and engine-ECU connector C-136
or engine-A/T-ECU connector C-141

Q: Is combination meter connector C-04 and

engine-ECU connector C-136 or engine-A/T-ECU
conector C-141 in good condition?

YES :

Go to Step 3

NO :

Repair or replace the damage
component(s).

STEP 3. Retest the system.

Q:  Is the tachometer normal?

YES :

Intermittent Malfunction. Refer to GROUP

00, How to Use Troubleshooting/Inspection
Service Points-How to Cope with
Intermittent Malfunction

P.00-6

).

NO :

Go to Step 4

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308719

AE

C-136 or C-141(GR)

Connector: C-136 or C-141 <LHD>

Harness side

C-136

C-141

AC308735

C-141(GR)

Connector: C-141 <RHD>

Harness side

AQ

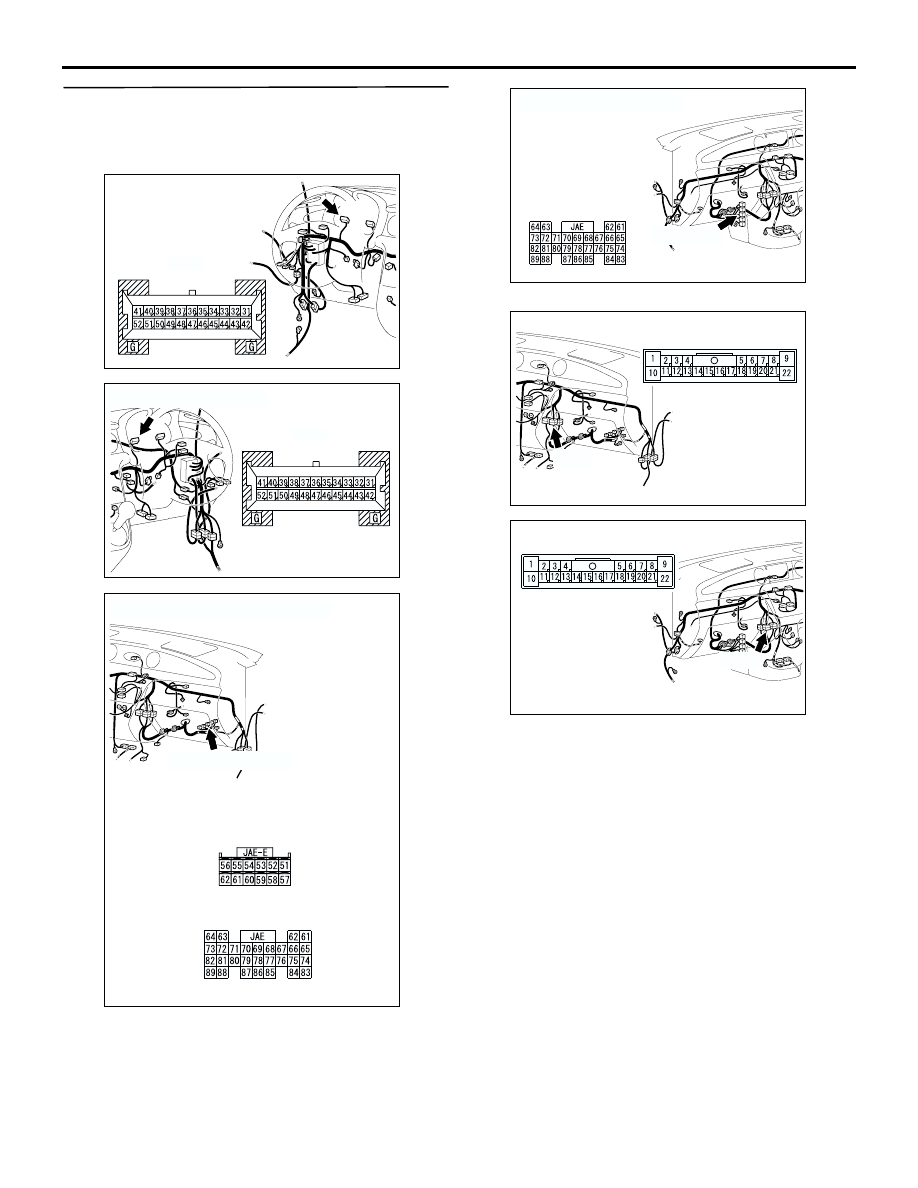

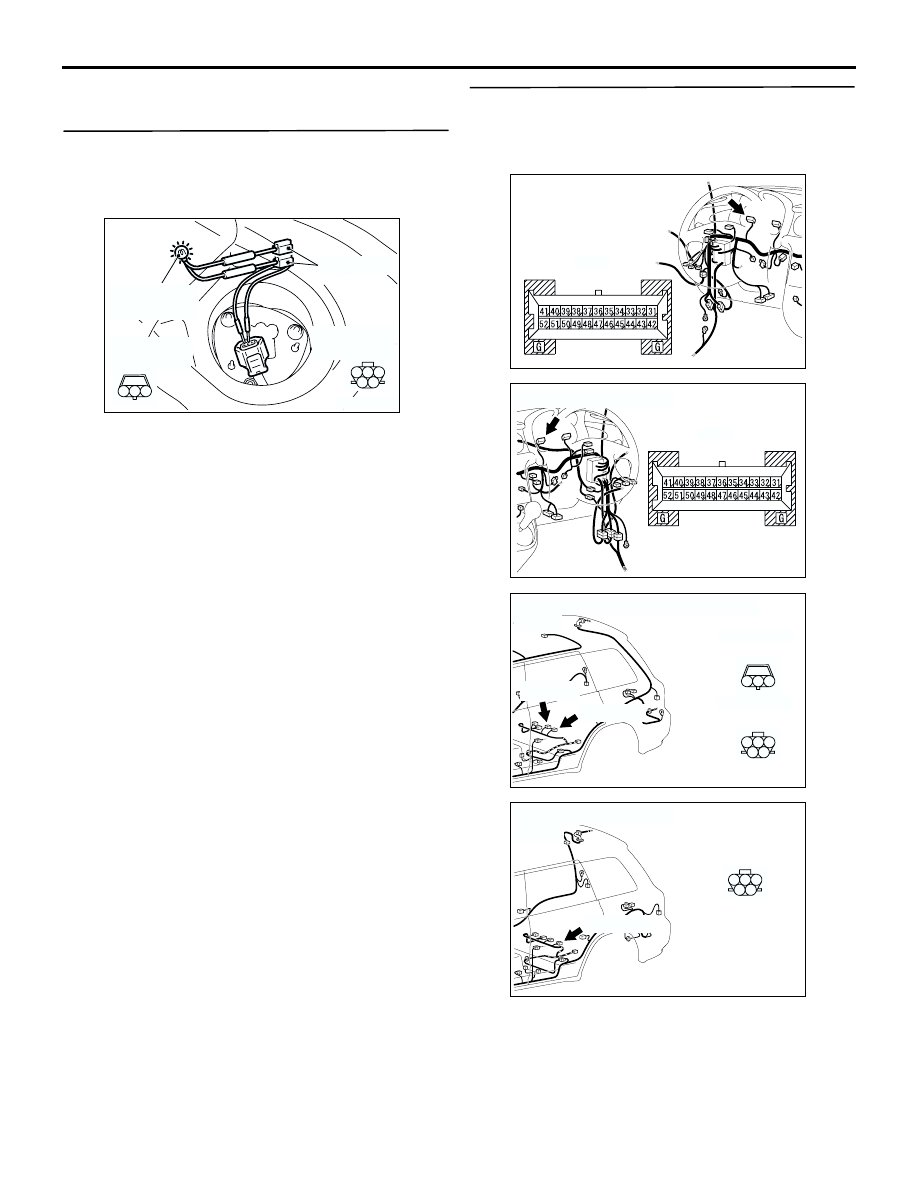

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-52

STEP 4. Check the wiring harness between
combination meter connector C-04 (terminal 47)
and engine-ECU connector C-136 (terminal 58) or
engine-A/T-ECU connector C-141 (terminal 87)

NOTE:

Prior to the wiring harness inspection, check
intermediate connector C-105, and repair if
necessary.

Q: Is the wiring harness between combination meter

connector C-04 (terminal 47) and engine-ECU
connector C-136 (terminal 58) or engine-A/T-ECU
connector C-141 (terminal 87) in good condition?

YES :

Replace the combination meter assembly.

NO :

Repair or replace the damage
component(s).

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308719

AE

C-136 or C-141(GR)

Connector: C-136 or C-141 <LHD>

Harness side

C-136

C-141

AC308735

C-141(GR)

Connector: C-141 <RHD>

Harness side

AQ

AC308718

AO

Connector: C-105 <LHD>

C-105

AC308735

AT

Connector: C-105 <RHD>

C-105

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-53

INSPECTION PROCEDURE 4: Fuel gauge does not work (the other meters work.)

TECHNICAL DESCRIPTION (COMMENT)
If only the fuel gauge does not operate, fuel gauge
unit <2WD>, the fuel pump and gauge unit <4WD>,
the combination meter, wiring harness or
connector(s) may be defective.

TROUBLESHOOTING HINTS

•

Malfunction of the fuel gauge unit.

•

The wiring harness or connectors may have
loose, corroded, or damaged terminals, or
terminals pushed back in the connector.

•

Malfunction of the combination meter.

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue
W : White     Y : Yellow     SB : Sky blue     BR : Brown
O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

COMBINATION
METER

CONTROL
CIRCUIT

F/GA

FUEL
GAUGE UNIT (SUB)

FUEL PUMP
AND GAUGE UNIT (MAIN)

FUEL
GAUGE UNIT

2WD 4WD

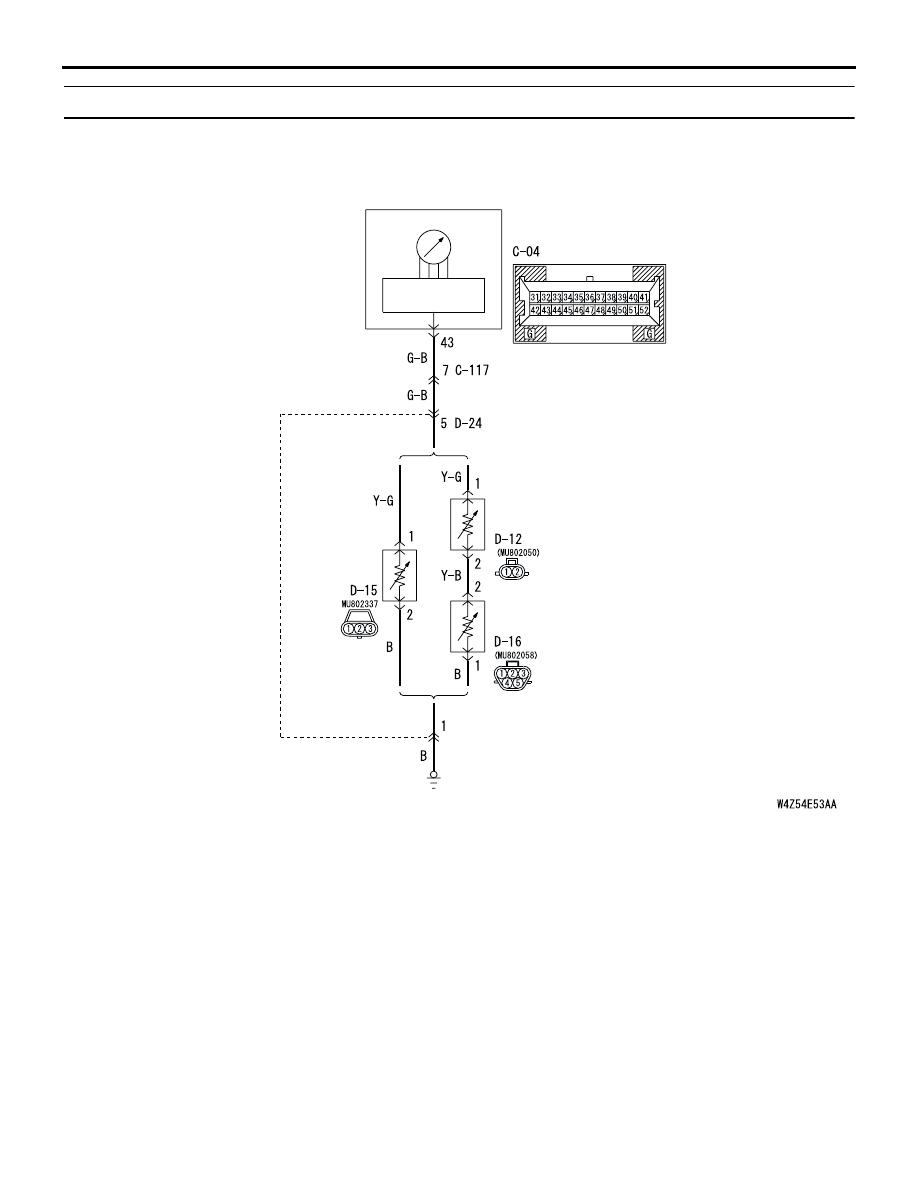

Fuel Gauge Circuit

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-54

DIAGNOSIS PROCEDURE

STEP 1. Check the fuel gauge circuit.
(1) Disconnect D-15 <2WD> fuel gauge unit

connector or D-16 <4WD> fuel pump and gauge
unit (main) connector.

(2) Connect a test lamp (12 V

−

 3.4 W) via test

harness (MB991219) between the wiring harness
connector terminals 1 and 2.

(3) Turn the ignition switch to the "ON" position.

Q: Does the test lamp illuminate?

YES :

Go to Step 8.

NO :

Go to Step 2.

STEP 2. Connector check: Combination meter
connector C-04, fuel gauge unit connector D-15
<2WD> or fuel pump and gauge unit (main)
connector D-16 <4WD>

Q: Is combination meter connector C-04, fuel gauge

unit connector D-15 <2WD> or fuel pump and
gauge unit (main) connector D-16 <4WD> in good
condition?

YES :

Go to Step 3.

NO :

Repair or replace the damaged
component(s).

AC103414

AC211647

3 2 1

1

2

3

4

5

Test lamp
(12 V - 3.4 W)

MB991219

D-15 <2WD>

Harness side

D-16 <4WD>

Harness side

AC

AC308716

Connector: C-04 <LHD>

C-04 harness side

AR

AC308769

Connector: C-04 <RHD>

C-04 harness side

AS

AC308783

Connectors: D-15<2WD>, D-16<4WD>
<LHD>

AF

D-15 (B)

D-16 (GR)

D-15<2WD>

D-16<4WD>

harness side

harness side

3 2 1

1

2

3

4

5

AC308787

Connector: D-16 <4WD>
<RHD>

AF

D-16 (GR)

harness side

1

2

3

4

5
