RADIATOR GRILLE

EXTERIOR

51-11

REMOVAL SERVICE POINT

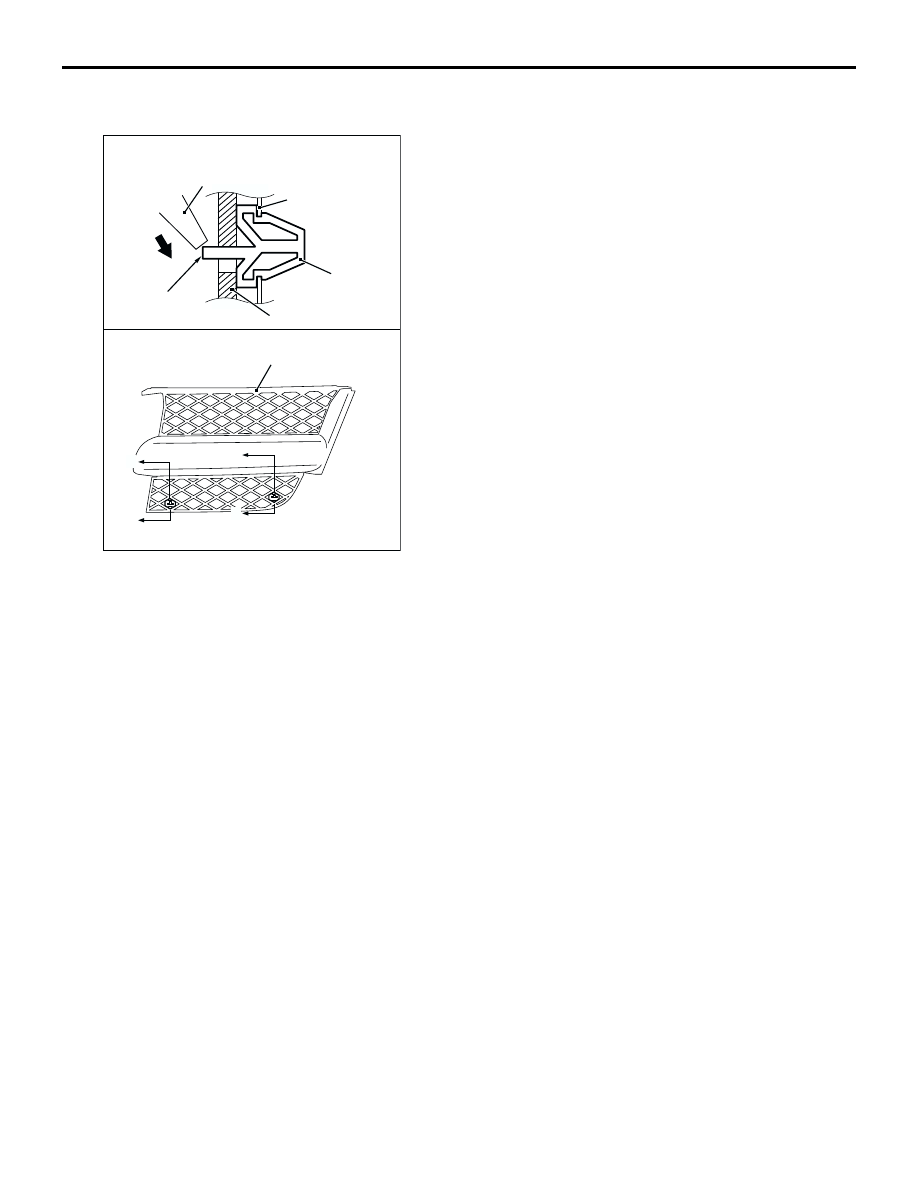

<<A>> CLIPS REMOVAL

To remove the clips from the radiator grille, gently
pull forward the radiator grille, and use a flat-tipped
screwdriver to hold the claw of the clip in the
direction of the arrow.

INSTALLATION SERVICE POINT

>>A<< RADIATOR GRILLE INSTALLATION
Install the radiator grille with the clips installed.

AC309411

Claw

Clip

Section A – A

AB

A

Radiator grille

Radiator grille

Front bumper

assembly

A

Flat-tipped screwdriver

A

A

GARNISHES

EXTERIOR

51-12

GARNISHES

ADHESIVE

M1511000500352

SPECIAL TOOL

M1511000600995

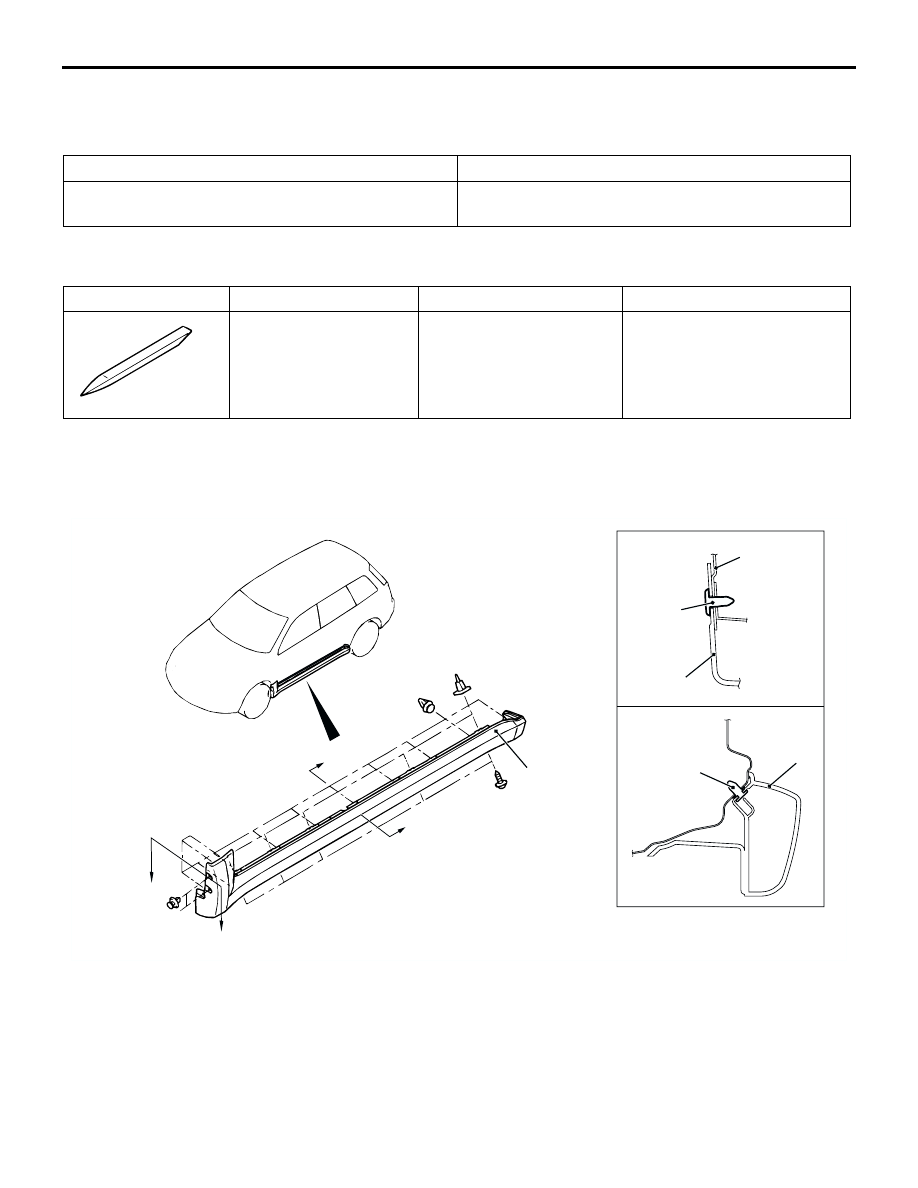

GARNISHES

GARNISH REMOVAL AND INSTALLATION

M1511004100141

Application

Brand

Side sill garnish

Double-sided tape [5.0 mm width 0.8 mm thickness,
5.0 width 1.2mm thickness]

Tool

Number

Name

Application

MB990784

Ornament remover

Removal of side sill garnish

MB990784

AC301940

B

A

AB

A

B

1

Clip

Clip

1

Splash
shield

Section A – A

Section B – B

1

Removal steps

•

Front deck garnish (Refer to

P.51-21

).

<<A>> >>A<<

1. Side sill garnish

GARNISHES

EXTERIOR

51-13

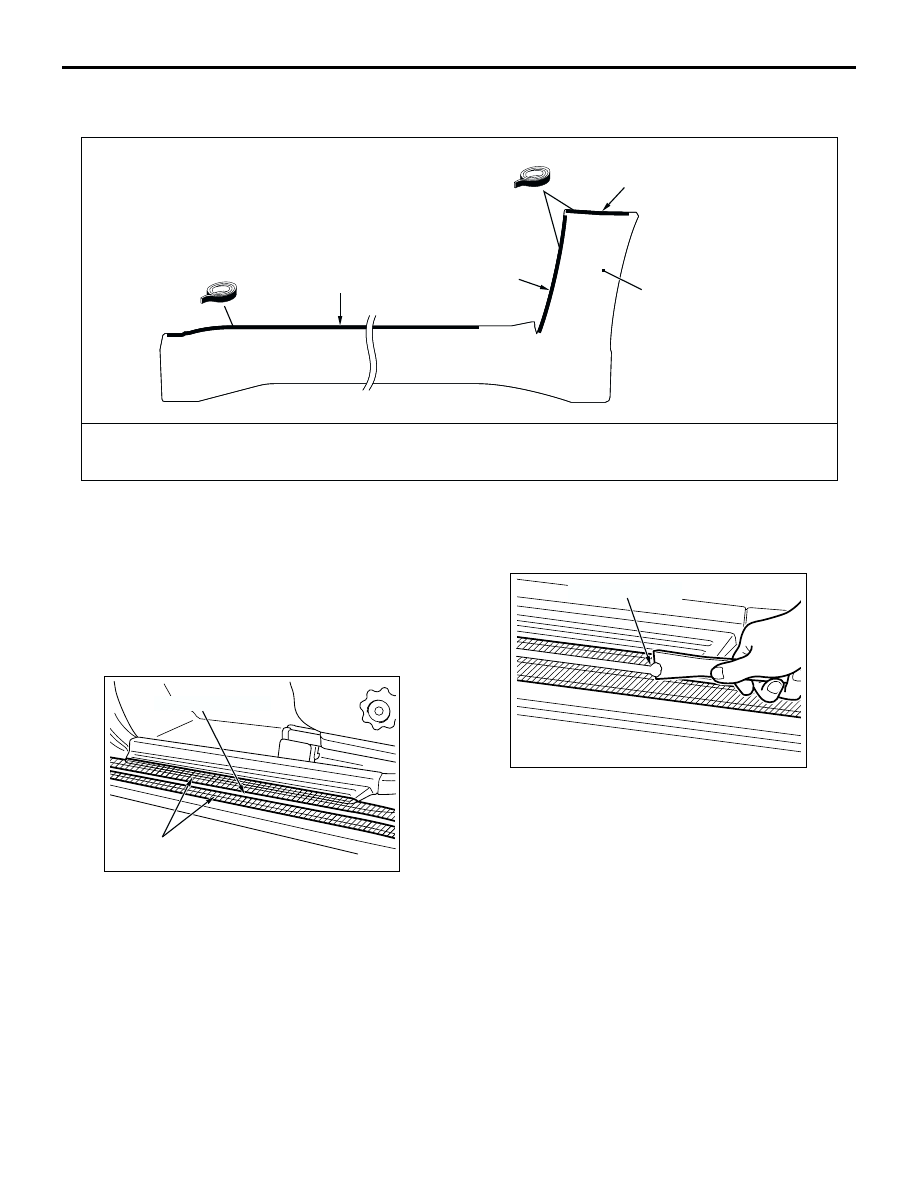

DOUBLE-SIDED TAPE AFFIXED
LOCATION

REMOVAL SERVICE POINT

<<A>> SIDE SILL GARNISH REMOVAL
Gently lift and remove the side sill garnish. If there is
any double-sided tape remaining on the side sill
garnish, remove according to the following
instructions.
<Remove both-side tape remaining on the body
surface>

1. Attach protection tape all the way along the edges

of the double-sided tape which is still adhering to
the body.

2. Scrape off the double-sided tape with a resin

spatula as possible.

3. Peel off the protection tape.
4. Wipe the body surface and clean it with a rag

moistened with isopropyl alcohol.

AC107438

AC107438AB

A

B

Side sill garnish

Double-sided tape: Generic products
                                  A : 5.0 mm width, 0.8 mm thickness, B : 5.0 mm width, 1.2 mm thickness

B

AC200049

AB

Protection tape

Double-sided tape

AC200050

AB

Double-sided tape

GARNISHES

EXTERIOR

51-14

<Remove double-sided tape remaining on side
sill garnish and adhere double-sided tape (when
re-using side sill garnish)>

1. Scrape off the double-sided tape on the side sill

garnish with a resin spatula as possible.

2. Wipe the side sill garnish surface and clean it with

a rag moistened with isopropyl alcohol.

3. Remove only a small portion of the residual

adhesive.

4. Adhere the double-sided tape as specified on the

side sill garnish (Refer to double-sided tape
adherence location).

INSTALLATION SERVICE POINT

>>A<< SIDE SILL GARNISH INSTALLATION.

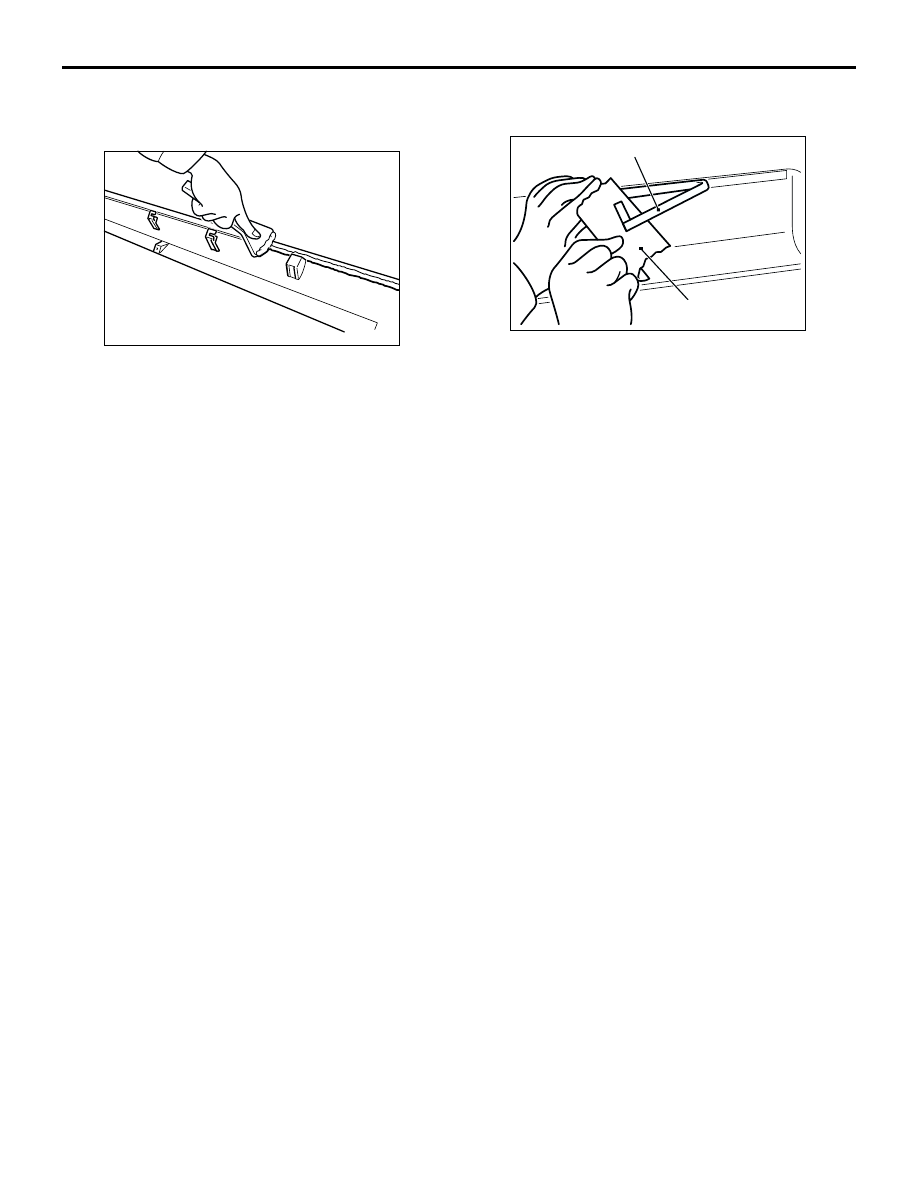

1. Tear off the double-sided tape backing paper.

NOTE: If you attach the adhesive tape to the edge
of the backing paper, it will be easy to tear off.

2. Install the side sill garnish.

NOTE:  If the double-sided tape is difficult to affix
in cold temperature, etc., warm the bonding
surfaces of the body and side sill garnish to about
40

−

 60

°

C before affixing the tape.

3. Firmly press in the side sill garnish.

AC103187

AC103247

Backing paper

Adhesive tape

AC
