Mitsubishi Outlander (2003+). Manual - part 311

WINDOW GLASS

BODY

42-19

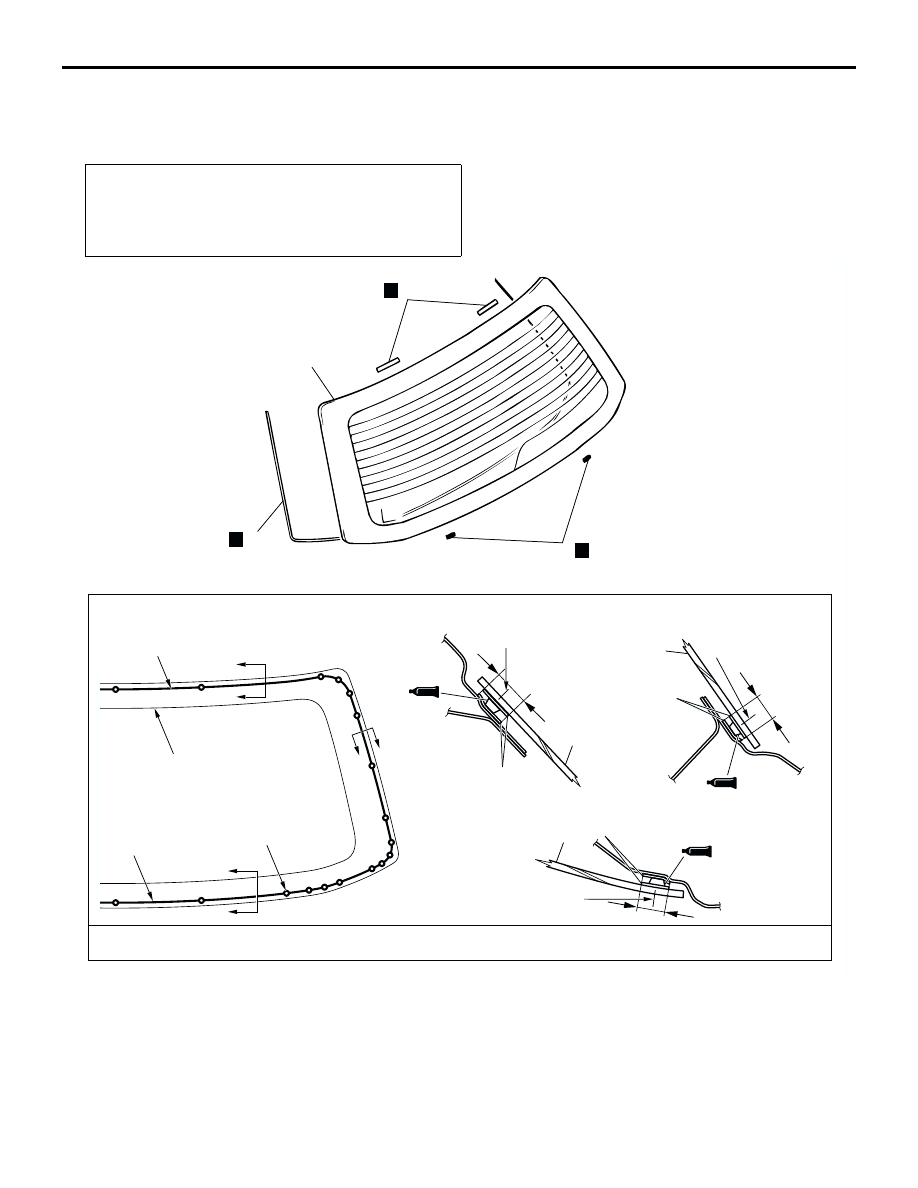

TAILGATE WINDOW GLASS

REMOVAL AND INSTALLATION

M1422003700158

Pre-removal and Post-installation Operation

•

Tailgate Trim Removal and Installation (Refer to GROUP

52A, Tailgate Trim

P.52A-25

).

•

Rear Wiper Arm Assembly Removal and Installation

(Refer to GROUP 51, Rear Wiper and Washer

P.51-30

).

AC107209AB

Units: mm

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

Section A – A

15

15

15

Section B – B

Section C – C

A

A

C

C

B

B

Seal line

Ceramic line

MARK

Mark

Apply the primer and adhesive

along the fictitious lines (seal line)

between each of the marks.

Seal line

center

Primer

Seal line center

Primer

Seal line

center

Primer

1

2

4

3

N

N

N

1

1

1

Removal steps

•

Harness connector

<<A>> >>B<<

1. Tailgate window glass

>>A<<

2. Dual lock fastener

>>A<<

3. Glass stopper

>>A<<

4. Window dam

Removal steps (Continued)

WINDOW GLASS

BODY

42-20

REMOVAL SERVICE POINT

<<A>> TAILGATE WINDOW GLASS REMOVAL
Remove the tailgate window glass using the same
procedure as for the windshield. (Refer to

P.42-11

).

INSTALLATION SERVICE POINTS

>>A<< WINDOW DAM/GLASS STOPPER/DUAL
LOCK FASTENER INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
1. Use isopropyl alcohol to degrease the inside and

outside edges of the tailgate window glass and
the surface of the tailgate flange.

2. Assemble the window dam, glass stopper and

dual lock fastener to the tailgate window glass
location shown.

AC107210

AB

Glass stopper

Window dam

Dual lock fastener

Seal line

Ceramic line

Glass end line

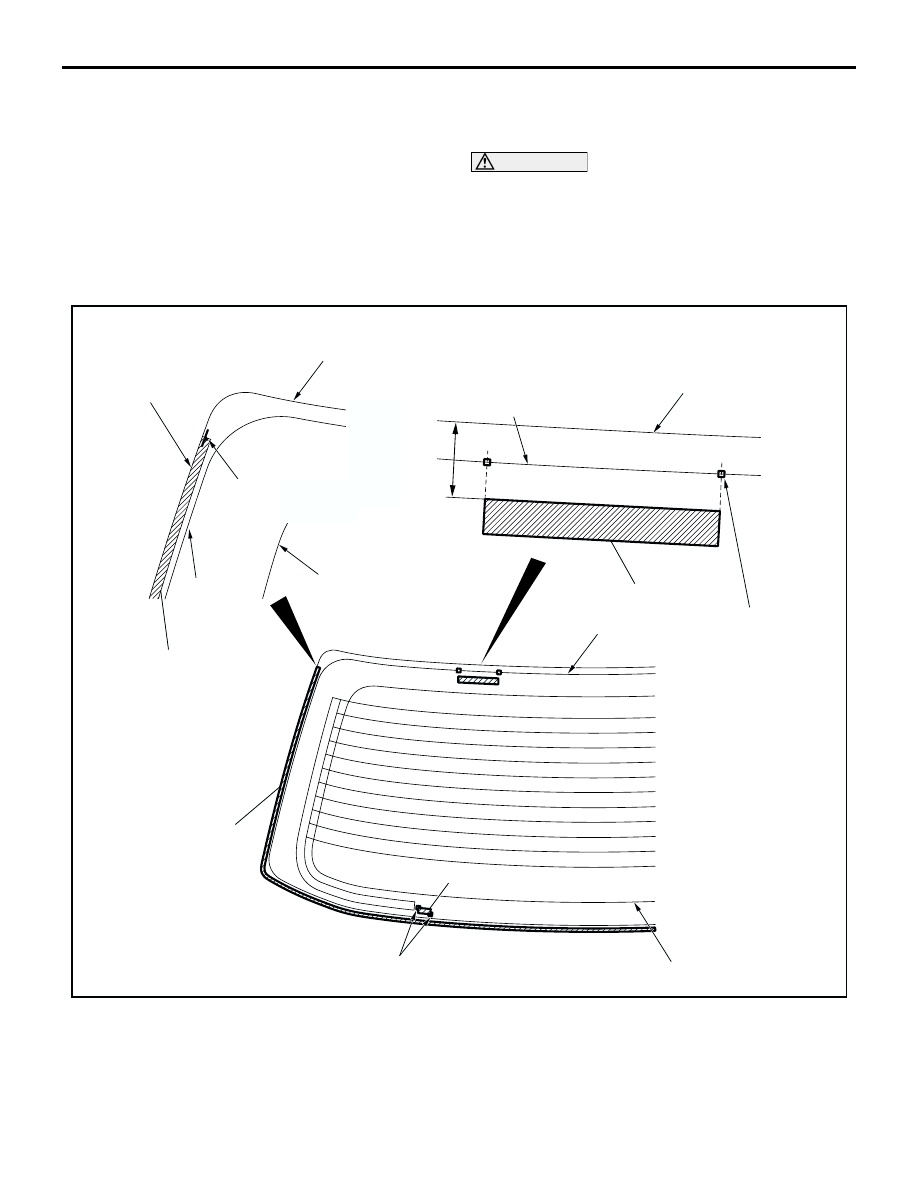

Glass stopper, window dam and dual lock fastener installation position

Align the dual lock fastener and with
the tailgate window glass mark.

Glass end line

Align the window dam
end with the ceramic notch.

Align the glass stopper
and with the tailgate
window glass mark.

Seal line

Seal line

Ceramic line

Install the window
dam along the glass
end line.

25.5 ± 0.5 mm

Tailgate window glass

WINDOW GLASS

BODY

42-21

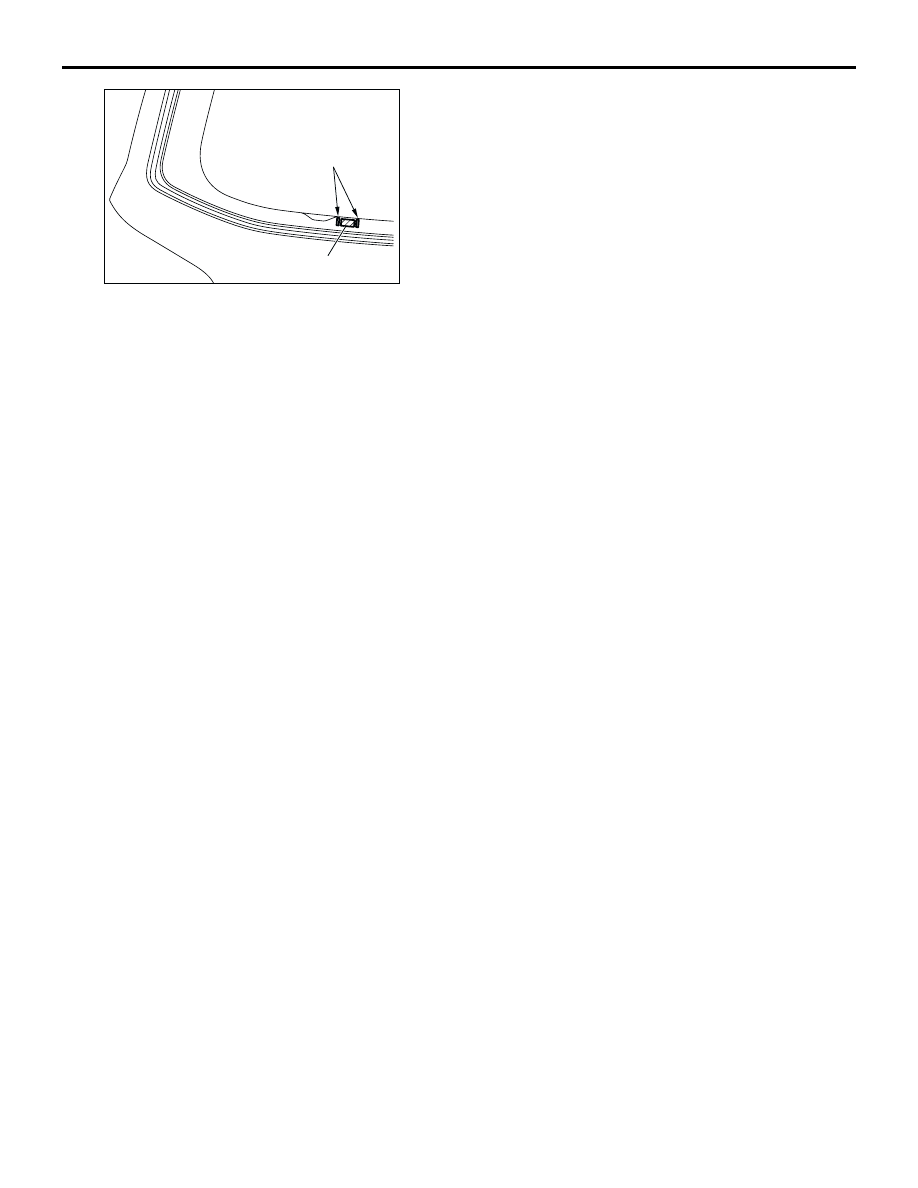

3. Assemble the dual lock fastener in alignment with

the protrusion of the tailgate flange.

>>B<< TAILGATE WINDOW GLASS
INSTALLATION
Install the tailgate window glass in the same way as
for the windshield installation (Refer to

P.42-11

).

AC107208AB

Dual lock fastener

Flange convex
at the tailgate flange

WINDOW GLASS

BODY

42-22

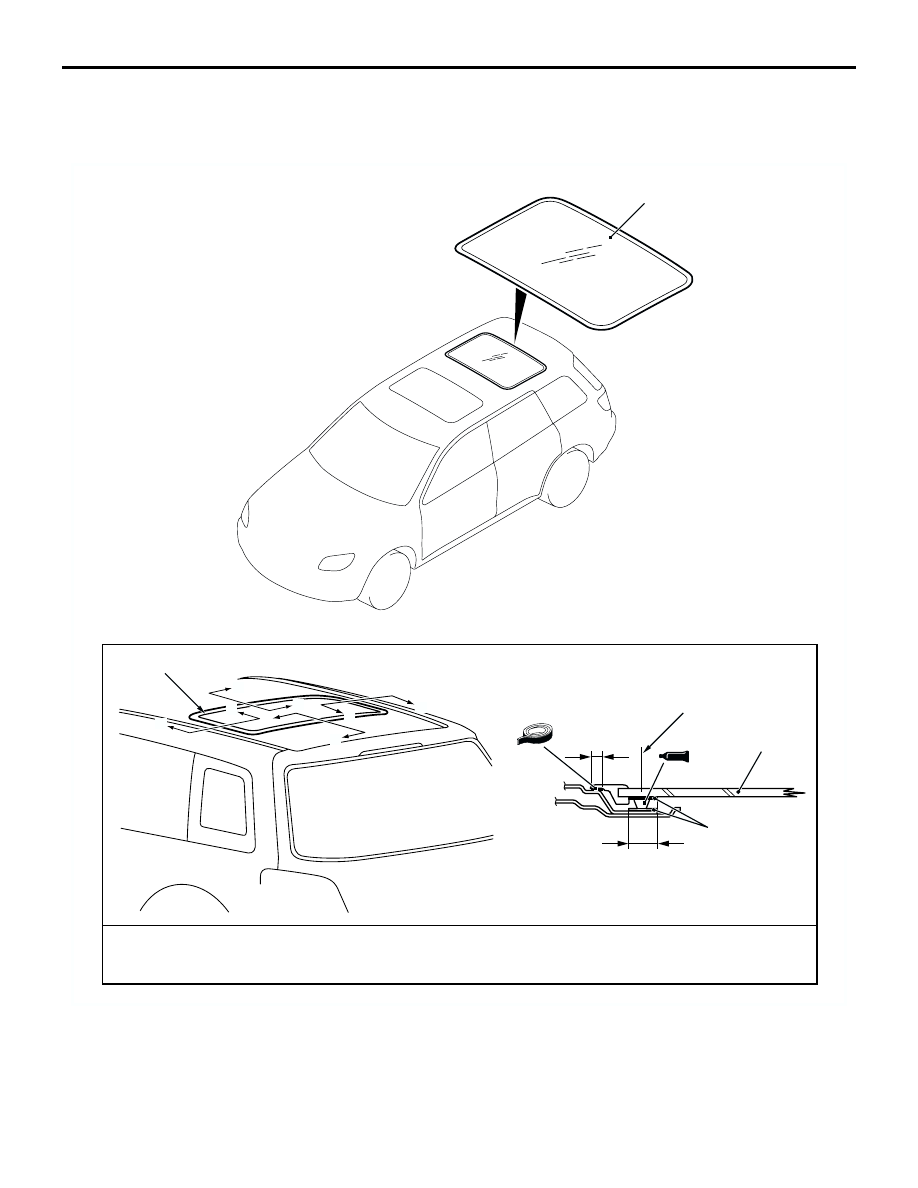

ROOF WINDOW GLASS

REMOVAL AND INSTALLATION

M1422004300045

AC301821

AC301504

A

A

A

A

A

A

A

A

Seal line

Seal line center

Primer

Section A – A

15 mm

6 mm

1

AB

1

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent
Adhesive tape: Double-sided tape [ 6 mm width, 0.5 mm thickness ]

Removal steps

•

Frame assembly (Refer to GROUP
52A

−

 Headlining

P.52A-27

).

<<A>>

>>A<<

1.

Roof window glass assembly
