WINDOW GLASS

BODY

42-11

WINDSHIELD

REMOVAL AND INSTALLATION

M1422001000409

Pre-removal and Post-installation Operation

•

Front Deck Garnish Removal and Installation (Refer to

GROUP 51, Windshield Wiper

P.51-21

).

•

Roof Drip Moulding Removal and Installation (Refer to

GROUP 51, Moulding

P.51-15

).

•

Front Pillar Trim Removal and Installation (Refer to

GROUP 52A, Trims

P.52A-18

).

AC301615

AC301503

AB

Units: mm

Adhesive: 3M ATD Part No. 8609 Super Fast Urethane Auto Glass Sealant or equivalent and
3M ATD Part No. 8608 Super Fast Urethane Primer or equivalent

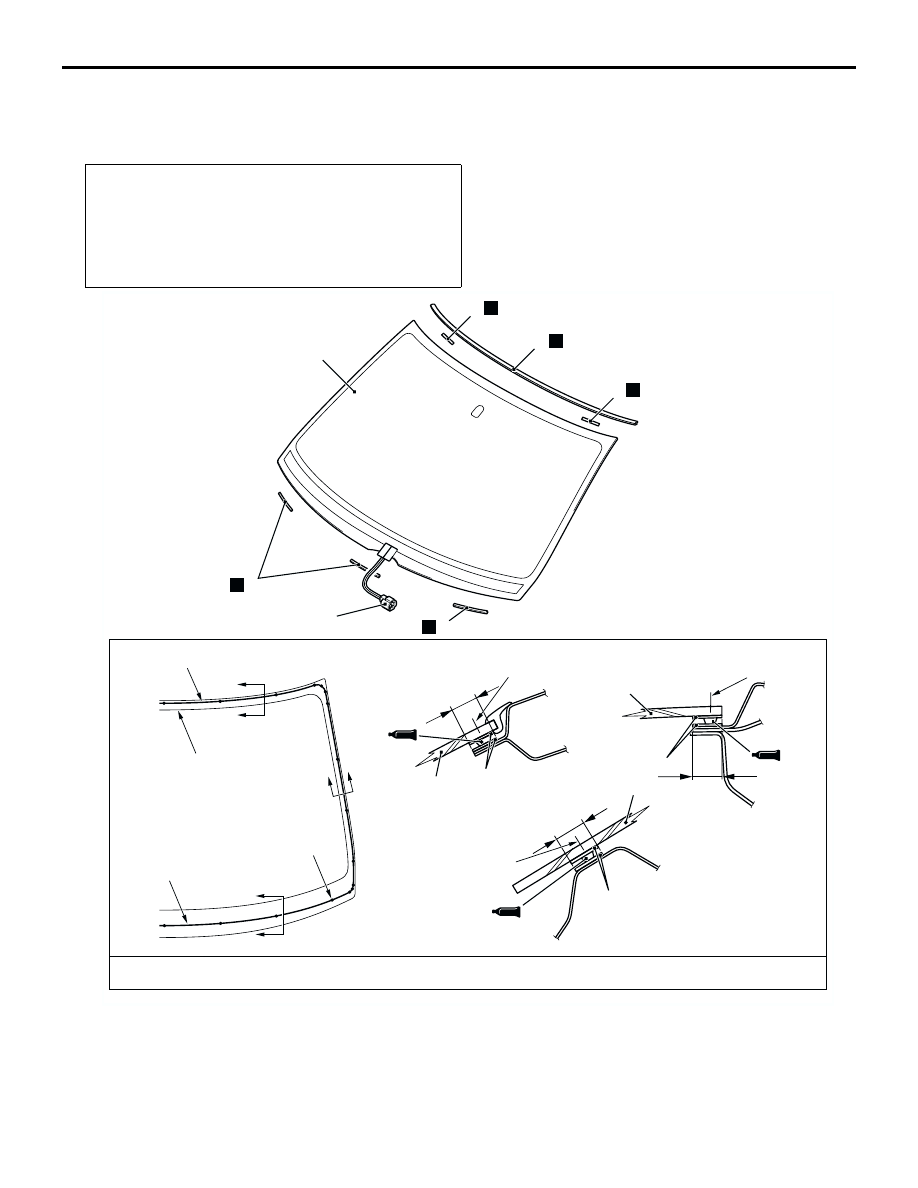

Section A – A

15

15

15

Section B – B

Section C – C

A

A

B

B

C

C

Seal line

Ceramic line

Mark

Apply the primer and adhesive along the fictitious lines (seal line)

between each of the marks.

Seal line

center

Primer

Seal line

center

Primer

Seal line center

Primer

2

2

2

2

1

3

5

4

N

N

5

N

N

4

N

Removal steps
1. Harness connector (Refer to GROUP

51, Wiper deicer

P.51-43

).

<<A>> >>B<<

2. Windshield

>>A<<

3. Windshield moulding

>>A<<

4. Glass stopper

>>A<<

5. Windshield spacer

Removal steps (Continued)

WINDOW GLASS

BODY

42-12

REMOVAL SERVICE POINT

<<A>> WINDSHIELD REMOVAL
1. To protect the body (paint surface), apply cloth

tape to all body areas around the installed
windshield.

2. Make mating marks on the windshield and body.

3. Using piano wire.

(1) Using a sharp-point drill, make a hole in the

windshield adhesive.

(2) Pass the piano wire from the inside of the

vehicle through the hole.

CAUTION

Do not let the piano wire touch the edge of the
windshield.

(3) Pull the piano wire alternately from the inside

and outside along the windshield to cut the
adhesive.

CAUTION

Inserting the glass adhesive knife too deeply into
windshield adhesive may damage windshield.
4. Using glass adhesive knife

Keep glass adhesive knife at right angles with the
windshield edge, and put the blade at windshield
edge and surface. Then cut away adhesive along
the windshield edge.

5. Use special tool window glass holder MB990480

to remove the windshield.

ACX00474 AB

AC002060

AC207478

Glass adhesive knife

AD

ACX00475AB

MB990480

WINDOW GLASS

BODY

42-13

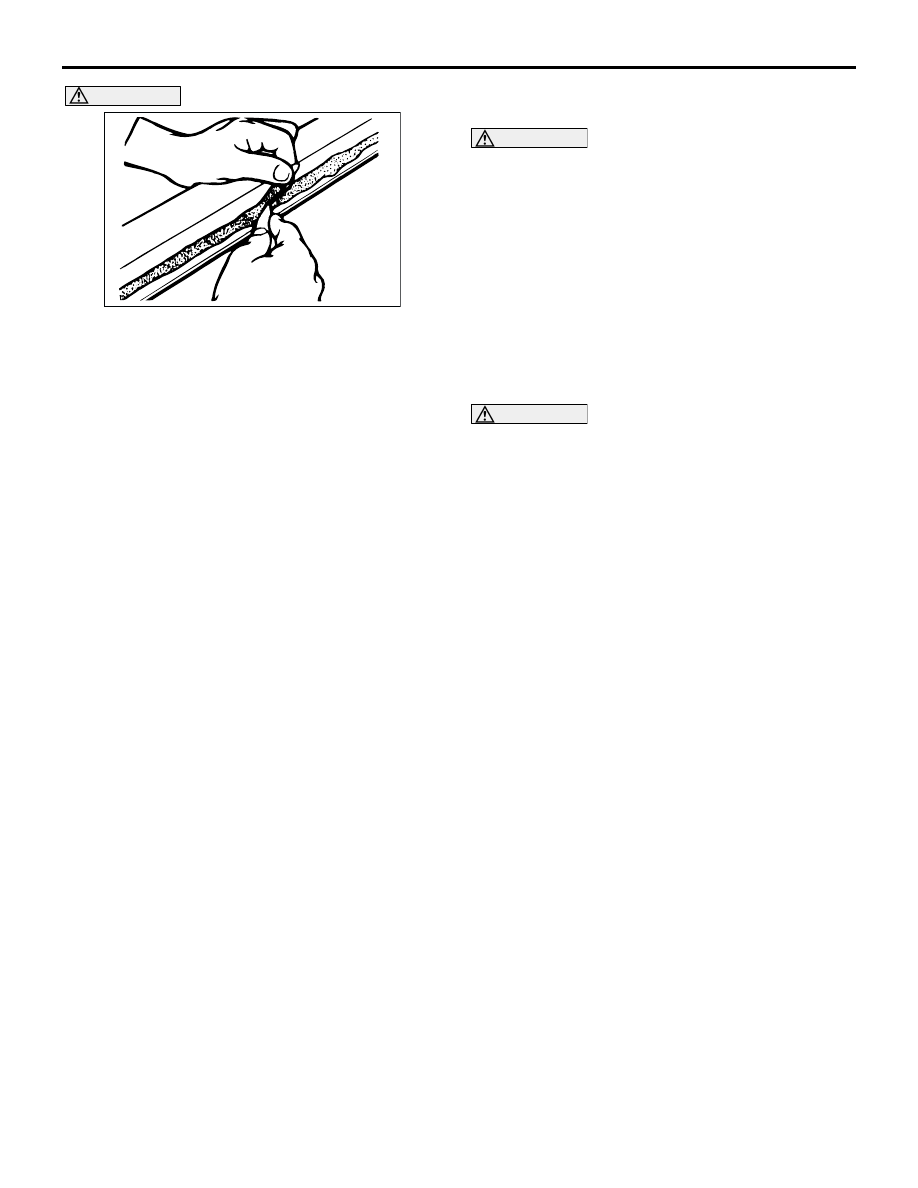

CAUTION

•

Be careful not to remove more adhesive than is

necessary.

•

Be careful also not to damage the paintwork
on the body surface with the knife. If the
paintwork is damaged, repair the damaged
area with repair paint or anti-rust agent.

6. Use a knife to cut away the remaining adhesive so

that the thickness is within 2 mm around the entire
circumference of the body flange.

7. Finish the flange surfaces so that they are

smooth.

CAUTION

Allow the cleaned area to dry for at least three
minutes. Do not touch any surface that has been
cleaned.
8. When reusing the windshield, remove the

adhesive still adhering to the windshield, and
clean with isopropyl alcohol.

9. Clean the body side in the same way.

INSTALLATION SERVICE POINTS

>>A<< WINDSHIELD SPACER/GLASS
STOPPER/WINDSHIELD MOULDING
INSTALLATION

CAUTION

Leave the degreased parts for 3 or more minutes
to dry well, before starting on the next step. Do
not touch the degreased parts.
1. Use isopropyl alcohol to degrease the inside and

outside of the windshield and the body flanges.

ACX00476 AB

WINDOW GLASS

BODY

42-14

2. The inner side of the windshield is curved,

therefore, make a point to assemble the glass
stopper and windshield spacer without any lifting
and assemble in the position shown.

3. Install the windshield moulding.

>>B<< WINDSHIELD INSTALLATION
1. When replacing the windshield, temporarily set

the windshield against the body, and place a
mating mark on the windshield and body.

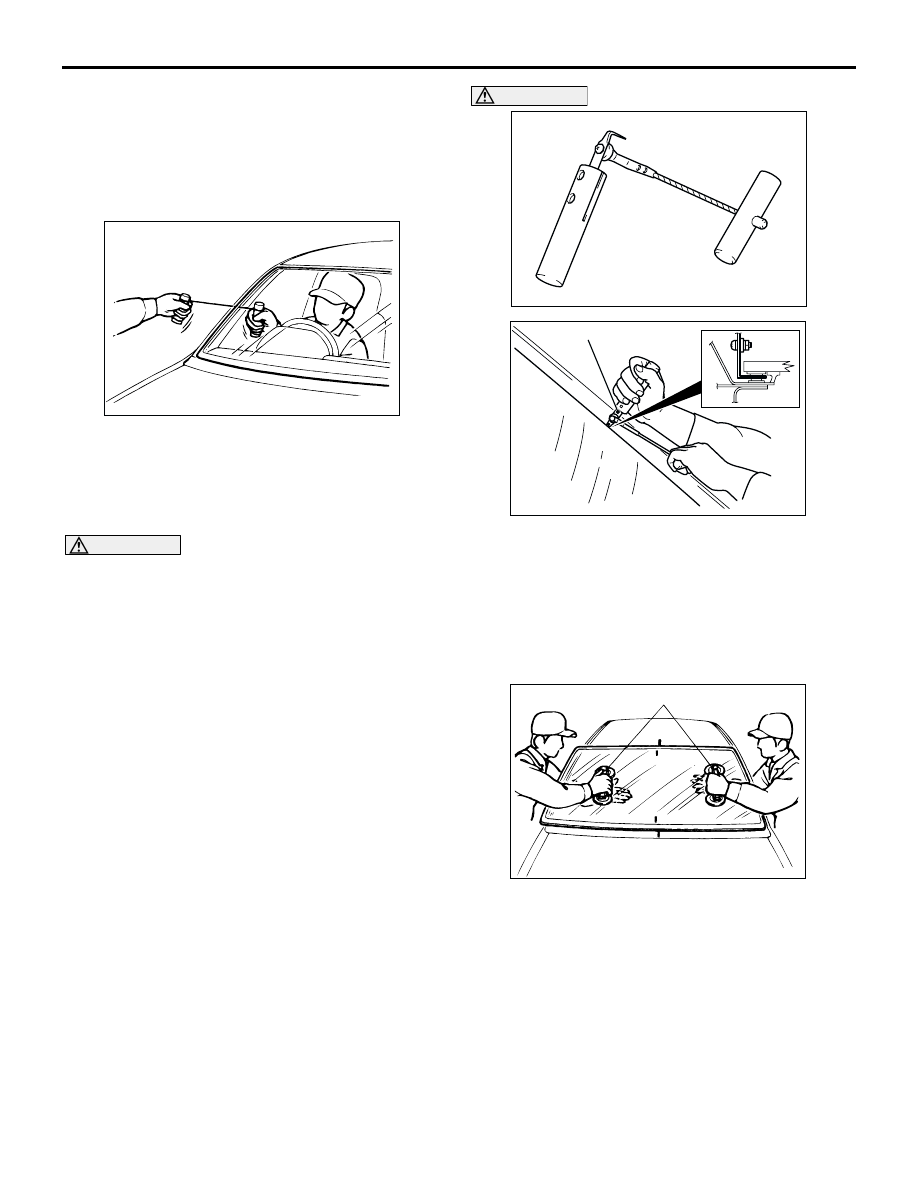

CAUTION

•

The primer strengthens the adhesive, so be
sure to apply it evenly around the entire
circumference. However, a too thick
application will weaken the adhesive.

•

Do not touch the coated surface.

•

Do not apply the primer on the remaining
adhesive because of weakening the adhesive.

2. Soak a sponge in the primer, and apply evenly to

the windshield and the body in the specified
places.

3. Allow the windshield to dry for at least three

minutes after applying primer.

AC300403AB

Glass stopper

Windshield
spacer

Windshield center line

Windshield
center line

Windshield
spacer

Seal line

Ceramic line

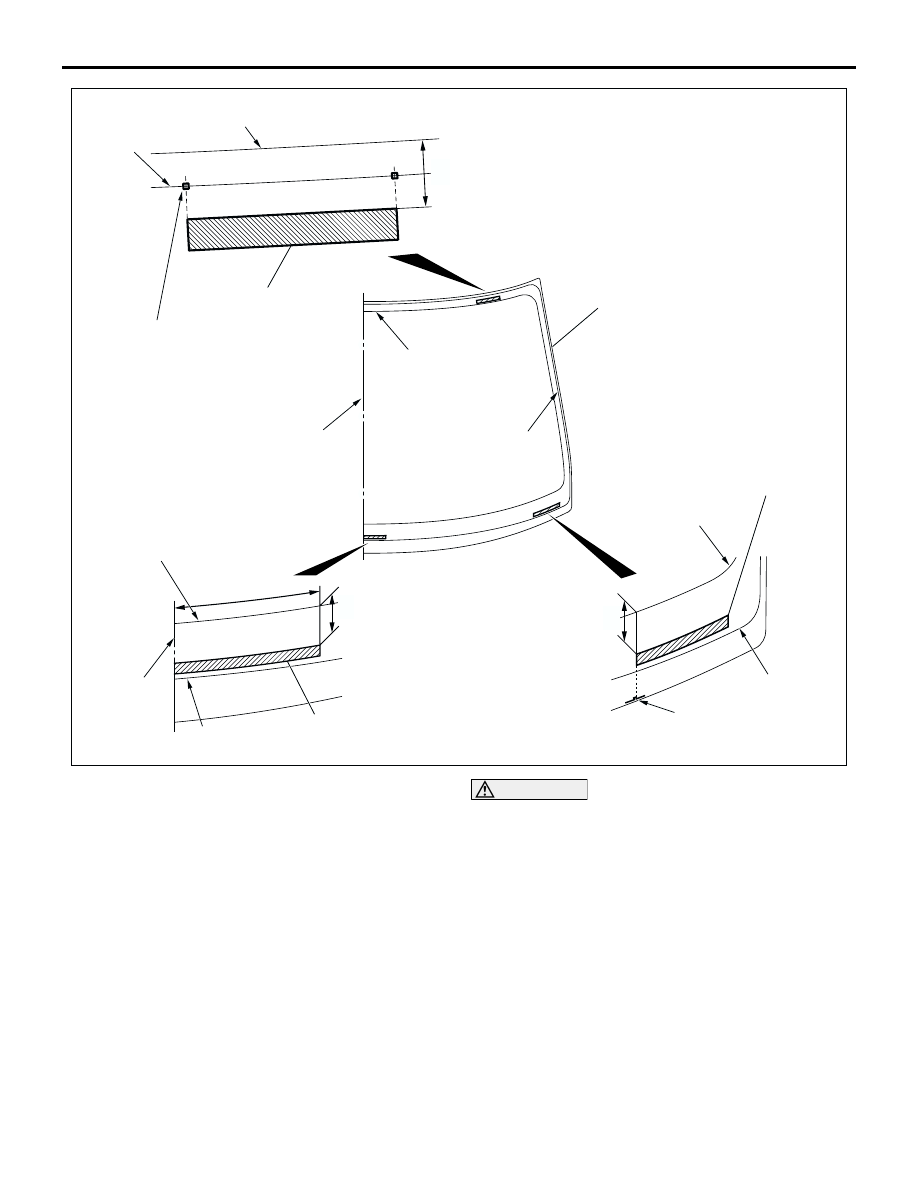

Glass stopper and windshield spacer installation position

Windshield end line

Align the glass
stopper end with
the windshield mark.

Seal line

Seal line

Ceramic line

Windshield

Align the windshield
spacer end with the
ceramic notch.

Ceramic line

Seal line

43.9 mm

43.9 mm

65 mm

18.1 mm
