HOOD

BODY

42-3

HOOD

ON-VEHICLE SERVICE

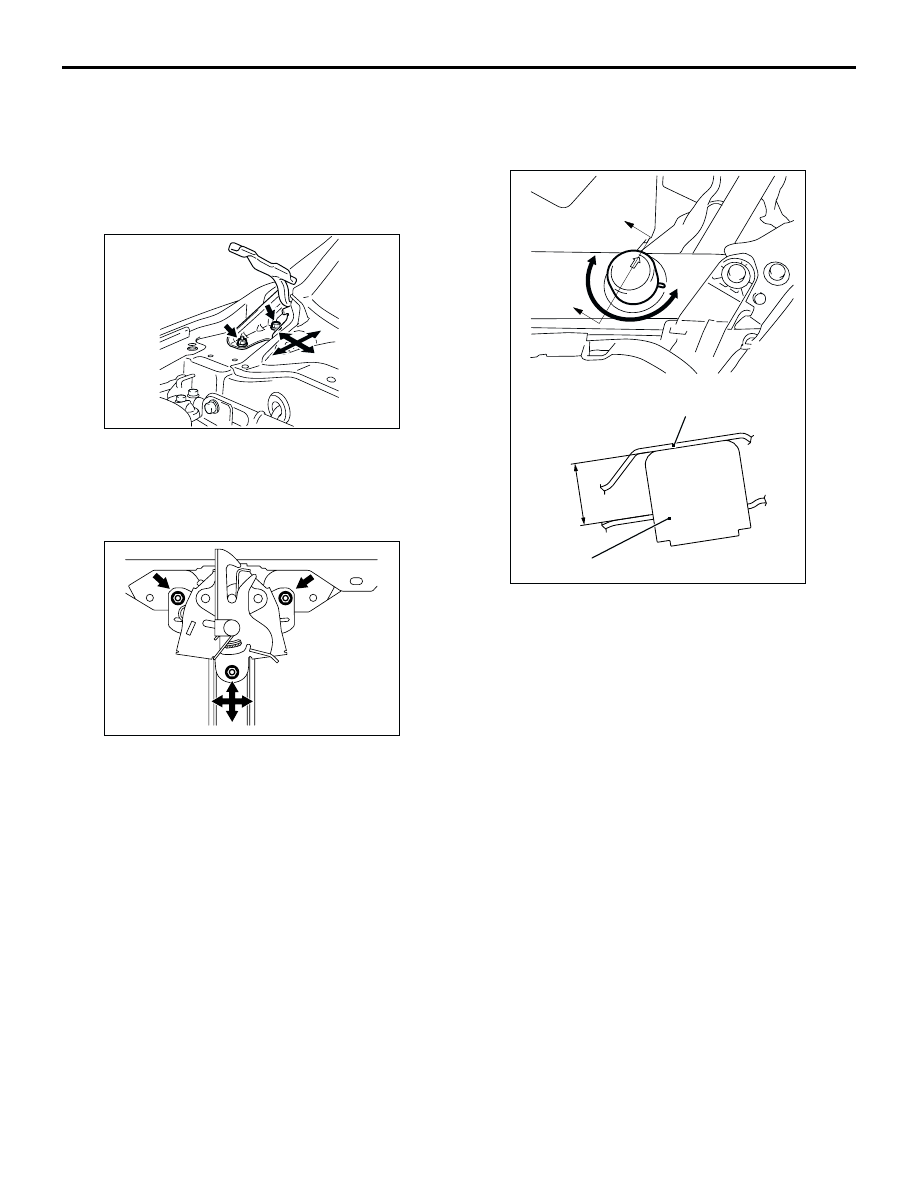

ADJUSTMENT OF CLEARANCE AROUND
HOOD

M1421007200107

ADJUSTMENT OF ALIGNMENT OF HOOD
STEPPED PORTION AND HOOD
STRIKER

M1421007300104

ADJUSTMENT OF HOOD HEIGHT

M1421007400101

Rotate the hood bumper by using the arrow mark on
the hood bumper as a guide to adjust the hood
height. If the hood bumper is rotated just one turn,
the hood height changes by approximately 3 mm.

AC103720

AC005947

Y0215AU

X0424CA

AC005948AF

Section A – A

A

A

Hood

Hood bumper

16.5 mm

HOOD

BODY

42-4

HOOD

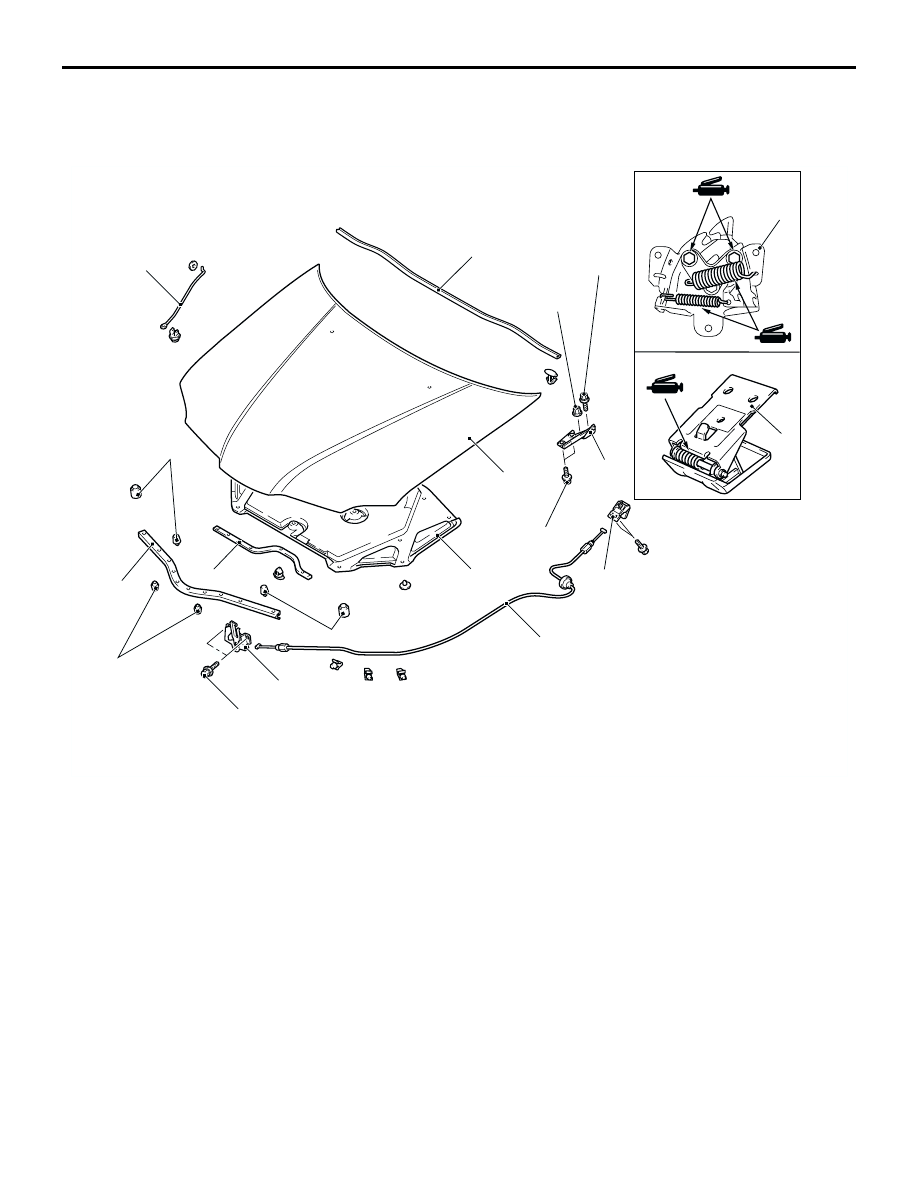

REMOVAL AND INSTALLATION

M1421001600408

AC107422AC

1

2

3

4

5

6

7

8

9

1

1

2

3

6

9.0 ± 2.0 N·m

21 ± 4 N·m

6

11 ± 2 N·m

11 ± 2 N·m

Removal steps
1. Hood bumper
Hood latch and hood lock release
cable removal steps

•

Radiator grille (Refer to GROUP 51,
Radiator grille

P.51-10

.)

2. Hood latch

•

Splash shield (Refer to

P.42-6

.)

3. Hood lock release handle
4. Hood lock release cable

Hood and hood hinge removal steps
5. Hood Insulator
6. Hood weatherstrip

•

Washer hose (Refer to GROUP 51,
Windshield washer

P.51-25

.)

7. Hood
8. Hood support rod

•

Front deck garnish (Refer to GROUP
51, Windshield wiper

P.51-21

.)

9. Hood hinge

HOOD

BODY

42-5

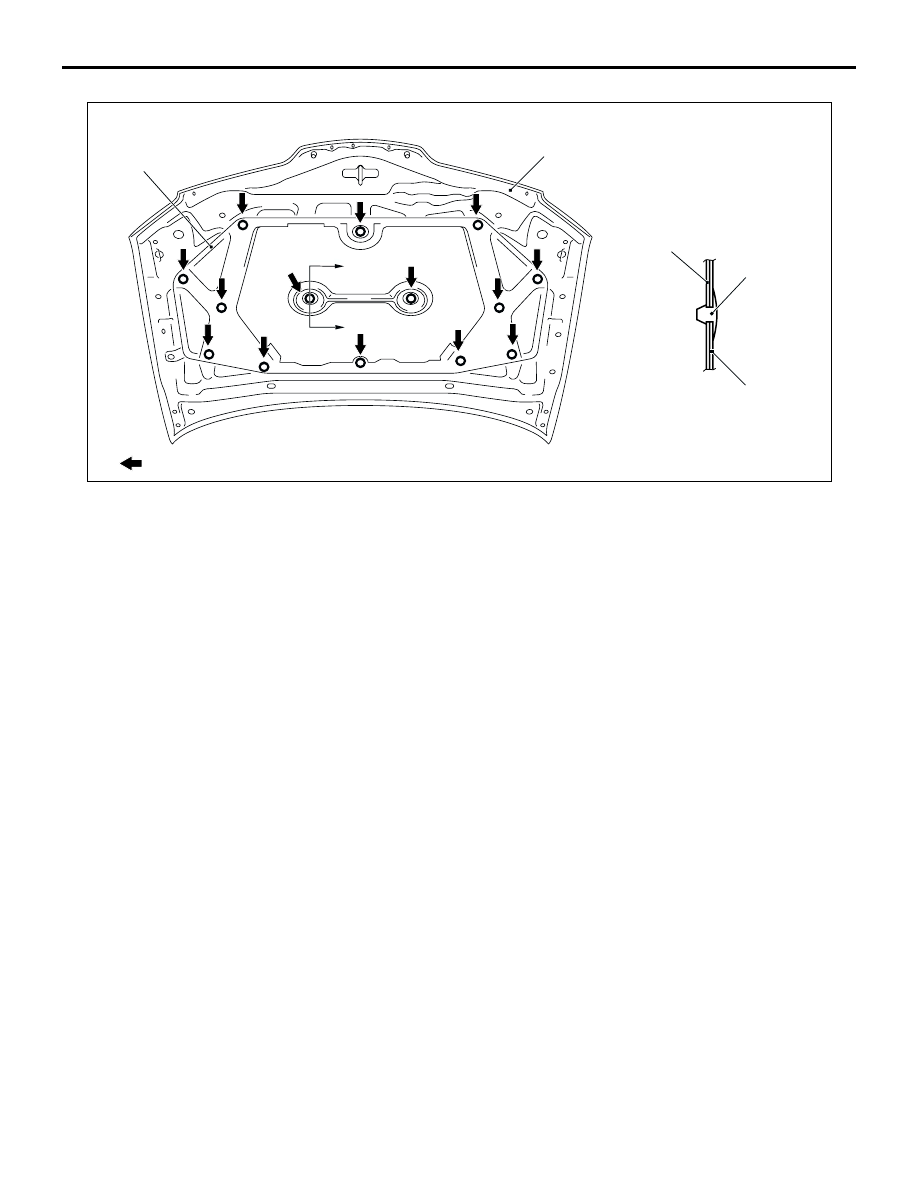

AC200023

Section A – A

5

7

5

7

Clip

A

A

Note
         : Clip positions

Clip positions

AE

FENDER

BODY

42-6

FENDER

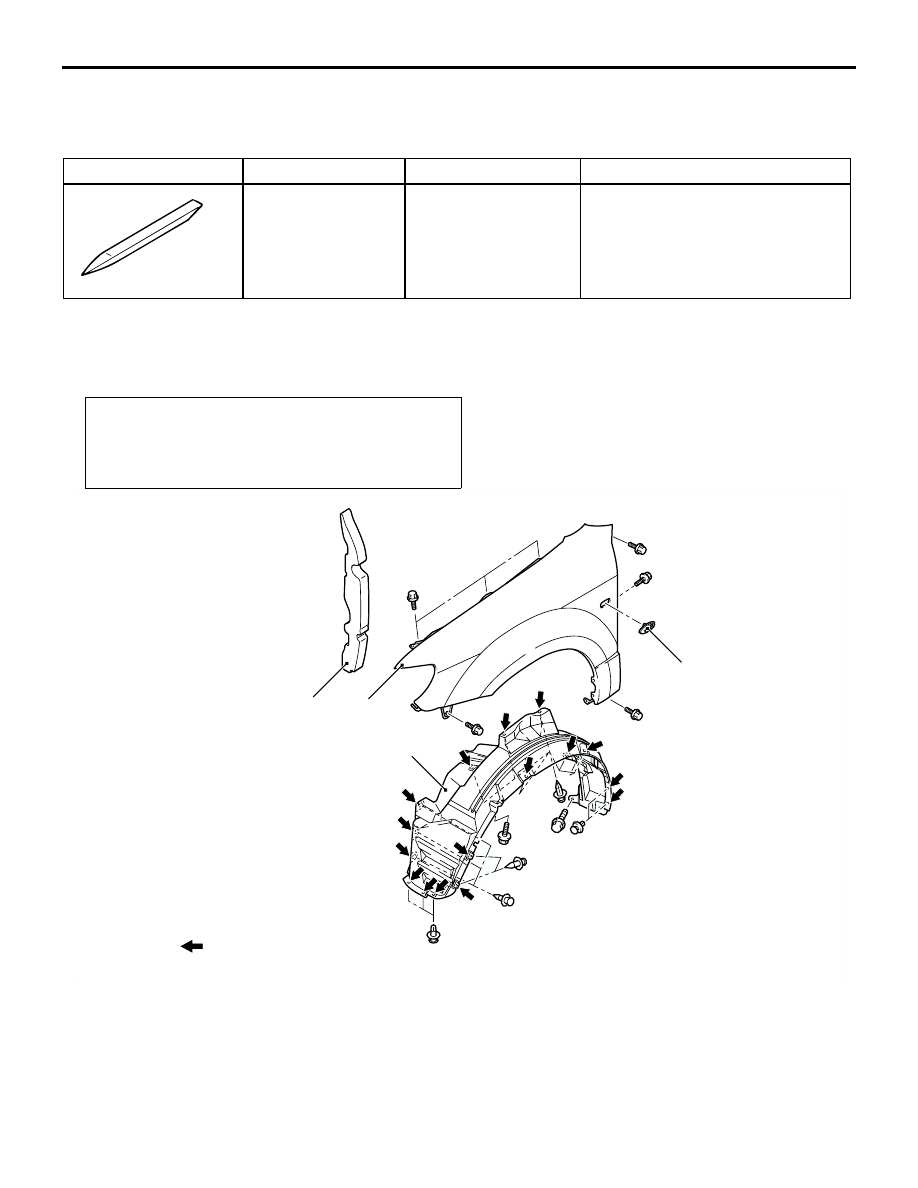

SPECIAL TOOL

M1421000600212

FENDER

REMOVAL AND INSTALLATION

M1421001900380

Tool

Number

Name

Use

MB990784

Ornament remover

Side turn-signal lamp removal

MB990784

Pre-removal and Post-installation Operation

•

Front Bumper Removal and Installation (Refer to GROUP

51, Front Bumper

P.51-3

).

•

Front Deck Garnish Removal and Installation (Refer to

GROUP 51, Windshield Wiper

P.51-21

).

AC309633

1

2

3

4

AB

Note
         : Clip positions


Removal Steps

•

Side sill garnish (Refer to GROUP 51,
Garnish

P.51-12

).

1. Splash shield
2. Front pillar pad

<<A>> >>A<<

3. Side turn signal lamp

•

Headlamp assembly (Refer to
GROUP 54A, Headlamp

P.54A-77

).

4. Fender

Removal Steps (Continued)
