SERVICE SPECIFICATIONS
POWER STEERING
37-3

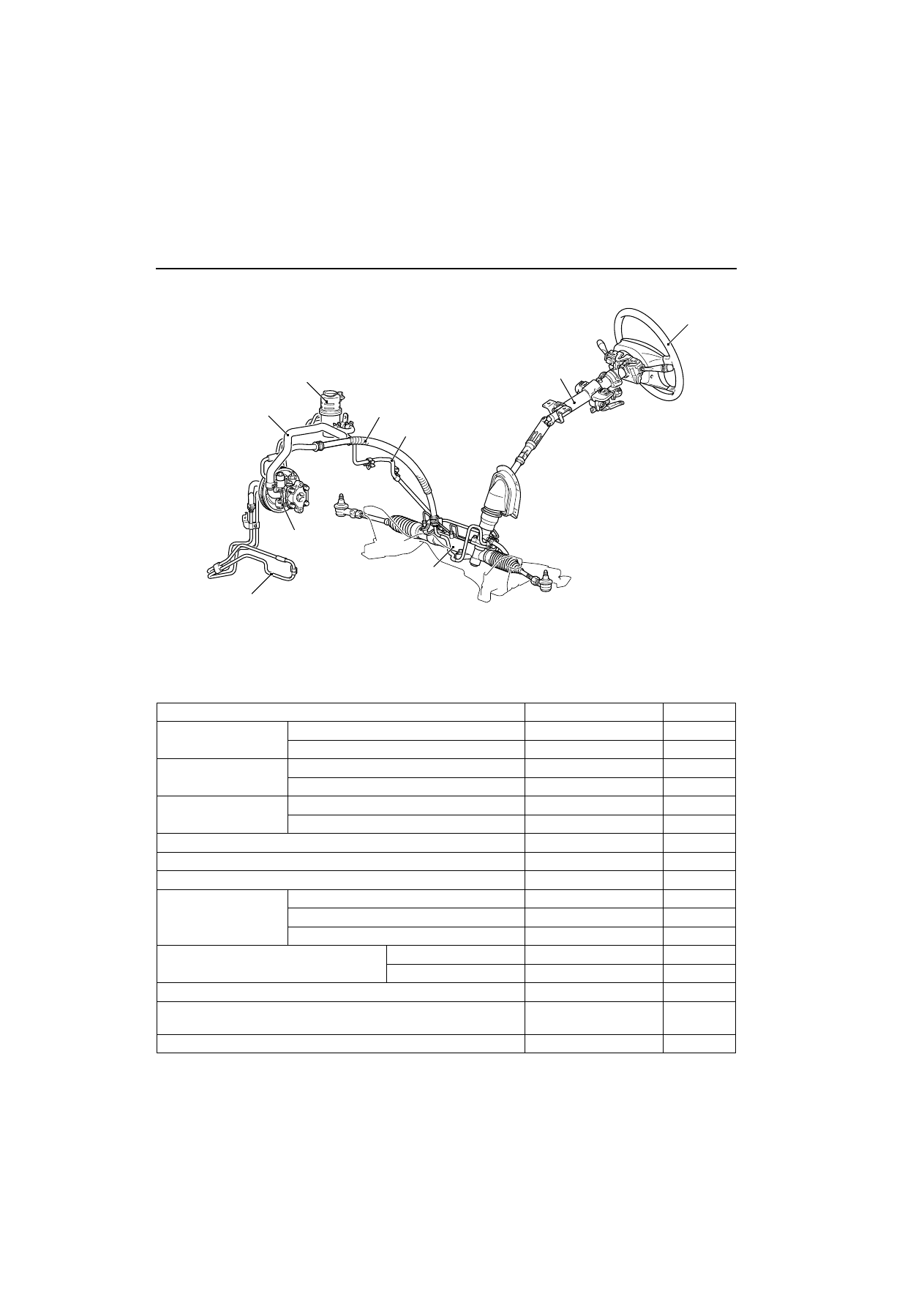

CONSTRUCTION DIAGRAM
SERVICE SPECIFICATIONS
M1372000300364
AC300061 AB
Steering wheel
Steering column
shaft assembly
Pressure hose
assembly
Oil reservoir
Suction hose
Return hose
Oil pump assembly
Steering gear
Cooler tube assembly
Item
Standard value
Limit
Steering wheel free
play mm
With engine running
-
30
With engine stopped
10 or less
-
Steering angle
Inside wheel
34
50’
1
30’
-
Outside wheel (reference)
29
20’
-
Toe-in
At the centre of tyre tread mm
1
2
-
Toe-angle (per wheel)
0
03’
05’
-
Tie rod end ball joint starting torque N
¼
m
0.5
-
2.5
-
Tie rod swing resistance N [Tie rod swing torque N
¼
m]
6
-
19 [1.5
-
4.9]
-
Stationary steering effort N [Fluctuation allowance N]
29 or less [5.9 or less]
-
Oil pump pressure
MPa (750
100 r/min.)
Oil pump relief pressure
8.8
-
9.5
-
Pressure under no-load conditions
0.8
-
1.0
-
Steering gear retention hydraulic pressure
8.8
-
9.5
-
Oil pressure switch operating pressure
MPa
OFF
ON
1.5
-
2.0
-
ON
OFF
0.7
-
2.0
-
Steering gear total pinion torque N
¼
m [Change in torque N
¼
m]
0.7
-
1.6 [0.4 or less]
-

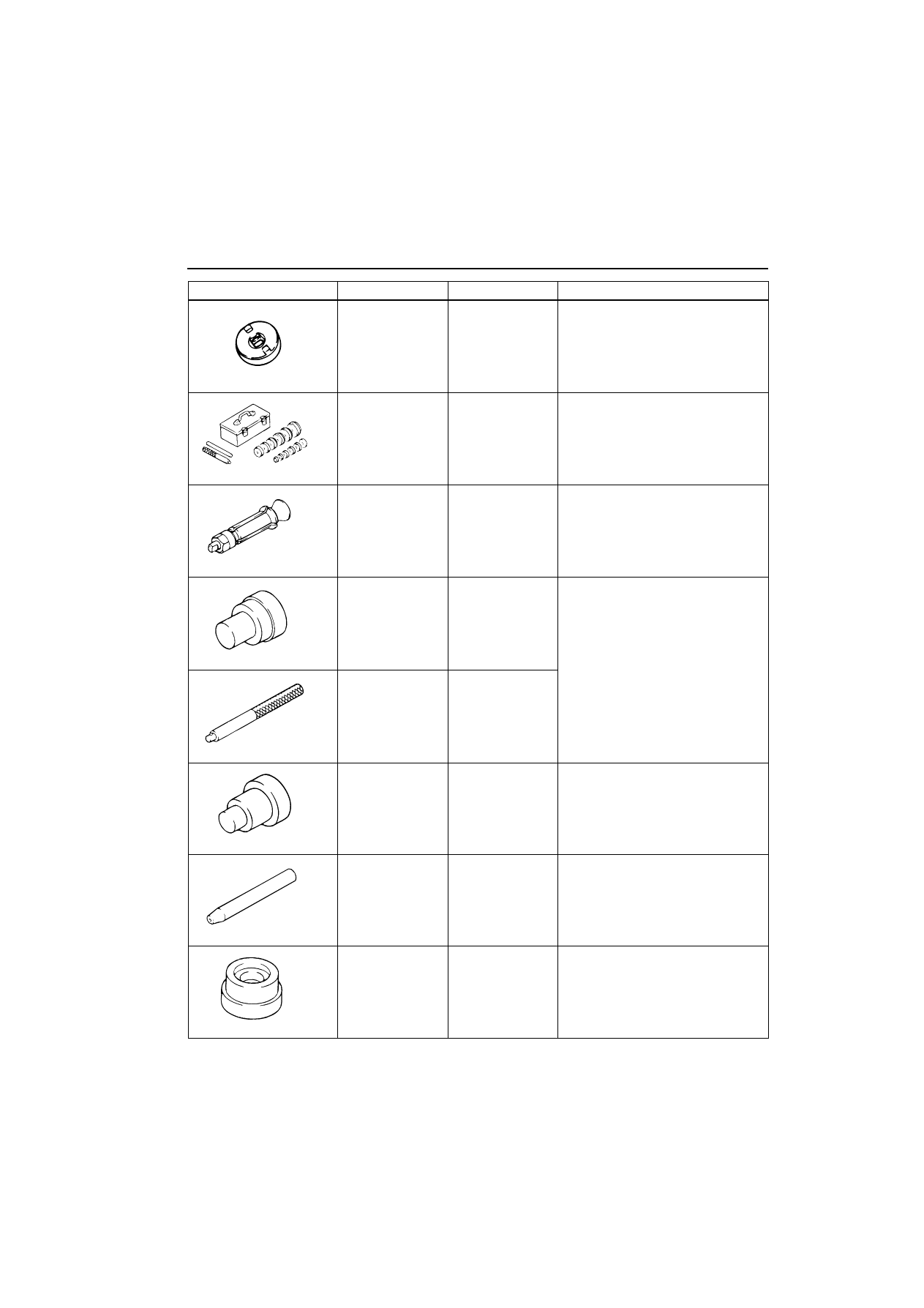

Opening dimension of special tool boot band crimping tool
(MB991561) mm
2.9
-
Band crimped width mm
2.4
-
2.8
-
