Mitsubishi Outlander (2003+). Manual - part 284





PARKING BRAKE CABLE

PARKING BRAKES

36-9

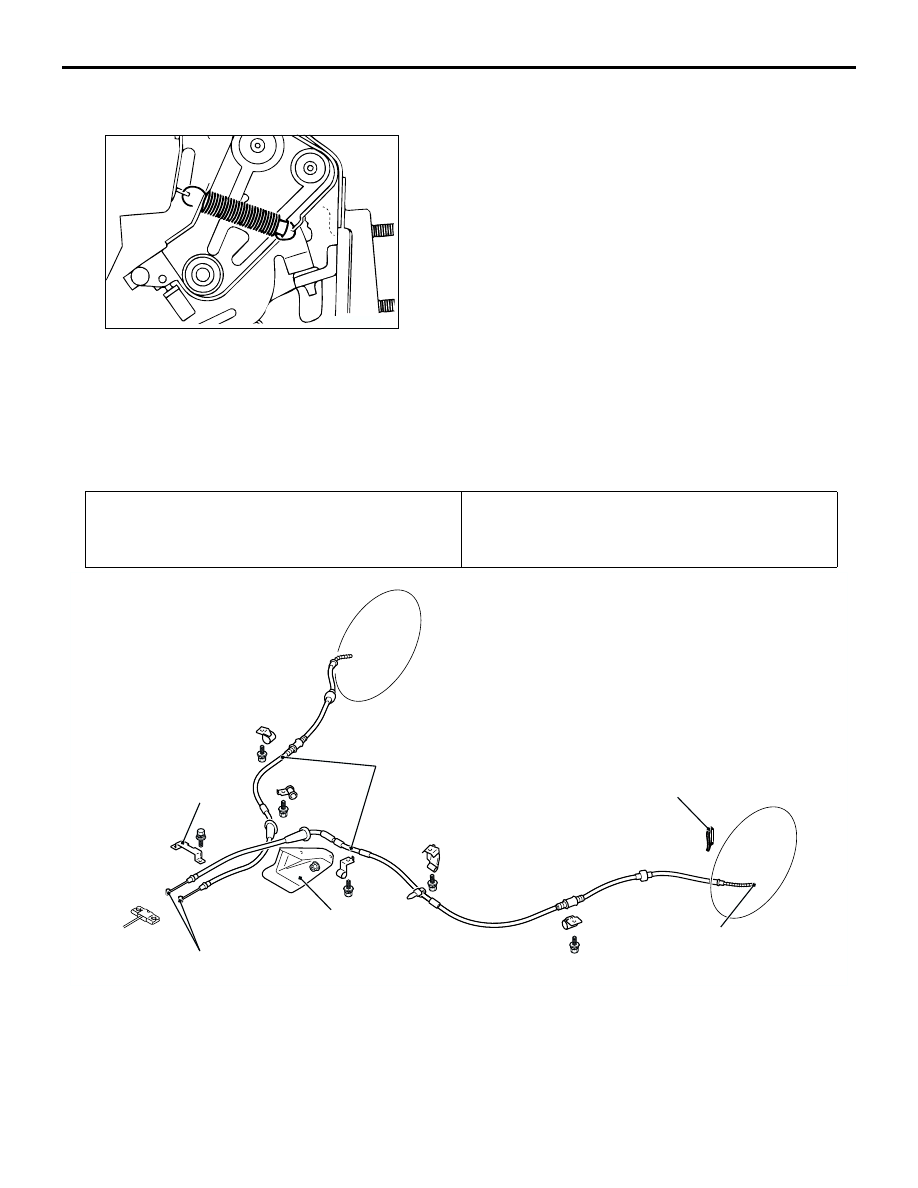

INSTALLATION SERVICE POINT

>>A<< TENSION SPRING INSTALLATION

Apply grease to the mating surface of the tension
spring and pedal, and then install the spring as
shown.

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION <L.H.
drive vehicles>

M1361001900581

AC300123AB

Pre-removal Operation

Rear Floor Console Assembly Removal (Refer to GROUP

52A, Floor Consol

P.52A-14

).

Post-installation Operation

Parking Brake Lever Stroke adjustment (Refer to

P.36-4

).

Rear Floor Console Assembly Installation (Refer to

GROUP 52A, Floor Console Assembly

P.52A-14

).

AC202586AD

5

3

6

2

4

1

Removal steps

Shoe and lining assembly (Refer to

P.36-12

).

Loosen the adjusting nuts.

Turn up the driver's side carpet.

1.

Parking brake cable connection

2.

Clip

3.

Protector B

4.

Parking brake cable connection

5.

Protector C

6.

Rear parking brake cable assembly

Removal steps (Continued)

PARKING BRAKE CABLE

PARKING BRAKES

36-10

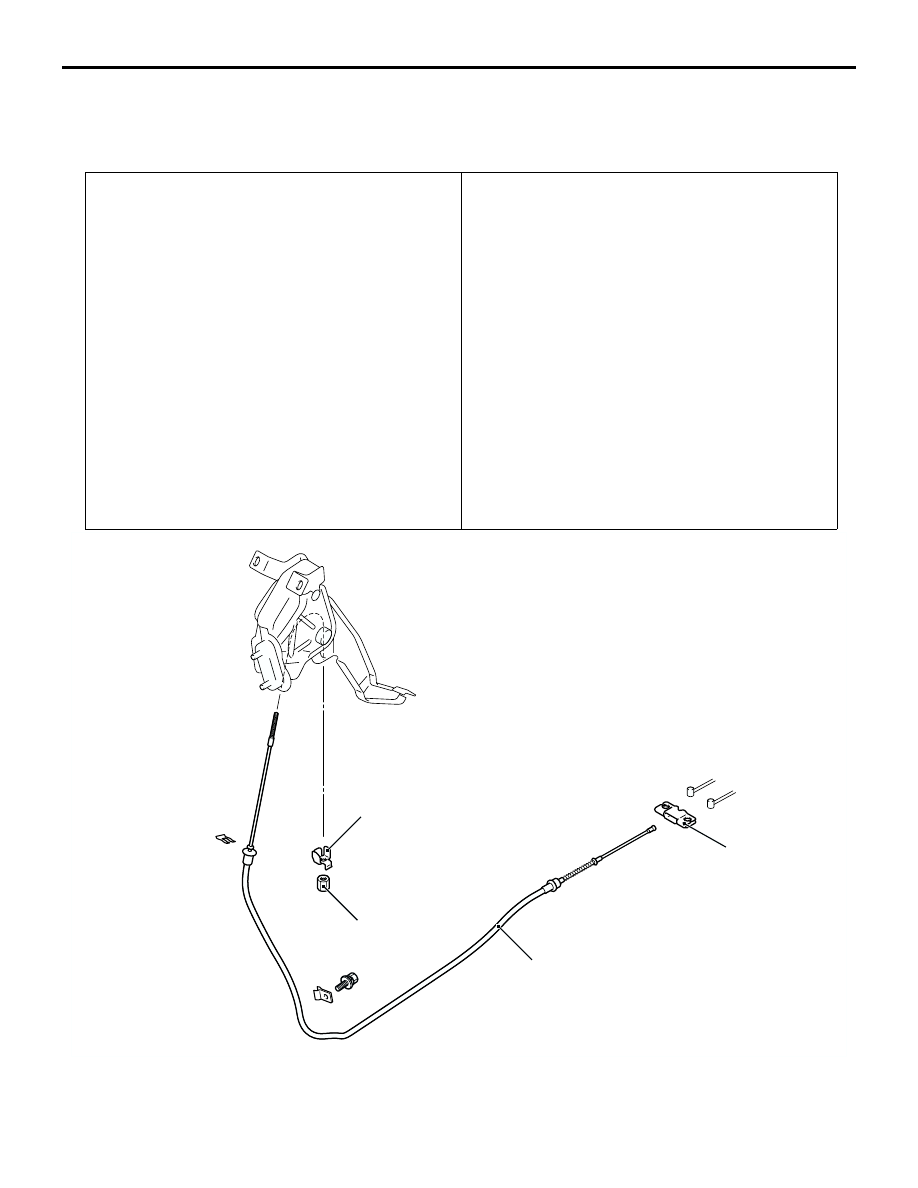

REMOVAL AND INSTALLATION
<R.H. drive vehicles>

M1361001900592

<Front>

Pre-removal Operation

Front scuff plate, rear scuff plate, cowl side trim, lower

center pillar trim removal (Refer to GROUP 52A, Trims

P.52A-18

).

Front seat assembly removal <driver's side> (Refer to

GROUP 52A, Front Seat Assembly

P.52A-29

).

Rear seat cushion removal (Refer to GROUP 52A, Rear

Seat

P.52A-36

).

Seat belt lower anchor bolt removal (Refer to GROUP

52A, Seat Belt

P.52A-39

).

Floor Console Assembly Removal (Refer to GROUP 52A,

Floor Console

P.52A-14

).

Center console panel and center console removal (Refer

to GROUP 52A, Instrument Panel Assembly

P.52A-8

).

Foot duct <driver’s side> removal (Refer to GROUP 55A,

Heater Unit, Heater Core, Blower Assembly and

Evaporator Unit

P.55A-63

).

Accelerator pedal stopper removal (Refer to GROUP 17,

Accelerator Cable and Peda

P.17-6

 <2000>,

P.17-7



<2400>).

Post-installation Operation

Accelerator pedal stopper installation (Refer to GROUP

17, Accelerator Cable and Pedal

P.17-6

 <2000>,

P.17-7



<2400>).

Foot duct <driver’s side> installation (Refer to GROUP

55A, Heater Unit, Heater Core, Blower Assembly and

Evaporator Unit

P.55A-63

).

Center console panel and center console installation

(Refer to GROUP 52A, Instrument Panel Assembly

P.52A-8

).

Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console

P.52A-14

).

Seat belt lower anchor bolt removal (Refer to GROUP

52A, Seat Belt

P.52A-39

).

Rear seat cushion removal (Refer to GROUP 52A, Rear

Seat

P.52A-36

).

Front seat assembly removal <driver's side> (Refer to

GROUP 52A, Front Seat Assembly

P.52A-29

).

Front scuff plate, rear scuff plate, cowl side trim, lower

center pillar trim removal (Refer to GROUP 52A, Trims

P.52A-18

).

Parking Brake pedal Stroke adjustment (Refer to

P.36-4

).

AC102716AD

1

2

3

4

Removal steps

Turn up the driver's side carpet.

1.

Adjusting nut

2.

Nut holder

3.

Equalizer

4.

Front parking brake cable assembly

Removal steps (Continued)

PARKING BRAKE CABLE

PARKING BRAKES

36-11

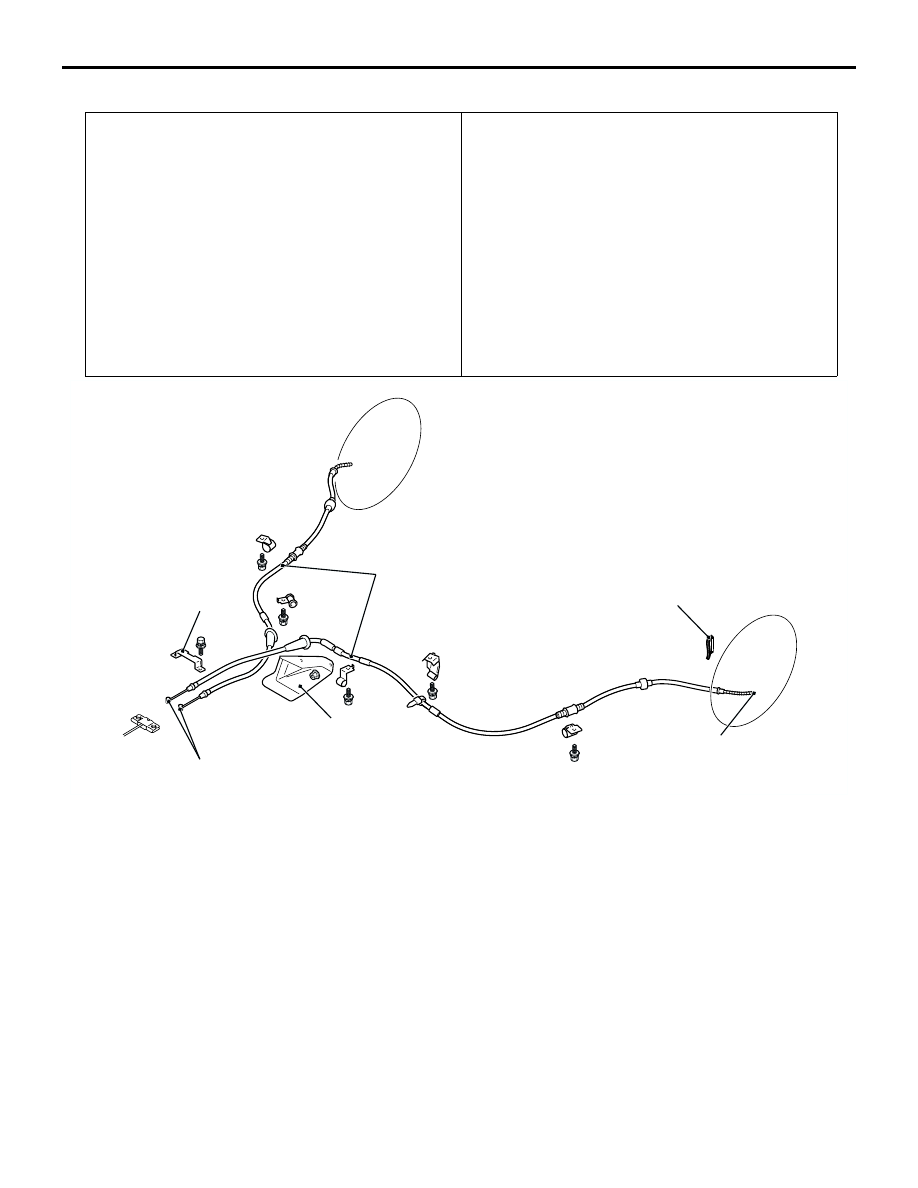

<Rear>

Pre-removal Operation

Front scuff plate, rear scuff plate, cowl side trim, lower

center pillar trim removal (Refer to GROUP 52A, Trims

P.52A-18

).

Front seat assembly removal <driver's side> (Refer to

GROUP 52A, Front Seat Assembly

P.52A-29

).

Rear seat cushion removal (Refer to GROUP 52A, Rear

Seat Assembly

P.52A-36

).

Seat belt lower anchor bolt removal (Refer to GROUP

52A, Seat Belt

P.52A-39

).

Floor Console Assembly Removal (Refer to GROUP 52A,

Floor Console Assembly

P.52A-14

).

Center console panel and center console removal (Refer

to GROUP 52A, Instrument Panel Assembly

P.52A-8

).

Post-installation Operation

Center console panel and center console installation

(Refer to GROUP 52A, Instrument Panel Assembly

P.52A-8

).

Floor Console Assembly Installation (Refer to GROUP

52A, Floor Console Assembly

P.52A-14

).

Seat belt lower anchor bolt removal (Refer to GROUP

52A, Seat Belt

P.52A-39

).

Rear seat cushion removal (Refer to GROUP 52A, Rear

Seat Assembly

P.52A-36

).

Front seat assembly removal <driver's side> (Refer to

GROUP 52A, Front Seat Assembly

P.52A-29

).

Front scuff plate, rear scuff plate, cowl side trim, lower

center pillar trim removal (Refer to GROUP 52A, Trims

P.52A-18

).

Parking Brake pedal Stroke adjustment (Refer to

P.36-4

).

AC202586AD

5

3

6

2

4

1

Removal steps

Shoe and lining assembly (Refer to

P.36-12

).

Loosen the adjusting nuts.

Turn up the driver's side carpet.

1.

Parking brake cable connection

2.

Clip

3.

Protector B

4.

Parking brake cable connection

5.

Protector C

6.

Rear parking brake cable assembly

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

PARKING BRAKES

36-12

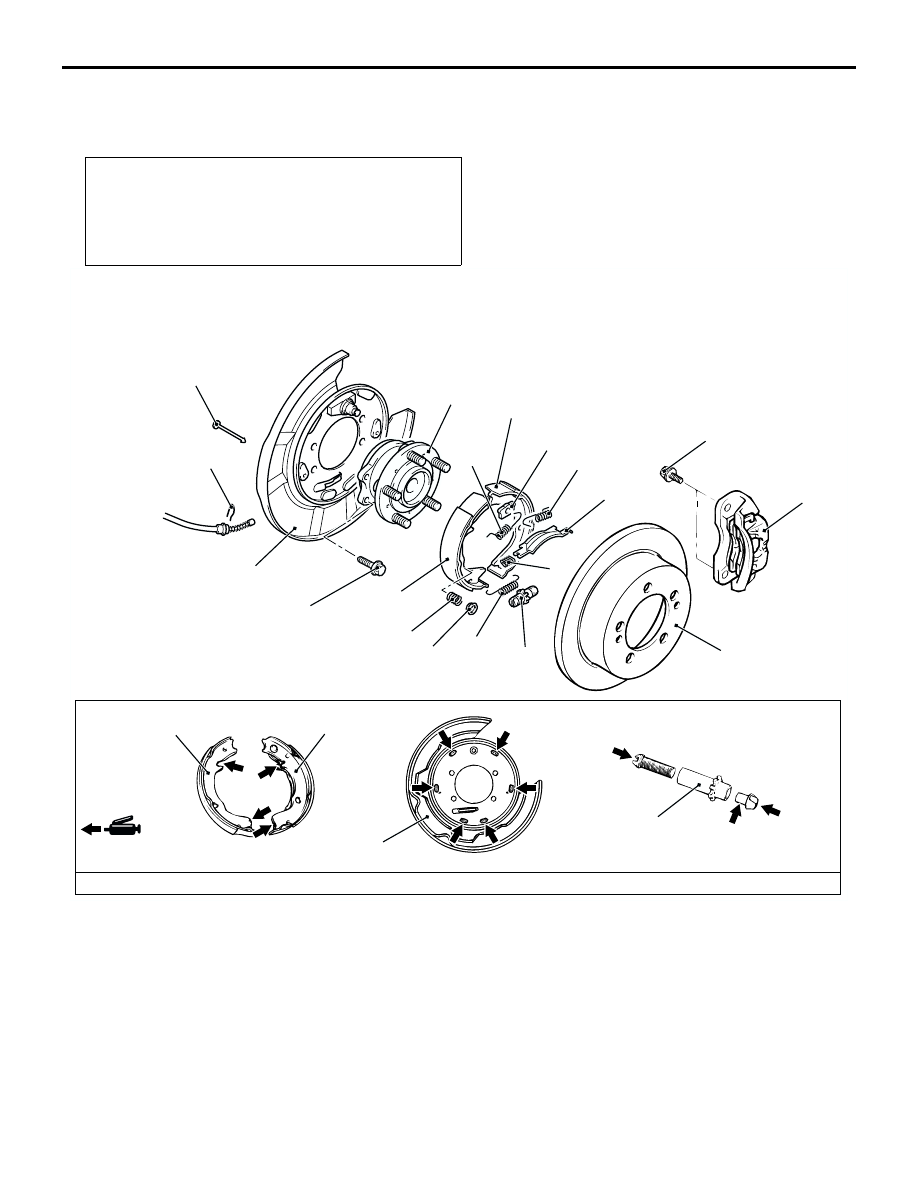

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500359

Post-installation Operation

Parking Brake Lever Stroke Check and Adjustment (Refer

to

P.36-4

).

Lining Running-in (Refer to

P.36-6

).

Floor Console Installation (Refer to GROUP 52A, Floor

Console Assembly

P.52A-14

).

AC300145

13

60 ± 5 N·m

63 ± 7 N·m

AB

13

4

15

5

3

8

9

7

2

1

6

10

11

12

13

13

14

16

16

7

Brake grease: Multipurpose grease





Removal

steps

<<A>>

1.  Rear brake caliper assembly





2.  Rear brake disc



>>B<<

3.

Shoe-to-anchor spring



>>B<<

4.

Shoe-to-anchor spring





5.  Shoe guide plate





6.  Adjusting wheel spring



>>A<<

7. Adjuster

assembly





8. Strut





9. Strut-to-shoe

spring





10. Shoe hold-down cup





11. Shoe

hold-down

spring





12. Shoe hold-down pin





13.  Shoe and lining assembly





14. Clip





15.  Rear hub assembly (For 2WD, refer

to GROUP 27A, Rear Hub
Assembly

P.27A-5

. For 4WD, refer

to GROUP 27B, Rear Hub
Assembly

P.27B-8

).





16. Backing plate







Removal steps (Continued)
