ON-VEHICLE SERVICE

PARKING BRAKES

36-5

(2) Remove the rear brake adjusting hole plug.

Then insert a flat-tipped screwdriver to turn the
adjuster to the arrow direction (to expand the
shoe) until the parking brake shoe makes
contact and the disc can no longer be turned.
Back off the adjuster to the opposite direction
by five notches.

CAUTION

If the parking brake lever stroke is below the
standard value and the braking is too firm, the
rear brakes may drag.

(3) Adjust the parking brake pedal stroke to the

standard value by turning the adjusting nut.
After the adjustment, ensure that there is no
free play between the adjusting nut and the
parking brake pedal.
In addition, check that the adjusting nut is
secured by the nut holder.

(4) After the parking brake pedal stroke is

adjusted, raise the rear of the vehicle. Release
the parking brake, turn the rear wheels to
confirm that the rear brakes are not dragging.

PARKING BRAKE SWITCH CHECK

M1361003300455

<L.H. drive vehicles>

1. Remove the floor console assembly. (Refer to

GROUP 52A,  Floor Console
Aaaembly

P.52A-14

).

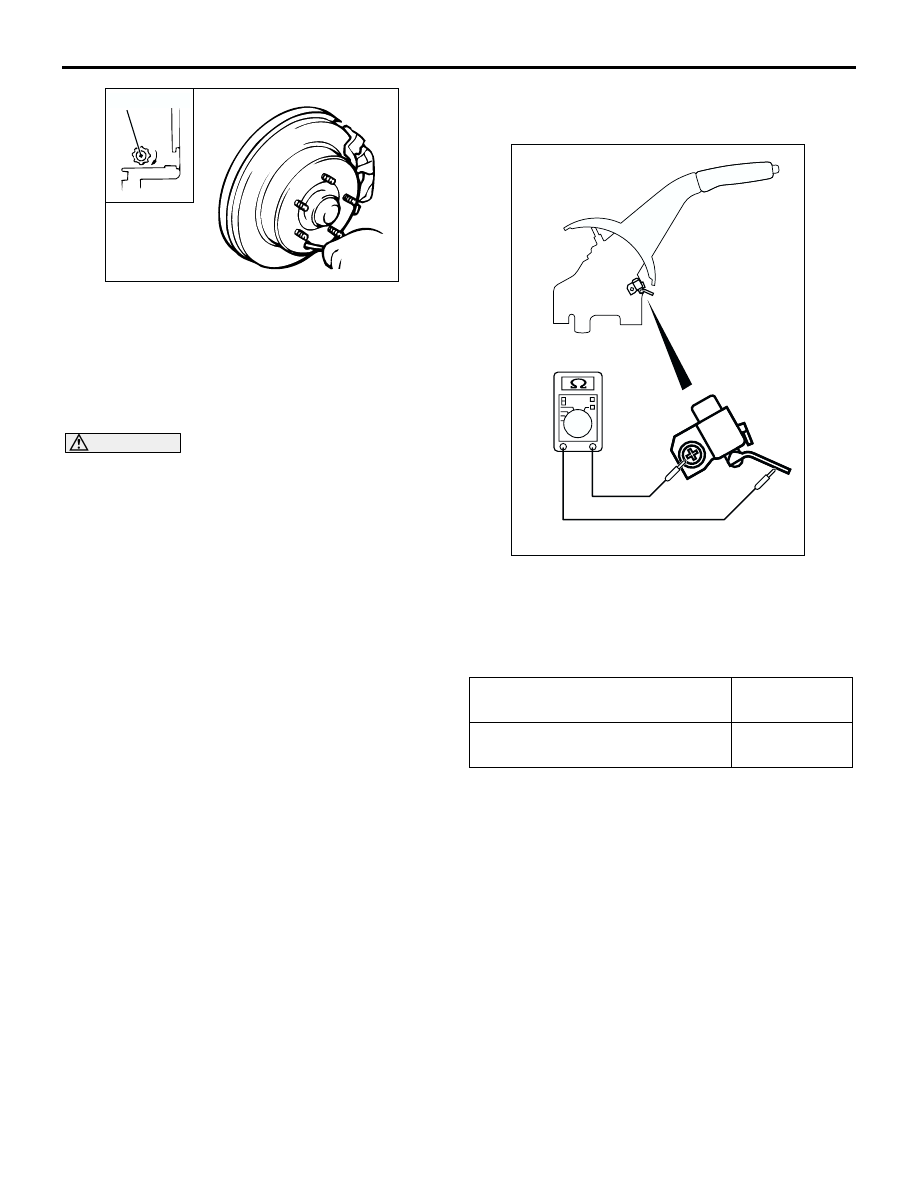

2. Check for continuity between the parking brake

switch terminal and the switch mounting bolt.

AC202320AC

Adjuster

When parking brake lever is pulled Less than 2

ohms

When parking brake lever is
released

Open circuit

AC300397

ON-VEHICLE SERVICE

PARKING BRAKES

36-6

<R.H. drive vehicles>

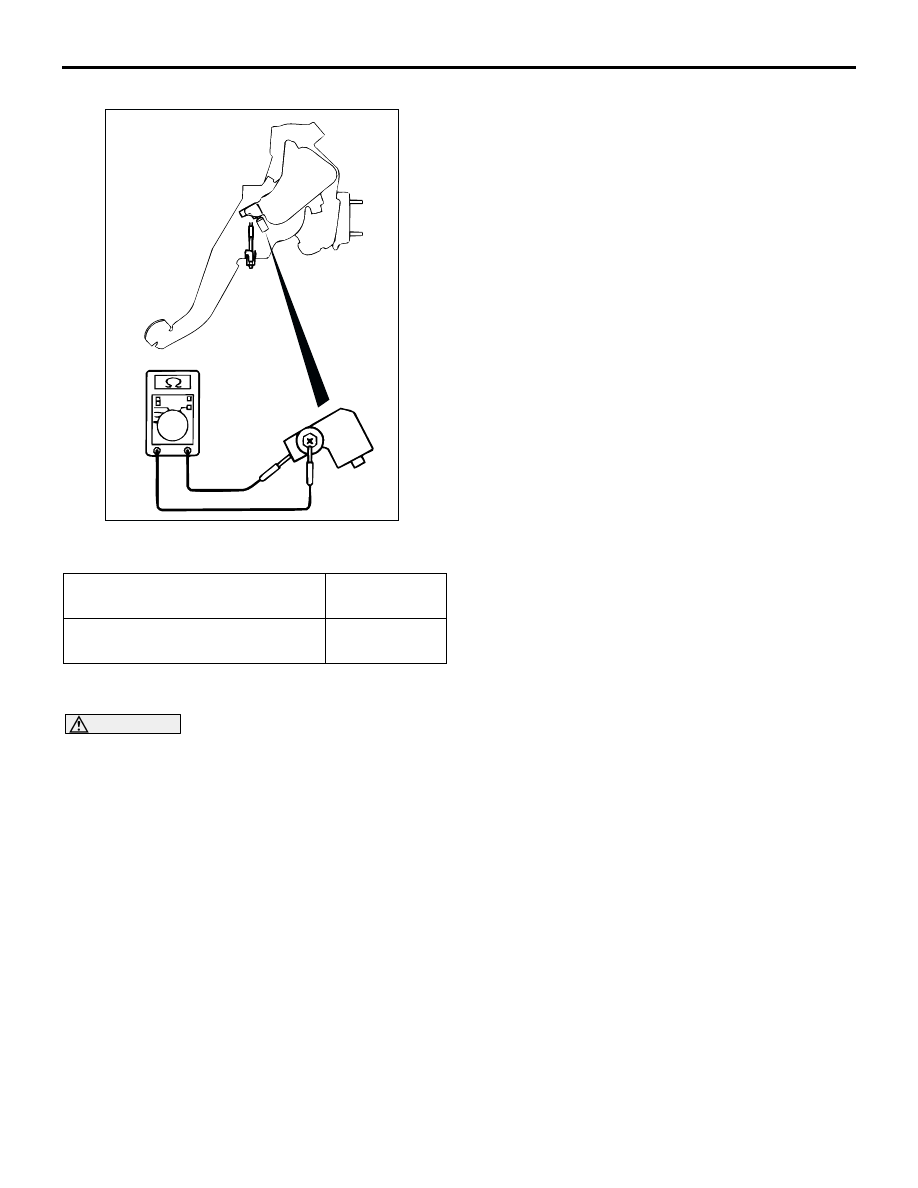

Check for continuity between the parking brake
switch terminal and the switch mounting bolt.

LINING RUNNING-IN

M1361001100303

CAUTION

Carry out running-in in a place with good
visibility, and pay careful attention to safety.
Carry out running-in by the following procedure when
replacing the parking brake linings or the rear brake
disc rotors, or when brake performance is
insufficient.

<L.H. drive vehicles>
1. Adjust the parking brake lever stroke to the

specified value.

Specified value (Operation force: Approx.
200 N): 4

 5 notches

2. Hook a spring balance onto the centre of the

parking brake lever grip and pull it with a force of
100

 150 N in a direction perpendicular to the

handle.

3. Drive the vehicle at a constant speed of 35

 50

km/h for 100 metres.

4. Release the parking brake and let the brakes cool

for 5

 10 minutes.

5. Repeat the procedure in steps 2 to 4 four or five

times.

<R.H. drive vehicles>
1. Adjust the parking brake pedal stroke to the

standard value.

Specified value (Operation force: Approx.
200 N): 1

 2 notches

2. Depress the parking brake pedal by 100 to 150 N

(equivalent to approximately one notch).

3. Drive the vehicle at a constant speed of 35

 50

km/h for 100 metres.

4. Release the parking brake and let the brakes cool

for 5

 10 minutes.

5. Repeat the procedure in steps 2 to 4 four or five

times.

When parking brake pedal is
depressed

Less than 2
ohms

When parking brake pedal is
released

Open circuit

AC102700

PARKING BRAKE LEVER <L.H. drive vehicles>

PARKING BRAKES

36-7

PARKING BRAKE LEVER <L.H. drive vehicles>

REMOVAL AND INSTALLATION

M1361001300396

Pre-removal Operation
Rear Floor Console Assembly Removal (Refer to GROUP
52A, Floor Console

P.52A-14

).

Post-installation Operation

Parking Brake Lever Stroke Adjustment (Refer to

P.36-4

).

Rear Floor Console Assembly Installation (Refer to

GROUP 52A, Floor Console Assembly

P.52A-14

).

AC107292

AC107247

AC107248

AC107249

AC107457AC

Ratchet pawl

Section A - A

Section B - B

B

B

A

A

4

5

2

1

3

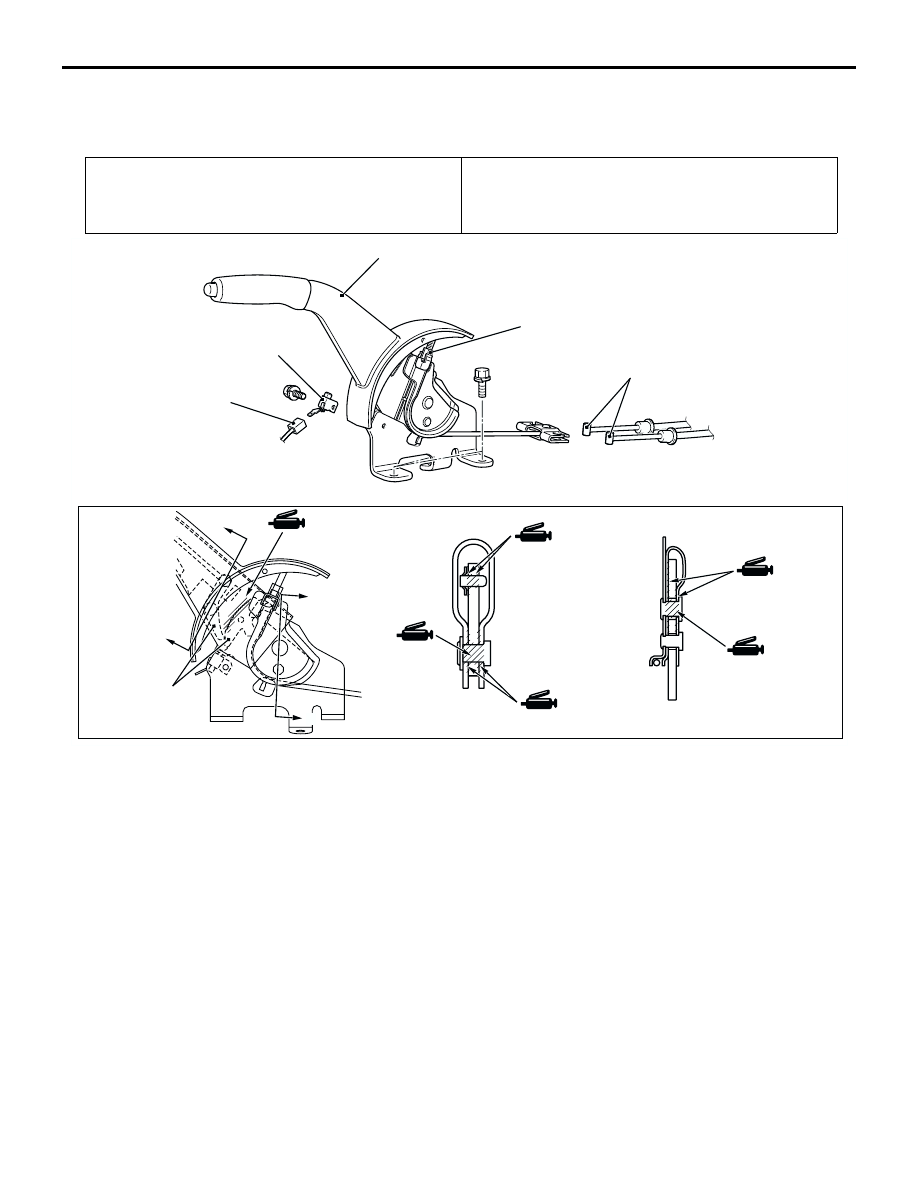

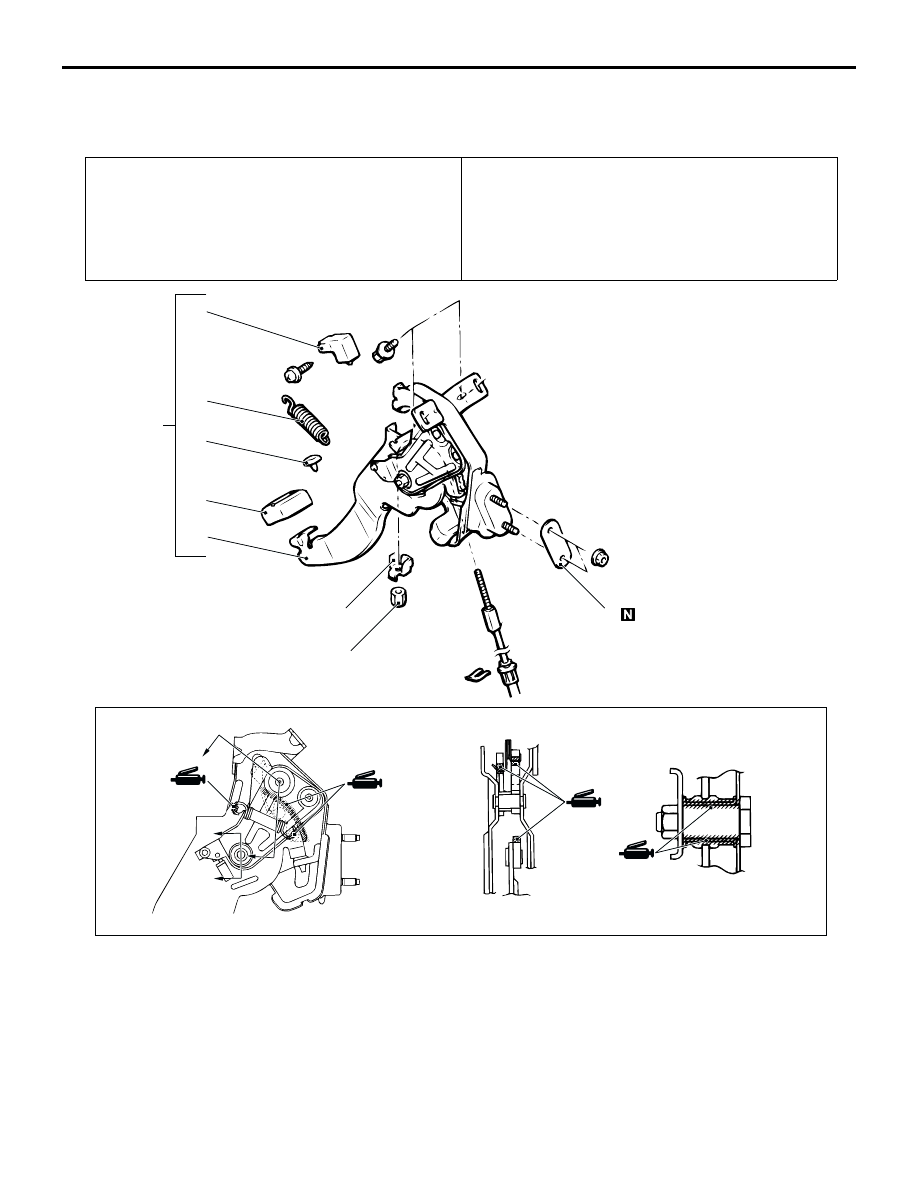

Removal steps

1.

Adjusting nut

2.

Parking brake switch connector

3.

Parking brake cable connection

4.

Parking brake lever assembly

5.

Parking brake switch

PARKING BRAKE PEDAL <R.H. drive vehicles>

PARKING BRAKES

36-8

PARKING BRAKE PEDAL <R.H. drive vehicles>

REMOVAL AND INSTALLATION

M1361001600137

Pre-removal Operation

Console side cover <driver's side> removal (Refer to

GROUP 52A, Instrument Pane

P.52A-8

).

Foot duct <driver's side> removal (Refer to GROUP 55A,

Heater unit, Heater Core, Heater Blower Assembly and

Evaporator Unit

P.55A-63

).

Post-installation Operation

Foot duct <driver's side> installation (Refer to GROUP

55A, Heater unit, Heater Core, Heater Blower Assembly

and Evaporator Unit

P.55A-63

).

Console side cover <driver's side> installation (Refer to

GROUP 52A, Instrument Panel

P.52A-8

).

Parking Brake Pedal Stroke Adjustment (Refer to

P.36-4

).

AC103685

A

AC

4

2

1

6

7

8

5

9

3

Section A - A

Section B - B

A

B

B

Removal steps

1.

Adjusting nut

2.

Nut holder

3.

Parking brake pedal assembly

4.

Sealer

5.

Pedal pad

6.

Parking brake switch

>>A<<

7.

Tension spring

8.

Stopper

9.

Parking brake pedal assembly
