SERVICE SPECIFICATIONS

ANTI-SKID BRAKING SYSTEM (ABS)

35B-3

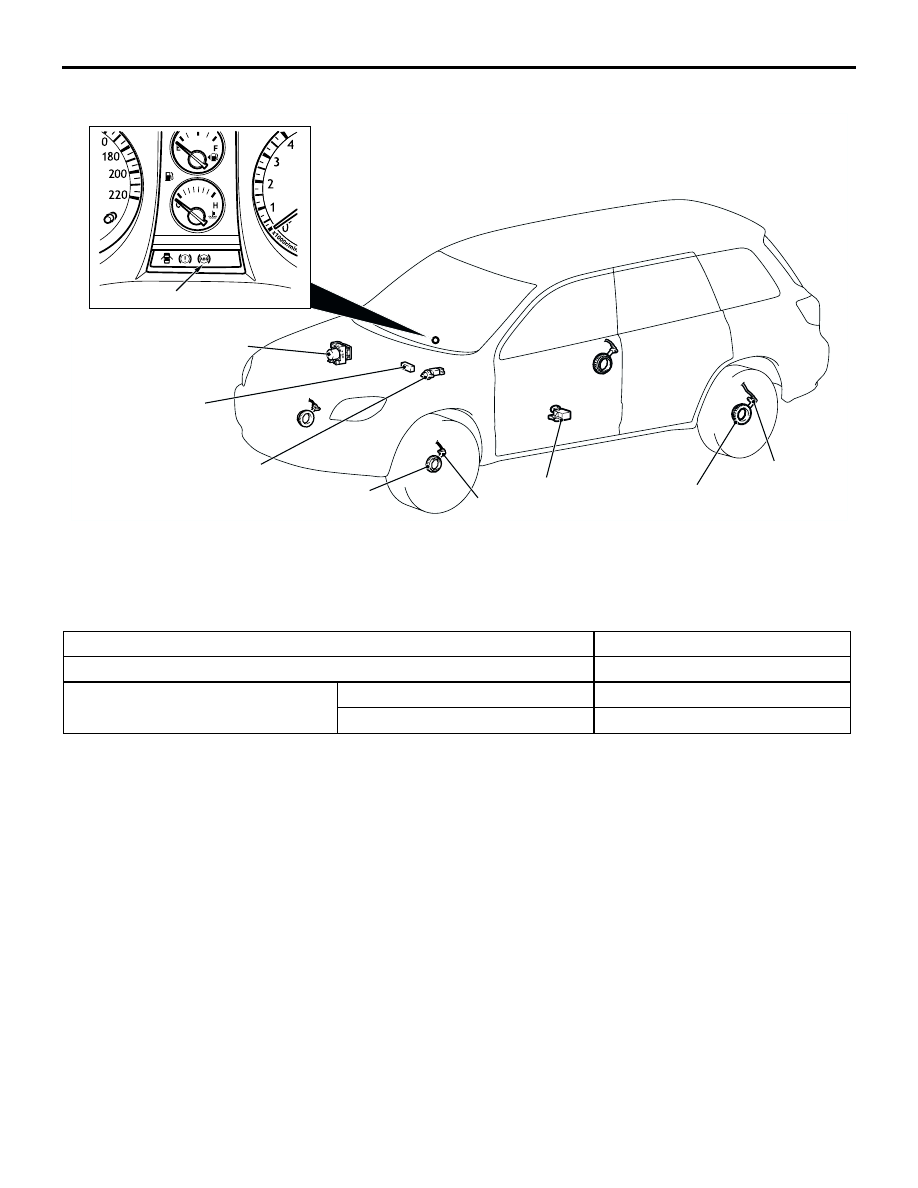

CONSTRUCTION DIAGRAM

SERVICE SPECIFICATIONS

M1352000300544

AC301089AC

ABS warning lamp

Hydraulic unit and
ABS-ECU

Diagnosis
connector

G-sensor <4WD>

Stop lamp switch

ABS sensor (front)

ABS rotor (front)

ABS sensor (rear)

ABS rotor (rear)

Item

Standard value

ABS sensor internal resistance k

Ω

1.24

−

 1.64

G-sensor output voltage <4WD> V

Stationary vehicles

2.4

−

 2.6

Arrow facing downward

3.4

−

 3.6

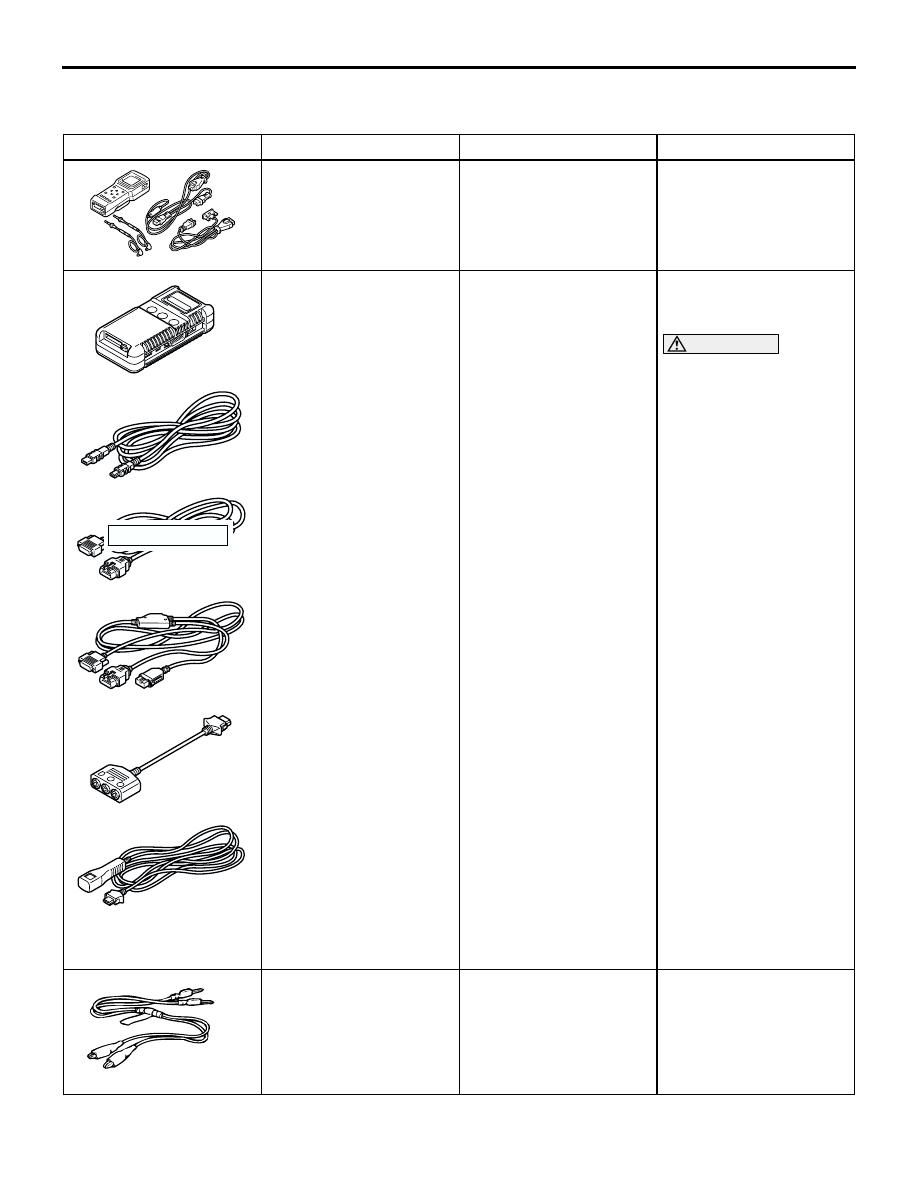

SPECIAL TOOLS

ANTI-SKID BRAKING SYSTEM (ABS)

35B-4

SPECIAL TOOLS

M1352000600761

Tool

Number

Name

Use

MB991502

MUT-II sub assembly

Checking the ABS
(Diagnosis display using
the MUT-II)

MB991955
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-III sub-assembly
A: Vehicle
Communication Interface
(V. C. I.)
B: MUT-III USB cable
C: MUT-III main harness
A (Vehicles with CAN
communication system)
D: MUT-III main harness
B (Vehicles without CAN
communication system)
E: MUT-III measurement
adapter
F: MUT-III trigger harness

Checking the ABS
(Diagnosis display using
the MUT-III)

CAUTION

MUT-III main harness B
(MB991911) should be
used. MUT-III main
harness A should not
be used for this vehicle.

MB991529

Diagnosis code check
harness

Checking the ABS
(Diagnosis display using
the ABS warning lamp)

B991502

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USED

MB991529

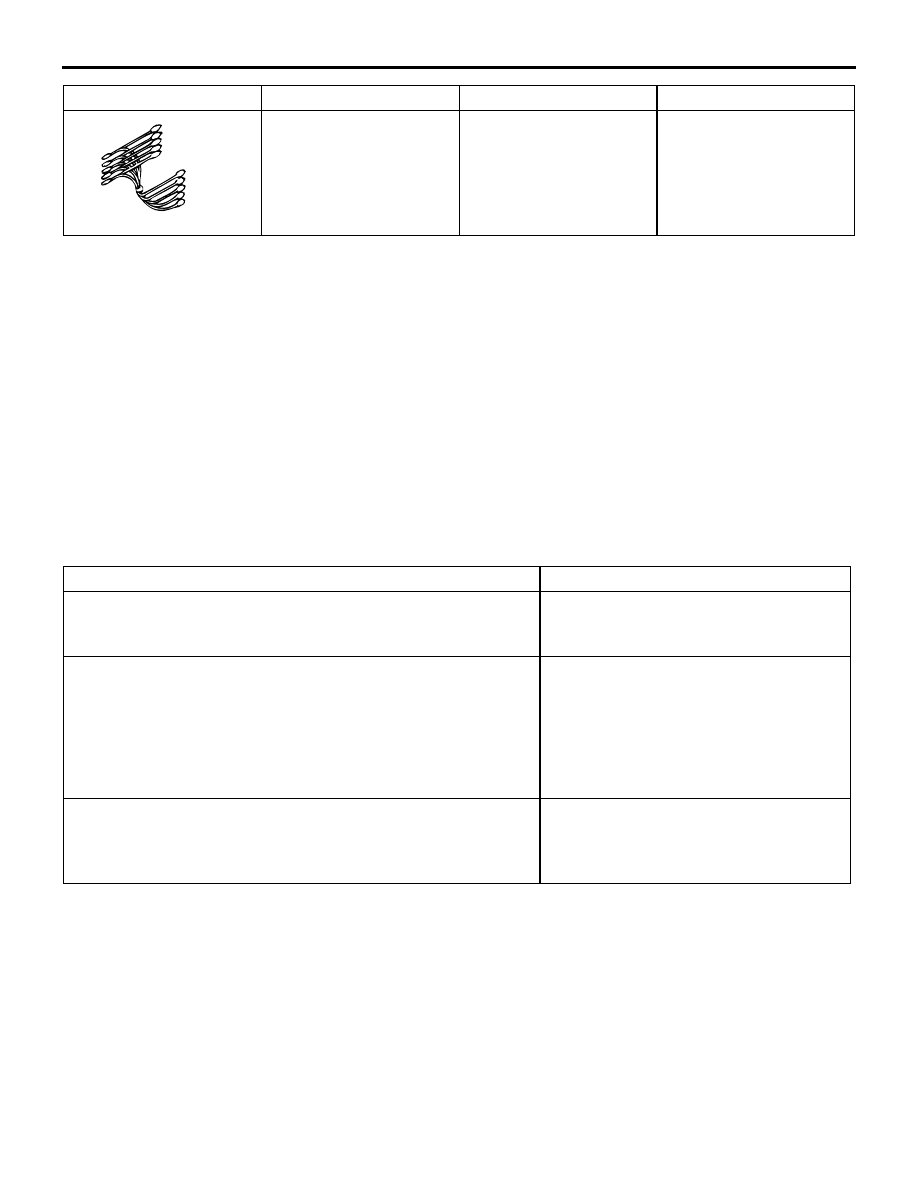

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-5

TROUBLESHOOTING

STANDARD FLOW OF DIAGNOSTIC
TROUBLESHOOTING

M1352011100511

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NOTES WITH REGARD TO DIAGNOSIS

M1352012600177

1. The ABS is a system which controls the brake

pressure by means of the operation of the ECU.
Accordingly, the following symptoms may occur at
times, but these are a sign of normal ABS
operation, and do not indicate a malfunction.

2. For road surfaces such as snow-covered roads

and gravel roads, the braking distance for
vehicles with ABS can sometimes be longer than
that for other vehicles. Accordingly, advise the
customer to drive safely on such roads by
lowering the vehicle speed and not being too
overconfident.

3. Diagnosis detection condition can vary depending

on the diagnosis code. Make sure that checking
requirements listed in the "Comment" are satisfied
when checking the trouble symptom again.

MB991348

Test harness set

Checking the G-sensor
<4WD>

Tool

Number

Name

Use

MB991348

Phenomenon

Explanation of phenomenon

When the engine starts, a knocking sound can be heard coming
from the engine compartment.

This sound occurs as a result of system
operation checking, and is not a
malfunction.

•

Sound of the motor inside the ABS hydraulic unit operation.
(whine)

•

Sound is the generated along with vibration of the brake
pedal. (scraping)

•

When ABS operates, sound is generated from the vehicle
chassis due to repeated brake application and release.
(Thump: suspension; squeak: tyres)

This is the sound of normal system
operation, and is not a malfunction.

Shocks are felt if the brake pedal is depressed when driving at
low speed.

This is due to system operation checking
(starting-of check when the vehicle speed
reaches a certain number of km/h) and is
not a malfunction.

TROUBLESHOOTING

ANTI-SKID BRAKING SYSTEM (ABS)

35B-6

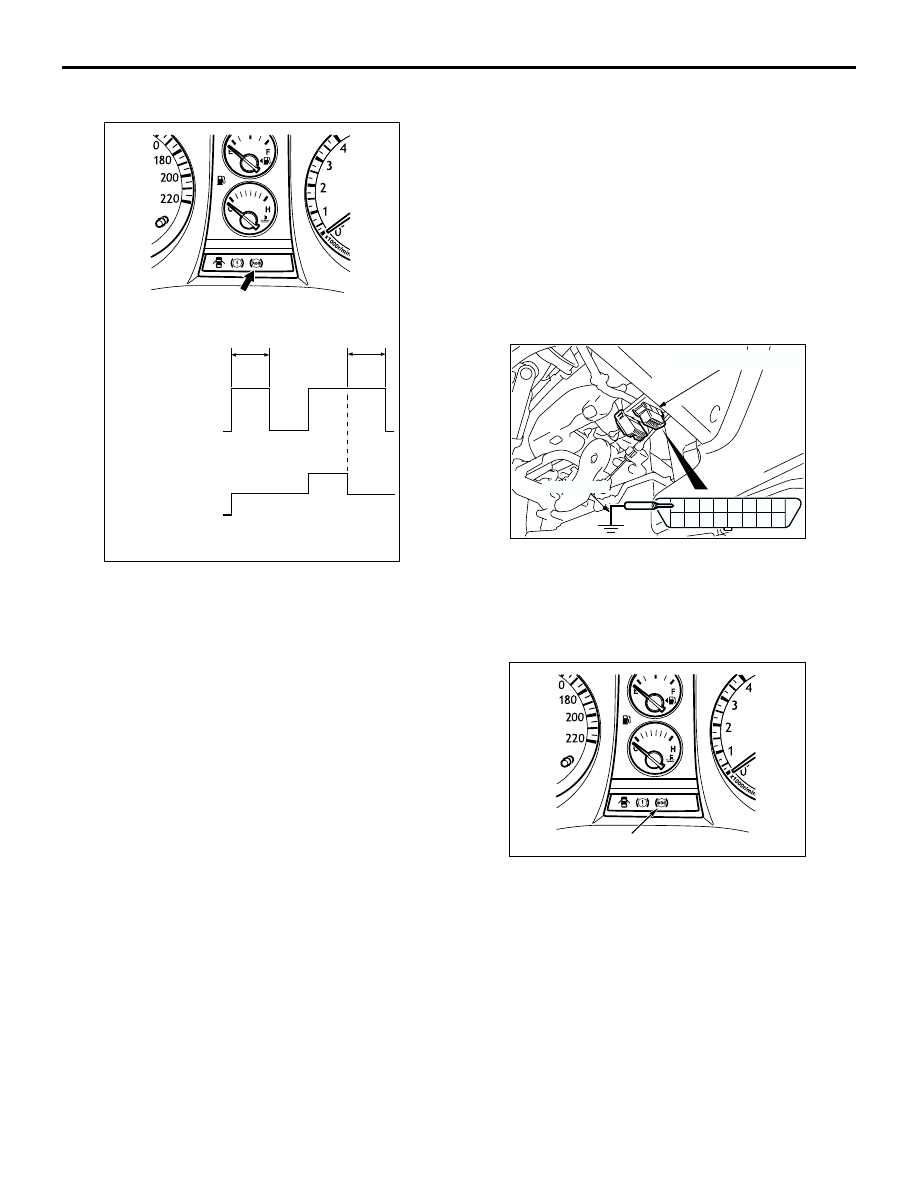

ABS WARNING LAMP INSPECTION

M1352012000197

Check that the ABS warning lamp illuminates as
follows.
1. When the ignition switch is turned to the "ON"

position, the ABS warning lamp illuminates for
approximately 3 seconds and then switches off.

2. When the ignition switch is turned to the "START"

position, the ABS warning lamp remains
illuminated.

3. When the ignition switch is turned from the

"START" position back to the "ON" position, the
ABS warning lamp illuminates for approximately 3
seconds and then switches off.
NOTE: The ABS waning lamp may remain on until
the vehicle reaches a speed of several km/h. This
is limited to cases where diagnosis code Nos. 21
to 24, 41 to 44, or 53 to 55 have been recorded
because of a previous problem occurring. In this
case, the ABS-ECU keeps the warning lamp
illuminated until the problem corresponding to that
diagnosis code can be detected.

4. If the illumination is other than the above, check

the diagnosis codes.

DIAGNOSIS FUNCTION

M1352011200756

READING DIAGNOSIS CODES

When Using the MUT-II/III
Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

When Using the ABS Warning Lamp
1. Turn the ignition switch to the "LOCK" (OFF)

position.

2. Use special tool diagnosis code check harness

(MB991529) to earth terminal number 1
(diagnosis control terminal) of the diagnosis
connector.

3. Turn the ignition switch to the "ON" position.

4. Read out a diagnosis code by observing how the

warning lamp flashes.

AC301359AB

Approx. 3 s

Approx. 3 s

ABS
warning
lamp

Ignition
switch

Illuminated

Not
illuminated

START

ON

ACC

AC107528 AH

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

MB991529

Diagnosis connector

AC301437AB

ABS warning lamp
