A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

AUTOMATIC TRANSMISSION (FF)

23A-171

REMOVAL SERVICE POINT

<<A>> KEY INTERLOCK CABLE (STEERING
LOCK CYLINDER SIDE) REMOVAL
Turn the ignition switch to the ACC position and then
pull the key interlock cable out from the ignition key
cylinder.

INSTALLATION SERVICE POINTS

>>A<< SHIFT LOCK CABLE UNIT INSTALLATION
1. Shift the selector lever to the P position and turn

the ignition switch to the LOCK (OFF) position.

2. After installing the rod of the shift lock cable unit to

the lock cam of the selector lever assembly,
tighten the bolts of the shift lock cable unit to the
specified torque.

Tightening torque: 5.0

±

 1.0 N

m

3. Check the operation of the selector lever. (Refer

to

P.23A-158

.)

>>B<< KEY INTERLOCK CABLE (STEERING
LOCK CYLINDER SIDE) INSTALLATION
Turn the ignition switch to the ACC position and then
install the key interlock cable to the ignition key
cylinder.

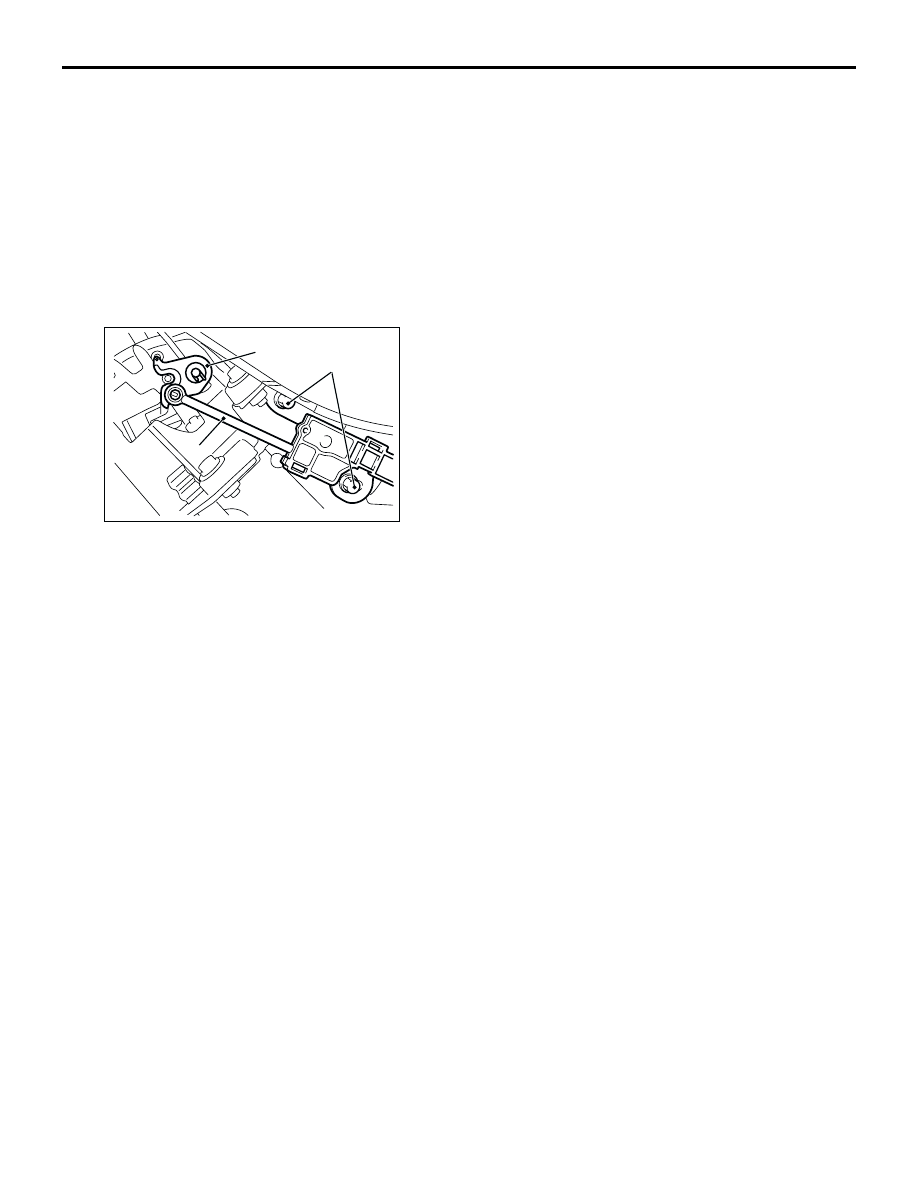

AC103391AC

Bolts

Lock cam

Rod

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-172

TRANSMISSION ASSEMBLY

REMOVAL AND INSTALLATION

M1231005700556

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened after placing the

vehicle on the earth and loading the full weight of the engine on the vehicle body.

Pre-removal Operation

Front Under Cover and Side Under Cover Removal (Refer

to GROUP 51, Under Cover

P.51-19

.)

A/T Fluid Draining (Refer to

P.23A-144

.)

Transfer Oil Draining (Refer to

P.23A-147

.)

Front Exhaust Pipe Removal (Refer to GROUP 15,

Exhaust Pipe and Main Muffler

P.15-13

.)

Propeller Shaft Removal (Refer to GROUP 25

P.25-3

.)

Air Cleaner Assembly Removal (Refer to GROUP 15

P.15-4

.)

Battery and Battery Tray Removal.

Post-installation Operation

Front Under Cover and Side Under Cover Installation

(Refer to GROUP 51, Under Cover

P.51-19

.)

A/T Fluid Supplying (Refer to

P.23A-144

.)

Transfer Oil Supplying (Refer to

P.23A-147

.)

Front Exhaust Pipe Installation (Refer to GROUP 15,

Exhaust Pipe and Main Muffle

P.15-13

.)

Propeller Shaft Installation (Refer to GROUP 25

P.25-3

.)

Air Cleaner Assembly Installation (Refer to GROUP 15

P.15-4

.)

Battery and Battery Tray Installation.

Selector Lever Operation Check (Refer to

P.23A-158

.)

Front Wheel Alignment Check and Adjustment (Refer to

GROUP 33A, On-vehicle Servic

P.33-6

.)

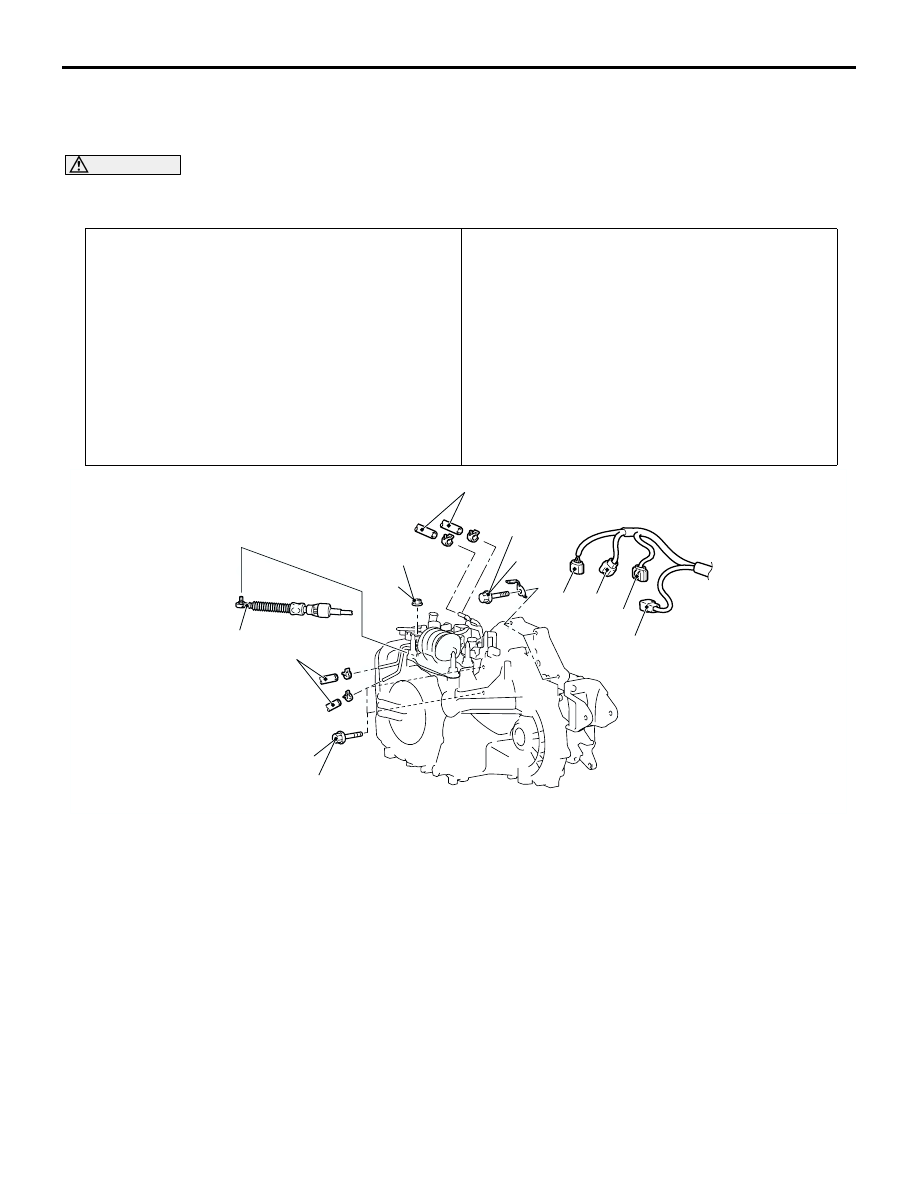

AC309373

2

1

3

4

5

6

10

8

9

7

AB

48 ± 6 N·m

12 ± 2 N·m

30 ± 3 N·m

Removal steps

>>D<<

1.

Adjusting nut

>>D<<

2.

Transmission control cable

3.

Inhibitor switch connector

4.

A/T control solenoid valve
assembly connector

5.

Input shaft speed sensor
connector

6.

Output shaft speed sensor
connector

7.

A/T fluid cooler hose (radiator
side)

8.

A/T fluid cooler hose (A/T fluid
cooler side)

Drive shaft and output shaft
(Refer to GROUP 26, Drive Shaft
Assembly

P.26-15

.)

9.

Starter motor installation bolt

<<A>>

10. Transmission upper connecting

bolts

Removal steps (Continued)

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-173

REMOVAL SERVICE POINTS

<<A>> TRANSMISSION UPPER CONNECTING
BOLTS
Do not fully unscrew the bolts from the transmission
assembly. Only loosen the bolts.

<<B>> DRIVE PLATE BOLTS REMOVAL
1. Turn the crank shaft so that it is positioned to

allow the drive plate bolt to be unscrewed.

2. Push in the torque converter into the transmission

side and make a point to ensure that the torque
converter does not remain on the engine side.

<<C>> TRANSMISSION MOUNT BRACKET
ASSEMBLY REMOVAL

While supporting the engine and transmission
assembly with a garage jack, remove the
transmission mount bracket assembly.

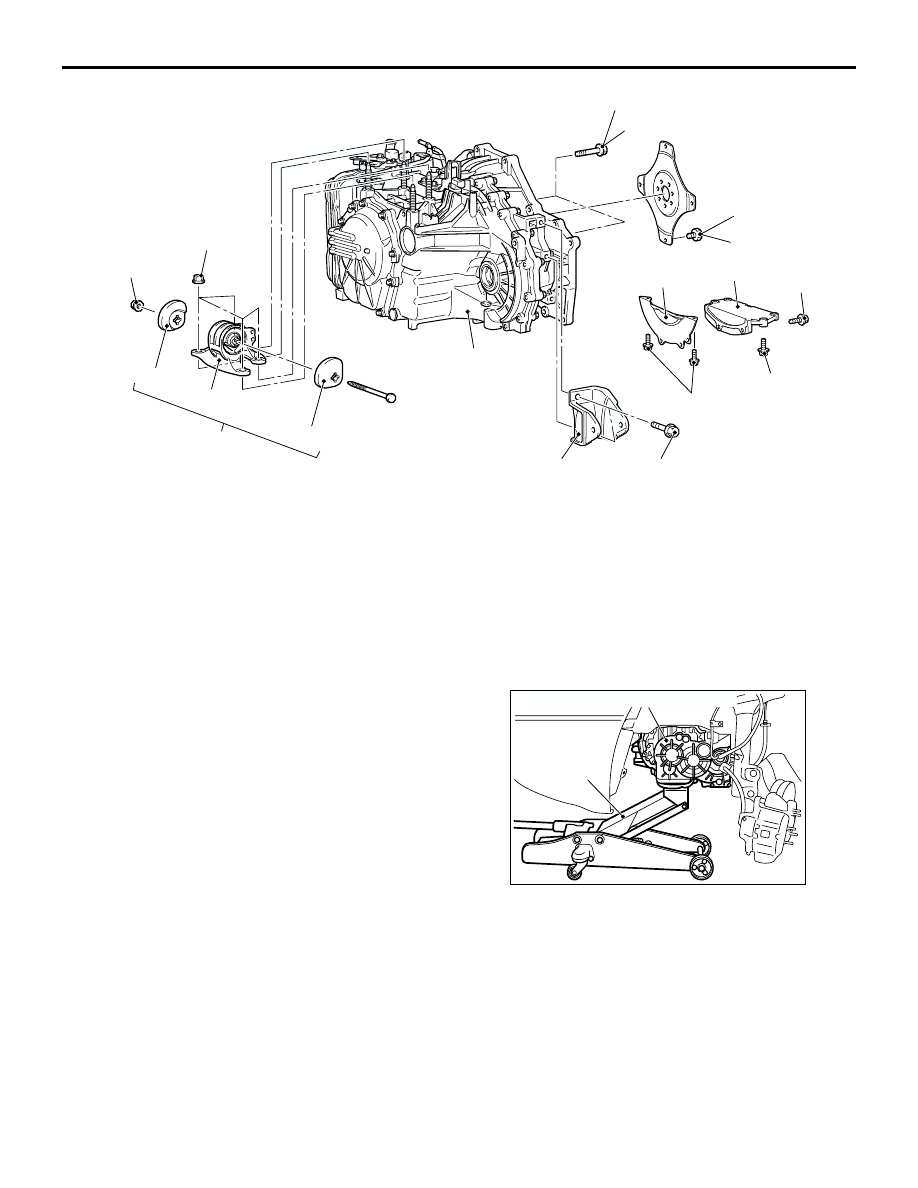

AC309374

19

16

16

17

15

83 ± 12 N·m*

58 ± 7 N·m*

14

90 ± 10 N·m

49 ± 3 N·m

12

9.0 ± 1.0 N·m

44 ± 10 N·m

11

18

48 ± 6 N·m

AB

22 ± 4 N·m

13

Removal steps

>>C<<

11. Transmission stay
12. Bell housing cover

<<B>>

13. Torque converter and drive plate

coupling bolts

Transfer assembly (Refer to

P.23A-176

.)

14. Rear roll stopper bracket

<<C>>

15. Transmission mounting assembly

>>B<<

16. Transmission mounting stopper
17. Transmission mounting

<<D>>

Engine assembly supporting

Support the transmission

Support the transmission with a
transmission jack

18. Transmission lower part coupling

bolts

>>A<<

19. Transmission assembly

AC210384

Garage jack

Engine and transmission assembly

AB

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-174

<<D>> ENGINE ASSEMBLY SUPPORTING

1. <Engine hanger (special tool MB991895) is used>

(1) Set special tool MB991895 to the strut

mounting nuts and the radiator support upper
insulator mounting bolts, which are located in
the engine compartment, as shown.

(2) Set special tools MB991454 to hold the

engine/transmission assembly.

2. <Engine hanger (special tool MB991928) is used>

(1) Assemble the engine hanger (special tool

MB991928). Set following parts to the base
hanger.

Slide bracket (HI)

Foot (standard) (MB991932)

Joint (90) (MB991930)

Joint (50) (MB991929)

(2) Set the engine hanger (special tool

MB991928) to the strut mounting nuts and the
radiator support upper insulator mounting
bolts, which are located in the engine
compartment, as shown.

NOTE: Adjust the engine hanger balance by
sliding the slide bracket (HI).

(3) Set special tools MB991454 to hold the

engine/transmission assembly.

INSTALLATION SERVICE POINTS

>>A<< TRANSMISSION ASSEMBLY
INSTALLATION

Engage the torque converter into the transmission
side securely, and then assemble the transmission
assembly on the engine.

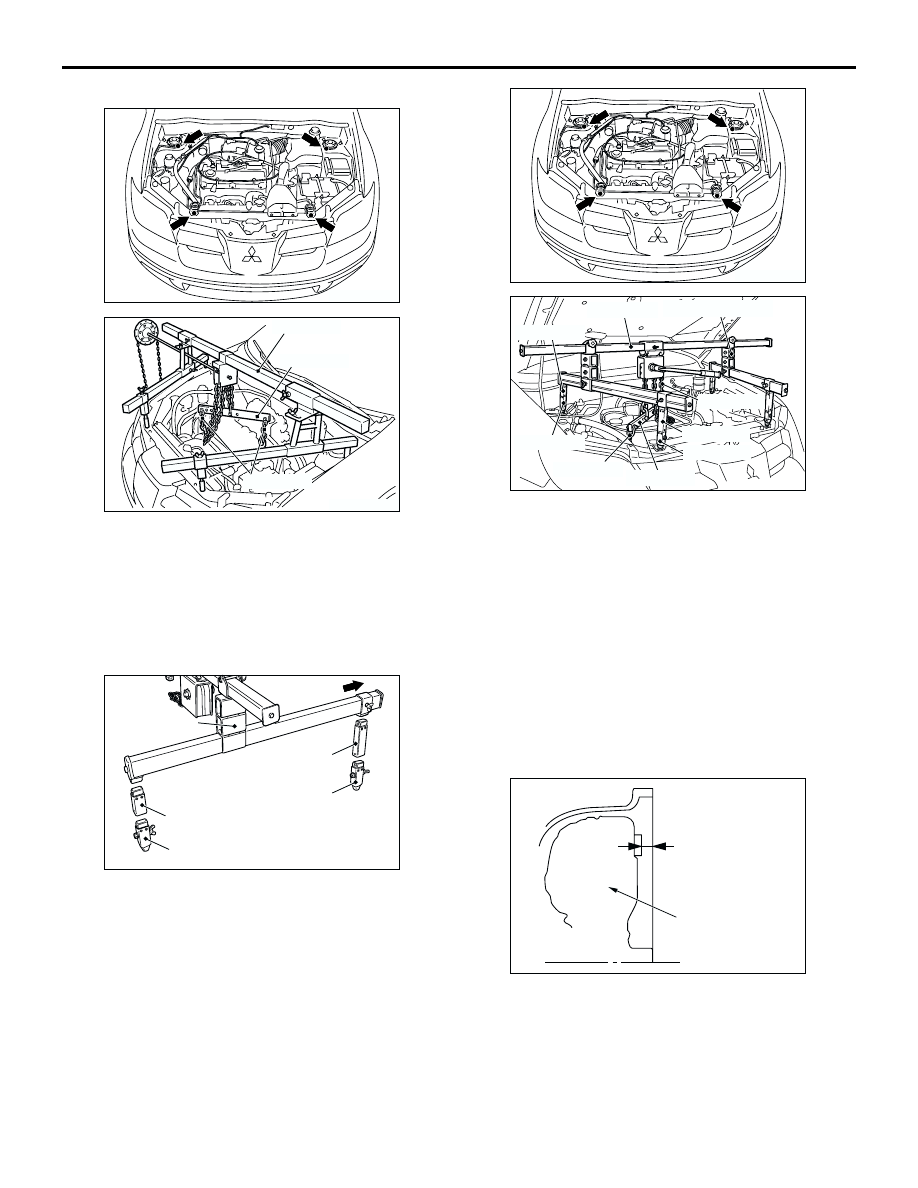

AC210400AB

AC210388 AB

MB991527

MB991454

MB991895

AC212277

Front side

Slide
bracket
(HI)

Joint (50)
(MB991929)

Joint (90)
(MB991930)

Foot (Standard)
(MB991932)

Foot (Standard)
(MB991932)

AB

AC210400AB

AC210392

MB991928

Slide bracket (HI)

MB991929

MB991932

MB991932

MB991930

MB991934

MB991527

MB991454

AB

AC209056

Approximately
12.2 mm

AE

Torque converter
