Mitsubishi Outlander (2003+). Manual - part 220

TRANSMISSION ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-175

>>B<< TRANSMISSION MOUNT STOPPER
INSTALLATION

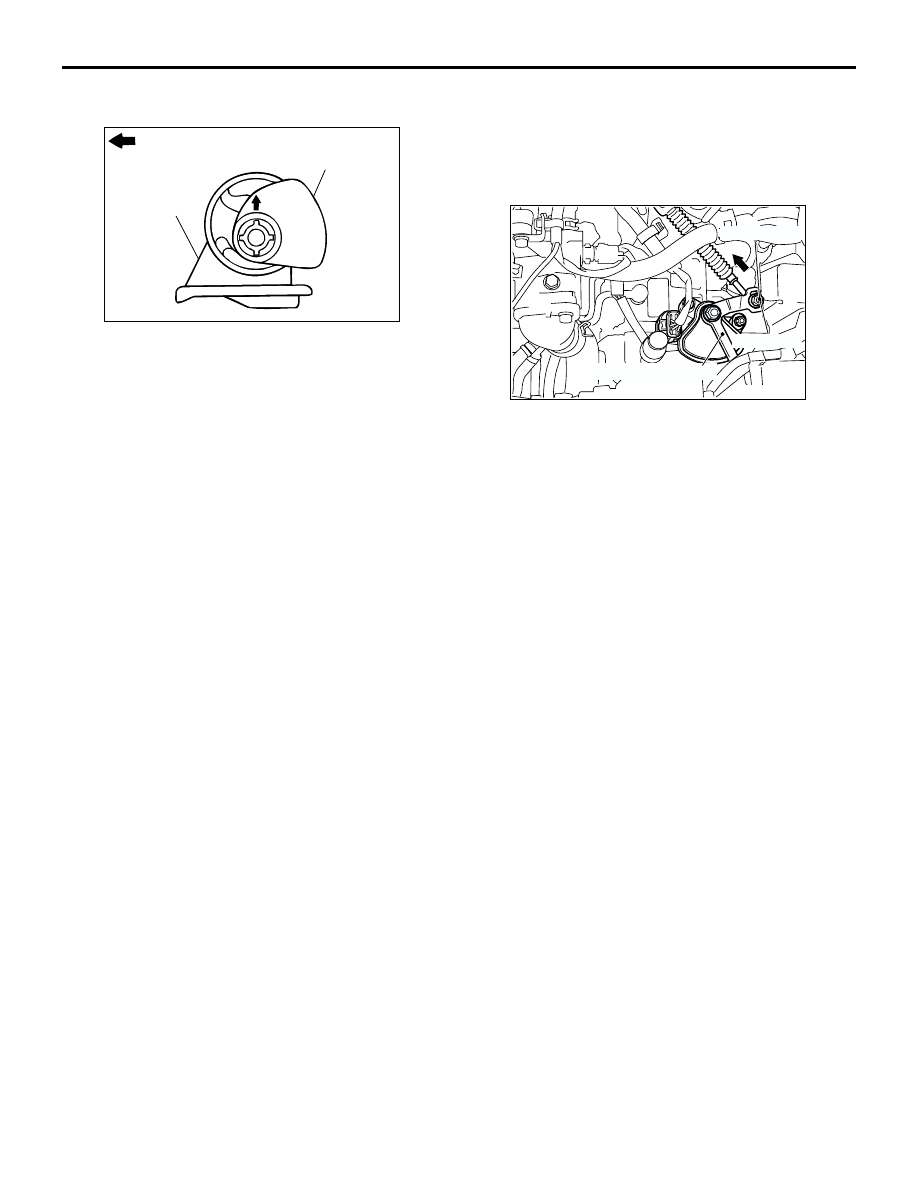

Install the transmission mount stopper so that the
arrow mark points as shown in the illustration.
>>C<< TRANSMISSION STAY INSTALLATION
Install the transmission stay as below.
1. Tighten the engine-side bolts to the specified

torque.

Tightening torque: 22

±

 4 N

⋅

m

2. Tighten the transmission-side bolts to the

specified torque.

Tightening torque: 44

±

 10 N

⋅

m

>>D<< ADJUSTING NUT/TRANSMISSION
CONTROL CABLE INSTALLATION
1. Place the selector lever and manual control lever

in the N position.

2. Place the cable stud into the manual control lever

slot and install the nut loosely. Gently push the
transmission control cable into the manual control
lever slot until the cable is taut. Tighten the nut to
the specified torque.

Tightening torque: 12

±

 2 N

⋅

m

AC005916

Transmission
mount bracket

Transmission
mount stopper

Engine side

AB

AC103395AO

Manual control lever

Adjusting nut

12 ± 2 N·m

TRANSFER ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-176

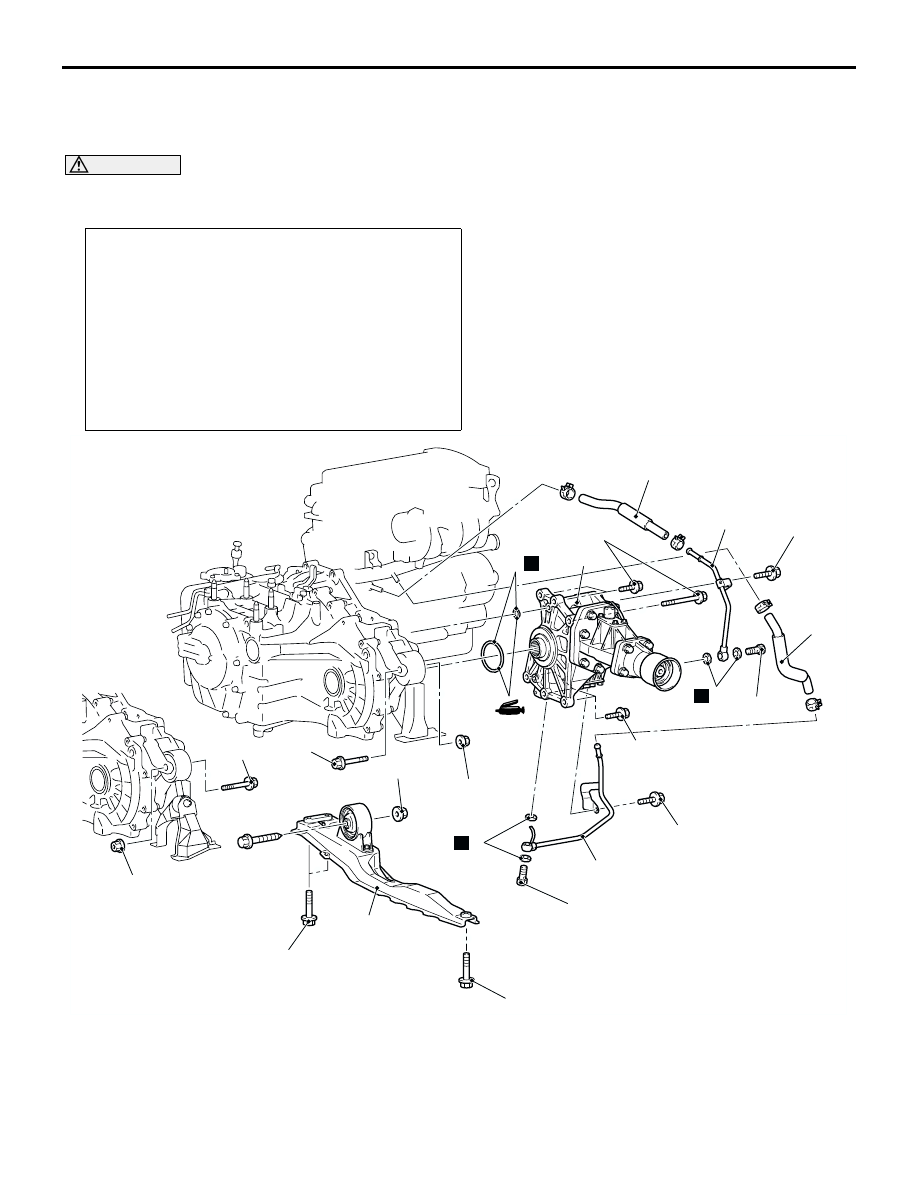

TRANSFER ASSEMBLY

REMOVAL AND INSTALLATION

M1231006000204

CAUTION

*

: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle

horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal and Post-installation Operation

•

Under Cover Removal and Installation

•

A/T fluid Draining and Supplying (Refer to GROUP 23A,

On-vehicle Service

P.23A-144

).

•

Transfer Oil Draining and Supplying (Refer to GROUP

23A, On-vehicle Service

P.23A-147

).

•

Drive Shaft, Output Shaft Removal and Installation (Refer

to GROUP 26

P.26-15

).

•

Front Exhaust Pipe Removal and Installation (Refer to

GROUP 15, Exhaust Pipe and Main Muffler

P.15-13

).

•

Propeller Shaft Removal and Installation (Refer to

GROUP 25

P.25-3

).

AC309352

<LHD>

1

2

9

4

8

N

69 ± 10 N·m

69 ± 10 N·m

52 ± 7 N·m*

52 ± 7 N·m*

69 ± 10 N·m

69 ± 10 N·m

30 ± 3 N·m

9.0 ± 2.0 N·m

N

N

10

3

5

9.0 ± 2.0 N·m

30 ± 3 N·m

7

6

5

52 ± 7 N·m*

AB

Removal steps

1.

Water return tube assembly

2.

Gasket

3.

Water feed tube assembly

4.

Gasket

5.

Rear roll stopper connection bolt

6.

Centre member assembly

<<A>>

7.

Transfer assembly

8.

O-ring

9.

Water return hose

10. Water feed hose

Removal steps (Continued)

TRANSFER ASSEMBLY

AUTOMATIC TRANSMISSION (FF)

23A-177

REMOVAL SERVICE POINT

<<A>> TRANSFER ASSEMBLY REMOVAL

CAUTION

After pulling out the transfer assembly, upon
returning the transmission assembly to the
original position be careful not to damage the
bush parts of the roll stopper.

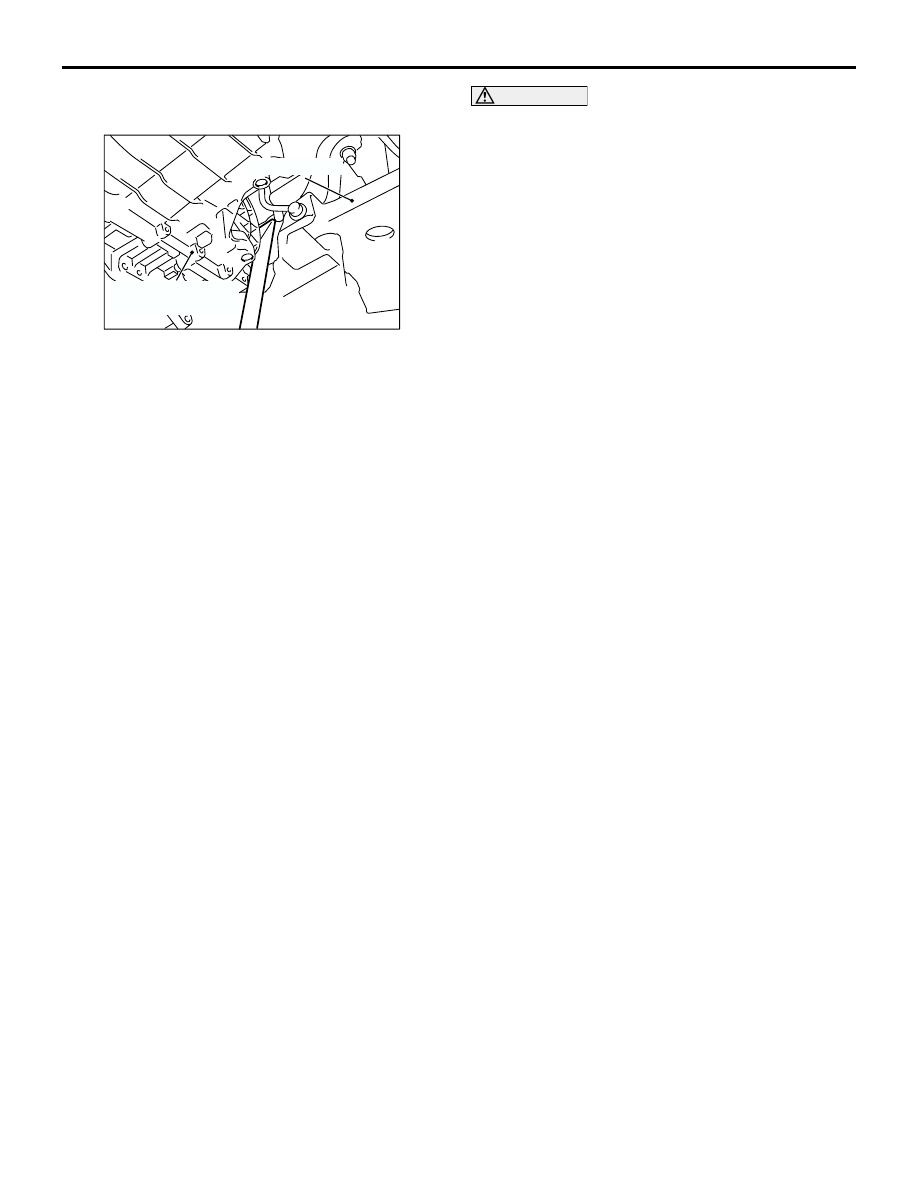

Use a tyre lever, etc. to slide the transmission
assembly to the front of the vehicle, create a
clearance between the transmission assembly and
crossmember, and then pull out the transfer
assembly from that clearance.

AC103630 AD

Cross member

Engine transmission
assembly

A/T FLUID COOLER

AUTOMATIC TRANSMISSION (FF)

23A-178

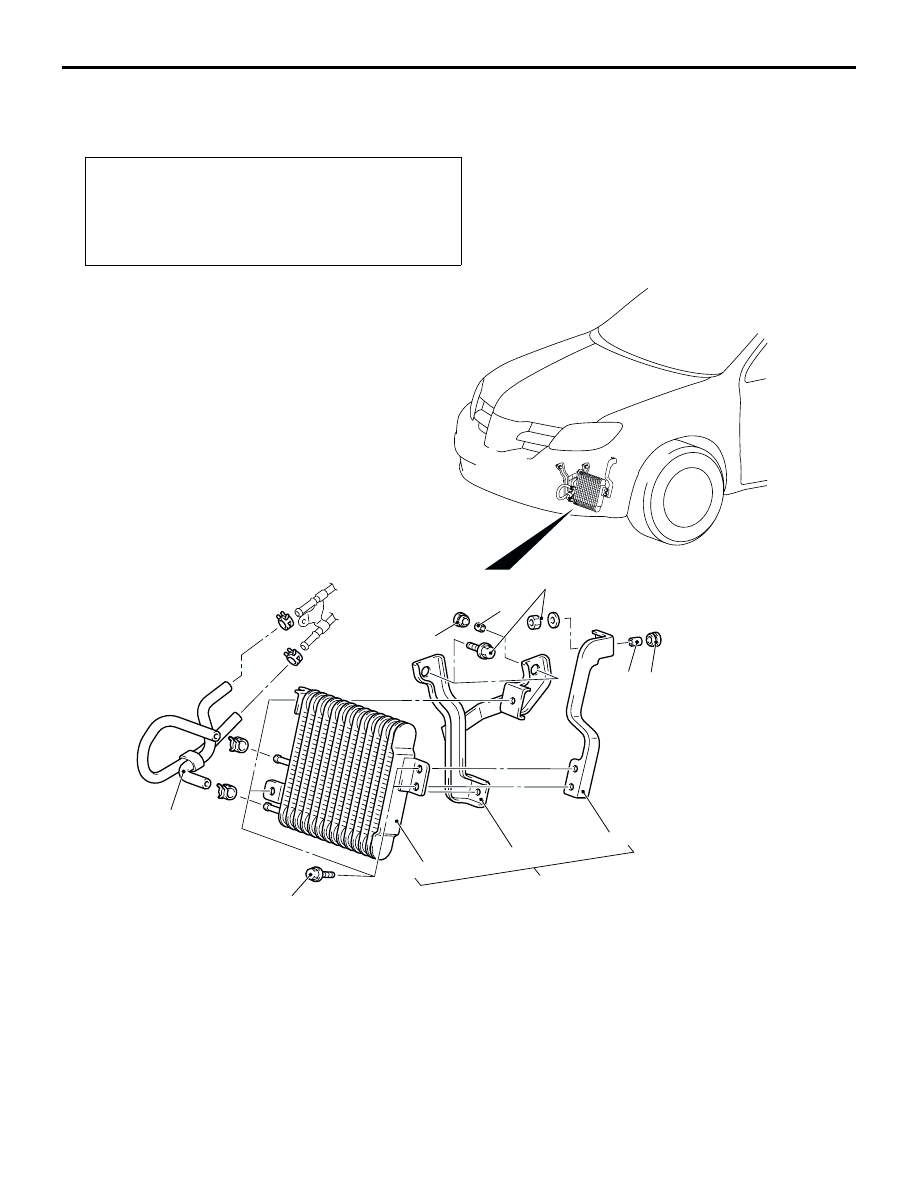

A/T FLUID COOLER

REMOVAL AND INSTALLATION

M1231028600099

Pre-removal and Post-installation Operation

•

Front Under Cover (LH) Removal and Installation (Refer

to GROUP 51, Under Cover

P.51-19

.)

•

Splash Shield Mounting Clips (LH) Removal and

Installation (Refer to GROUP 51, Front Bumper

P.51-3

.)

•

A/T Fluid Supplying (Refer to

P.23A-144

.)

AC309337AB

1

12 ± 2 N·m

5

4

3

2

7 6

7

6

12 ± 2 N·m

Removal steps

1.

Cooler hose assembly

2.

A/T fluid cooler and bracket

3.

Bracket A

4.

Bracket B

5.

A/T fluid cooler

6.

Bush

7.

Collar

Removal steps (Continued)
