Mitsubishi Outlander (2003+). Manual - part 147





ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-7

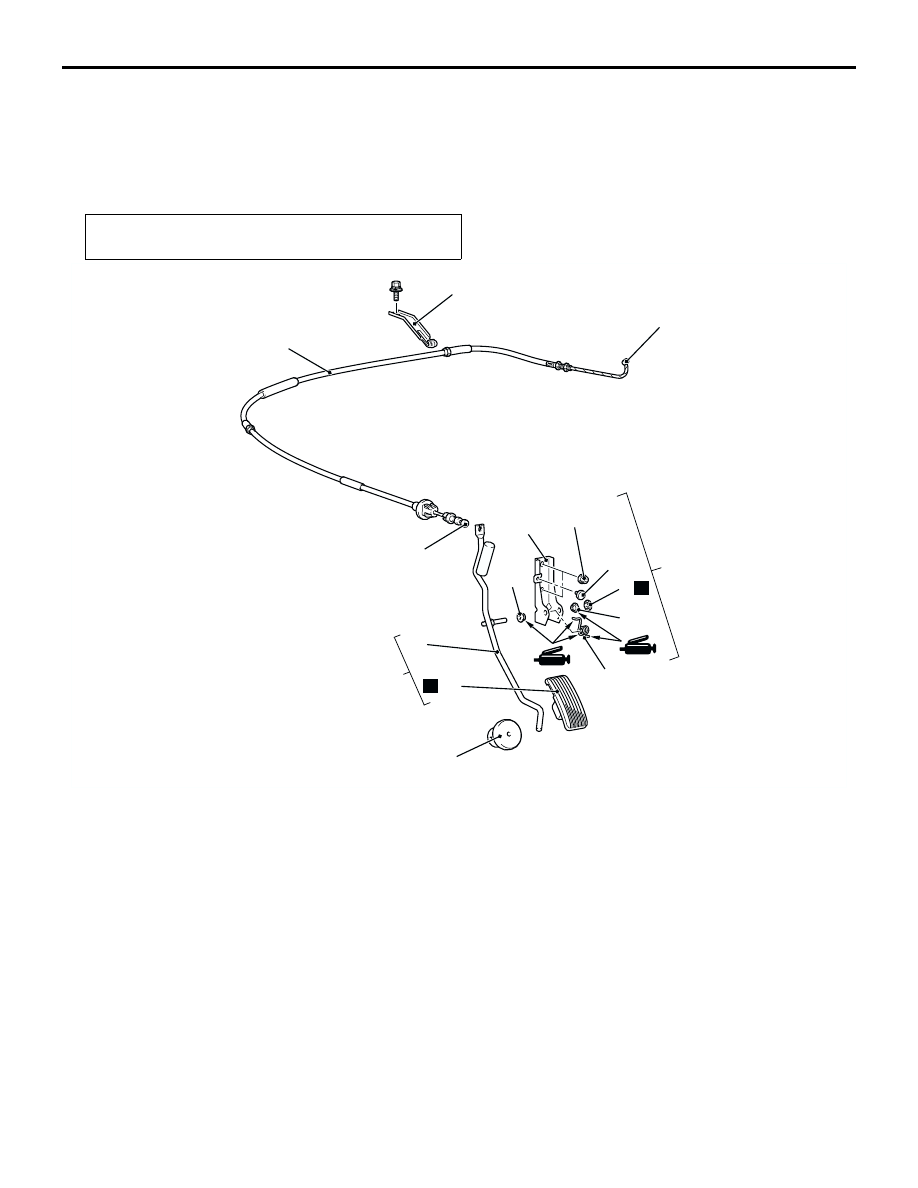

ACCELERATOR CABLE AND PEDAL
<4G69>

REMOVAL AND INSTALLATION

M1171001200415

<L.H. drive vehicles>

Post-installation Operation
Adjusting the Accelerator Cable (Refer to

P.17-5

).

AC309484AB

1

4

2

12 ± 2 N·m

N

5

6

8

9

11

10

8

12

N

13

7

14

3

Accelerator cable assembly
removal steps

1. Inner cable connection (Accelerator

pedal side)

2. Inner cable connection (Accelerator

pedal position sensor side)

3. Accelerator cable assembly
4. Accelerator cable bracket

Accelerator pedal assembly
removal steps

1. Inner cable connection (Accelerator

pedal side)

5. Accelerator pedal assembly

6. Push-on spring nut
7. Accelerator arm and accelerator

pedal pad assembly

8. Bushing
9. Spring
10. Stopper
11. Accelerator pedal bracket
12. Accelerator arm

>>A<<

13. Accelerator pedal pad
14. Accelerator pedal stopper

Accelerator pedal assembly
removal steps (Continued)

ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-8

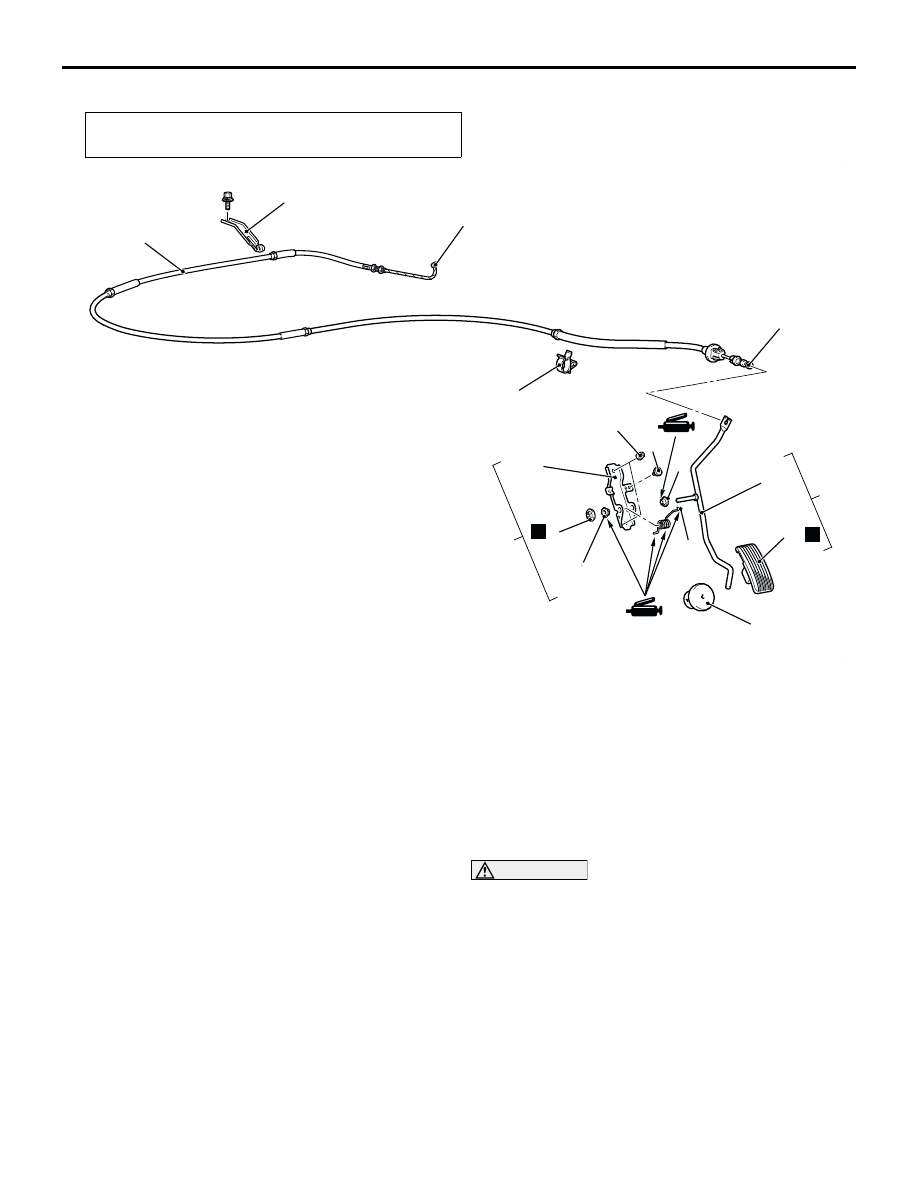

<R.H. drive vehicles>

INSTALLATION SERVICE POINT

>>A<< PEDAL PAD INSTALLATION

CAUTION

To prevent damages to the Pedal Pad, warm the
thumb area of the Pedal Pad with a dryer, etc.
prior to assembling it.
NOTE: If it is difficult to assemble, apply soapy water
to the thumb area to enhance the assembling
process.

Post-installation Operation
Adjusting the Accelerator Cable (Refer to

P.17-5

.)

AC309485

N

6

7

9

10

12

13

N

14

15

AB

1

5

8

12 ± 2 N·m

11

9

2

3

4

Accelerator cable assembly
removal steps

1. Inner cable connection (Accelerator

pedal side)

2. Inner cable connection (Accelerator

pedal position sensor side)

3. Accelerator cable assembly
4. Accelerator cable bracket
5. Accelerator cable clip

Accelerator pedal assembly
removal steps

1. Inner cable connection (Accelerator

pedal side)

6. Accelerator pedal assembly
7. Push-on spring nut
8. Accelerator arm and accelerator

pedal pad assembly

9. Bushing
10. Spring

11. Stopper
12. Accelerator pedal bracket
13. Accelerator arm

>>A<<

14. Accelerator pedal pad
15. Accelerator pedal stopper

Accelerator pedal assembly
removal steps (Continued)

ENGINE CONTROL

ENGINE AND EMISSION CONTROL

17-9

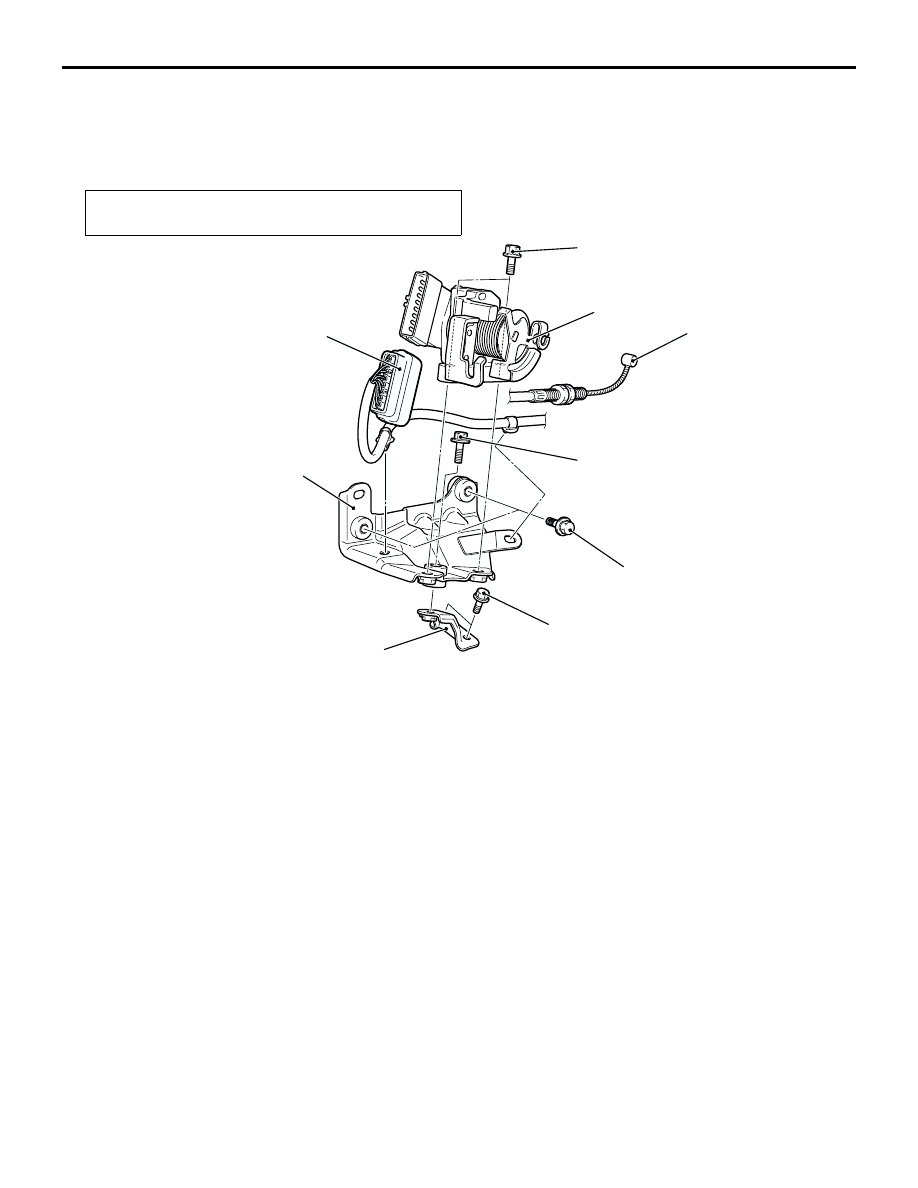

ACCELERATOR PEDAL POSITION
SENSOR <4G69>

REMOVAL AND INSTALLATION

M1171001800053

Post-installation Operation
Adjusting the Accelerator Cable (Refer to

P.17-5

).

AC305408AC

1

2

3

4

5

12 ± 1 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

5.0 ± 1.0 N·m

Removal steps

1. Inner cable connection (Accelerator

pedal position sensor side)

2. Accelerator pedal position sensor

connector

3. Accelerator pedal position sensor

assembly

4. Accelerator pedal position sensor

bracket

5. Accelerator pedal position sensor

bracket support

Removal steps (Continued)

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-10

EMISSION CONTROL <MPI>

GENERAL INFORMATION

M1173000100466

The emission control system consists of the following
subsystems:

Crankcase emission control system

Evaporative emission control system

Exhaust emission control system

EMISSION CONTROL DEVICE
REFERENCE TABLE

M1173006600157

Items

Name

Specification

Crankcase emission control
system

Positive crankcase ventilation
(PCV) valve

Variable flow type
(Purpose: HC reduction)

Evaporative emission control
system

Canister
Purge control solenoid valve

Equipped
Duty cycle type solenoid valve
(Purpose: HC reduction)

Exhaust emission control system

Air-fuel ratio control device - MPI
system

Oxygen sensor feedback type
(Purpose: CO, HC, NOx reduction)

Exhaust gas recirculation system
<4G63>

EGR valve

EGR control solenoid valve

Equipped

Single type
Duty cycle type solenoid valve
(Purpose: NOx reduction)

Exhaust gas recirculation system
<4G69>

EGR valve

Equipped

Steeper motor type
(Purpose: NOx reduction)

Catalytic converter

Monolith type
(Purpose: CO, HC, NOx reduction)

Related parts

Crankcase
emission
control
system

Evaporative
emission
control
system

Air/fuel ratio
control
system

Catalytic
converter

Exhaust gas
recirculation
system

PCV valve

×

Purge control solenoid valve

×

MPI system component

×

×

Catalytic converter

×

EGR valve <4G63>

×

EGR control solenoid valve
<4G63>

×

EGR valve (Steeper moter)
<4G69>

×
