EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-11

SERVICE SPECIFICATIONS

M1173000300363

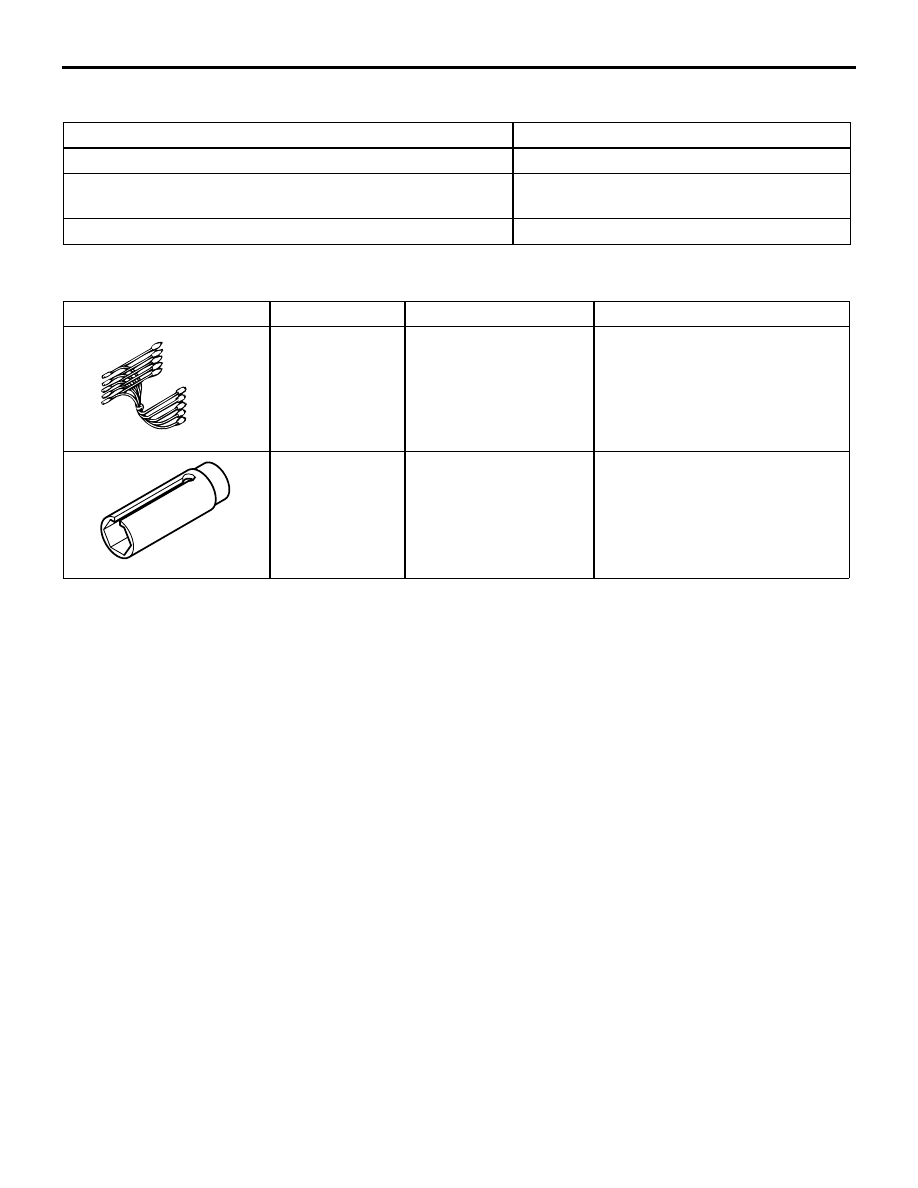

SPECIAL TOOL

M1173000600201

Items

Standard value

Purge control solenoid valve coil resistance (at 20

°

C)

30

 34

EGR control solenoid valve coil resistance (at 20

°

C)



<4G63>

29

 35

EGR valve coil resistance (at 20

°

C)

 <4G69>

20

 24

Tool

Number

Name

Use

MD991658

Test harness

EGR valve (Steeper moter)
CHECK

MD998770

Oxygen sensor wrench

Removal and installation of
oxygen sensor

MB991658

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-12

VACUUM HOSE

VACUUM HOSE PIPING DIAGRAM

M1173000900439

<4G63>

<4G69>

AK204364AB

Air cleaner

Air

Canister

Purge control
solenoid valve

EGR control
solenoid valve

EGR valve

From
fuel pump

To
fuel tank

Fuel pressure
regulator

PCV valve

Oxygen sensor
(front)

Oxygen sensor (rear)

Catalytic
converter

Catalytic
converter

AK302694 AB

From
fuel pump

PCV valve

Catalytic
converter

Air cleaner

Air

Canister

Purge control
solenoid valve

EGR valve
(Stepper motor)

Catalytic
converter

Cylinder 2, 3 oxygen sensor (front)

Cylinder 1, 4 oxygen sensor (front)

Cylinder 1, 4 oxygen sensor (rear)

Cylinder 2, 3 oxygen sensor (rear)

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-13

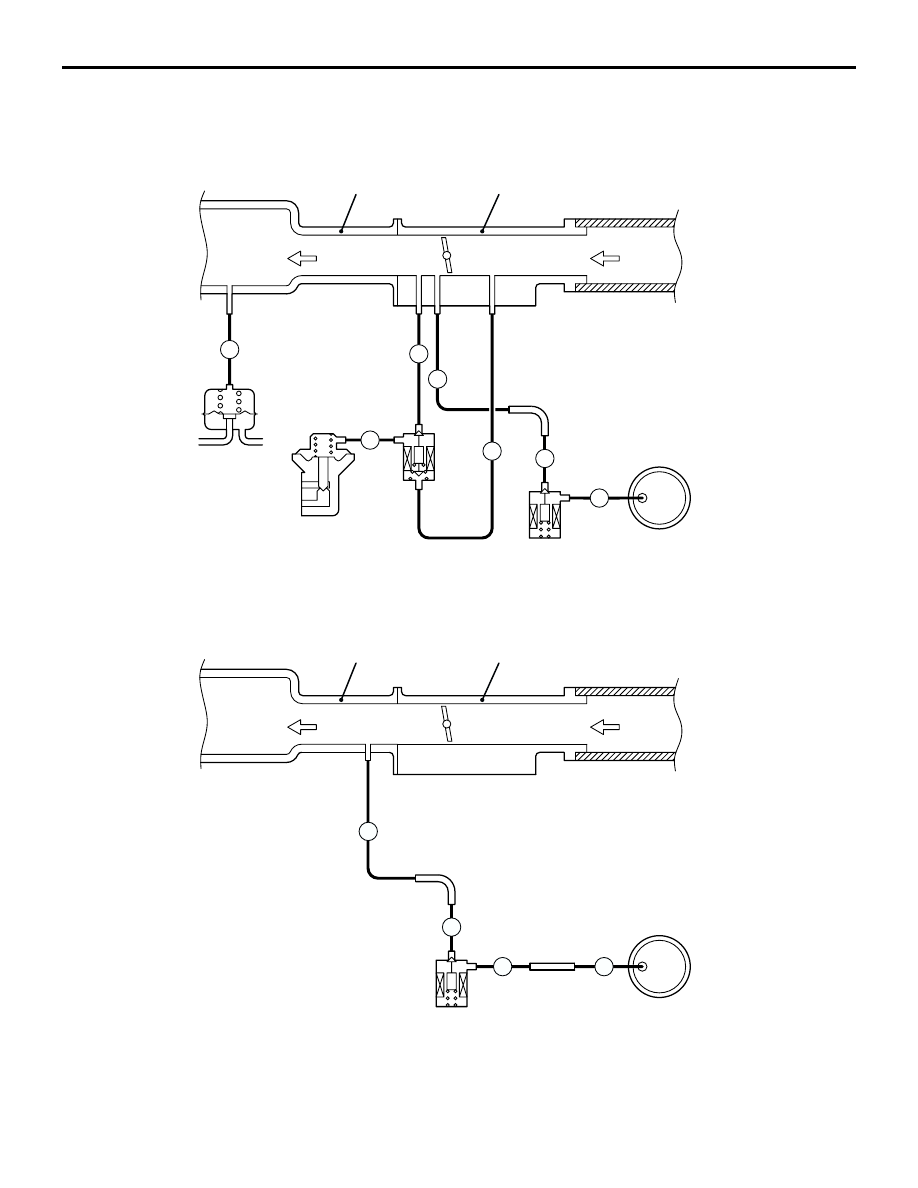

VACUUM CIRCUIT DIAGRAM

M1173007100285

<4G63>

<4G69>

AK201210

From
air
cleaner

To
combustion
chamber

Throttle body

B

B

AC

Intake manifold

Y

R

G

W

B

Fuel
pressure
regulator

EGR
valve

EGR
control
solenoid
valve

Purge
control
solenoid
valve

Canister

Vacuum hose colour
B: Black
G: Green
R: Red
W: White
Y: Yellow

AK302823

From
air
cleaner

To
combustion
chamber

Throttle body

B

B

B

AB

Intake manifold

B

Purge
control
solenoid
valve

Canister

Vacuum hose colour
B: Black

EMISSION CONTROL <MPI>

ENGINE AND EMISSION CONTROL

17-14

VACUUM HOSE CHECK

M1173007300160

1. Using the piping diagram as a guide, check to be

sure that the vacuum hoses are correctly
connected.

2. Check the connection condition of the vacuum

hoses, (removed, loose, etc.) and check to be
sure that there are no bends or damage.

VACUUM HOSE INSTALLATION

M1173007200118

1. When connecting the vacuum hoses, they should

be securely inserted onto the nipples.

2. Connect the hoses correctly, using the vacuum

hose piping diagram as a guide.
