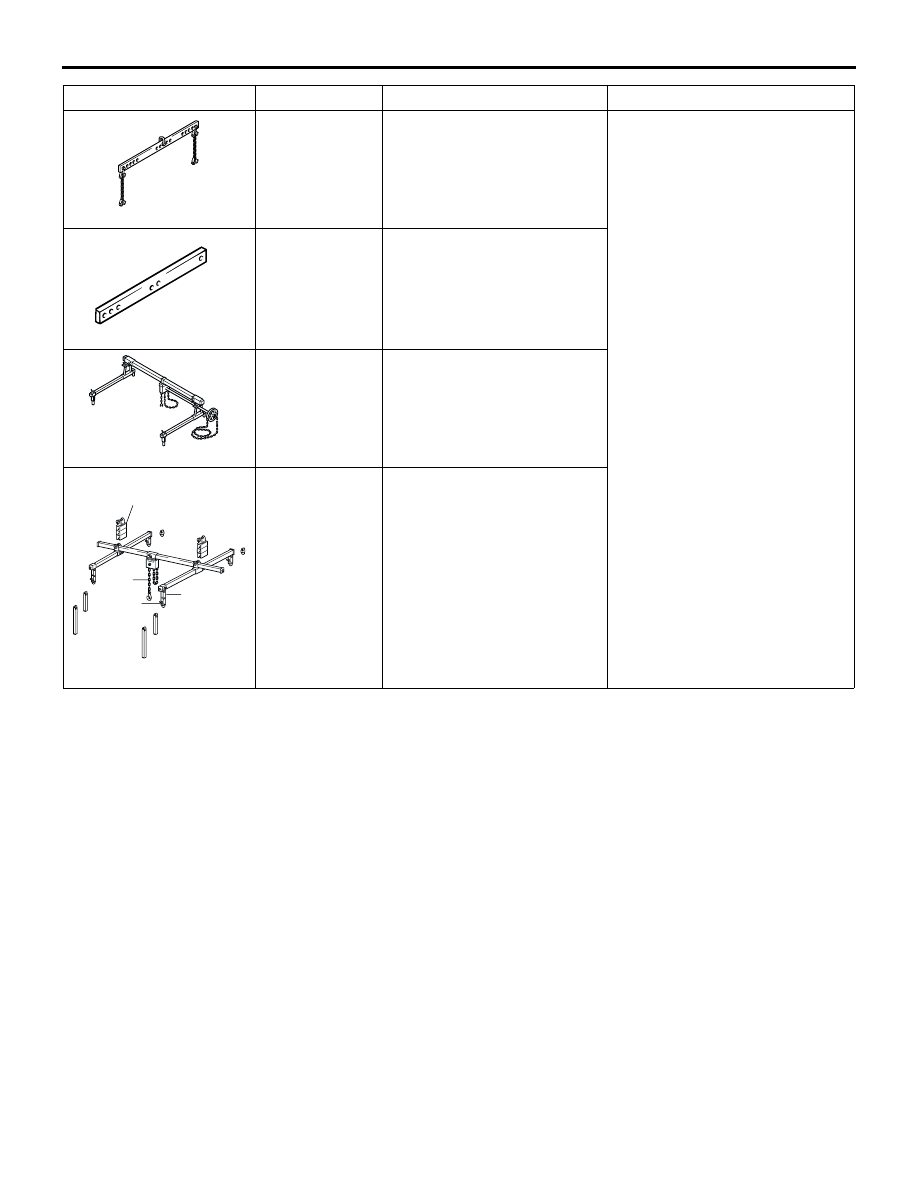

SPECIAL TOOLS

ENGINE MECHANICAL <4G69>

11C-7

MB991454

Engine hanger balancer

When the engine hanger is
used: Supporting the engine
assembly during removal and
installation of the transmission
assembly
NOTE: Special tool MB991454
is a part of engine hanger
attachment set MB991453.

MB991527

Hanger

MB991895

Engine hanger

MB991928

A: MB991929
B: MB991930
C: MB991931
D: MB991932
E: MB991933
F: MB991934

Engine hanger

A: Joint (50)

×

 2

B: Joint (90)

×

 2

C: Joint (140)

×

 2

D: Foot (standard)

×

 4

E: Foot (short)

×

 2

F: Chain and hook assembly

Tool

Number

Name

Use

B991454

B991527

Z203830

B991928

A

B

C

D

E

F

Slide bracket (HI)

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4G69>

11C-8

ON-VEHICLE SERVICE

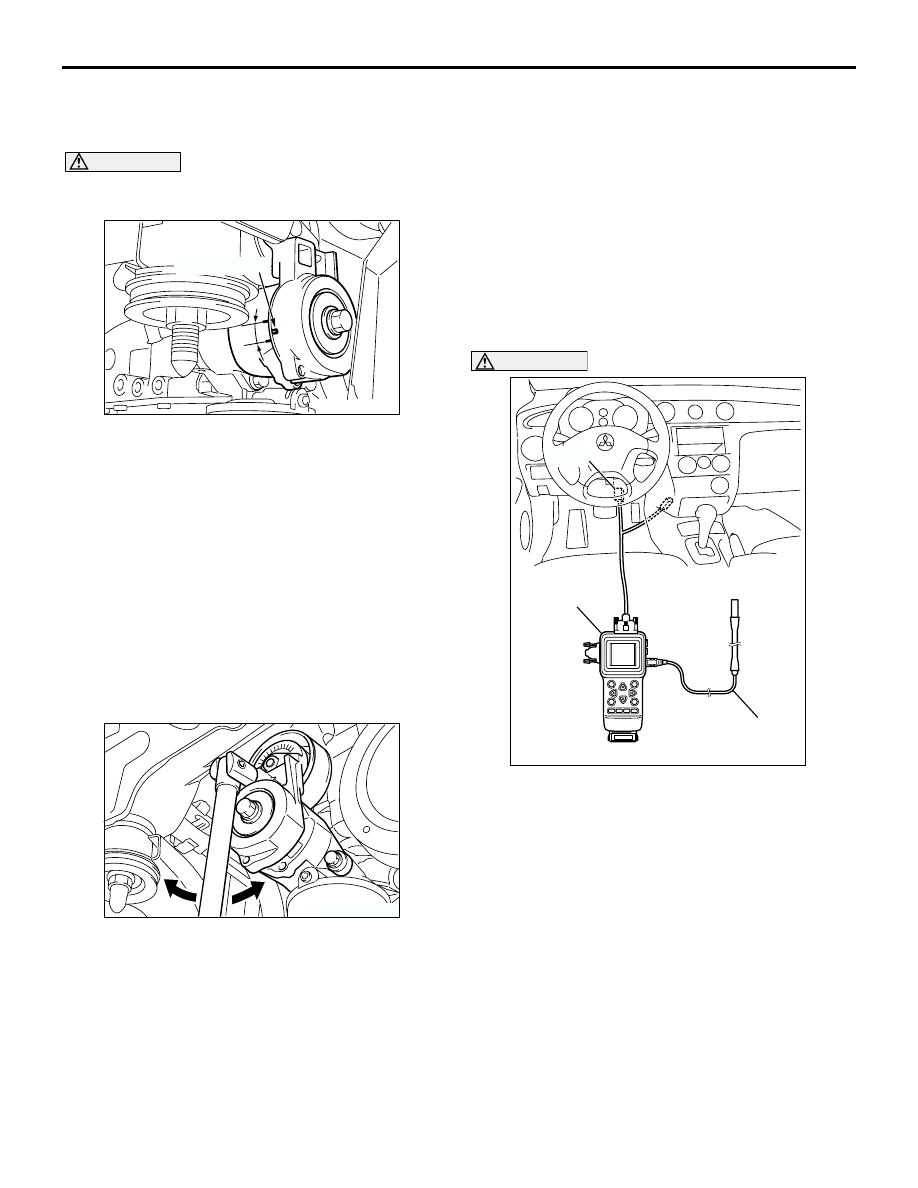

DRIVE BELT TENSION CHECK

M1111003100548

CAUTION

Check the drive belt tension after turning the
crankshaft clockwise one turn or more.

1. Make sure that the indicator mark is within the

area marked with A in the illustration.

2. If the mark is out of the area, replace the drive

belt. (Refer to

P.11C-17

).

NOTE: The drive belt tension check is not
necessary as auto-tensioner is adopted.

AUTO-TENSIONER CHECK

M1111003000251

OPERATION CHECK

1. Turn OFF the engine from the idle state then

check to see that the drive belt is not protruding
from the pulley width of the auto-tensioner.

2. Remove the drive belt.(Refer to

P.11C-17

).

3. Securely insert the spindle handle or ratchet

handle with a 12.7 mm insertion angle into the jig
hole of the auto tensioner. Turn the auto-tensioner
to the left and right to check and see that there is
no threading.

4. If there are any problems in the procedure 1 or 3,

replace the auto-tensioner.(Refer to

P.11C-36

).

5. Install the drive belt.(Refer to

P.11C-17

).

FUNCTION CHECK

You can verify if the auto-tensioner is defective or not
by checking the drive belt tension.
When using MUT-II
1. Check the drive belt tension. (Refer to

P.11C-8

).

2. Measure the drive belt tension vibration frequency

by the following procedures:

CAUTION

To prevent damage to MUT-II, always turn the
ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting MUT-II.

(1) Connect special tool belt tension meter set

(MB991668) to the MUT-II.

(2) Connect the MUT-II to the diagnosis

connector.

(3) Turn the ignition switch to "ON" position, and

select "BELT TENSION" on the menu screen.

AC301702AB

A

Indicator mark

AC301703

AC211862

16-pin

AB

MUT-II

MB991668

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4G69>

11C-9

CAUTION

•

The temperature of the surface of the belt
should be as close to normal temperature as
possible.

•

Do not allow any contaminants such as water
or oil to get onto the microphone.

•

If strong gusts of wind blow against the
microphone or if there are any loud sources
of noise nearby, the values measured by the
microphone may not correspond to actual
values.

•

If the microphone is touching the belt while
the measurement is being made, the values
measured by the microphone may not
correspond to actual values.

•

Do not take the measurement while the
vehicle's engine is running.

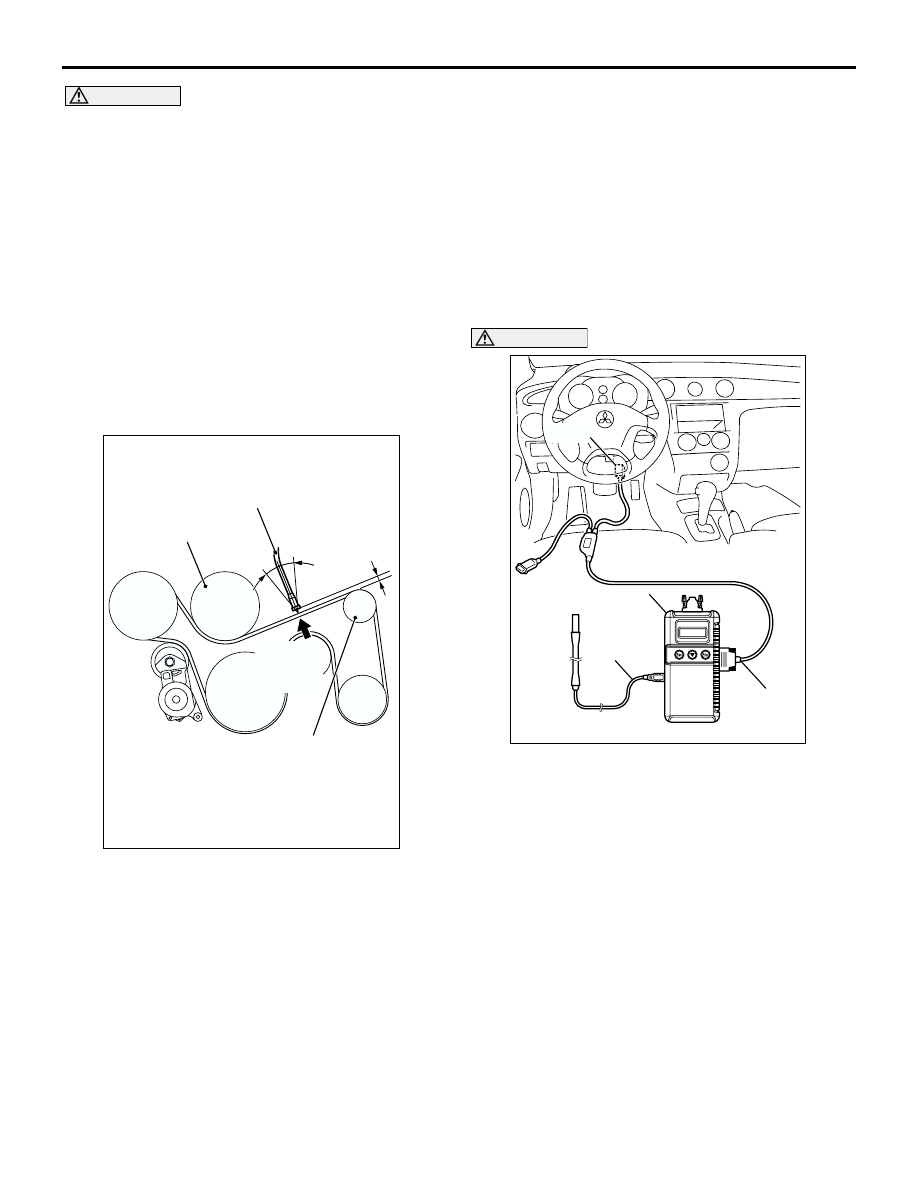

(4) Hold special tool belt tension meter set

(MB991668) to the middle of the drive belt
between the pulleys (at the place indicated by
arrow), approximately 10

−

 20 mm away from

the rear surface of the belt so that it is
perpendicular to the belt (within an angle of

±



15 degree).

(5) Gently tap the middle of the belt between the

pulleys (the place indicated by the arrow) with
your finger as shown in the illustration, and
measure that the vibration frequency of the
belt is within the standard value.

Standard value:

<A/C compressor type: MSC90CA> 113

−

 145

Hz

<A/C compressor type: MSC105CA> 120

−

 154

Hz

3. If not within the standard value, replace the

auto-tensioner. (Refer to

P.11C-36

).

When using V.C.I.
1. Check the drive belt tension. (Refer to

P.11C-8

).

2. Measure the drive belt tension vibration frequency

by the following procedures:

CAUTION

To prevent damage to special tool V.C.I.
(MB991824), always turn the ignition switch to
the "LOCK" (OFF) position before connecting or
disconnecting special tool V.C.I. (MB991824).

(1) Connect special tool belt tension meter set

(MB991668) to special tool V.C.I. (MB991824).

(2) Connect special tool MUT-III main harness B

(MB991911) to special tool V.C.I. (MB991824).

(3) Connect special tool MUT-III main harness B

(MB991911) to the diagnosis connector.

(4) Turn the ignition switch to "ON" position, and

select "Belt Tension" on the menu screen.

AC301266AB

MB991668

15˚

15˚

10 –



20 mm

Water
pump
pulley

Alternator
pulley

Gentry tap
with your
finger

AC211863

AB

MB991824

MB991911

16-pin

MB991668

ON-VEHICLE SERVICE

ENGINE MECHANICAL <4G69>

11C-10

CAUTION

•

The temperature of the surface of the belt
should be as close to normal temperature as
possible.

•

Do not allow any contaminants such as water
or oil to get onto the microphone.

•

If strong gusts of wind blow against the
microphone or if there are any loud sources
of noise nearby, the values measured by the
microphone may not correspond to actual
values.

•

If the microphone is touching the belt while
the measurement is being made, the values
measured by the microphone may not
correspond to actual values.

•

Do not take the measurement while the
vehicle's engine is running.

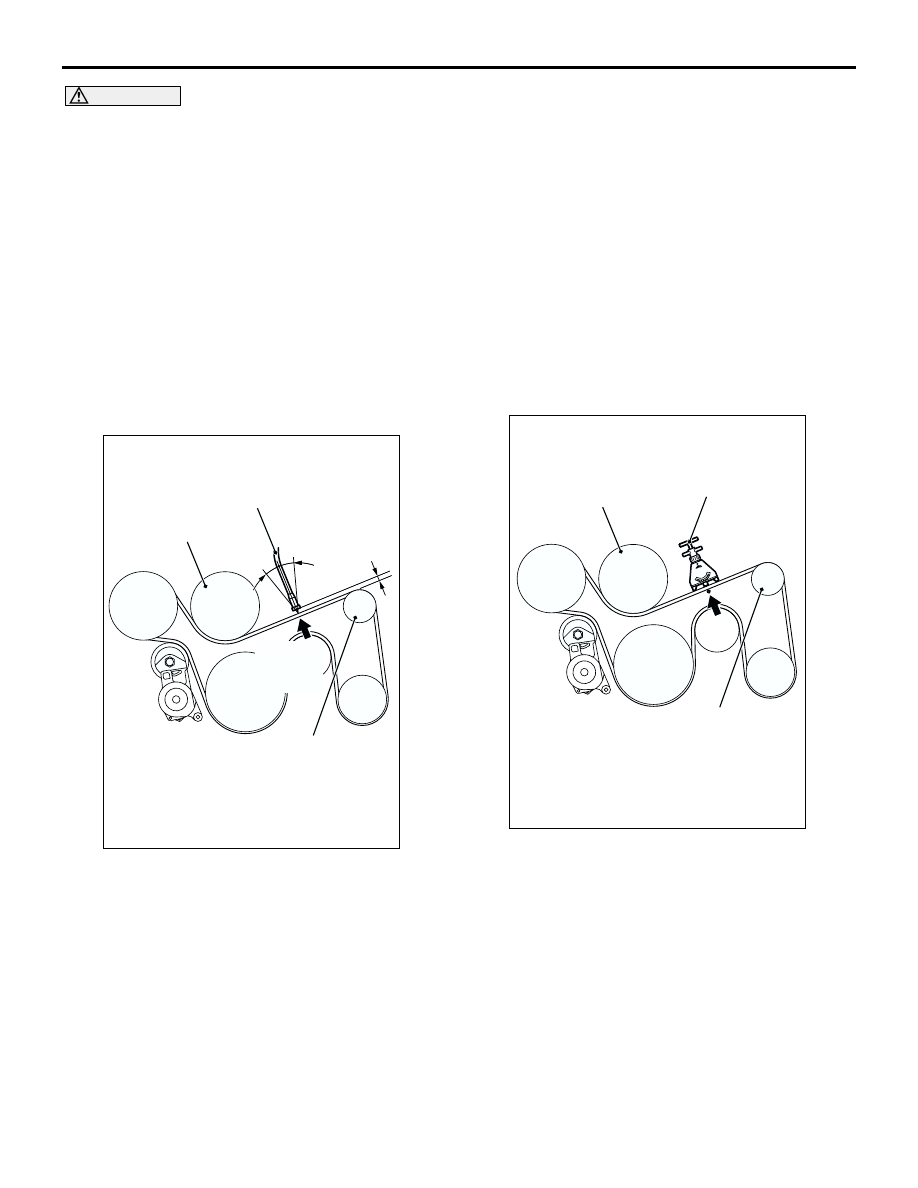

(5) Hold special tool belt tension meter set

(MB991668) to the middle of the drive belt
between the pulleys (at the place indicated by
arrow), approximately 10

−

 20 mm away from

the rear surface of the belt so that it is
perpendicular to the belt (within an angle of

±



15 degree).

(6) Gently tap the middle of the belt between the

pulleys (the place indicated by the arrow) with
your finger as shown in the illustration, and
measure that the vibration frequency of the
belt is within the standard value.

Standard value:

<A/C compressor type: MSC90CA> 113

−

 145

Hz

<A/C compressor type: MSC105CA> 120

−

 154

Hz

3. If not within the standard value, replace the

alternator drive belt auto tensioner. (Refer to

P.11C-36

).

When using a tension gauge
1. Check the drive belt tension. (Refer to

P.11C-8

).

2. Use a belt tension gauge in the middle of the belt

between the pulleys (at the place indicated by the
arrow) to measure that the belt tension is within
the standard value.

Standard value: 340

−

 555 N

3. If not within the standard value, replace the

auto-tensioner. (Refer to

P.11C-36

).

AC301266AB

MB991668

15˚

15˚

10 –



20 mm

Water
pump
pulley

Alternator
pulley

Gentry tap
with your
finger

AC301267AB

Water pump
pulley

Alternator
pulley

Belt tension
gauge
