SEALANTS

ENGINE MECHANICAL <4G69>

11C-3

SEALANTS

M1112000500294

Intake manifold vacuum kPa

−

Minimum 60

Cylinder head bolt nominal length mm

−

99.4

Balancer timing belt tension (When adjusted) Deflection mm

5

−

 7

−

Balancer timing belt tension (When replaced) Deflection mm

5

−

 7

−

Balancer timing belt tension (When checked) Deflection mm

5

−

 10

−

Timing belt tensioner adjuster rod protrusion amount mm

3.8

−

 4.5

−

Timing belt tensioner adjuster rod movement mm

Within 1

−

Item

Standard value

Limit

Item

Specified sealant

Remark

Camshaft position sensor support

MITSUBISHI GENUINE PART MD970389 or
equivalent

Semi-drying
sealant

Engine upper oil pan
Engine lower oil pan
Taper plug

LOCTITE203MP

Anaerobic
sealant

SPECIAL TOOLS

ENGINE MECHANICAL <4G69>

11C-4

SPECIAL TOOLS

M1112000600332

Tool

Number

Name

Use

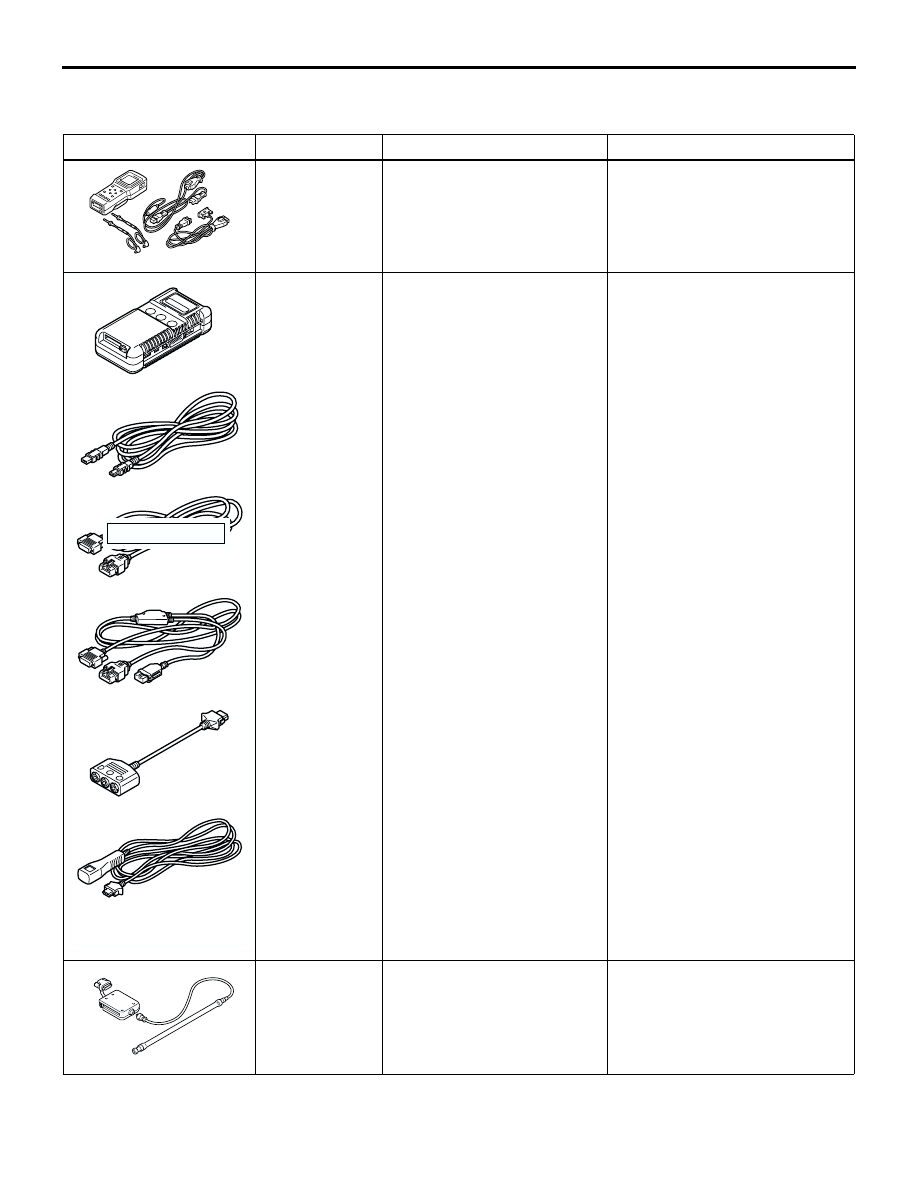

MB991502

MUT-II sub assembly

•

Drive belt tension check

•

Checking the ignition timing

•

Checking the idle speed

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

MUT-III sub assembly

A: Vehicle communication

interface (V.C.I.)

B: MUT-III USB cable
C: MUT-III main harness A

(Vehicles with CAN
communication system)

D: MUT-III main harness B

(Vehicles without CAN
communication system)

E: MUT-III measurement

adapter

F: MUT-III trigger harness

•

Drive belt tension check

•

Checking the ignition timing

•

Checking the idle speed

MB991668

Belt tension meter set

Drive belt tension check (used
together with MUT-II or MUT-III)

B991502

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USED

B991668

SPECIAL TOOLS

ENGINE MECHANICAL <4G69>

11C-5

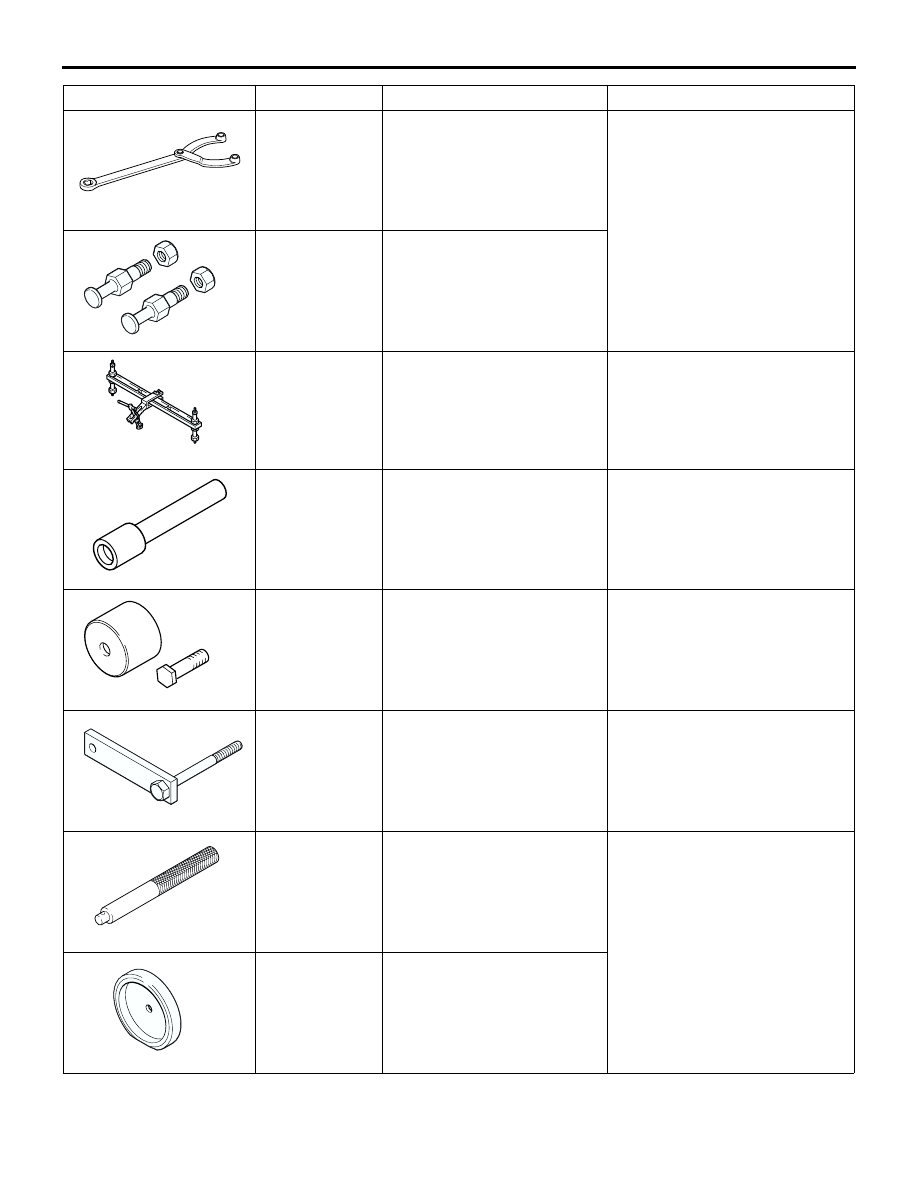

MB990767

Front hub and flange yoke
holder

Holding the camshaft sprocket

MD998719

Pin

MD998772

Valve spring compressor

Compressing valve spring

MD998774

Valve stem seal installer

Valve stem seal installation

MD998713

Camshaft oil seal installer

Camshaft oil seal installation

MD998781

Flywheel stopper

•

Supporting the flywheel
assembly <M/T>

•

Supporting the A/T drive plate
<A/T>

MB990938

Installer bar

Crankshaft rear oil seal
installation

MD998776

Crankshaft rear oil seal
installer

Tool

Number

Name

Use

B990767

D998719

MD998772

D998713

D998781

B990938

D998776

SPECIAL TOOLS

ENGINE MECHANICAL <4G69>

11C-6

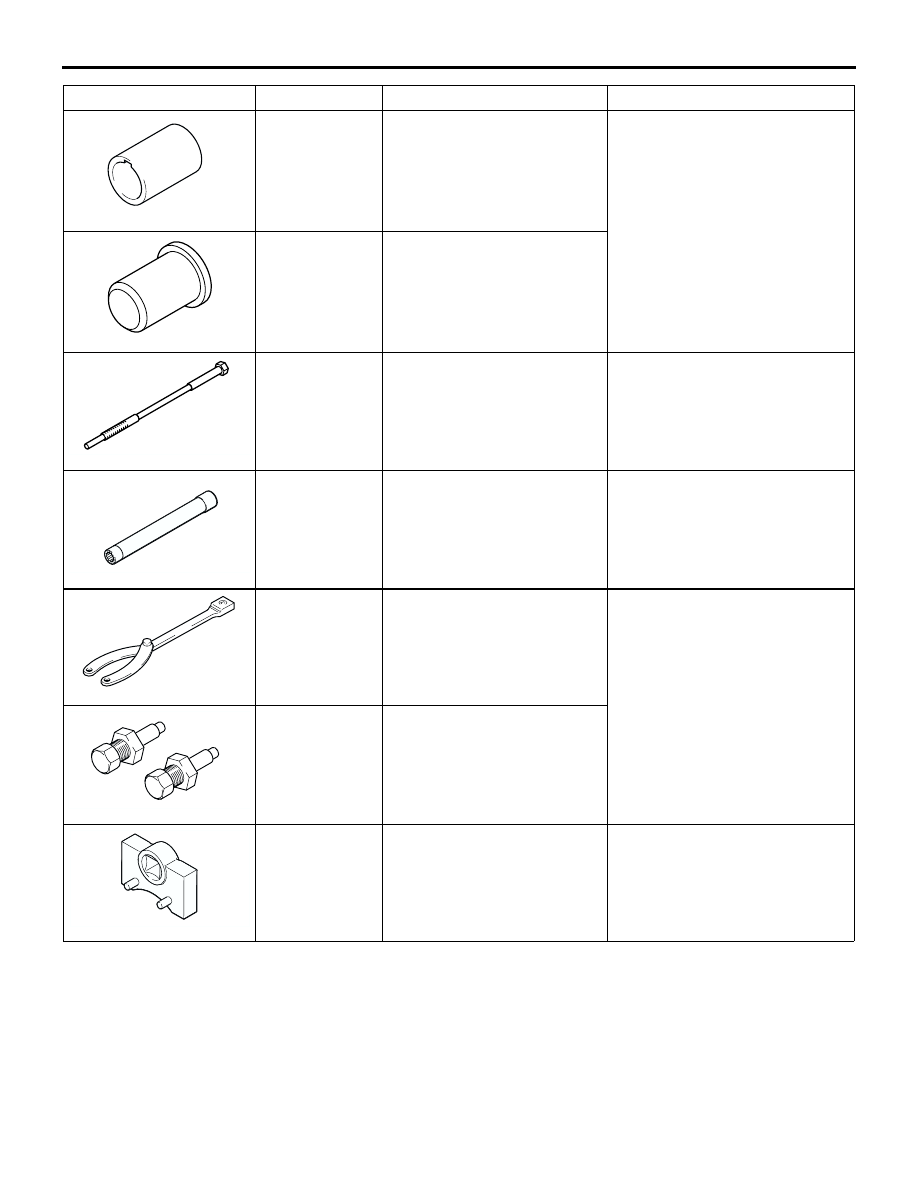

MD998285

Crankshaft front oil seal
guide

Crankshaft front oil seal
installation

MD998375

Crankshaft front oil seal
installer

MD998738

Adjusting bolt

Supporting the timing belt
tensioner arm and timing belt
tensioner adjuster

MB991654

Cylinder head bolt wrench
(12)

Removal and installation of
cylinder head bolt

MB991367

Special spanner

Holding the crankshaft camshaft
drive sprocket

MB991385

Pin

MD998767

Tensioner wrench

Valve timing belt tension
adjustment

Tool

Number

Name

Use

D998285

D998738

B991654

B991367

B991385

D998767
