SPEAKER

TSB Revision

CHASSIS ELECTRICAL

54-255

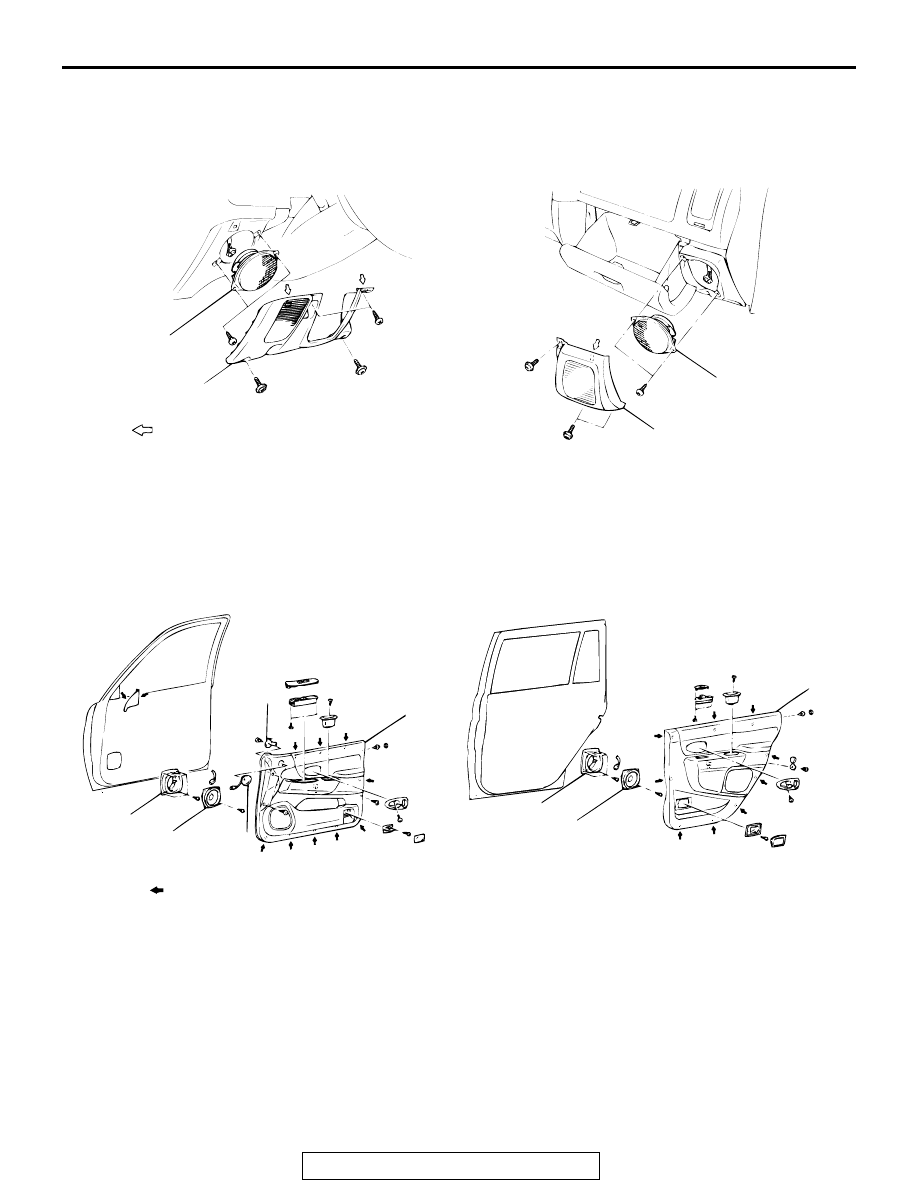

SPEAKER

 REMOVAL AND INSTALLATION

M1544002600539

AC002824 AB

DRIVER' SIDE

PASSENGER'S SIDE

1

2

3

4

: Metal clip position

NOTE

REMOVAL STEPS <DRIVER'S SIDE>

1.

KNEE PROTECTOR ASSEMBLY

2.

SPEAKER

REMOVAL STEPS <PASSENGER'S
SIDE>

3.

CORNER COVER

4.

SPEAKER

AC002825 AB

5

6

7

8

9

10

11

12

: Resin clip position

NOTE

<FRONT DOOR SPEAKER>

<REAR DOOR SPEAKER>

FRONT DOOR SPEAKER REMOVAL
STEPS

5.

FRONT DOOR TRIM (REFER TO GROUP
42, DOOR TRIM AND WATERPROOF
FILM

P.42-134

.)

6.

SPEAKER BRACKET

7.

TWEETER

8.

SPEAKER

9.

SPEAKER BRACKET

REAR DOOR SPEAKER REMOVAL
STEPS

10. REAR DOOR TRIM (REFER TO

GROUP42, DOOR TRIM AND
WATERPROOF FILM

P.42-134

.)

11. SPEAKER
12. SPEAKER COVER

AMPLIFIER

TSB Revision

CHASSIS ELECTRICAL

54-256

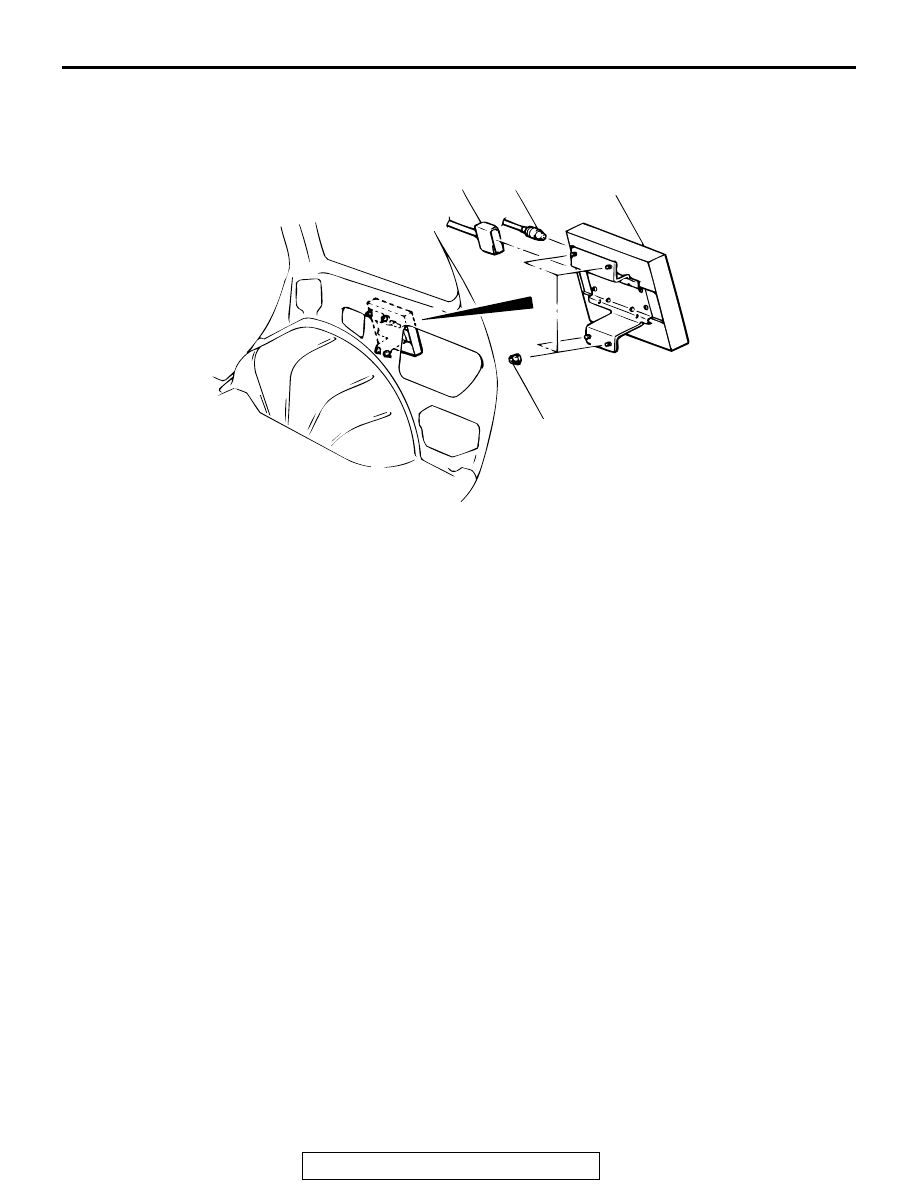

AMPLIFIER

REMOVAL AND INSTALLATION

M1544004100217

AC002823AB

1

2

3

4.9 N·m
43 in-lb

REMOVAL STEPS

•

QUARTER TRIM LOWER (REFER TO
GROUP 52A, TRIM

P.52A-41

.)

1. DIN CABLE

2. HARNESS CONNECTOR
3. AMPLIFIER

REMOVAL STEPS (Continued)

ANTENNA

TSB Revision

CHASSIS ELECTRICAL

54-257

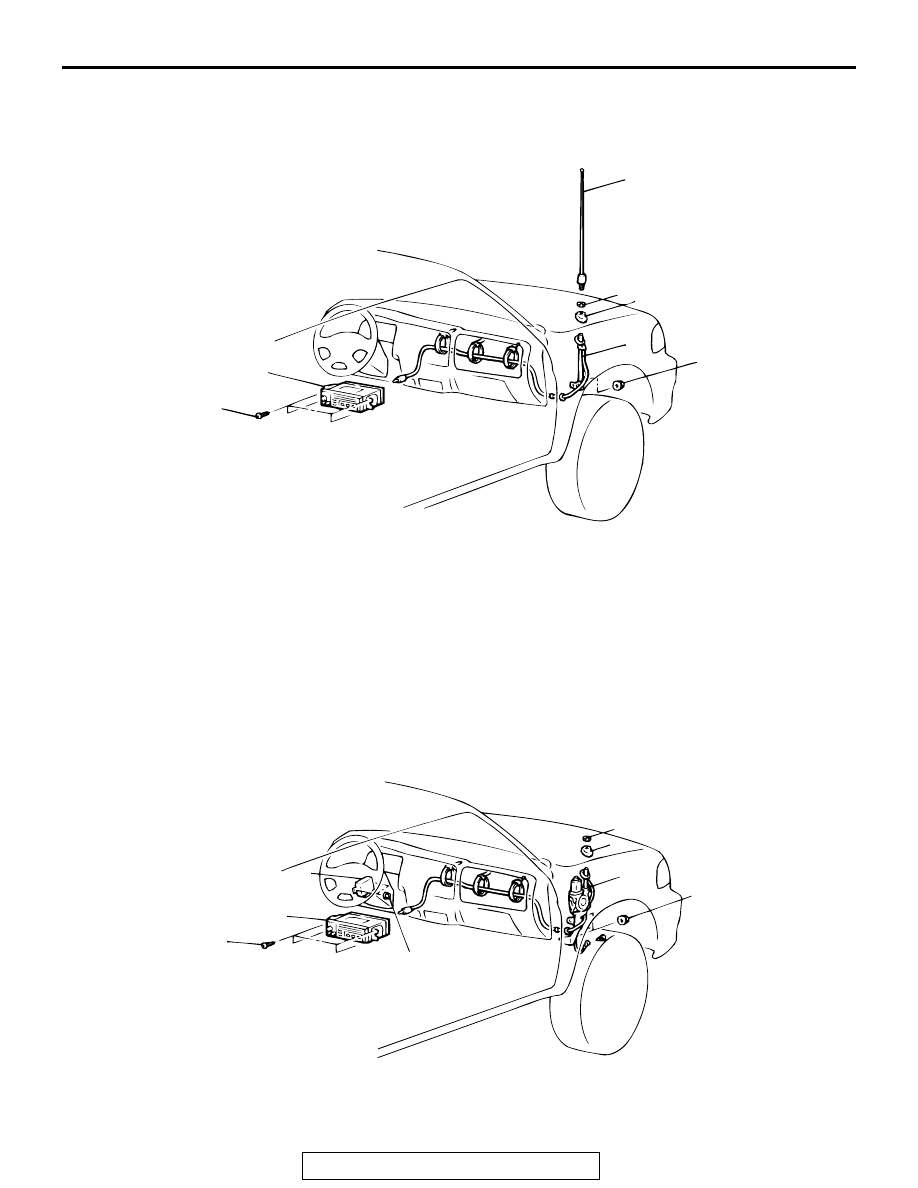

ANTENNA

REMOVAL AND INSTALLATION

M1544002900615

AC002826

1

2

3

4

5

3.0 N·m
27 in-lb

1.4 N·m
13 in-lb

<MAST ANTENNA>

MAST ANTENNA REMOVAL STEPS

1. RADIO AND CD PLAYER (REFER TO

P.54-254

.)

2. MAST ANTENNA
3. MOUNTING NUT
4. BASE
• FENDER (REFER TO GROUP 42, FENDER

P.42-9

.)

<<A>>

5. MAST ANTENNA BODY

AC002827 AB

8

9

10

6

7

3.0 N·m
27 in-lb

3.0 N·m
27 in-lb

1.4 N·m
13 in-lb

<MOTOR ANTENNA>

ANTENNA

TSB Revision

CHASSIS ELECTRICAL

54-258

6. ANTENNA MOTOR-ECU

MOTOR ANTENNA REMOVAL STEPS

7. RADIO AND TAPE PLAYER (REFER TO

P.54-254

.)

8. RING NUT
9. BASE
• FENDER (REFER TO GROUP 42, FENDER

P.42-9

.)

<<A>>

10. MOTOR ANTENNA ASSEMBLY

AC002828

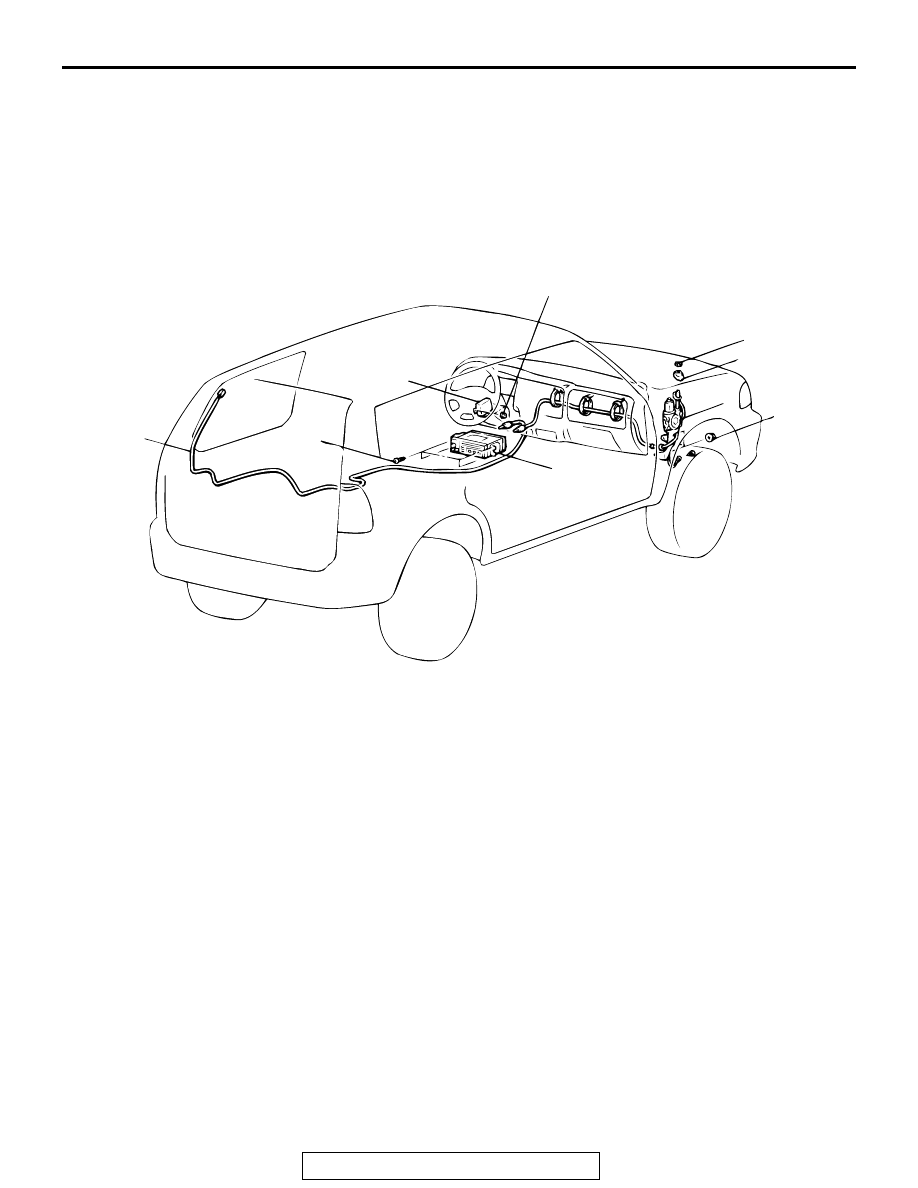

<DIVERSITY ANTENNA>

11

12

13

14

15

16

3.0 N·m
27 in-lb

3.0 N·m
27 in-lb

1.4 N·m
13 in-lb

AB

11. ANTENNA MOTOR-ECU

MOTOR ANTENNA REMOVAL
STEPS

12. RADIO AND CD PLAYER (REFER TO

P.54-254

.)

13. RING NUT
14. BASE
•

FENDER (REFER TO GROUP 42,
FENDER

P.42-9

.)

<<A>>

15. MOTOR ANTENNA ASSEMBLY

ANTENNA FEEDER CABLE (FOR
QUARTER GLASS ANTENNA)
REMOVAL STEPS

•

FLOOR CONSOLE (REFER TO
GROUP 52A, FLOOR CONSOLE

P.52A-40

.)

•

FRONT SEAT ASSEMBLY (REFER TO
GROUP 52A, FRONT SEAT

P.52A-44

.)

•

REAR SEAT ASSEMBLY (REFER TO
GROUP 52A, REAR SEAT

P.52A-52

.)

•

QUARTER TRIM, UPPER AND
LOWER (REFER TO GROUP 52A,
TRIMS

P.52A-41

.)

16. ANTENNA FEEDER CABLE (FOR

QUARTER GLASS ANTENNA.)
