RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-251

SPECIAL TOOL

M1544000600276

ON-VEHICLE SERVICE

PROCEDURE FOR INPUT OF SECURITY CODE
FOR ANTI-THEFT SYSTEM

M1544004400218

The radio and CD player do not work under the following condi-
tions:
Power supply to the radio and CD player has been suspended
for more than an hour continuously by removing the cable from
the battery terminal or disconnecting the harness connectors.
The power supply to the radio and CD player has been sus-
pended for more than an hour due to a blown fuse or dis-
charged battery.
If the radio and CD player does not work for these conditions,
enter the security code as follows:
The radio and CD player has been replaced.
1. Confirm the security code using any of the following

methods.

(1) Use the security code indicated on the cards retained in

the vehicle.

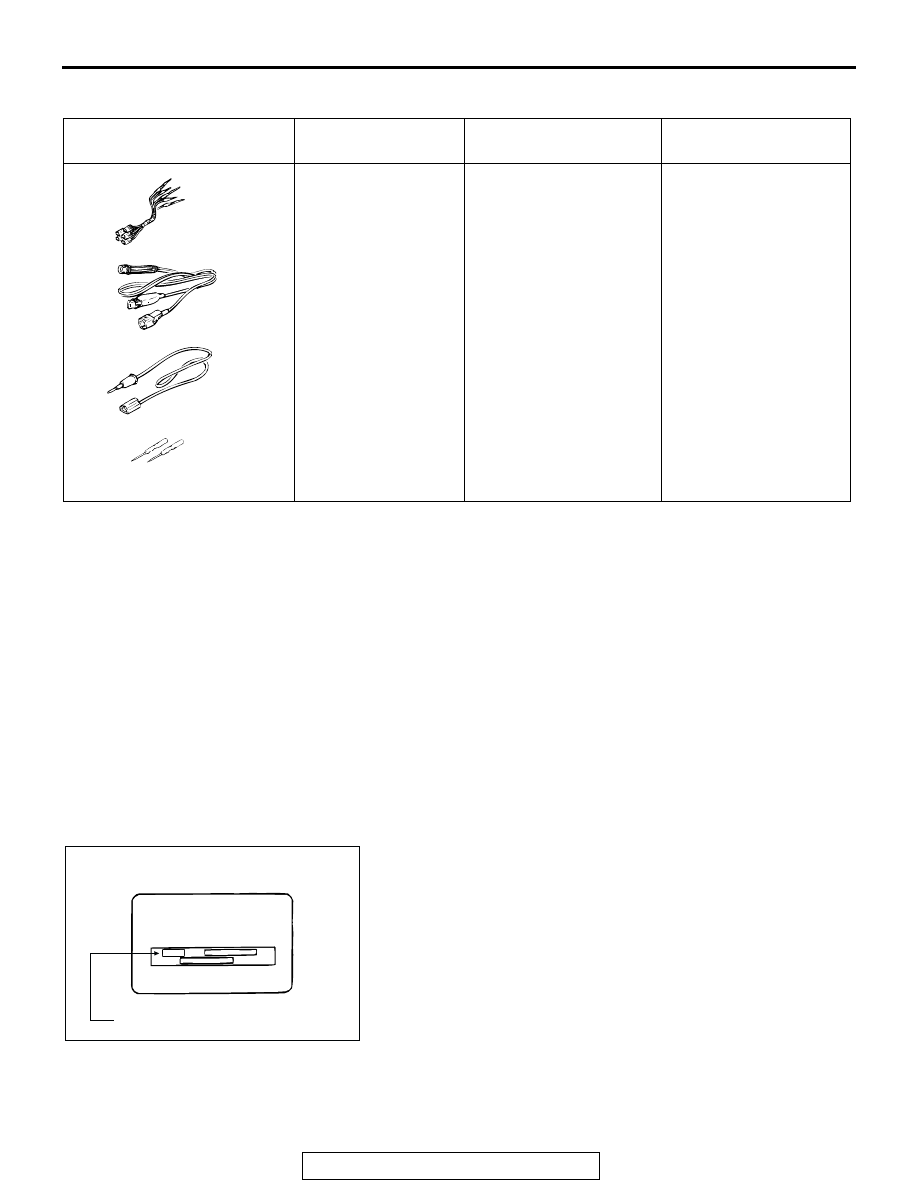

TOOL

TOOL NUMBER
AND NAME

REPLACED THE
MILLER TOOL NUMBER

APPLICATION

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222
Harness set
A: Test harness
B: LED harness
C: LED harness

adapter

D: Probe

General service tool
(jumper)

Making voltage and
resistance
measurements during
troubleshooting

A: Connect pin contact

pressure inspection

B: Power circuit

inspection

C: Power circuit

inspection

D: Commercial tester

connection

MB991223

ANTI-THEFT SYSTEM

Do not keep this card in your car!
For information the function and use of the
anti-theft coe see the owner's manual.

Code No.

Model

Serial No.

MITSUBISHI MOTORS CORPORATION

ACX02343AB

CARD

SECURITY CODE

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-252

(2) If the security code is unknown owing to the owner's loss

of the card:
a. Remove the radio and CD player referring to

P.34-3

b. Read the serial number stamped on the radio and CD

player.

c. Look up the security code (anti-theft code table)

corresponding to the serial number.

(3) When the radio and CD player is replaced: Use the

security code on the cards attached to the upper surface
of the replacement radio and CD player.
NOTE: Deliver the two cards to the owner.

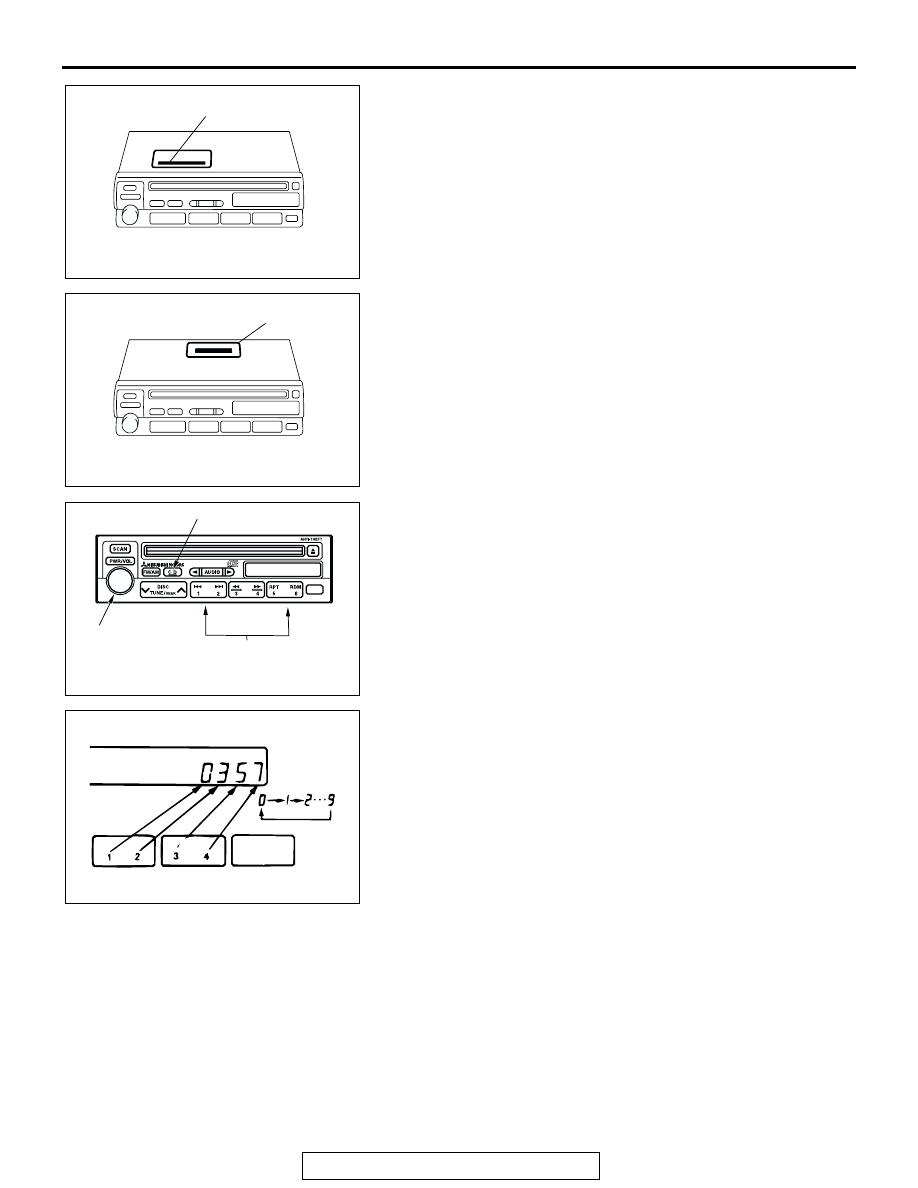

2. Connect the radio to the vehicle harness.
3. Turn the ignition key to the "ACC" or "ON" position.

4. Press the "PWR" button, and "CODE" will be displayed.

5. Press number 1 through number 4 memory select button to

set the four-digit security code shown on the card. Every
time each digit key is pressed, the figure changes as follows:
0 to 1 to 2 to 3 to 4 to 5 to 6 to 7 to 8 to 9 to 0

6. Press the "CD" button, and a beep will be heard. If entered

correctly, the radio and tape player will work.

7. If the security code is not accepted, "1Err" is displayed. In a

few seconds, it will change to "CODE." Then repeat steps 5
and 6.
NOTE:

•

The anti-theft system will allow three attempts maximum
to input the correct code.

•

The second error is displayed as "2 Err." When the third
error is made, "3 Err" is displayed and then the display
changes to "OFF." If this should occur, the unit will not
work any more.

•

To input the security code again, turn the ignition switch
to the "ACC" or "ON" position and wait for one hour when
"OFF" is displayed. After "OFF" disappears on the dis-
play and changes into "CODE" the security code can be
input again.

ACX02354

SERIAL NO.

TYPICAL NAME CARD

ACX02353

CARD

P901

ACX01946

POWER
BUTTON

MEMORY SELECT
BUTTON(1, 6)

CD BUTTON

ACX01948AB

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-253

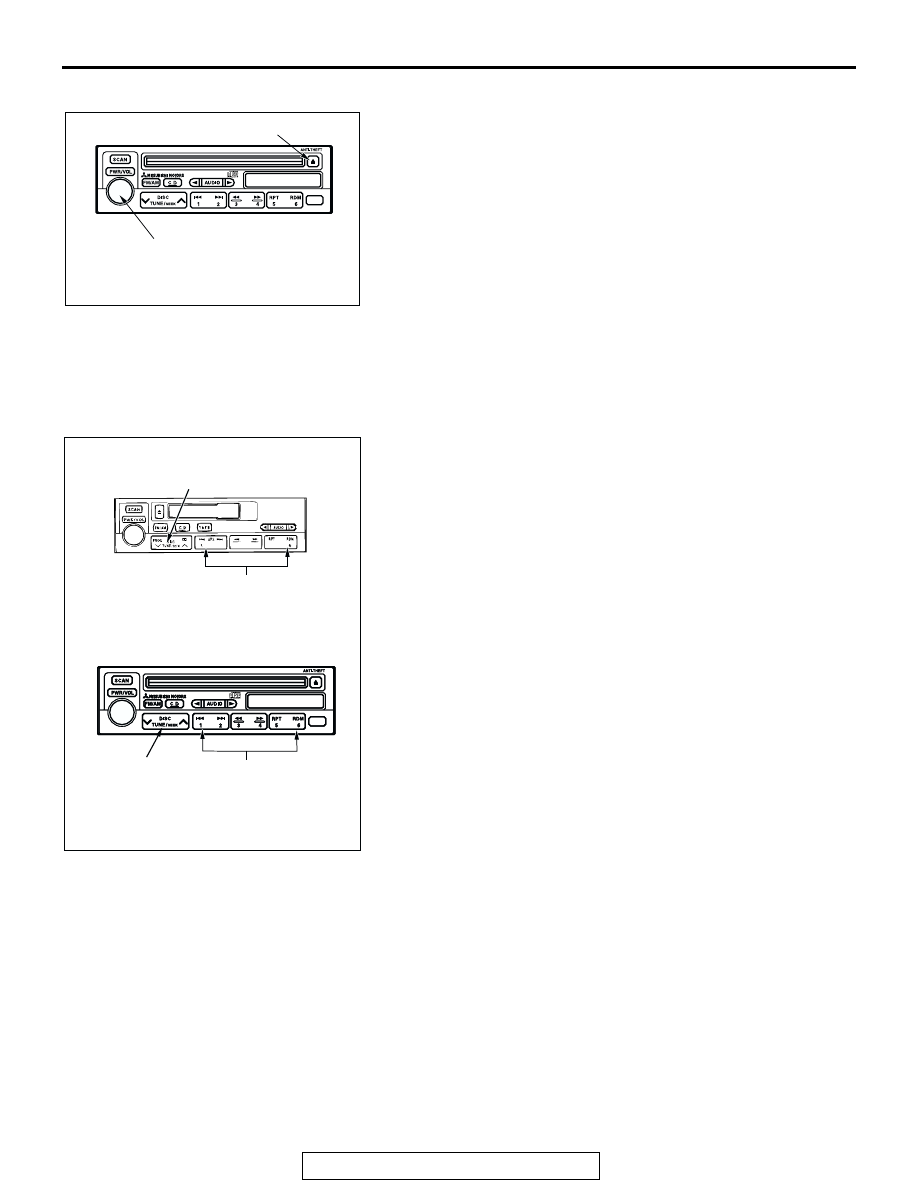

Three-minute operation mode

To facilitate replacement or check, the radio with tape and CD
player can be operated for three minutes without inputting the
security code.
1. Press the "PWR" button and "EJECT" button together to

operate the radio with tape and CD player.

2. In three minutes the unit will not be able to work. Then the

radio with tape and CD player will be switched off.

SPEAKER TEST

M1544005400181

Enter the speaker test mode according to the following steps:
1. Turn the Ignition switch to the "ACC" or "ON" position and

switch off the radio with tape or CD player.

2. Press the following buttons in that order within sixty seconds

from step (1).

(1) Memory select "1" button
(2) "TUNE/SEEK (DOWN)" button
(3) "TUNE/SEEK (UP)" button
(4) Memory select "6" button

P901

ACX01946

POWER BUTTON

EJECT BUTTON

P901

AC102830

RADIO WITH TAPE PLAYER

RADIO WITH CD PLAYER

TUNE/SEEK
BUTTON

TUNE/SEEK BUTTON

MEMORY SELECT
BUTTON (1, 6)

MEMORY SELECT BUTTON (1, 6)

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-254

3. Check that the speaker, which is displayed on the multi-

center display, sounds (If the memory select "6" button is
pressed, the speaker will be changed).

4. If a button other than the memory select "6" button and

"EJECT" button (tape or CD) is pressed, or the ignition
switch is turned to "LOCK" (OFF) position, you will exit from
the speaker test mode.

RADIO WITH CD PLAYER

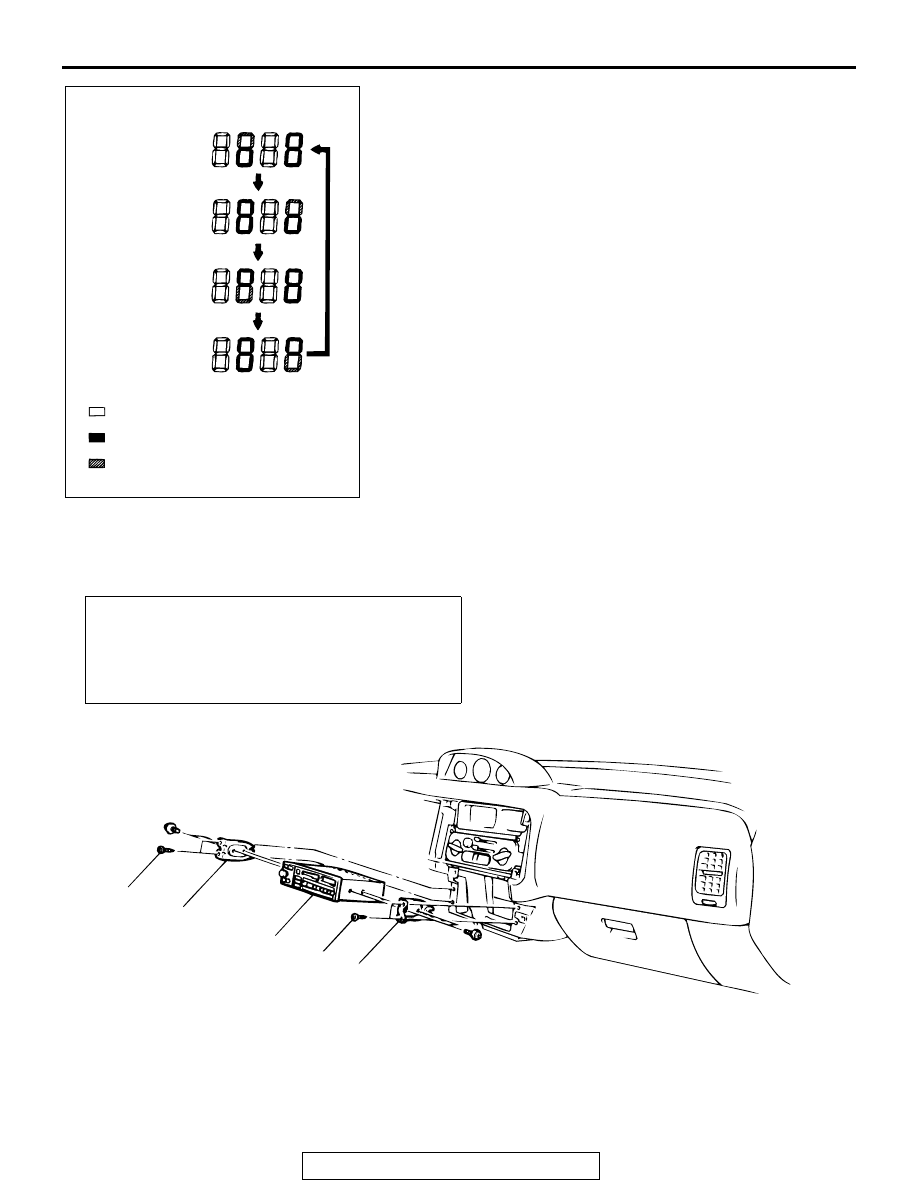

REMOVAL AND INSTALLATION

M1544010900018

ACX01941

DOOR SPEAKER (LH)
AND TWEETER (LH)

DOOR SPEAKER (RH)
AND TWEETER (RH)

REAR SPEAKER (LH)

REAR SPEAKER (RH)

NOTE

: ILLUMINATES

: FLASHES

: OFF

Pre-removal and Post-installation Operation
• Front Floor Console Assembly Removal and Installation

(Refer to GROUP 52A, Floor Console

P.52A-40

• Driver's Side Under Cover, Meter Bezel Assembly, Glove

Box Assembly, Center Under Cover Removal and Installa-

tion (Refer to GROUP 52A, Instrument Panel

P.52A-37

AC002822 AB

1.4 N·m
13 in-lb

RADIO REMOVAL STEPS

RADIO BRACKET

RADIO WITH CD PLAYER
