RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-243

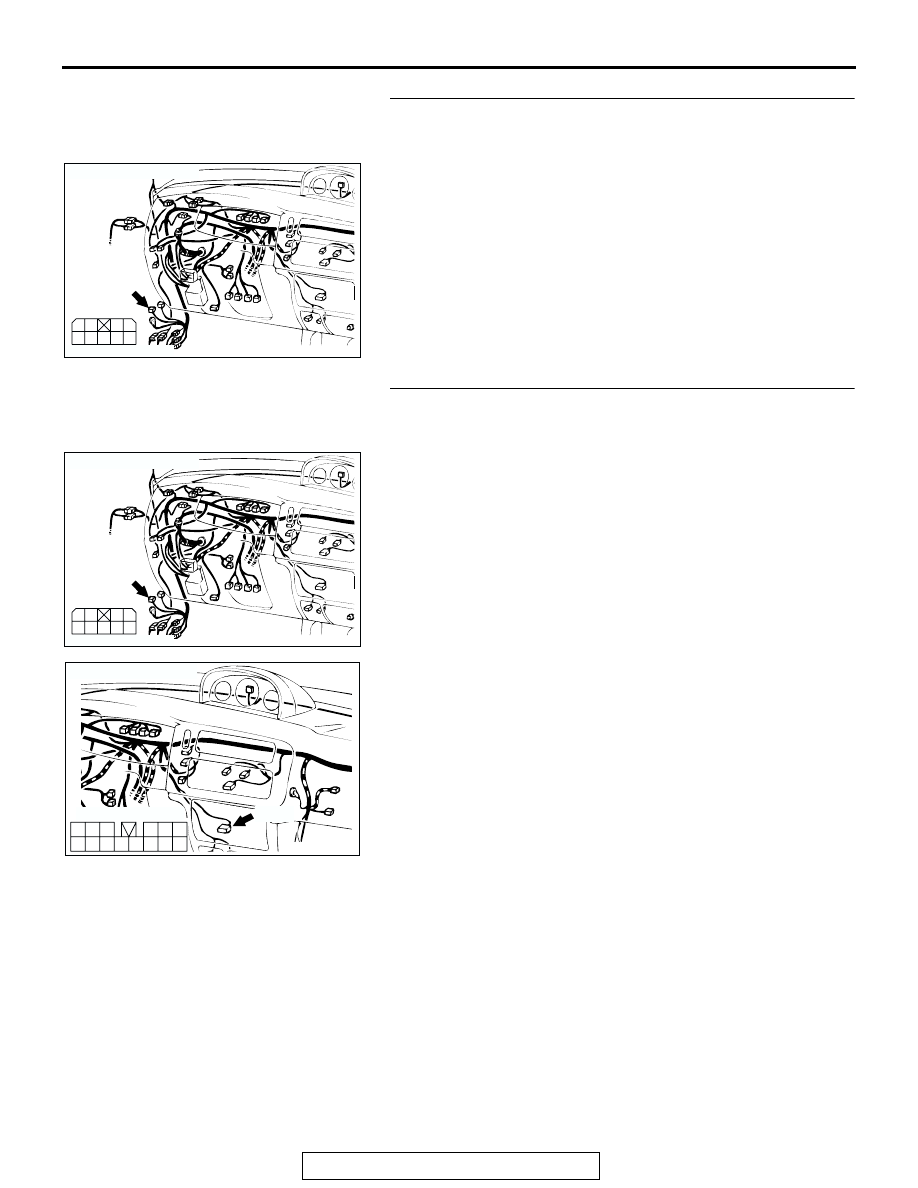

STEP 9. Check antenna motor-ECU connector C-34 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q: Is antenna motor-ECU connector C-34 in good

condition?
YES : Go to Step 10.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

STEP 10. Check the harness wires between antenna
motor-ECU connector C-34 (terminal No. 6) and radio and
CD player connector C-62 (terminal No.3).

Q: Are the harness wires between antenna motor-ECU

connector C-34 (terminal No. 6) and radio and CD player
connector C-62 (terminal No.3) in good condition?
YES : Go to Step 11.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

AC200783

1

7

2

8

10

11

5

13

6

14

12

4

9

3

CONNECTOR: C-62

COMPONENT SIDE

AB

C-62

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-244

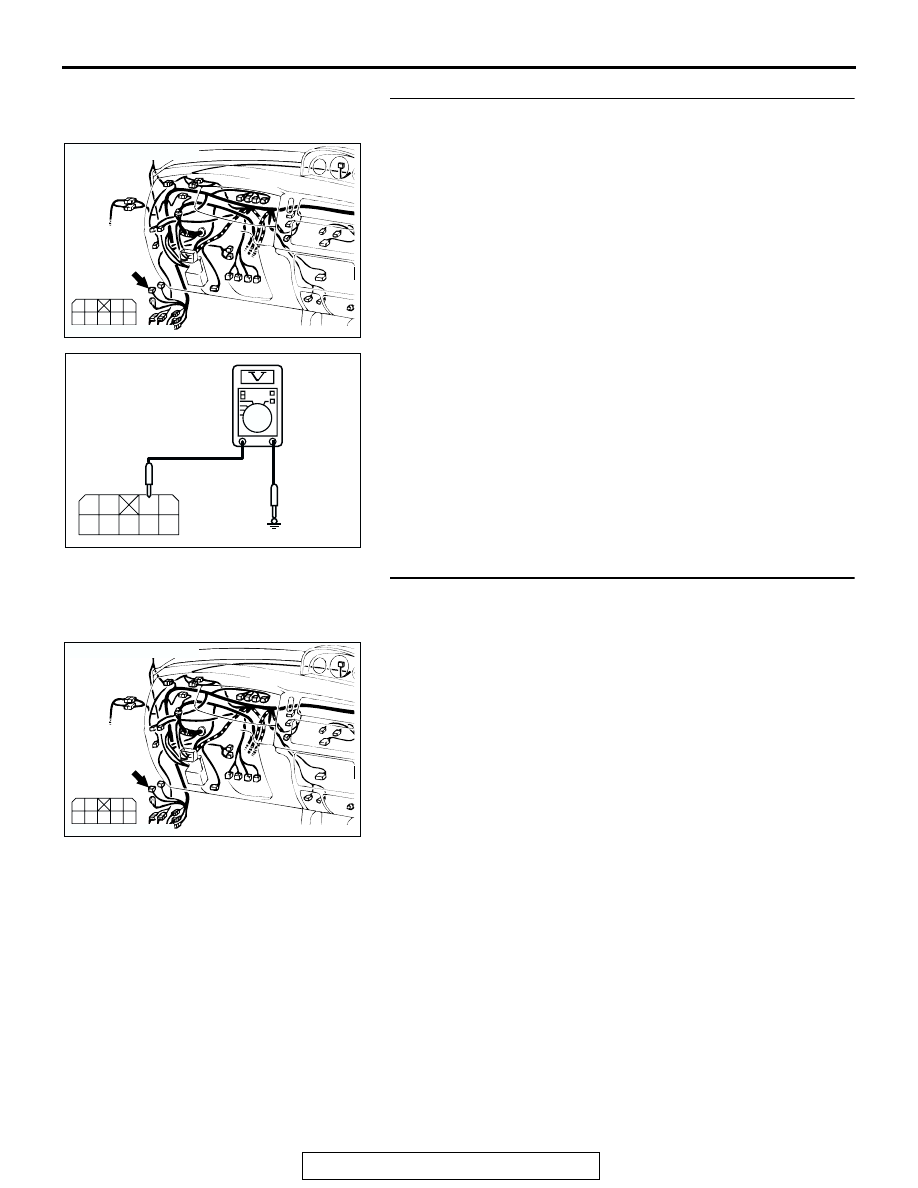

STEP 11. Measure the voltage at the antenna motor-ECU
power supply circuit. (Fusible link number 8)

(1) Disconnect antenna motor-ECU connector C-34 and

measure at harness side.

(2) Measure the voltage between terminal number 2 and

ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Go to Step 13.
NO :  Go to Step 12.

STEP 12. Check the harness wires between fusible link
number 8 and antenna motor-ECU connector C-34

(terminal No.1 and 2).

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

1
5

2
6

7

3
8

4
9

AC202641

C-34
HARNESS CONNECTOR:
COMPONENT SIDE

AB

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-245

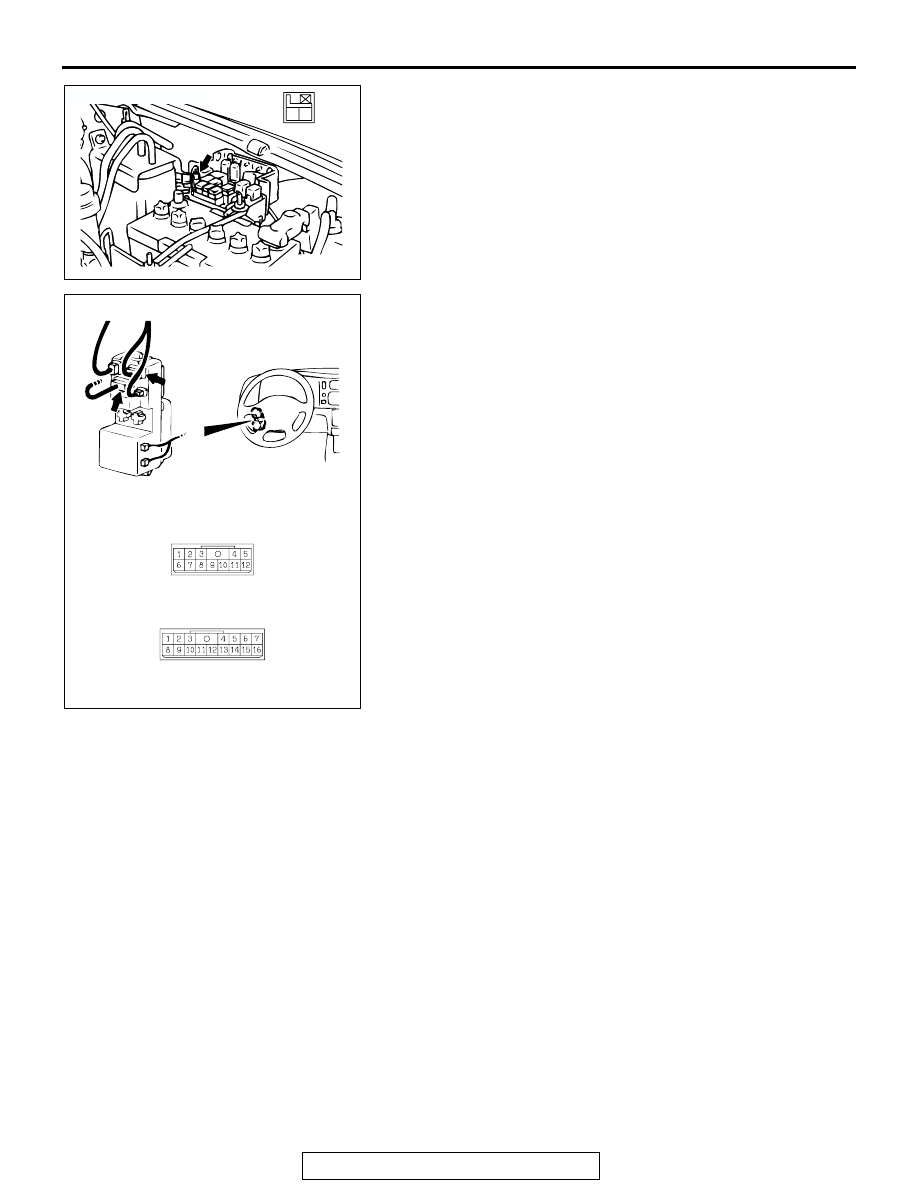

NOTE: After inspecting junction block connectors D-01, D-06
and IOD or storage connector A-54X, inspect the wire. If junc-
tion block connectors D-01, D-06 and IOD or storage connector
A-54X are damaged, repair or replace them. Refer to GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Are the harness wires between fusible link number 6

and antenna motor-ECU connector C-34 in good
condition?
YES : Go to Step 13.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

AC200774

2

1

CONNECTOR: A-54X

AB

A-54X

AC309275AB

CONNECTOR: D-01, D-06

D-01

D-06

JUNCTION BLOCK (FRONT)

D-01

D-06

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-246

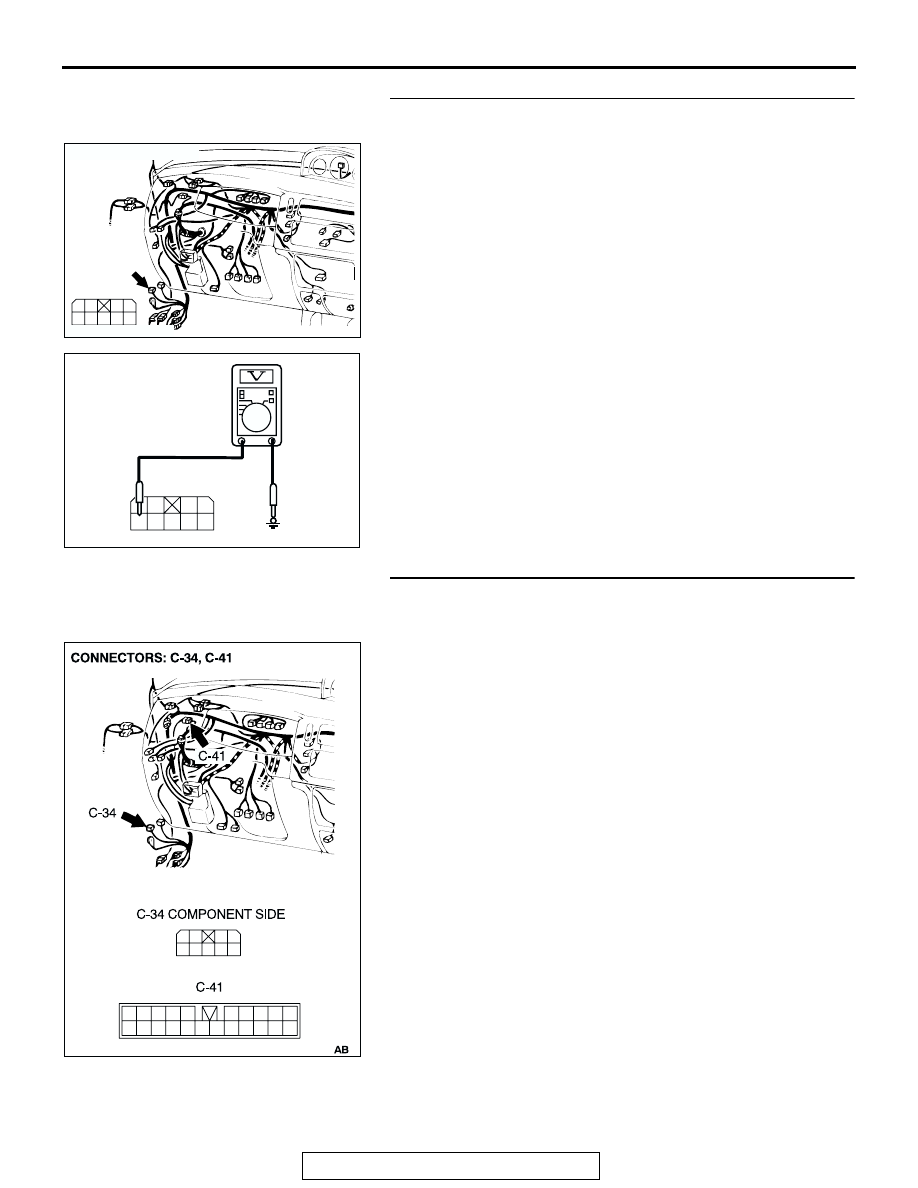

STEP 13. Measure the voltage at the antenna motor-ECU
power supply circuit. (Ignition switch "ACC")

(1) Disconnect antenna motor-ECU connector C-34 and

measure at harness side.

(2) Turn the ignition switch to the "ACC" position.

(3) Measure the voltage between terminal number 9 and

ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Go to Step 15.
NO :  Go to Step 14.

STEP 14. Check the harness wires between ignition switch
"ACC" and antenna motor-ECU connector C-34 (terminal

No. 9).

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

1
5

2
6

7

3
8

4
9

AC202646

C-34
HARNESS CONNECTOR:
COMPONENT SIDE

AB

4

9

3

8

7

2

6

1

5

22

2021

10

9

8

1718

6 7

19

1415

4 5

1112

1 2 3

13

16

AC201810
