Mitsubishi Montero Sport (2004+). Manual - part 565

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-247

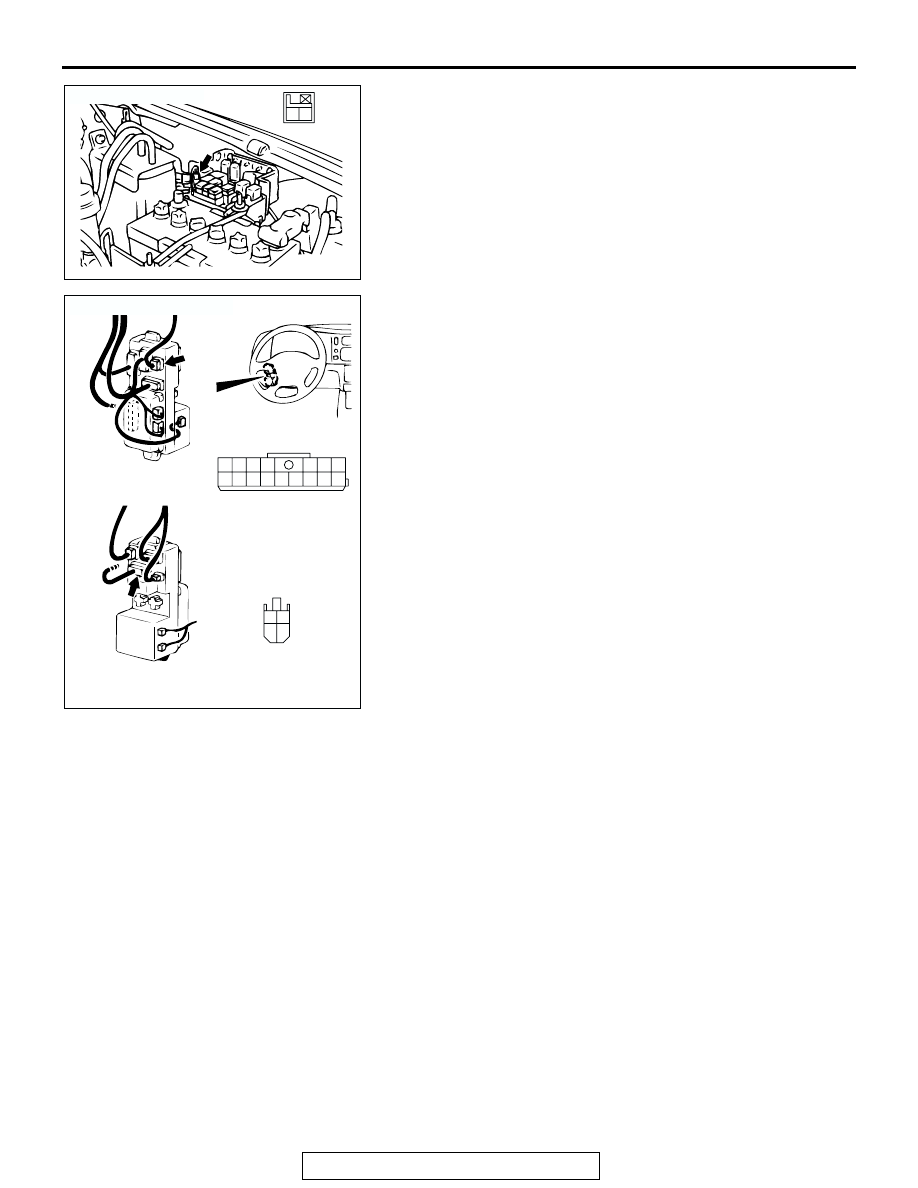

NOTE: After inspecting intermediate connector C-41, junction
block connectors D-06, D-08 and IOD or storage connector
A-54X, inspect the wire. If intermediate connector C-41, junc-
tion block connectors D-06, D-08 and IOD or storage connector
A-54X are damaged, repair or replace them. Refer to GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Are the harness wires between ignition switch "ACC"

and antenna motor-ECU connector C-34 (terminal No. 9)
in good condition?
YES : Go to Step 15.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

AC200774

2

1

CONNECTOR: A-54X

AB

A-54X

AC003511

JUNCTION BLOCK
(FRONT)

JUNCTION BLOCK
(REAR)

CONNECTORS: D-06, D-08

AB

D-06

D-08

COMPONENT SIDE

COMPONENT SIDE

1
8

3

4

5

7 6

10

15

16

14

12

13

11

9

2

M

3

1

4

2

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-248

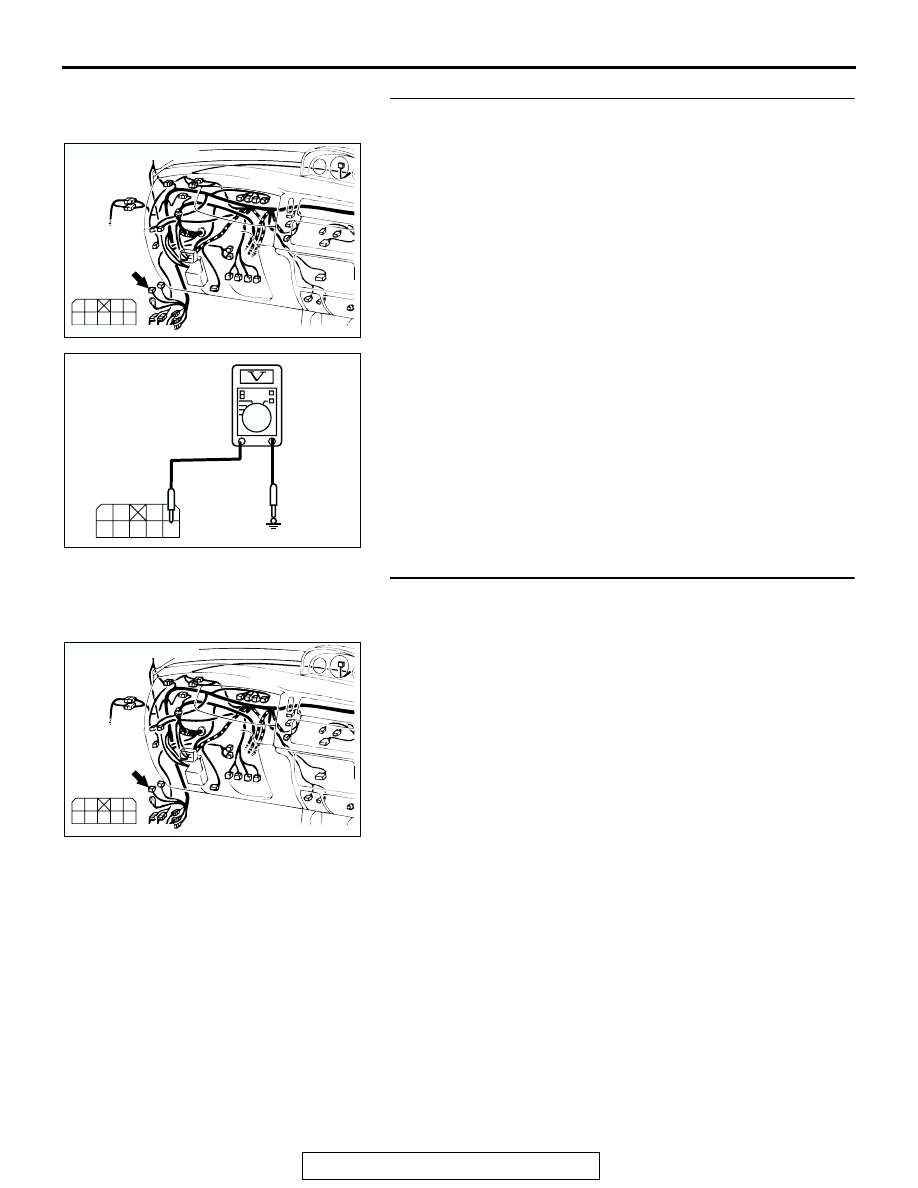

STEP 15. Measure the voltage at the antenna motor-ECU
power supply circuit. [Ignition switch "ON" (IG1)]

(1) Disconnect antenna motor-ECU connector C-34 and

measure at harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal number 5 and

ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES : Antenna motor-ECU power circuit is normal. Check

that the malfunction is eliminated.

NO :  Go to Step 16.

STEP 16. Check the harness wires between ignition switch
"ON" and antenna motor-ECU connector C-34 (terminal

No. 5).

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

1
5

2
6

7

3
8

4
9

AC309276AB

C-34
HARNESS CONNECTOR:
COMPONENT SIDE

AC201808

1

5

2

6

7

3

8

4

9

CONNECTOR : C-34

COMPONENT SIDE

AB

C-34

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-249

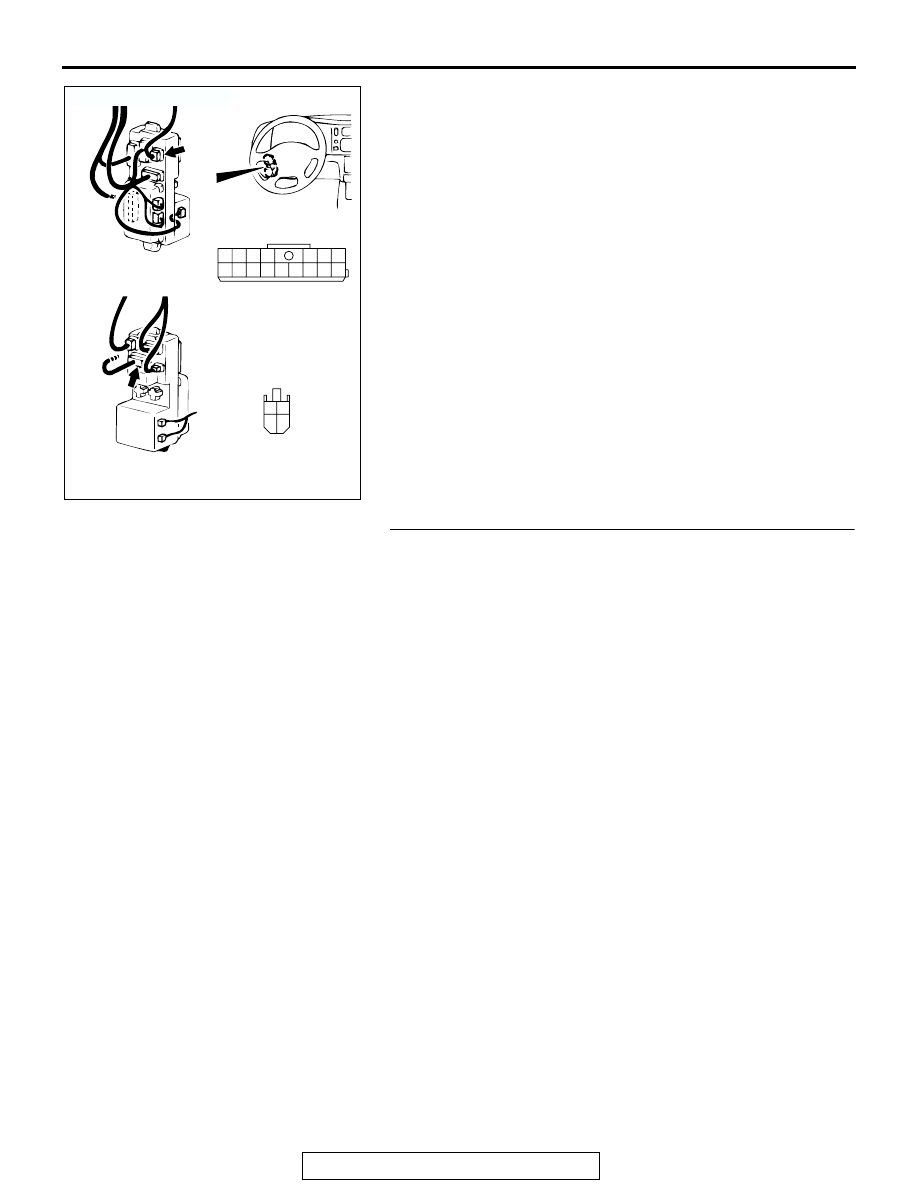

NOTE: After inspecting junction block connectors D-06, D-08,
inspect the wire. If junction block connectors D-06, D-08 are
damaged, repair or replace them. Refer to GROUP 00E, Har-
ness Connector Inspection

P.00E-2

.

Q: Are the harness wires between ignition switch "ON" and

antenna motor-ECU connector C-34 (terminal No.5) in
good condition?
YES : Go to Step 17.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

.

STEP 17. Recheck for malfunction.
Q: Is a malfunction eliminated?

YES : This procedure is complete. (If no malfunctions are

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Point

− How to

Cope with Intermittent Malfunction

P.00-7

.

NO :  Go to Step 1.

AC003511

JUNCTION BLOCK
(FRONT)

JUNCTION BLOCK
(REAR)

CONNECTORS: D-06, D-08

AB

D-06

D-08

COMPONENT SIDE

COMPONENT SIDE

1
8

3

4

5

7 6

10

15

16

14

12

13

11

9

2

M

3

1

4

2

RADIO AND TAPE PLAYER

TSB Revision

CHASSIS ELECTRICAL

54-250

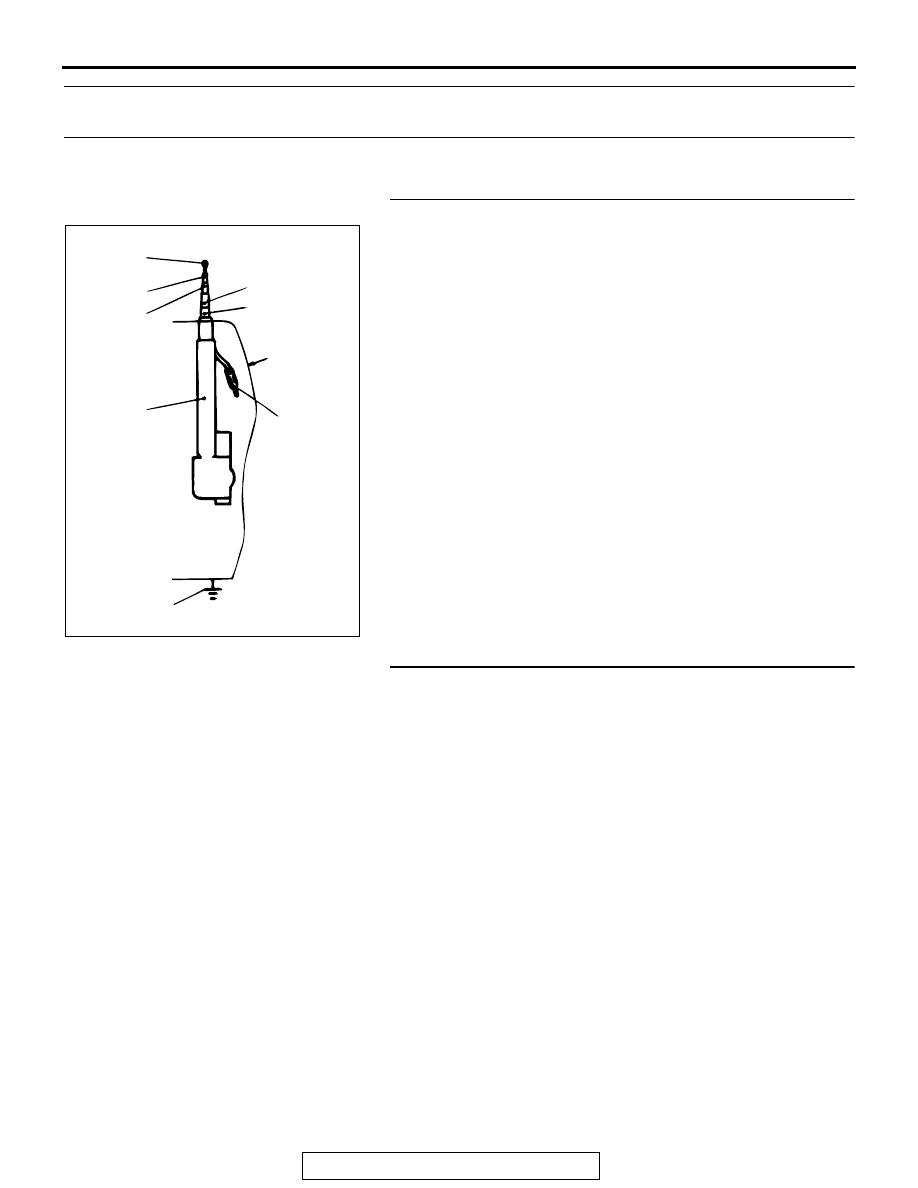

INSPECTION PROCEDURE 25: Motor Antenna Extends and Retracts but does not Receive Radio
Signal.

.

DIAGNOSIS

STEP 1. Is the antenna normal?

Q: Is there continuity on the circuits from F to A, B, C, D

and E, the circuit from G to H?
YES : Go to Step 2.
NO :  Repair or replace the antenna. Then check that the

malfunction is eliminated.

STEP 2. Check the motor antenna.
Q: Does the antenna operate normally when a new antenna

assembly is directly install to the radio?
YES : Replace the motor antenna assembly.
NO :  Radio and tape player may be defective. Carry out

troubleshooting of the radio and CD player

P.54-181

.

ACX01927 AB

A

B

C

D

E

F

G

H

FEEDER
