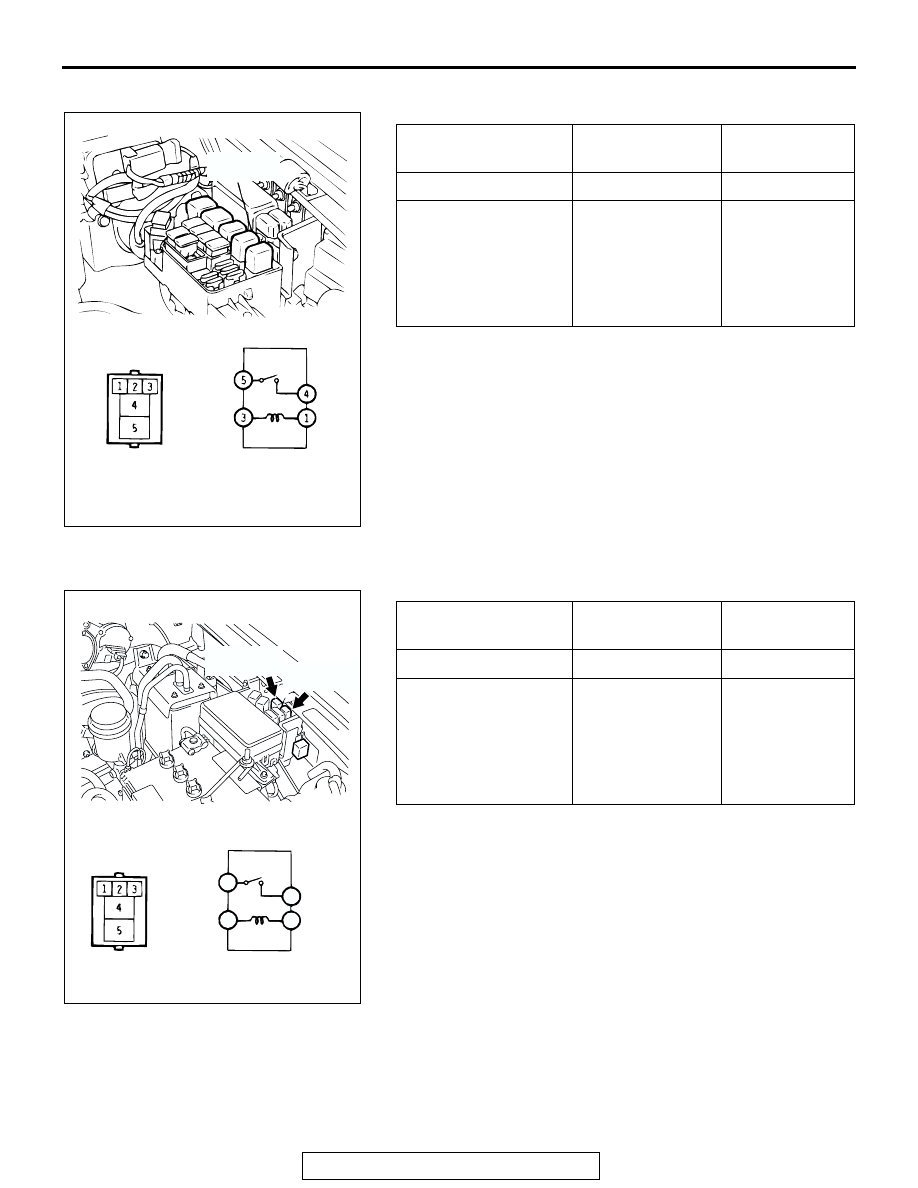

HEADLIGHT RELAY CHECK

DRL RELAY (LOWER AND UPPER) CHECK

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

4

− 5

Open circuit

• Connect terminal 3

to the positive
battery terminal

• Connect terminal 1

to the negative
battery terminal

4

− 5

Less than 2
ohms

AC309547AB

HEADLIGHT
RELAY

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

1

− 3

Open circuit

• Connect terminal 4

to the positive
battery terminal

• Connect terminal 2

to the negative
battery terminal

1

− 3

Less than 2
ohms

AC202569

1

2

3

4

DRL RELAY
(LOWER)

DRL RELAY
(UPPER)

AC

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-156

FOG LIGHT

LIGHTING SYSTEM DIAGNOSIS

INTRODUCTION TO FOG LIGHT DIAGNOSIS

M1542010500508

If the fog light cannot be on, the fuse fog light relay or
fog light switch may be faulty.

FOG LIGHT DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1542010600129

Use these steps to plan your diagnostic strategy. If
you follow them carefully you will be sure that you
have exhausted most of the possible ways to find a
fog light fault.

1. Gather information from the customer.
2. Verify that the condition described by the

customer exists.

ON-VEHICLE SERVICE

FOG LIGHT AIMING

M1542001100267

PRE-AIMING INSTRUCTIONS

1. Inspect for badly rusted or faulty headlight assemblies.
2. These conditions must be corrected before a satisfactory

adjustment can be made.

3. Inspect tire inflation, and adjust if necessary.
4. If the fuel tank is not full, place a weight in luggage room of

vehicle to simulate weight of a full tank [3 kg (6.5 pounds)
per gallon.]

5. There should be no other load in the vehicle other than

driver or substituted weight of approximately 70 kg (150
pounds) placed in driver's position.

6. Thoroughly clean fog light lenses.
7. Place the vehicle on a level floor, perpendicular to a flat

screen 7.62 m (25.0 feet) away from the bulb center-marks
on the fog light lens.

8. Rock vehicle sideways to allow vehicle to assume its normal

position.

9. Bounce the front suspension through three (3) oscillations

by applying the body weight to hood or bumper.

10.Measure the center of the fog lights as shown in the

illustration.

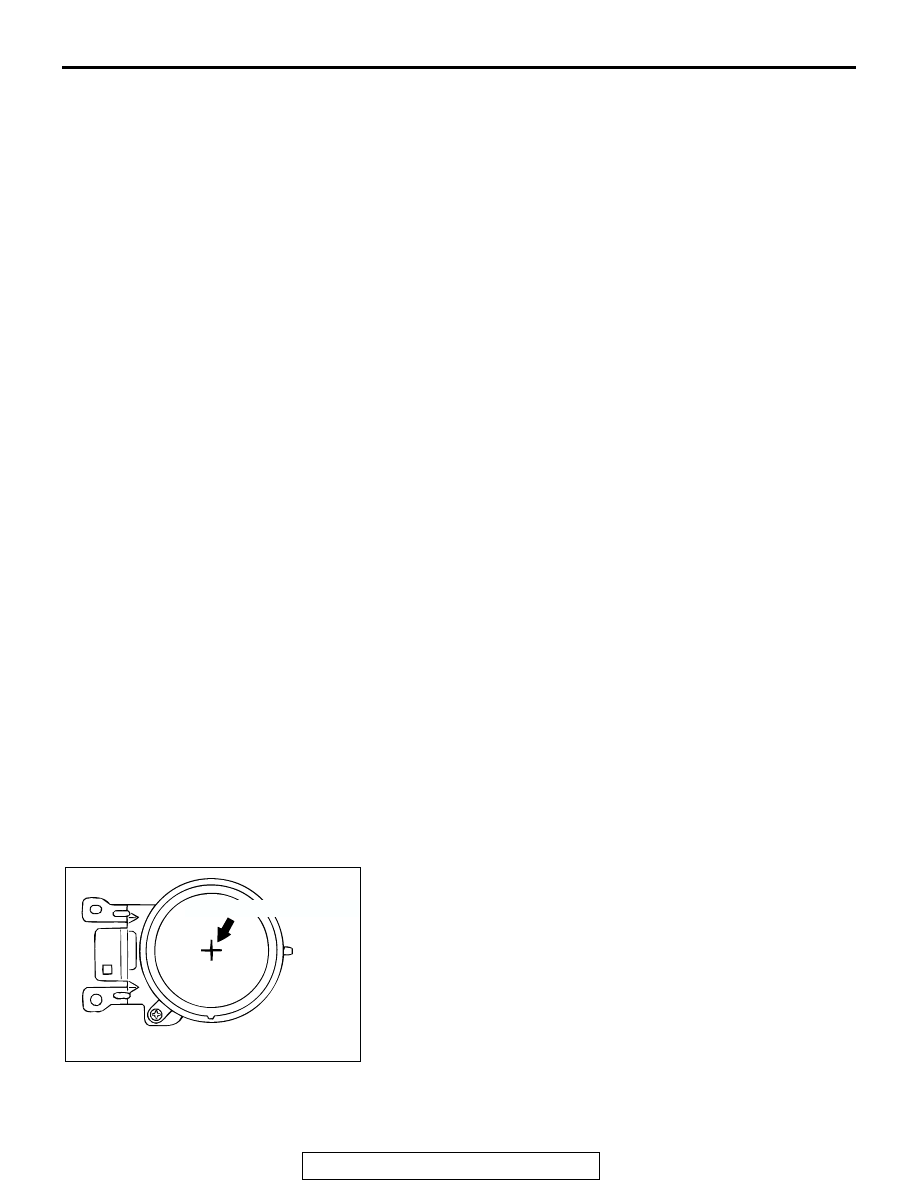

AC002787 AB

FOG LIGHT BULB CENTER

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-157

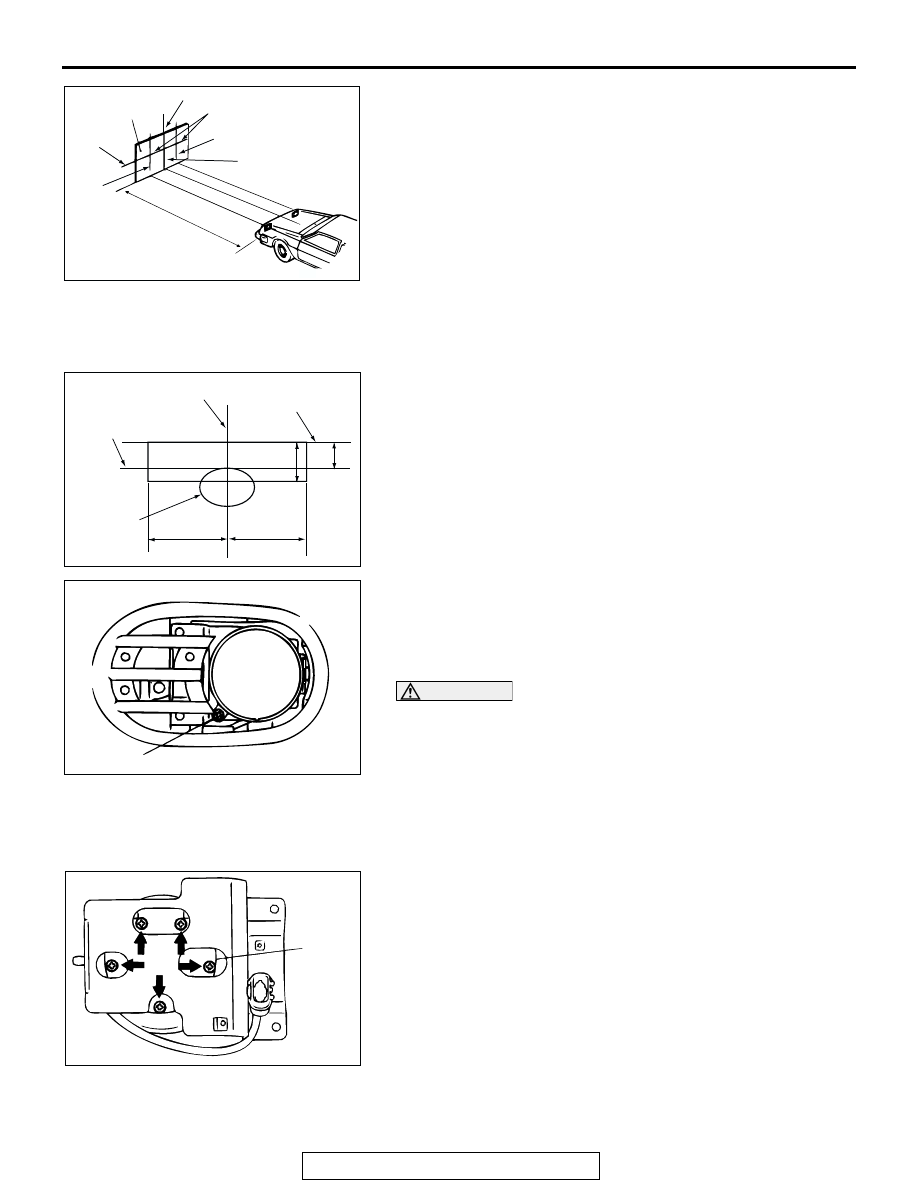

11.Four lines of adhesive tape (or equivalent markings) are

required on screen or wall:

(1) Position a vertical tape or mark so that it is aligned with

the vehicle center line.

(2) Measure the distance from the center-marks on the fog

light lens to the floor. Transfer the measurement to the
screen. Horizontal tape or mark on the screen is for
reference of vertical adjustment.

(3) Measure the distance from the center line of the vehicle

to the center of each fog light. Transfer the measurement
to the screen. Vertical tape or mark on the screen with
reference to the center line of each fog light bulb.

FOG LIGHT ADJUSTMENT

1. The fog light will project on the screen upper edge of the

high intensity zone.

2. Turn the adjusting screws to achieve the specified upper

edge of the high intensity zone on the aiming screen.

Standard value:

(Vertical direction): Top of the hot zone should be

101 mm (4.0 inches) (0.76

°) downward from the

height of the fog light center.

Limit:

(Vertical direction): Top of the hot zone should be

15.24 cm (1.14

°) in maximum downward from the

height of the fog light center.

NOTE: The horizontal direction is non-adjustable. If the devia-
tion of the light beam axis exceeds the standard value, check
for improper/defective mounting location.

CAUTION

When making the aiming adjustment, be sure to block the
beam of those lights which are not being adjusted.

 BULB REPLACEMENT

M1542001300346

1. Remove the fog light.
2. Loosen the shown screws to remove the cover.

AC005167

SCREEN

(1)

(2)

(3)

(3)

FOG LIGHT CENTER

VEHICLE CENTER
LINE

7.62m (25.0 ft)

AD

AC100547

HEIGHT OF FOG

LIGHT CENTER

VERTICAL CENTER LINE

AHEAD OF FOG LIGHT

UPPER MOST LEVEL

OF HOT ZONE

HOT ZONE

mm (in)

AB

152 (6.0)

101 (4.0)

598 (23.5)

598 (23.5)

AC002788AB

ADJUSTING SCREW

AC002789AB

COVER

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54-158

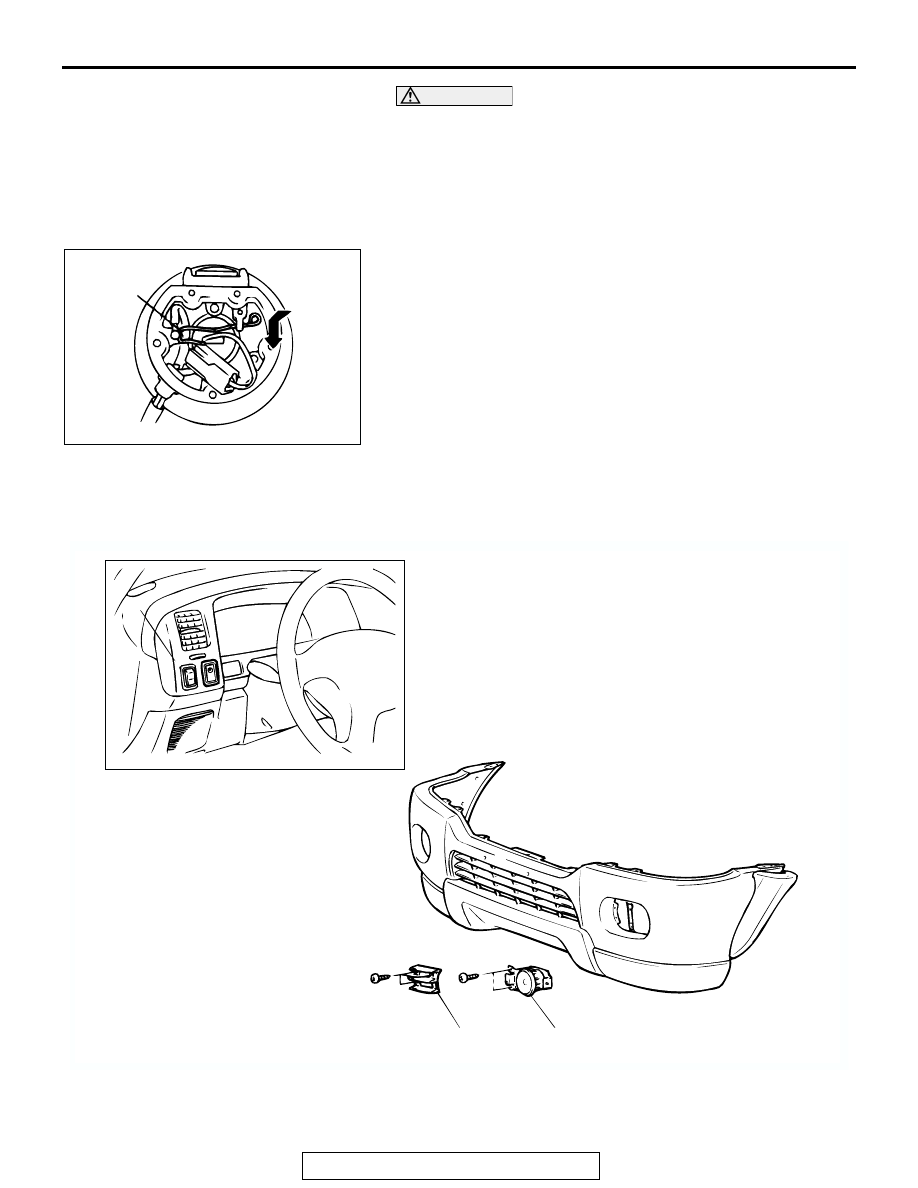

CAUTION

• Do not touch the surface of the bulb with hands or dirty

gloves. If the surface does become dirty, clean it with
alcohol or thinner, and let it dry thoroughly before
installing.

• Improper installation of the under cover causes a unit.

Make sure that the under cover is installed properly.

3. Unlock the spring which secures the bulb and then remove

the bulb.

FOG LIGHT

REMOVAL AND INSTALLATION

M1542001500287

AC003019

SPRING

AB

AC002791

1

2

AB

3

1. FOG LIGHT SWITCH

FOG LIGHT REMOVAL STEPS

2. INTERCOOLER GRILL
3. FOG LIGHT
